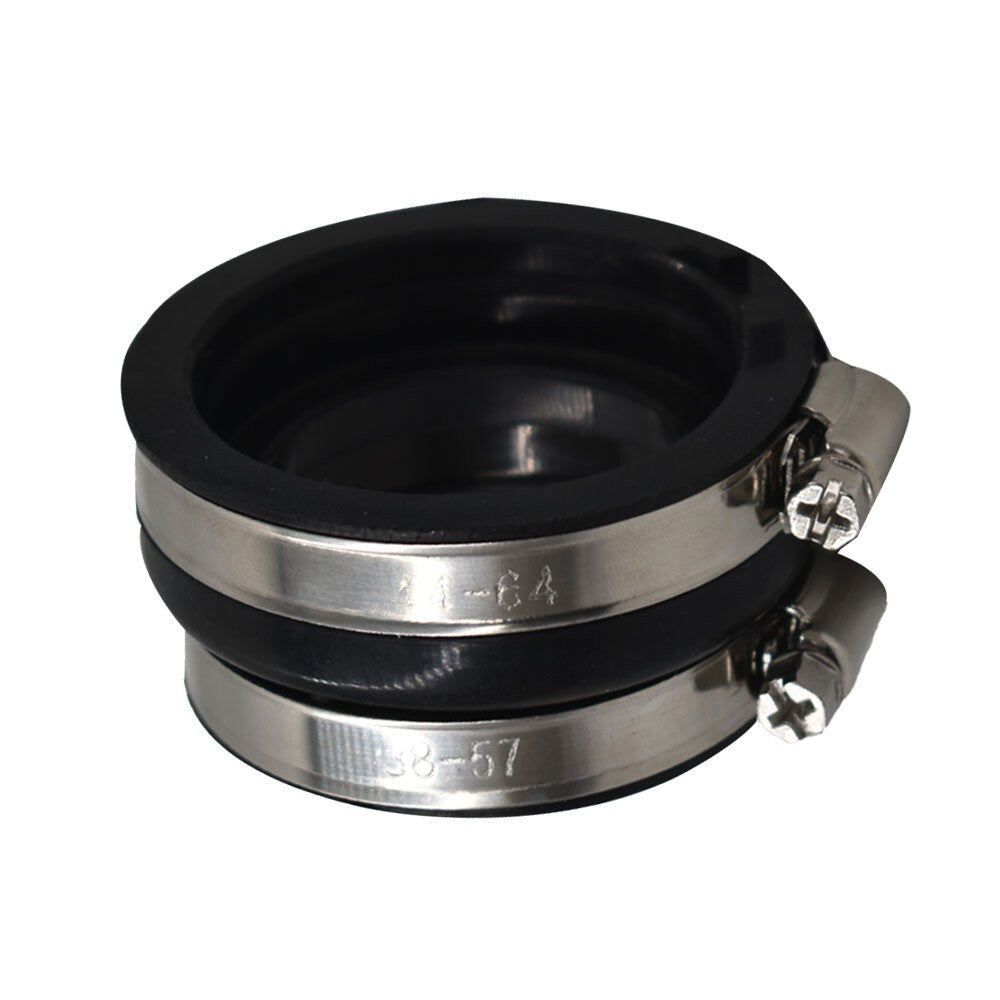

Carburetor Intake Manifold Boot for 1998-2001 Yamaha Grizzly 600 - 4WV-13596-00-00
$22.99
In Stock
$22.99
Sale price
$22.99
Regular price
This carburetor intake manifold boot fits 1998-2001 Yamaha Grizzly 600 YFM600 models and replaces 4WV-13596-00-00.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Yamaha Grizzly 600 YFM600 / YFM600F 4x4 (1998)
- Yamaha Grizzly 600 YFM600 / YFM600F 4x4 (1999)
- Yamaha Grizzly 600 YFM600 / YFM600F 4x4 (2000)
- Yamaha Grizzly 600 YFM600 / YFM600F 4x4 (2001)
Product Overview
Cracks in the rubber intake flange can pull unmetered air into the Grizzly 600, causing a hanging idle, lean backfire, hard starting, or an engine that runs better with the choke partly on. Replacing the boot seals the connection between the carburetor and cylinder head once the leak has been confirmed.
A new boot will not correct blocked jets, weak ignition, tight valves, or low compression. Inspect the carburetor outlet diameter and both sealing faces, then compare the molded angle and mounting holes to the original 4WV flange.
Key Features & Performance
- Seals the carburetor-to-engine intake joint
- Molded for the Yamaha Grizzly 600 YFM600 layout
- Replacement for cracked, hardened, or fuel-softened rubber
- Helps eliminate a confirmed intake vacuum leak
- Cross-references Yamaha 4WV-13596-00-00
Replaces Part Numbers
- 4WV-13596-00-00
- 4WV-13596-00
Common Uses
- Repairing a smoke-test-confirmed intake leak
- Correcting a hanging or unstable idle caused by a split boot
- Replacing a hardened flange during carburetor service
- Stopping dirt entry at a damaged intake joint
Technical Specifications
- Product Type: Carburetor intake manifold boot
- Application: Yamaha Grizzly 600 YFM600
- Model Years: 1998-2001
- Location: Carburetor to cylinder head
- Condition: New
- Reference: 4WV-13596-00-00
Installation & Fitment
- Confirm the leak with inspection, smoke testing, or an appropriate diagnostic method
- Clean the cylinder-head and carburetor sealing surfaces without dropping debris into the intake
- Position the boot without twisting and tighten the mounting fasteners evenly
- Seat the carburetor fully and orient the clamp away from interference
- Start the engine, check for leaks, and then set idle mixture and speed as required
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Match 1998-2001 YFM600 fitment, 4WV-13596-00-00, bolt spacing, carburetor opening, molded angle, and clamp arrangement. Model year, production date, serial number, trim, engine, installed options, and previous repairs can affect fitment.
Frequently Asked Questions
Q: Can a cracked intake boot make the engine need choke? A: Yes. Extra air entering after the carburetor creates a lean mixture, which may make the engine run better when the choke adds fuel.
Q: Is this a complete carburetor? A: No. This is the rubber intake flange that connects the carburetor to the engine.
Q: What should I compare before ordering? A: Match 1998-2001 YFM600 fitment, 4WV-13596-00-00, bolt spacing, carburetor opening, molded angle, and clamp arrangement.
Q: Is this supplied by the original equipment manufacturer? A: No. This is a new aftermarket part. Brand names and reference numbers identify fitment only.
Package note: One intake manifold boot is included with clamps only when shown in the product photos.
Part Summary
keywords: Yamaha Grizzly 600 intake boot, 4WV-13596-00-00 replacement, YFM600 vacuum leak repair, Grizzly 600 hanging idle fix, Yamaha carburetor manifold flange, 1998-2001 Grizzly intake joint
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
