1994-2003 Ford 7.3L Power Stroke Turbo Pedestal Seal Kit 72468
$35.99
In Stock
$35.99
Sale price
$35.99
Regular price

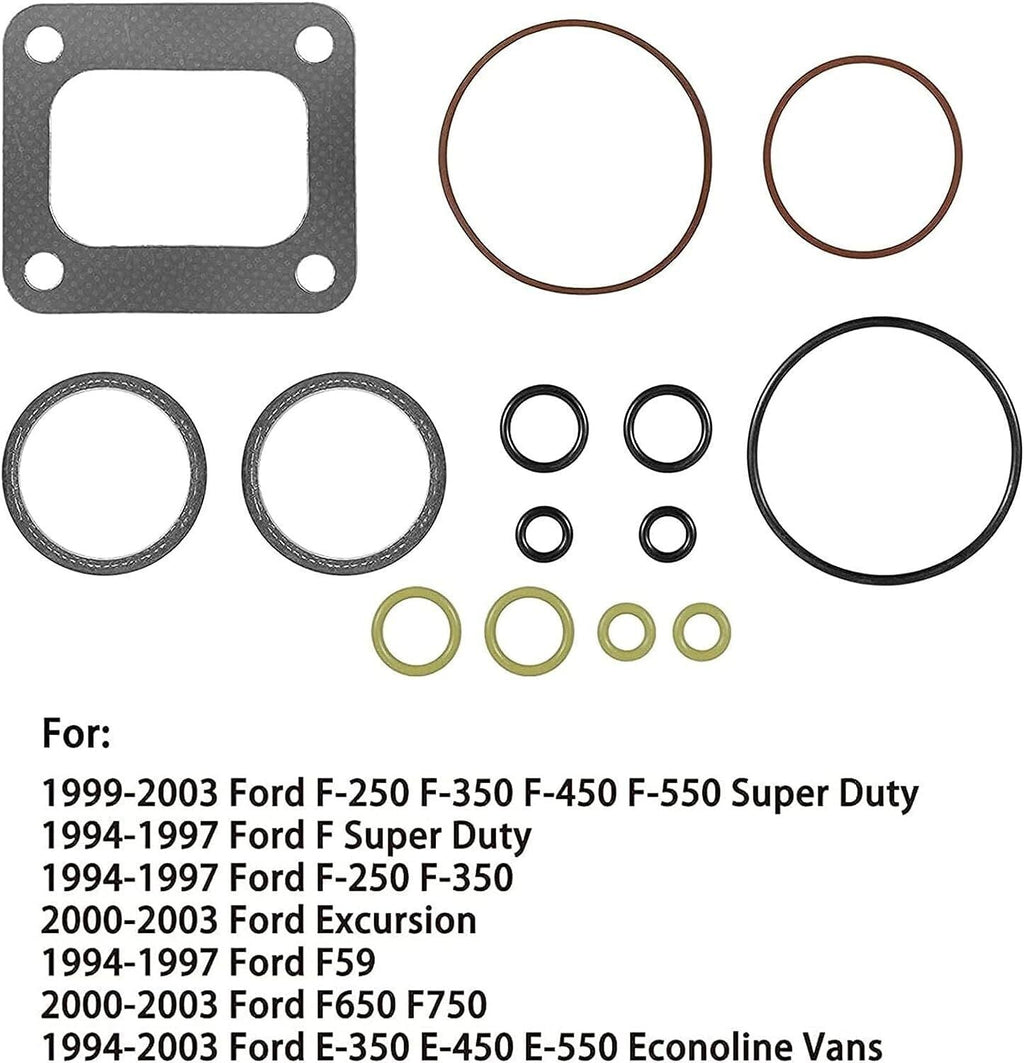

This new aftermarket turbo-pedestal O-ring and base-gasket set cross-references 72468 for compatible 1994-2003 Ford 7.3L Power Stroke engines.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Ford F-250 / F-350 7.3L Power Stroke (1994-1997)
- Ford F-250 / F-350 / F-450 / F-550 Super Duty 7.3L (1999-2003)
- Ford Excursion 7.3L Power Stroke (2000-2003)
- Ford E-Series 7.3L Power Stroke with matching pedestal
Product Overview
Oil collecting in the engine valley and running down the back of a 7.3L can look like a rear-main leak. When the trail begins at the turbo pedestal, hardened yellow O-rings or the base gasket are common service points.
This kit reseals the pedestal-to-engine and turbo mounting area shown. It will not stop oil from leaking at high-pressure lines, the HPOP reservoir, valve covers, turbo bearings, or an EBPV actuator shaft.
Verify the turbo and pedestal configuration, including EBPV or deleted setups, and compare every gasket and O-ring before the turbo is removed.
Key Features & Performance
- High-temperature pedestal O-rings
- Turbo-base gasket for matching 7.3L layout
- Targets common valley oil leaks during turbo service
- Compact seal set for a labor-intensive access job
Replaces Part Numbers
- 72468
- F4TZ-6N653-A
- F4TZ-6N653-B
Common Uses
- Resealing the turbo pedestal during removal
- Correcting a confirmed oil trail from pedestal O-rings
- Replacing disturbed seals during EBPV or turbo service
Technical Specifications
- Product Type: Turbo pedestal seal and gasket kit
- Engine: Ford 7.3L Power Stroke diesel
- System: Turbocharger pedestal
- Condition: New aftermarket seals
Installation & Fitment
- Clean the engine and locate the leak before teardown
- Mark intake and exhaust connections during turbo removal
- Clean sealing surfaces without scratching them
- Lubricate and place O-rings exactly as the service procedure states
- Prime, start, and inspect the valley for fresh oil
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Can this fix oil running down the transmission bellhousing? A: It can if the leak begins at the turbo pedestal, but several 7.3L oil sources drain through the same valley.
Q: Does it fix an EBPV actuator leak? A: Not necessarily. An actuator-shaft leak may require pedestal repair or replacement.
Q: Should the seals be changed whenever the turbo is removed? A: Replacing disturbed, heat-aged seals during access is generally sensible when the correct kit is confirmed.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: 7.3 Power Stroke turbo pedestal O rings, 72468 seal kit, Ford diesel valley oil leak repair, F4TZ-6N653-A gasket, 7.3 turbo base gasket set
