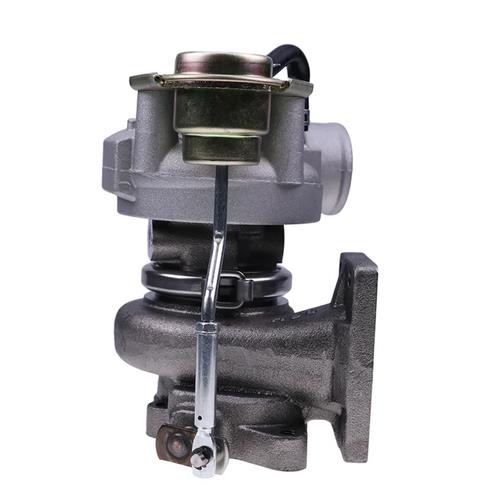

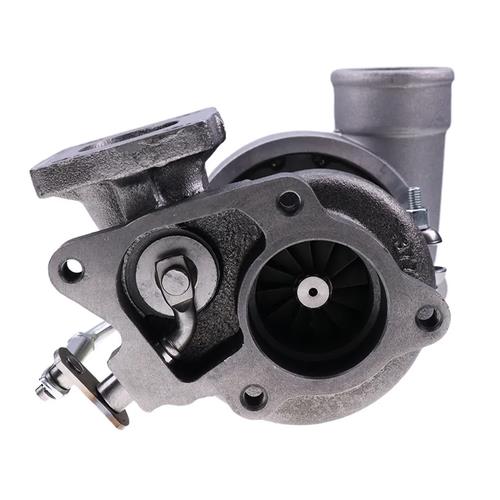

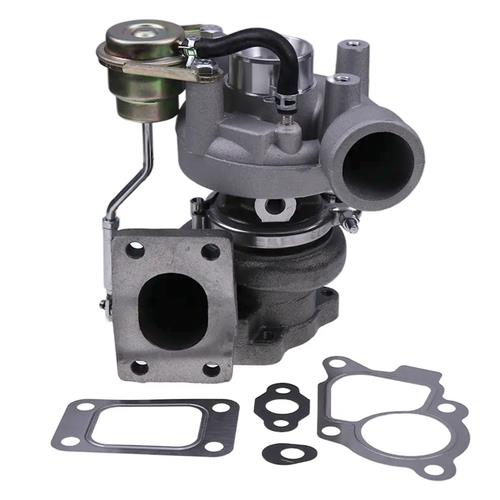

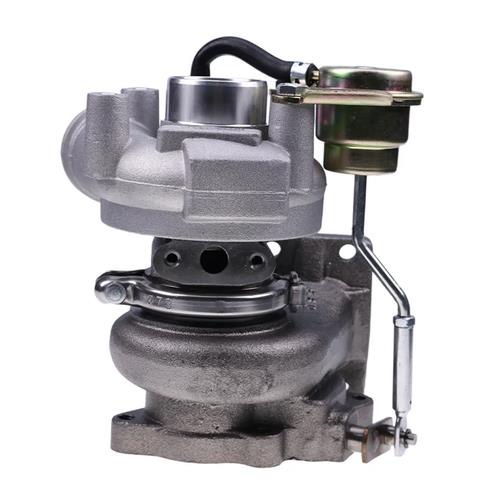

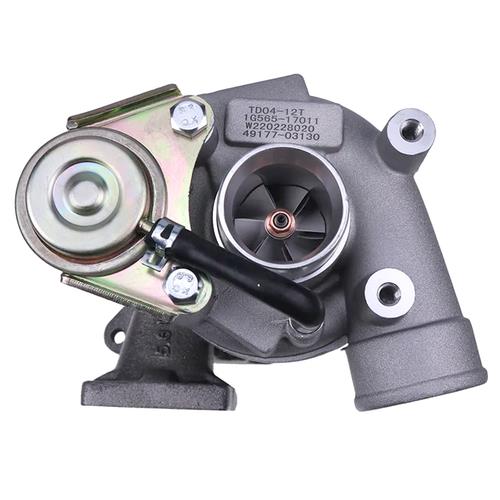

Bobcat S250 Turbocharger 49177-03160 for Kubota V3300-T 3.3L
$432.99
In Stock
$432.99
Sale price
$432.99
Regular price
This turbocharger replaces 49177-03160 and 49177-03130 on compatible Bobcat S250 skid steers with the 3.3L Kubota V3300-T diesel engine.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Bobcat S250 skid steer with compatible Kubota 3.3L V3300-T engine
- Other equipment using the same V3300-T turbo only when 49177-03160 or 49177-03130 and all housings match
Product Overview
Loss of boost, blue smoke, compressor noise, oil in the charge pipe, or excessive shaft movement can identify a damaged turbo—but the oil supply, crankcase pressure, air filter, exhaust restriction, and engine condition must be corrected first.
A replacement turbo can fail within minutes if debris remains in the intake or the oil feed is restricted. The flange, compressor and turbine housings, actuator arrangement, oil fittings, and Mitsubishi number must match the removed unit.
Key Features & Performance
- For compatible Kubota V3300-T 3.3L engines
- Bobcat S250 skid-steer application
- Crosses to 49177-03160 and 49177-03130
- Restores exhaust-driven boost after confirmed turbo failure
- New aftermarket turbocharger
Replaces Part Numbers
- 49177-03160
- 49177-03130
Common Uses
- Replacing a turbo with verified bearing or seal failure
- Restoring boost after air, exhaust, fuel, and engine faults are ruled out
- Repairing a damaged compressor or turbine after all debris is removed
Technical Specifications
- Product Type: Turbocharger
- Primary Application: Bobcat S250 with compatible Kubota V3300-T engine
- Package Quantity: 1 turbocharger
- Condition: New
- Replacement Type: Aftermarket
- Turbo Family: Mitsubishi-style unit
- Engine: Kubota V3300-T 3.3L
- References: 49177-03160; 49177-03130
- Application: Bobcat S250
- Condition: New aftermarket
Installation & Fitment
- Find and correct the original turbo failure cause
- Flush or replace contaminated oil feed and drain lines
- Inspect the intake, charge pipes, and exhaust for debris
- Prime the bearing housing with clean oil before the first start
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, connector, dimensions, installed options, and previous repairs can affect fitment. Compare the original component and reference information before purchase.
Frequently Asked Questions
Q: Is visible oil in the compressor outlet always a bad turbo? A: Not always. Crankcase ventilation, oil level, restrictions, and engine blow-by can also move oil into the intake.
Q: Why prime the turbo before starting? A: The shaft can spin at high speed before engine oil reaches a dry bearing if it is not pre-lubricated.
Q: How do I confirm this is the correct part? A: Match both turbo numbers, engine tag, exhaust and compressor flange, housing orientation, oil ports, wheel sizes, and actuator arrangement.
Q: Is this supplied by the original equipment manufacturer? A: No. This is a new aftermarket item. Brand, model, and part numbers are used only to identify compatible applications.
Part Summary
keywords: Bobcat S250 turbocharger, 49177-03160 turbo, Kubota V3300-T turbo replacement, 49177-03130 skid steer turbo, S250 low boost repair
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
