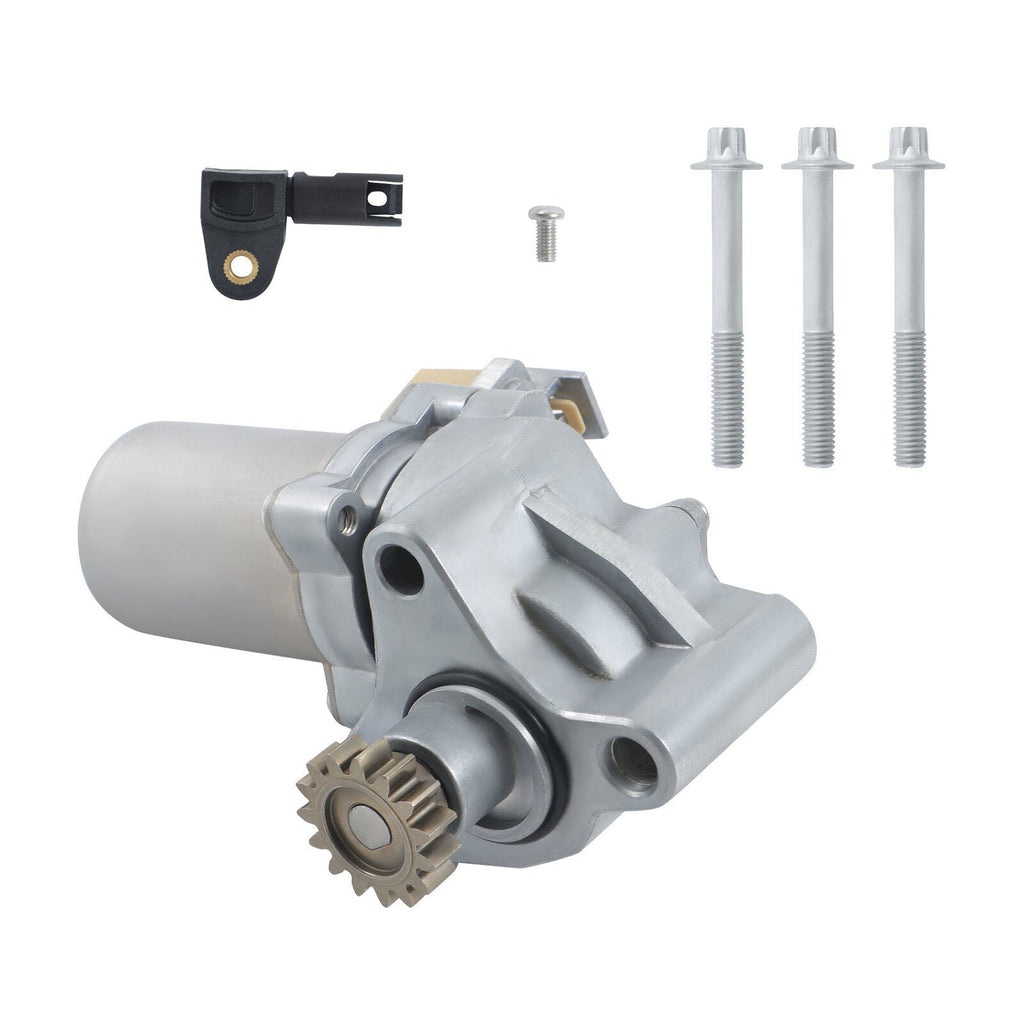

BMW ATC300 Transfer Case Actuator 27107546671 for E60 E90 E92 xDrive
$135.99
In Stock
$135.99
Sale price
$135.99
Regular price
This aftermarket ATC300 transfer-case actuator replaces BMW 27107546671 and 27102449712 on compatible E60, E61, E90, and E92 xDrive models.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- BMW 325xi / 330xi E90 (2006)
- BMW 328xi / 335xi E90-E92 (2007-2008)
- BMW 328i xDrive / 335i xDrive E90-E92 (2009-2013 compatible applications)
- BMW 525xi / 530xi E60-E61 (2006-2007)
- BMW 528xi / 535xi E60-E61 (2008)
- BMW 528i xDrive / 535i xDrive E60-E61 (2009-2010)
Product Overview
A 4x4 or xDrive warning, clicking from the transfer case after shutdown, binding during tight turns, or stored actuator-position faults can lead to the transfer-case motor after tire size, battery voltage, wiring, fluid, and internal case condition are checked.
The actuator positions the ATC300 clutch system to vary front-to-rear torque. A stripped gear may be repairable by itself, but a failed motor or position feedback requires the assembly. Match the transfer-case tag, connector, mounting, and BMW number; chassis code alone is not enough.
Key Features & Performance
- Electric actuator for compatible ATC300 transfer cases
- Controls xDrive clutch engagement through the transfer case
- Cross-references the original and superseding BMW numbers
- Direct-style connector and three-bolt mounting pattern
Replaces Part Numbers
- 27107546671
- 27-10-7-546-671
- 27102449712
- 27-10-2-449-712
Common Uses
- Replacing an actuator motor with failed position feedback
- Correcting ATC300 engagement faults after diagnosis
- Repairing clicking or 4x4 warnings when the actuator is confirmed
Technical Specifications
- Product Type: Transfer case actuator motor
- Transfer Case: ATC300
- Drive System: BMW xDrive / all-wheel drive
- Condition: New aftermarket replacement
Installation & Fitment
- Read transfer-case faults and adaptations before disassembly
- Confirm all four tires match in size and rolling circumference
- Inspect the case for mechanical binding and the connector for fluid or corrosion
- Perform the BMW-required actuator calibration or adaptation after installation
Compatibility Notice
Northline Parts does its best to list all known compatible models. The correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Will an actuator fix every BMW 4x4 warning? A: No. Tire mismatch, low voltage, wheel-speed faults, wiring, fluid, or internal transfer-case wear can set similar faults.
Q: How do I confirm ATC300? A: Read the transfer-case identification tag and compare 27107546671, the connector, and mounting.
Q: Does it need calibration? A: Many BMW systems require an actuator or transfer-case adaptation with a capable scan tool.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: BMW 27107546671 actuator, ATC300 transfer case motor, E90 xDrive 4x4 warning repair, E60 transfer case actuator, BMW 27102449712 replacement
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, specifications, and application before purchase.
