Track Bar Drop Bracket for 2008-2016 Ford F-250 F-350 4WD | 2-3.5-Inch Lift
$119.99
In Stock
$119.99
Sale price
$119.99
Regular price

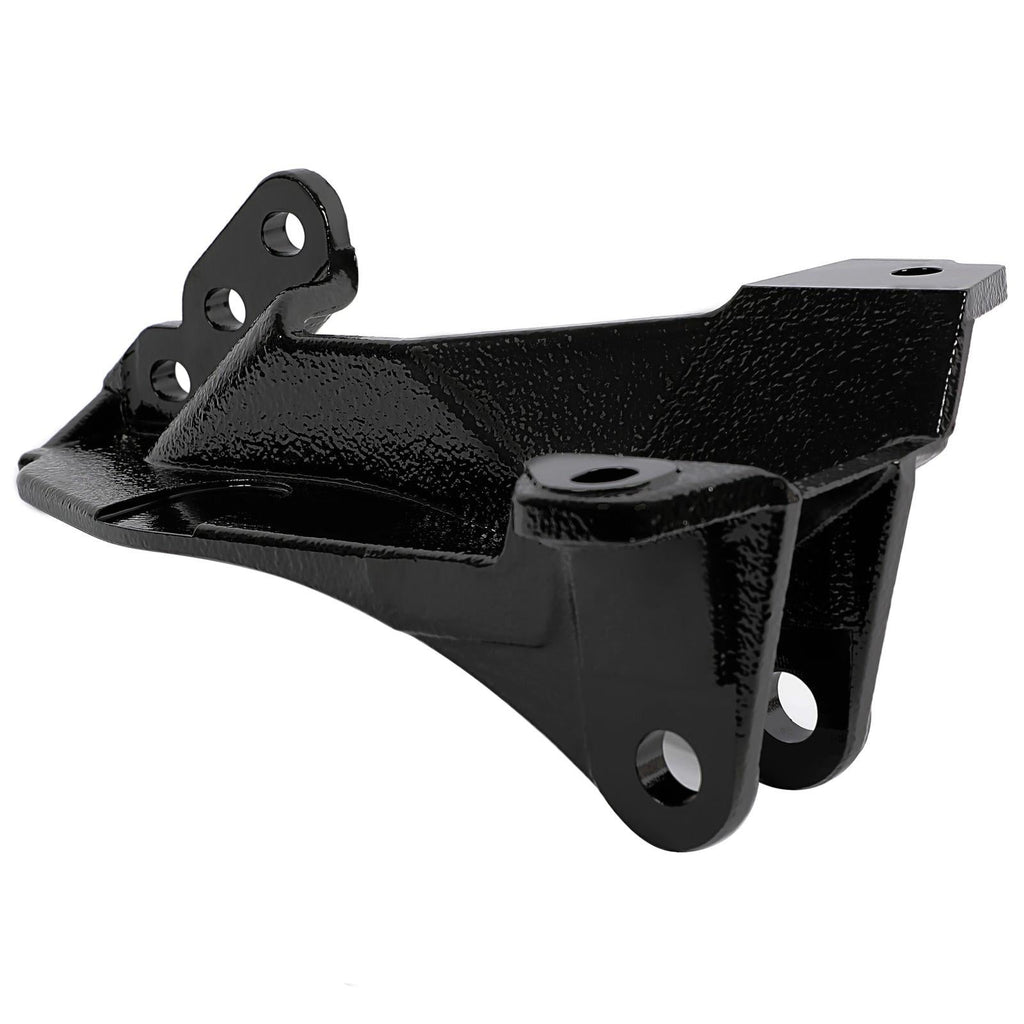

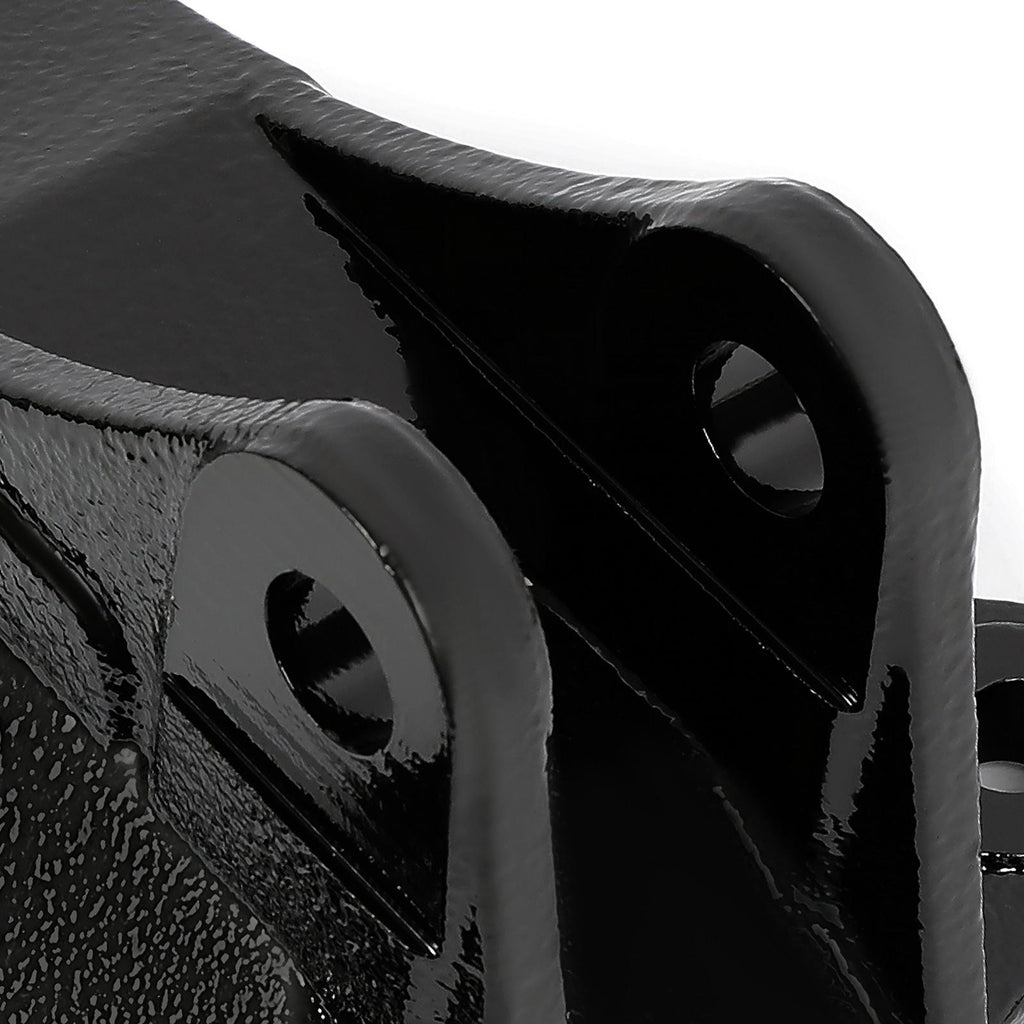

This powder-coated steel track-bar drop bracket fits 2008-2016 Ford F-250 and F-350 Super Duty 4WD trucks using a compatible 2- to 3.5-inch suspension lift.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 2008-2016 Ford F-250 Super Duty 4WD with compatible 2-3.5 in lift
- 2008-2016 Ford F-350 Super Duty 4WD with compatible 2-3.5 in lift
Product Overview
Lifting a solid-axle Super Duty changes the track-bar angle and can move the front axle sideways. This relocation bracket lowers the frame-side mounting point to help bring the bar and steering geometry back toward the intended relationship.
It is not a cure for worn ball joints, loose track-bar bushings, bad steering linkage, tire problems, or an incorrect lift. Suspension geometry and fastener torque are safety-critical, so the complete setup must be measured and aligned.
This is a high-quality aftermarket replacement or service part and is not manufactured or supplied by the original equipment brand. The names below identify compatible applications only.
Key Features & Performance
- Relocates the frame-side track-bar point on compatible lifted trucks
- Designed around 2- to 3.5-inch lift heights
- Powder-coated steel construction
- Helps correct lateral axle position and track-bar angle when properly installed
Common Uses
- Correcting front-axle shift after a suspension lift
- Bringing track-bar geometry closer to the drag-link angle
- Replacing a bent or incorrect relocation bracket
Technical Specifications
- Product Type: Front track-bar drop bracket
- Drivetrain: 4WD
- Lift Range: 2-3.5 in
- Material: Steel
- Finish: Black powder coat
Installation & Fitment
- Confirm the exact suspension kit, lift height, and existing steering geometry
- Support the axle and follow approved torque and drilling instructions if required
- Inspect the track bar, bushings, ball joints, drag link, and steering damper
- Center the axle, set steering alignment, and recheck fastener torque after road testing
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown. Always verify the original part number, measurements, connections, and equipment configuration before purchase.
Frequently Asked Questions
Q: Will this eliminate steering wander? A: Only if incorrect track-bar geometry is the cause; worn steering and suspension parts must be diagnosed separately.
Q: Can it be used on a stock-height truck? A: No. It is intended for the listed lifted 4WD configuration.
Q: Is an alignment required? A: Yes. Axle centering and steering alignment should be checked after changing track-bar position.
Part Summary
keywords: Ford F250 track bar drop bracket, F350 2 inch lift bracket, Super Duty axle centering bracket, 2008 2016 Ford 4WD suspension, 3.5 inch lift track bar, lifted truck steering geometry, powder coated track bar mount, aftermarket Super Duty bracket
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
