Yamaha Grizzly 660 Rhino 660 Top-End Gasket Kit 2002–2008
$22.99
In Stock
$22.99
Sale price
$22.99
Regular price
Top-end gasket package for compatible 2002–2008 Yamaha Grizzly 660 and 2004–2007 Rhino 660 engines.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 2002–2008 Yamaha Grizzly 660 YFM660
- 2004–2007 Yamaha Rhino 660 YXR660
Product Overview
A head-gasket leak, oil seepage, low compression, or a cylinder already opened for piston or valve work requires fresh seals—but new gaskets will not correct a warped head, cracked casting, loose studs, worn piston, or cooling-system fault.

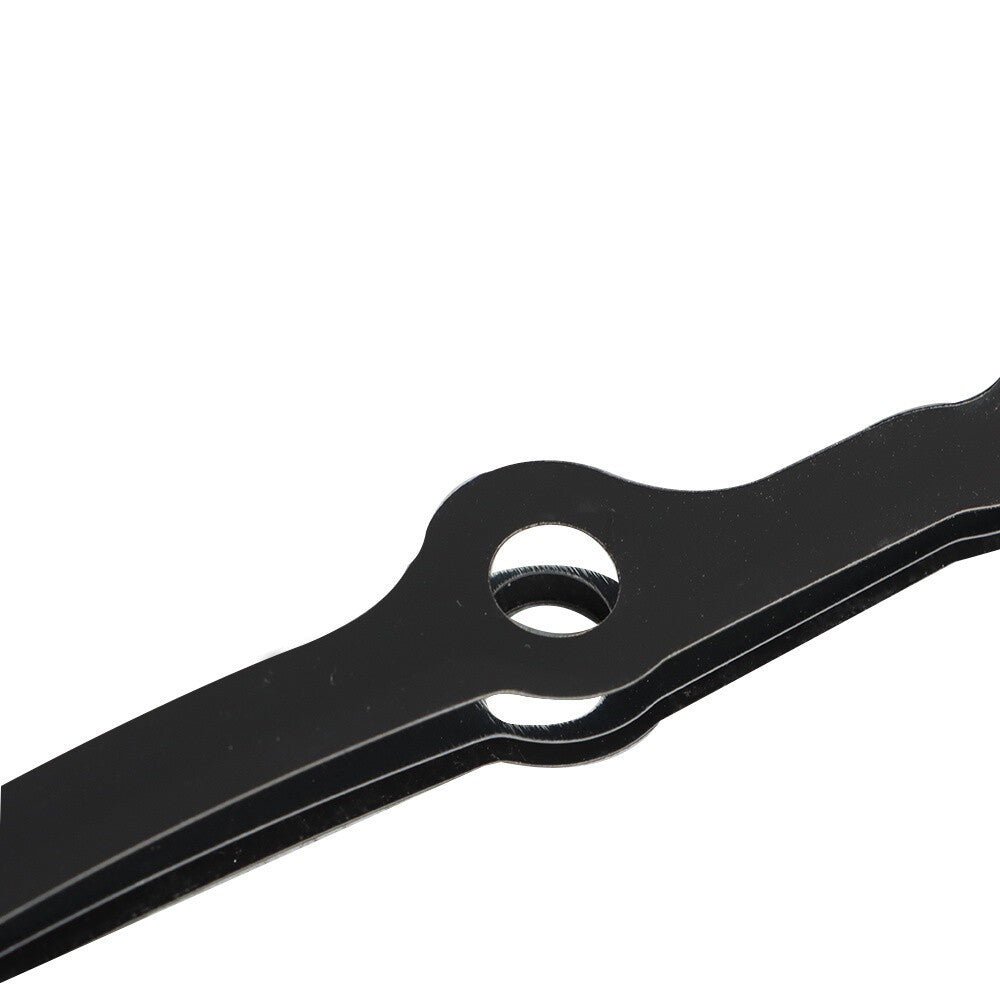

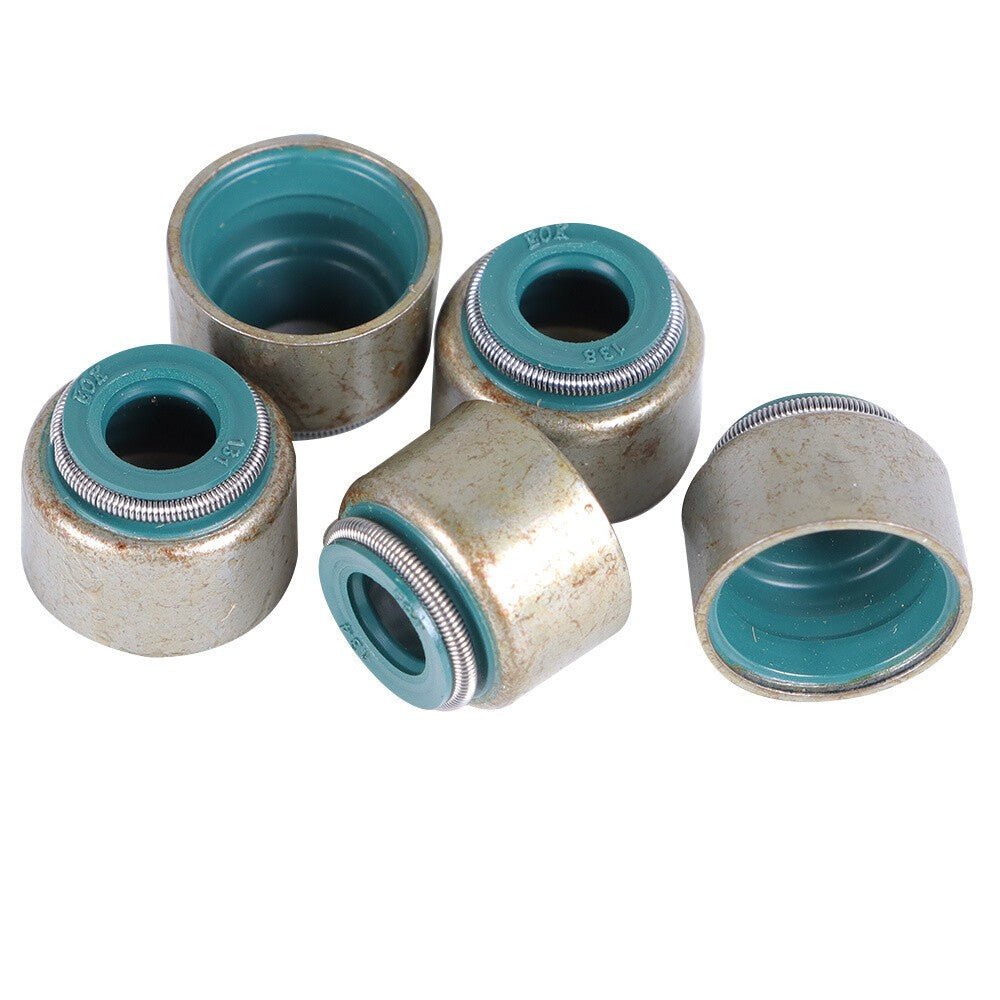

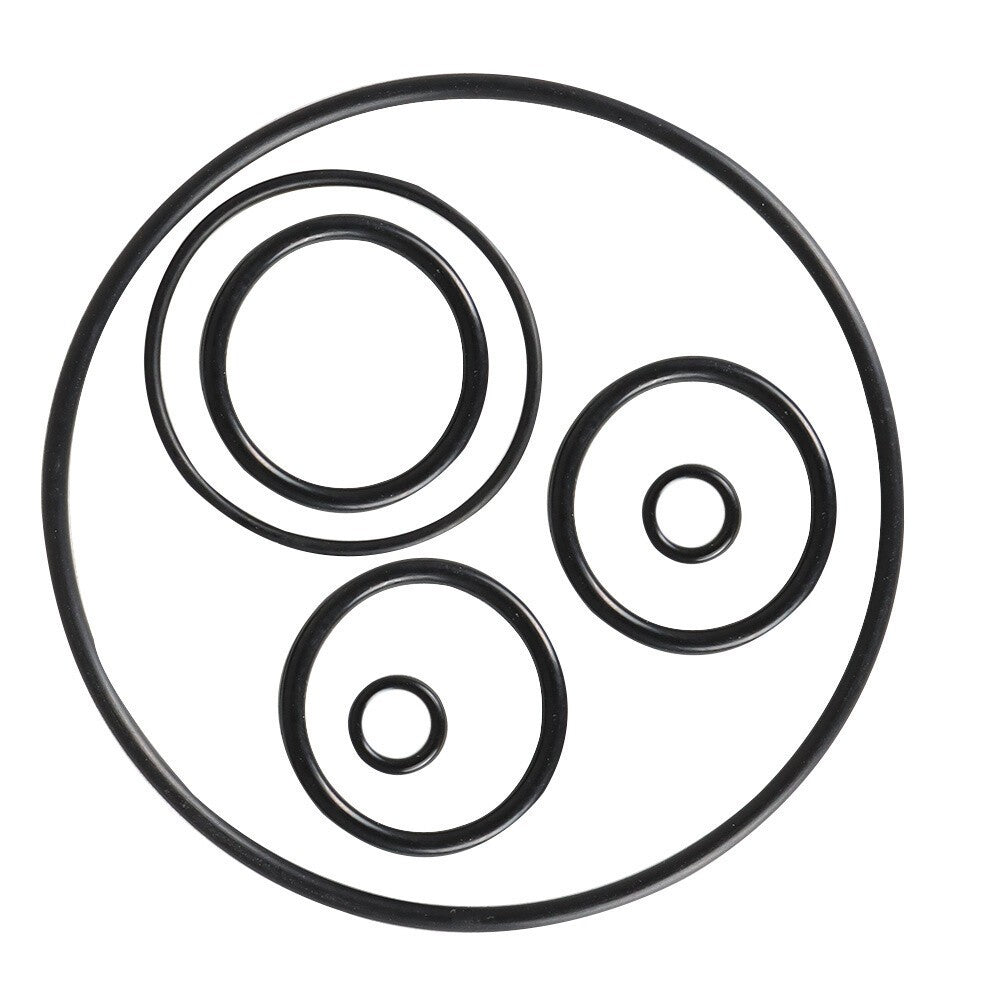

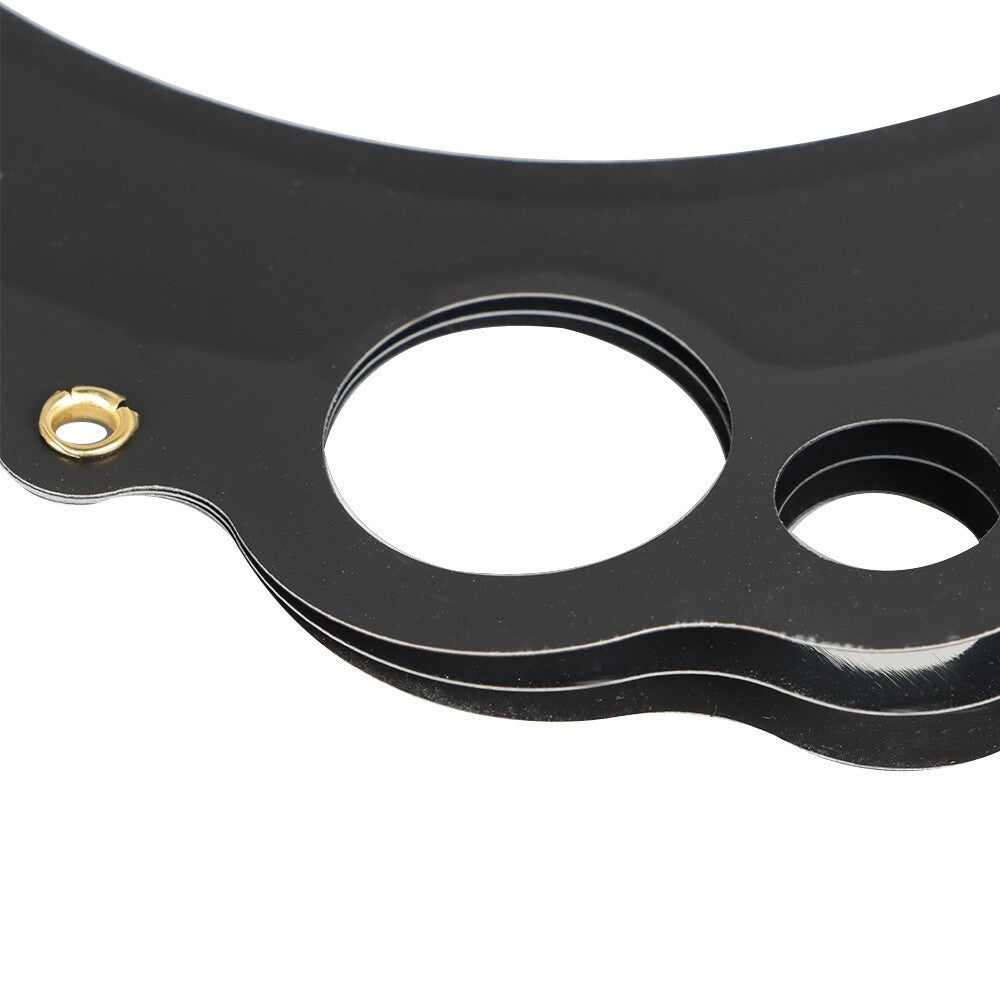

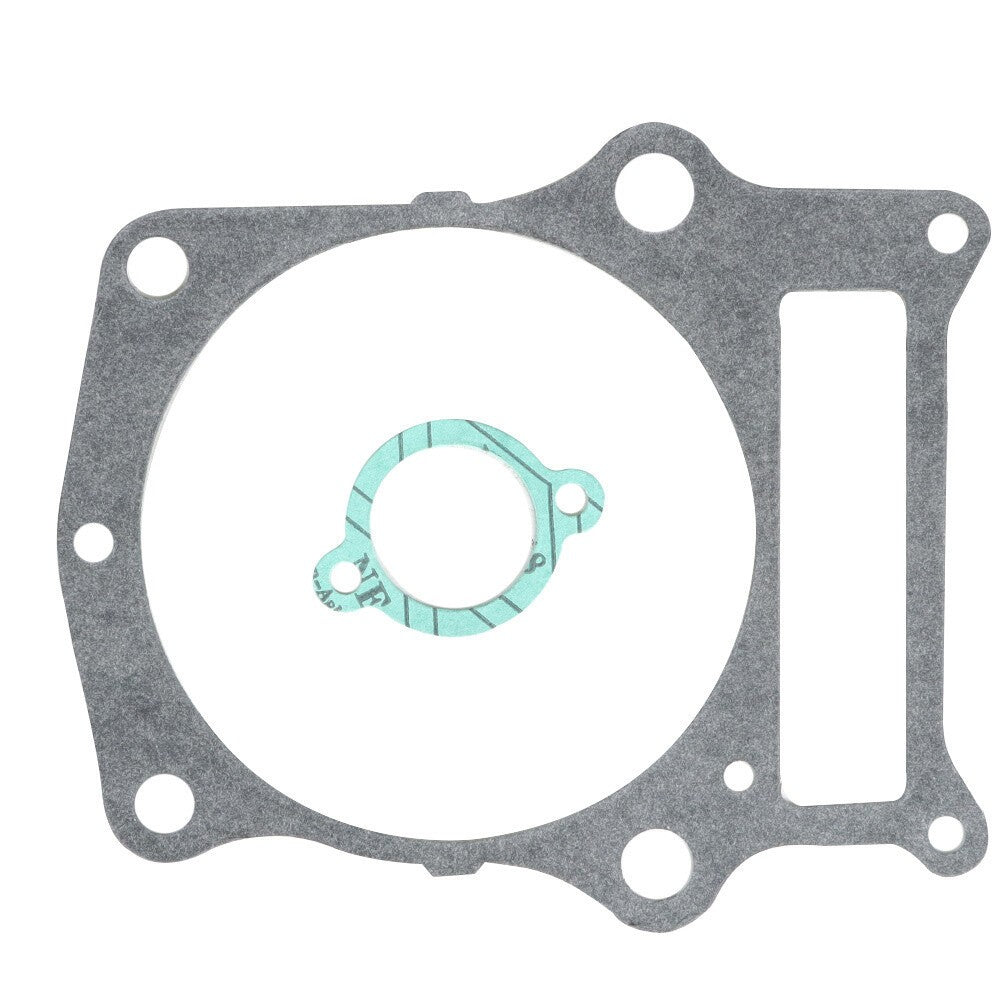

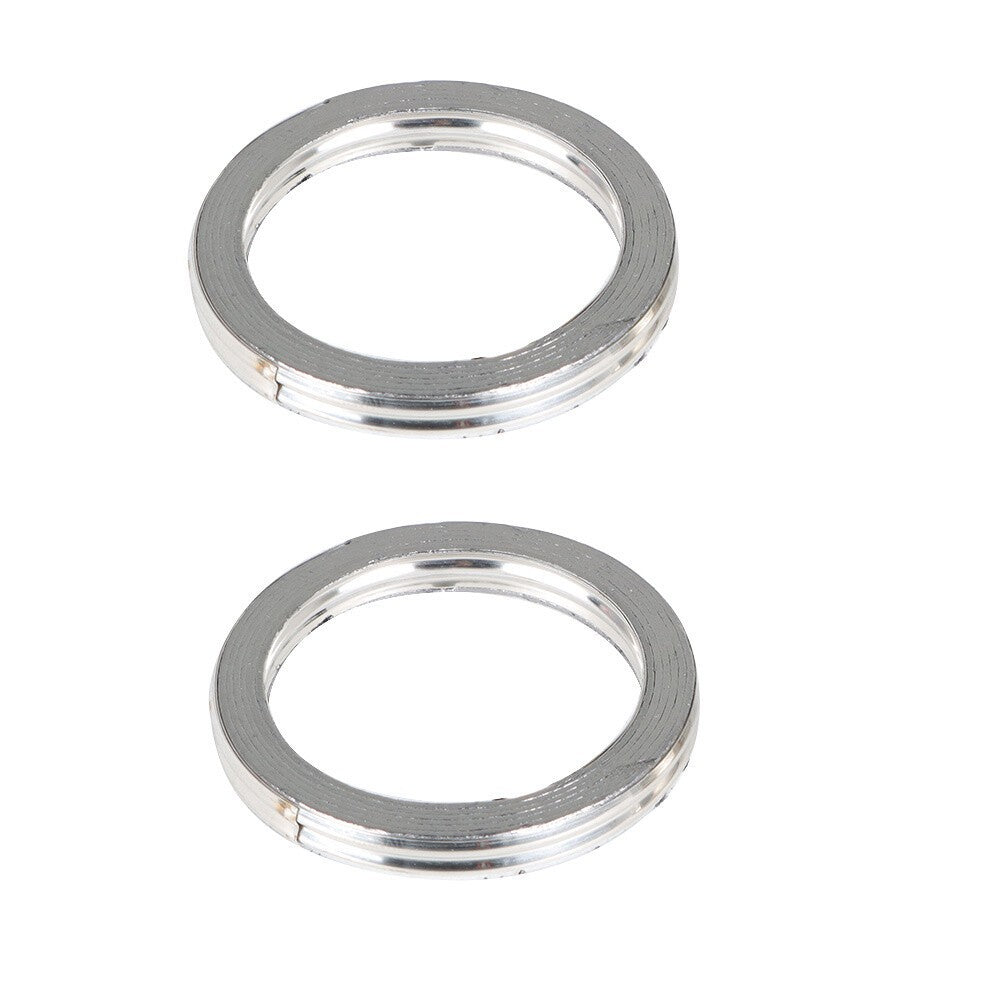

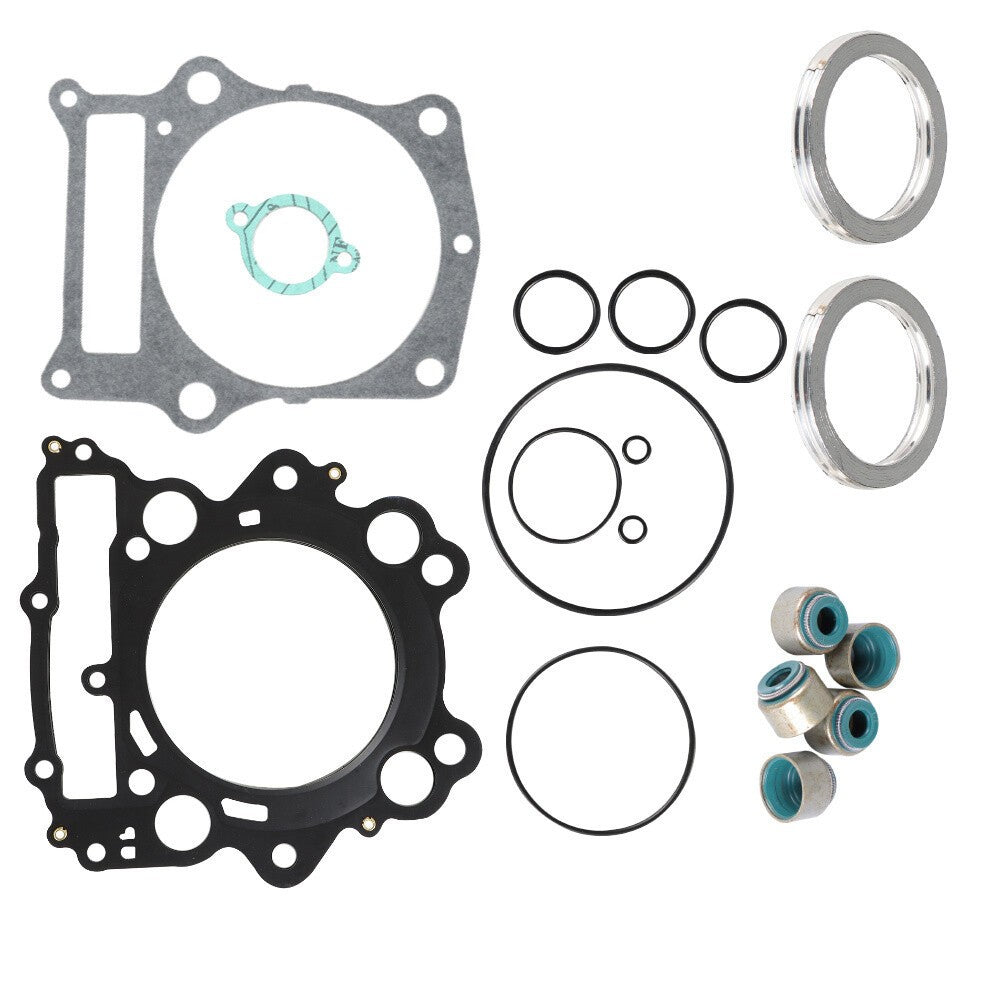

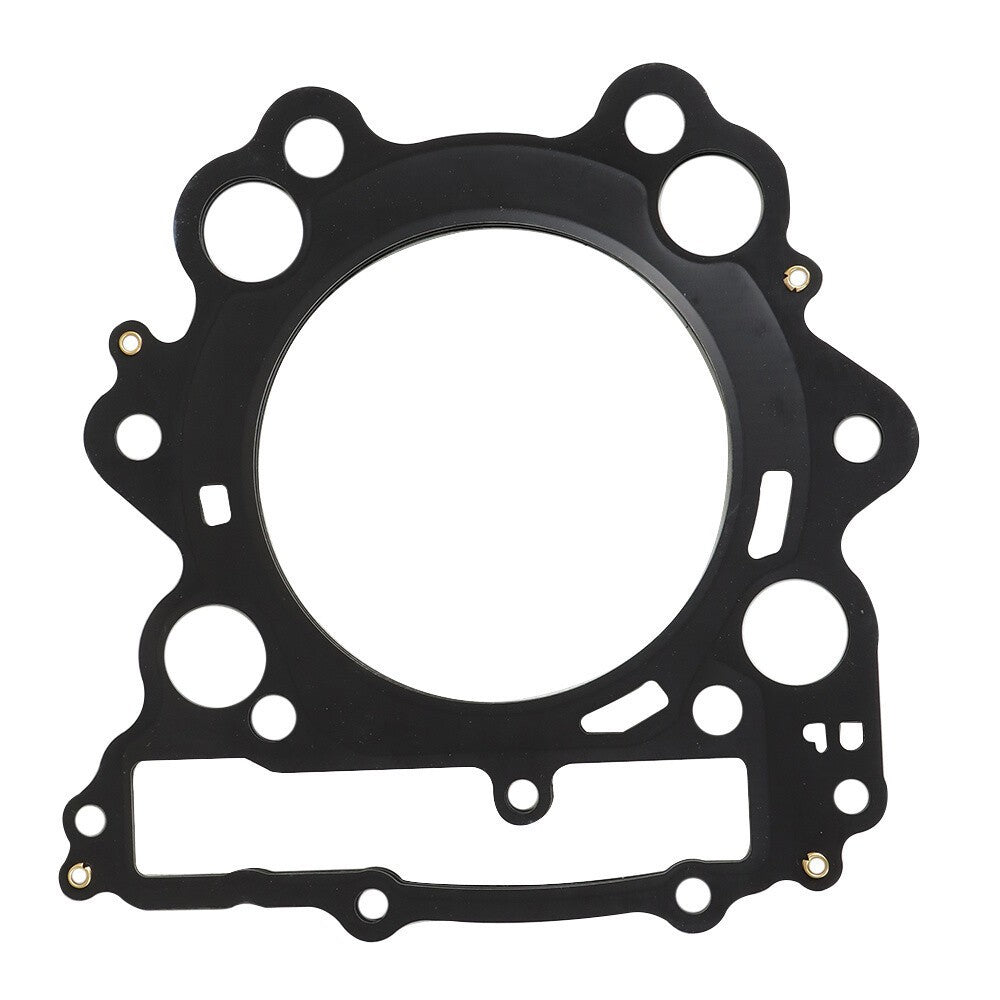

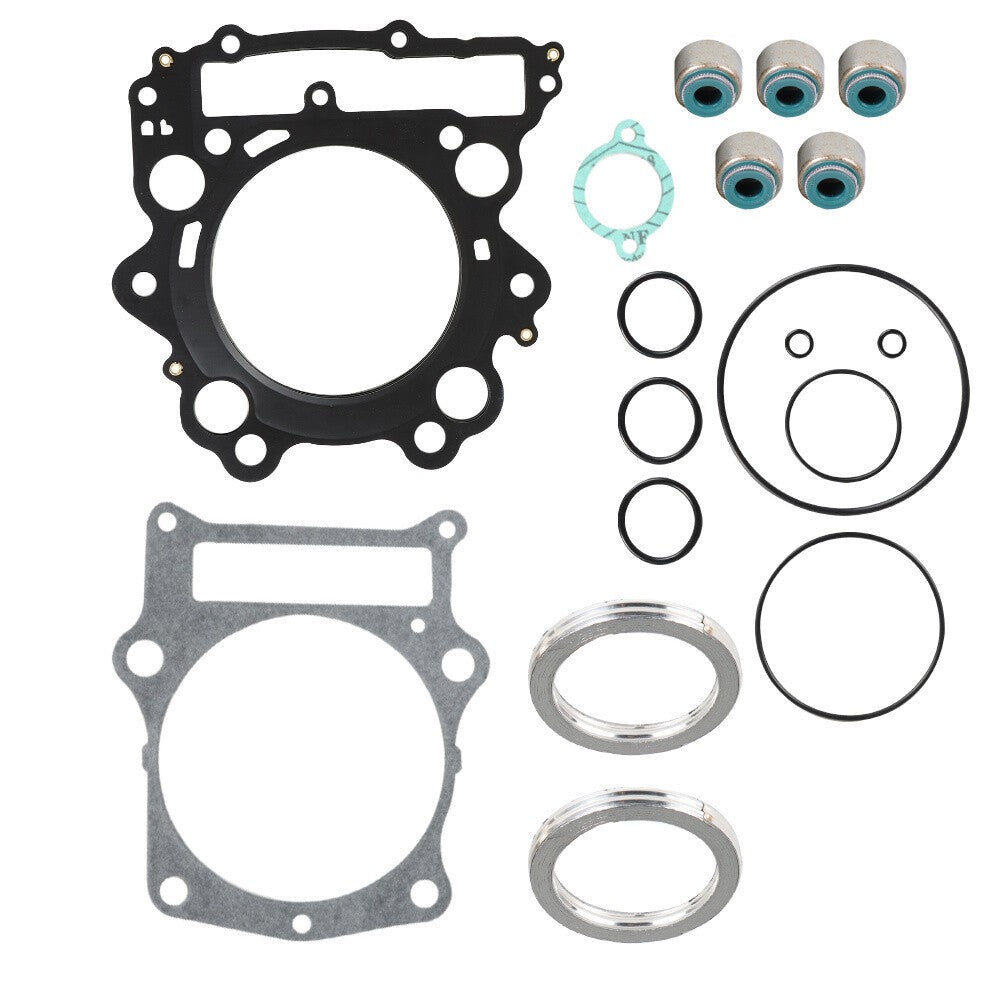

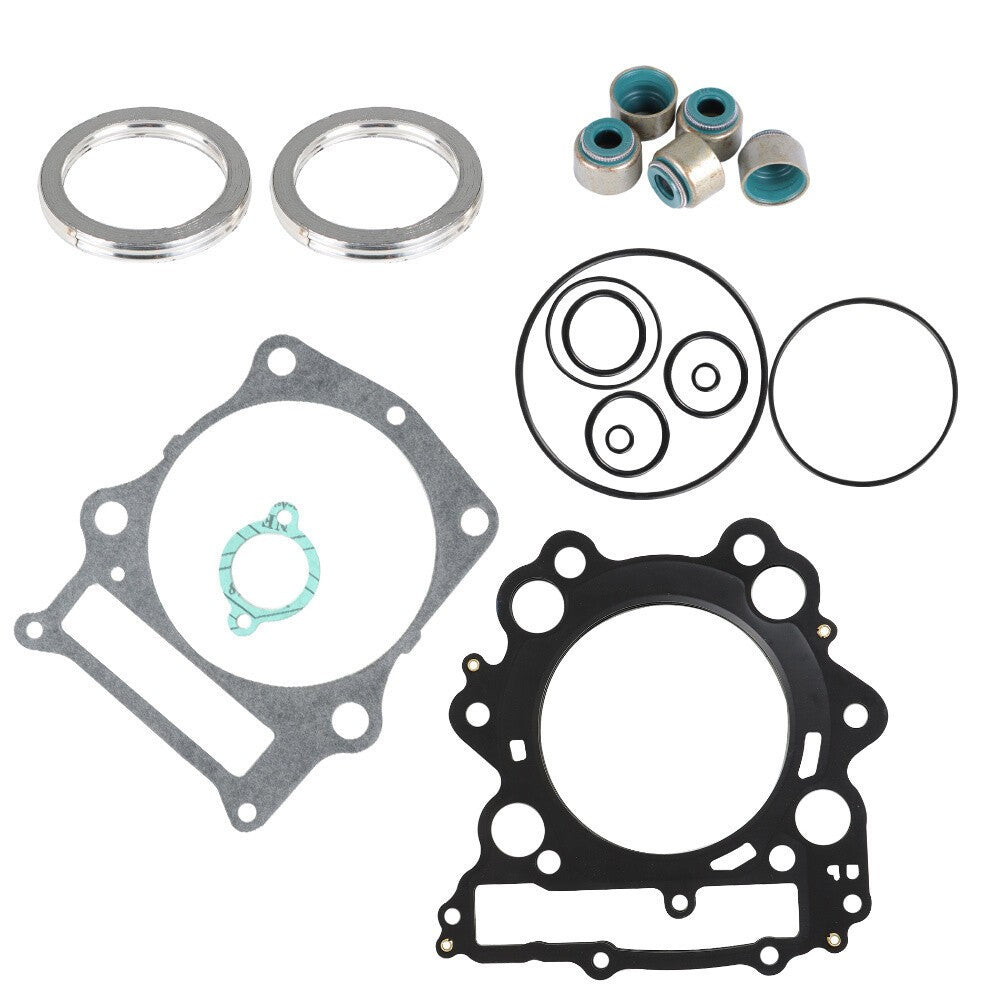

This set reseals the upper engine joints included in the package. Compare the head, base, cover, tensioner, exhaust, and O-ring pieces shown with the service plan before disassembly.
Key Features & Performance
- Upper-engine sealing set for matching 660cc Yamaha singles
- Supports head, cylinder, piston, or valve service
- Includes the top-end gaskets and seals pictured
Common Uses
- Resealing the engine during piston or cylinder work
- Repairing head or base-gasket leakage after surface checks
- Completing valve or cam-chain service with fresh seals
Technical Specifications
- Product Type: Top-End Gasket Kit
- Engine: Yamaha 660cc single cylinder
- Vehicles: Grizzly 660 and Rhino 660
- Condition: New aftermarket
Installation & Fitment
- Check head and cylinder flatness and find the cause of failure
- Compare every oil and coolant passage before placing gaskets
- Follow Yamaha torque stages, cam timing, valve lash, and leak checks
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, electrical or fuel-system version, dimensions, installed options, and previous repairs can affect fitment. Compare the original part and application information before purchase.
Frequently Asked Questions
Q: Can this kit seal a warped cylinder head? A: Not reliably. Warped or damaged mating surfaces require machining or replacement.
Q: Does it include every seal in the engine? A: No. Verify the pictured contents against every seal needed for the specific top-end job.
Q: How do I confirm fitment before ordering? A: Match the original reference number where available, then compare the removed part, dimensions, connections, mounting details, model, serial or production information, and package photos.
Q: Is this an original-equipment part? A: No. This is a new aftermarket part. Brand names and reference numbers are used only to identify compatible applications.
Part Summary
keywords: Yamaha Grizzly 660 gasket kit, Rhino 660 head gasket, YFM660 top end seals, YXR660 cylinder gasket, Grizzly coolant leak repair, Yamaha 660 engine rebuild
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
