HVAC Temperature Blend Door Link for 2014–2018 Mazda 3 – BHS2-61-A20A
$41.89
In Stock
$41.89
Sale price
$41.89
Regular price

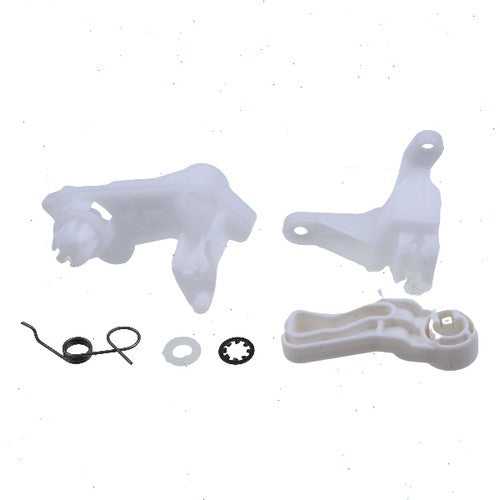

This HVAC temperature/blend-door link set fits compatible 2014–2018 Mazda 3 models using part number BHS2-61-A20A.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
Applications are grouped below. Equipment can vary by serial number, engine, and production configuration.
| Mazda 3 | 2014–2018 applications using BHS2-61-A20A; commonly cataloged for specified HVAC configurations |
| Build / HVAC Note | Confirm Japan/Mexico build and automatic/manual temperature-control requirements against VIN/parts catalog |
Product Overview
This HVAC link set transfers movement within the heater/air-conditioning case so the temperature door can follow the control input. A broken or disconnected link can leave cabin air stuck hot, cold, or unable to sweep through the intended temperature range.
Mazda catalogs BHS2-61-A20A as a temperature link/link set within the heater and air-conditioning case. Catalog data notes configuration differences involving build location and automatic versus manual temperature control, so this is not simply a generic cabin-temperature sensor.
Key Features & Performance
- Temperature-door linkage: Restores the mechanical connection used by the HVAC temperature/blend-door system.
- Specific Mazda 3 application: Cataloged for the matching 2014–2018 Mazda 3 HVAC configuration.
- Configuration-sensitive fitment: Build location and automatic/manual temperature-control configuration should be checked before ordering.
Part Numbers & Specifications
- Mazda Part Number: BHS2-61-A20A
- Earlier / Related References: BHS2-61-A20; BKA4-61-A20; BSR5-61-A20 depending on configuration
- Component: HVAC temperature / blend-door link set
Before You Order
Confirm the VIN/build location and HVAC control type, then match BHS2-61-A20A or the appropriate superseded/related link number. Similar Mazda 3 HVAC cases can use different linkage.
Frequently Asked Questions
Is this an OEM part?
This is a replacement service part intended to interchange with the reference number(s) and applications listed here. It is not represented as a factory-branded OEM part unless the product packaging itself states otherwise.
How do I confirm fitment?
Match the original part number first, then confirm the machine model, engine, connector or mounting arrangement, and any serial-number break that applies to your equipment.
