13-Piece Transmission Bushing Driver Set for GM 700R4 / 4L60E - T-0220-700R4
$165.99
In Stock
$165.99
Sale price
$165.99
Regular price
This 13-piece T-0220-700R4 bushing driver set services compatible GM 700R4, 4L60, 4L60E, 4L65E, and 4L70E transmissions.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- GM 700R4 automatic transmission
- GM 4L60 automatic transmission
- GM 4L60E automatic transmission
- GM 4L65E automatic transmission
- GM 4L70E automatic transmission where driver dimensions match
Product Overview
Transmission bushings must be driven square, to the correct depth, without collapsing the thin shell or scarring the bore. This dedicated set gives a rebuilder properly sized pilots and drivers for the common bushing locations in the 700R4/4L60 family.
It is a service tool, not a bushing kit. Inspect each bore and shaft, identify the bushing orientation and depth, and follow the transmission manual because some bushings have oil holes or split positions that must be clocked correctly.
Key Features & Performance
- Twelve application-sized bushing drivers plus handle
- Built for the GM 700R4 / 4L60 transmission family
- Helps install bushings square and at controlled depth
- Useful for full rebuilds and individual bushing repairs
- Driver sizes can also assist with compatible seals where dimensions match
Replaces Part Numbers
- T-0220-700R4
Common Uses
- Installing pump and case bushings
- Driving extension-housing bushings
- Servicing drum or stator-support bushings
- Preventing crooked installation during a transmission rebuild
Technical Specifications
- Product Type: Transmission bushing driver set
- Pieces: 13
- Drivers: 12
- Handle: One
- Material: Steel
- Reference: T-0220-700R4
Installation & Fitment
- Identify the exact bushing and its installed depth before choosing a driver
- Support the transmission component on a stable surface
- Align oil holes and bushing splits as the manual specifies
- Drive on the shell evenly and stop at the measured depth
- Check shaft clearance, oil passage alignment, and bushing damage before assembly
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Confirm the transmission family and compare the kit's driver diameters to every bushing or seal being serviced. Model year, production date, serial number, trim, engine, installed options, and previous repairs can affect fitment.
Frequently Asked Questions
Q: Does this set include transmission bushings? A: No. It contains installation drivers; bushings and seals are purchased separately.
Q: Can the driver be used without measuring depth? A: No. Many bushings must stop at a specified position to preserve lubrication and component clearance.
Q: What should I compare before ordering? A: Confirm the transmission family and compare the kit's driver diameters to every bushing or seal being serviced.
Q: Is this supplied by the original equipment manufacturer? A: No. This is a new aftermarket part. Brand names and reference numbers identify fitment only.

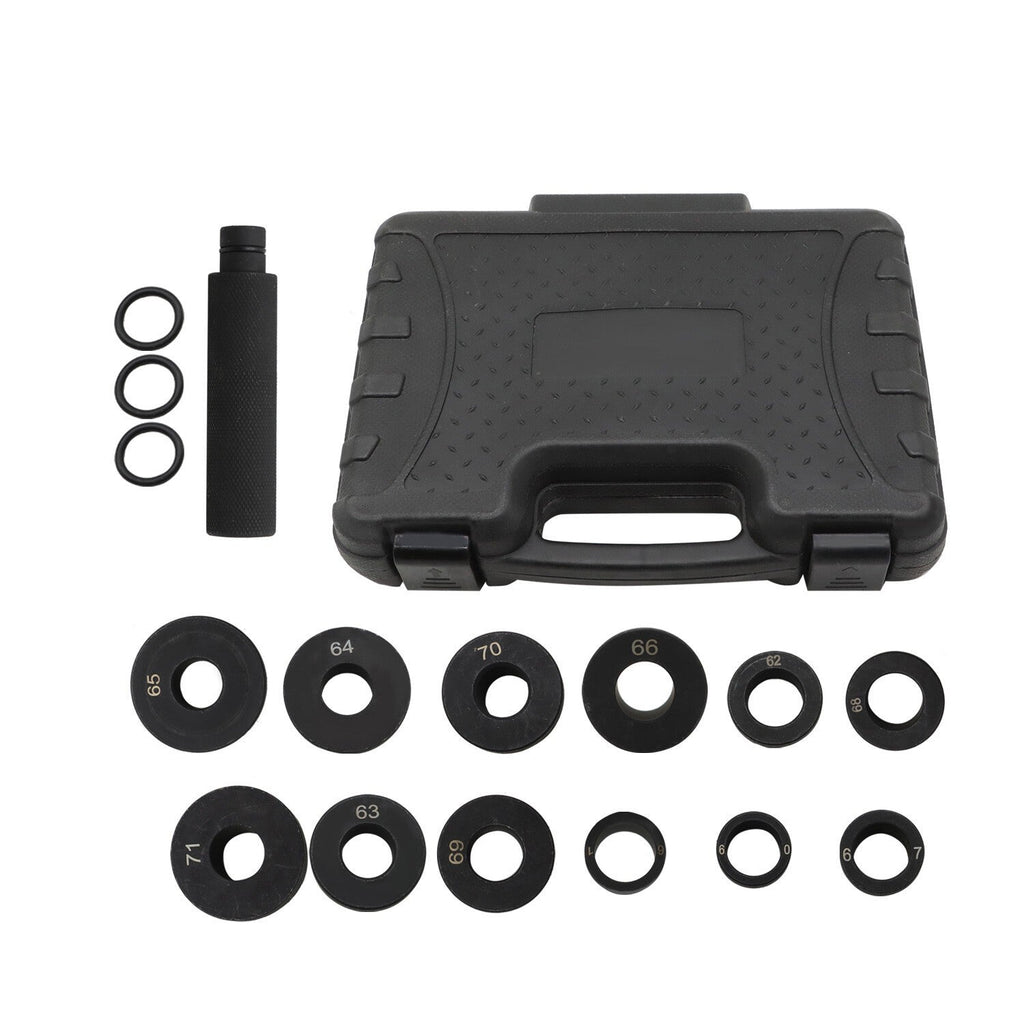

Package note: The set contains twelve bushing drivers and one driver handle in the arrangement shown.
