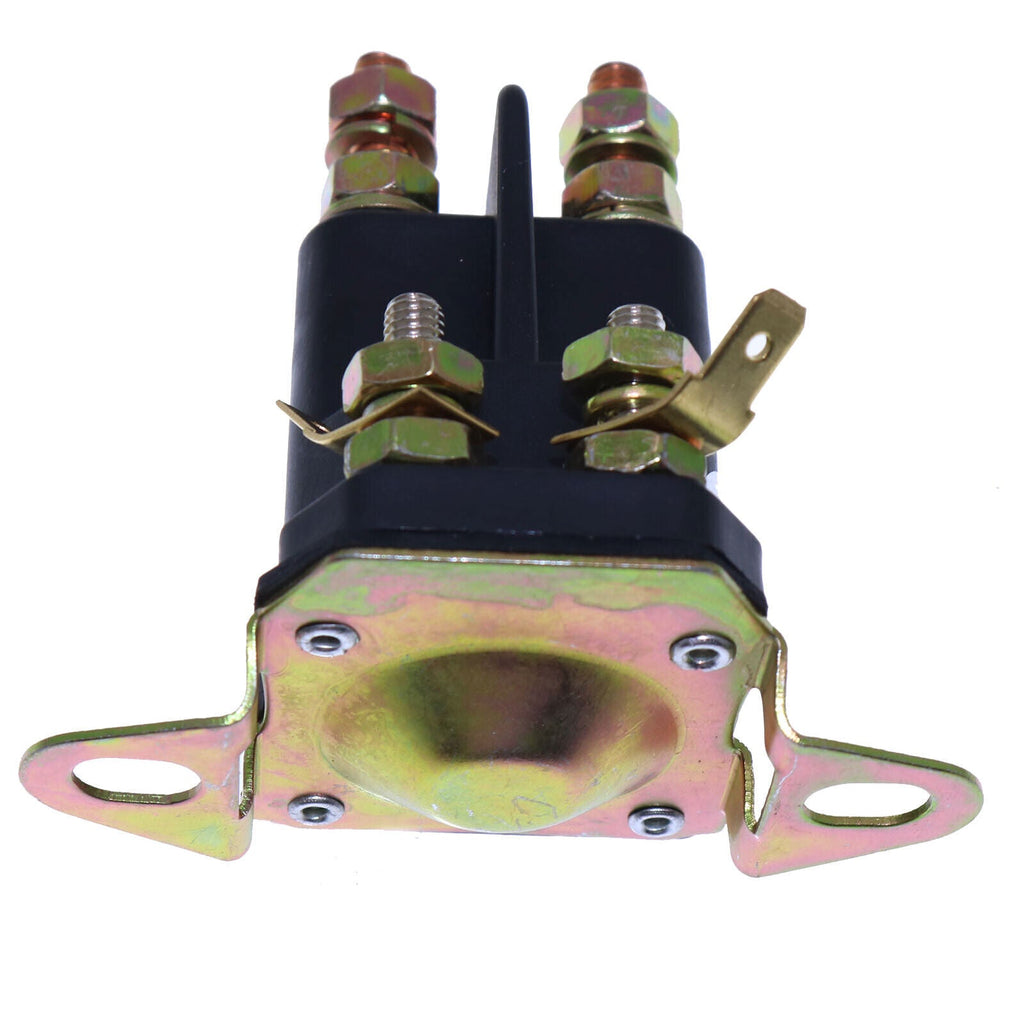

Toro TimeCutter Starter Solenoid 117-1197 12V
$22.99
In Stock
$22.99
Sale price
$22.99
Regular price
This new aftermarket 12-volt starter solenoid replaces Toro 117-1197 and Trombetta 784-1221-210 for compatible TimeCutter zero-turn mowers, including listed SS and Z models.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Toro TimeCutter SS5000
- Toro TimeCutter SS4225 and SS4235
- Toro TimeCutter Z4200
- Other Toro TimeCutter and compatible Exmark applications only when 117-1197 and the complete terminal layout match
Product Overview
A mower that gives one solid click, cranks only after several key turns, or shows excessive voltage drop across the main studs may have burnt contactor surfaces. Weak batteries, corroded cables, safety interlocks, ignition switch, and starter motor must be tested too.
The intermittent-duty contactor uses a low-current start signal to connect the battery to the starter. It is not the PTO clutch solenoid and should not be used for an unsupported continuous-duty load.
Match 117-1197 or 784-1221-210, 12-volt coil, stud size and spacing, small-terminal layout, mounting bracket, duty rating, mower model, and serial number.
Key Features & Performance
- 12-volt intermittent-duty starter contactor
- Heavy-current stud connections for matching mower cables
- Trombetta and Toro references for direct comparison
- Replacement for a proven open coil or high-resistance contacts
Replaces Part Numbers
- 117-1197
- 784-1221-210
Common Uses
- Repairing a TimeCutter that clicks but does not crank
- Replacing a solenoid that fails once it gets hot
- Correcting confirmed voltage drop across the main contacts
Technical Specifications
- Product Type: Starter solenoid / contactor
- Voltage: 12 volts
- Duty: Intermittent starter use
- Condition: New aftermarket replacement
Installation & Fitment
- Disengage blades, set the brake, and disconnect the battery
- Label the battery, starter, and small control wires
- Clean cable ends and inspect for heat damage
- Hold studs while tightening so they do not rotate
- Confirm the safety chain and measure cranking voltage after installation
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Can a bad solenoid still make a click? A: Yes. The coil may pull while burnt contacts fail to deliver current to the starter.
Q: Will it fit every Toro TimeCutter? A: No. Match 117-1197, terminal layout, bracket, model, and serial.
Q: Is this the blade-clutch solenoid? A: No. It is the starter contactor used only during cranking.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: Toro 117-1197 starter solenoid, TimeCutter SS5000 clicks no crank, 784-1221-210 12V contactor, Toro Z4200 starter relay, SS4225 mower solenoid
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, specifications, and application before purchase.
