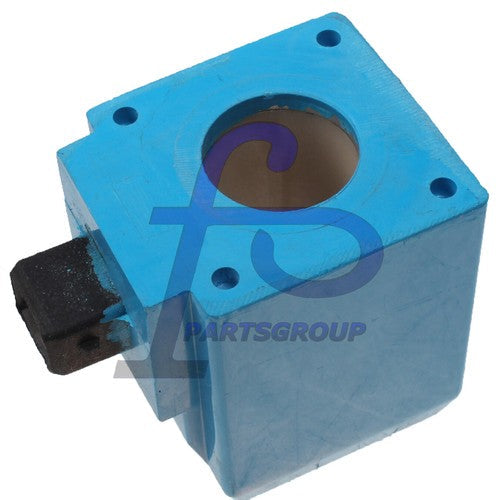

JCB/Vickers Solenoid Coil for 3CX, 4CX & Loadall – 477/00824 / 25/103001
$60.59
In Stock
$60.59
Sale price
$60.59
Regular price
This hydraulic solenoid coil replaces JCB 477/00824 and Vickers/JCB reference 25/103001 on many 3CX, 4CX, Loadall and related machines.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
| JCB backhoe loaders | 3CX |
|---|---|
| 4CX | |
| 3CXC | |
| 4CN and numerous variants | |
| JCB Loadall / telehandler families | 530, 532, 533, 535, 537, 540 and related variants |
| Other JCB equipment | 2CX family, selected Fastrac, Robot and RTFL applications using the matching coil |
Product Overview
The coil creates the magnetic field that shifts its hydraulic valve when electrical power is applied. When a coil opens internally, shorts, overheats or develops a poor connector connection, the affected hydraulic function may stop working even though the valve itself is mechanically sound.
Cross-reference data for 477/00824 also lists 25/221054 and 721/10763 and shows the coil across a very broad JCB machine range. Because JCB used multiple coil voltages and connector styles, matching the old coil label and pin arrangement is essential.
Key Features & Performance
- JCB reference 477/00824
- Crosses 25/103001, 25/221054 and 721/10763 in replacement catalogs
- Used on hydraulic valve functions across multiple JCB product families
- Flat-pin electrical connector configuration per the original listing
Part Numbers & Specifications
- Reference numbers: 477/00824, 25/103001, 25/221054, 721/10763
- Component: hydraulic valve solenoid coil
- Connector: flat-pin style
Before You Order
Match coil voltage, inside diameter, connector style and reference number. Do not replace a coil to correct a hydraulic problem until voltage at the coil and valve-spool movement have been checked.
Frequently Asked Questions
Does the coil include the hydraulic valve?
No. A solenoid coil is the electrical actuator portion; confirm what is included in the listing photos.
Can a bad coil be tested?
Yes. Resistance and current draw can be checked and compared with a known-good/specification value, and the machine should be checked for command voltage.
Why are there so many JCB models?
JCB reused this coil/reference family on many hydraulic control valves across multiple machine lines.
