C-Clamp Inboard Propeller Puller for 1 to 1-1/8 Inch Shafts
$51.99
In Stock
$51.99
Sale price
$51.99
Regular price
Heavy-duty C-clamp propeller puller for compatible three- and four-blade inboard boat propellers on 1-inch to 1-1/8-inch shafts.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Inboard ski boats with a compatible 1-inch propeller shaft
- Inboard wake boats with a compatible 1-1/8-inch propeller shaft
- Three-blade inboard propellers with adequate puller clearance
- Four-blade inboard propellers with adequate puller clearance
Product Overview
When an inboard propeller is locked onto its taper by years of load, corrosion, or a recent impact, hammering on the blades or shaft can turn a simple removal into a bent prop, damaged bearing, or transmission problem. This puller applies controlled force at the hub so the prop can release from the taper.

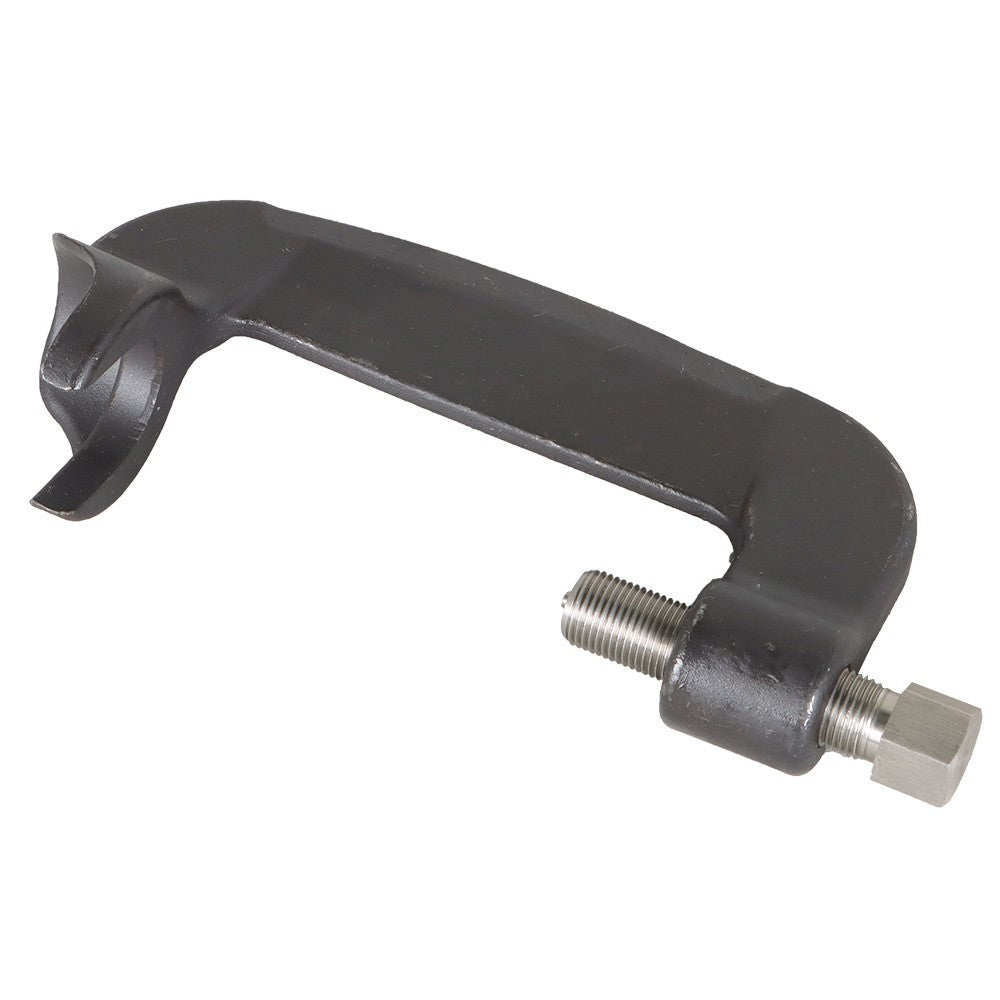

The heat-treated puller frame spans the propeller hub while its forcing screw presses against the protected end of the shaft. The approximate 4.5-inch jaw opening, shaft range, blade clearance, hub geometry, and available working space must all be checked before use.
Key Features & Performance
- C-clamp design for controlled inboard propeller removal
- Fits matching 1-inch through 1-1/8-inch tapered shafts
- Works with compatible three- and four-blade propellers
- Heat-treated alloy-steel construction with approximately 4.5-inch jaw opening
Common Uses
- Removing a propeller for shaft or strut service
- Pulling a damaged prop after a grounding or impact
- Taking off a propeller for reconditioning or pitch changes
- Breaking a corroded hub free without striking the driveline
Technical Specifications
- Product Type: Inboard Propeller Puller
- Tool Style: C-clamp forcing-screw puller
- Shaft Range: 1 in to 1-1/8 in
- Blade Compatibility: Matching 3- and 4-blade propellers
- Jaw Opening: Approximately 4.5 in
- Material: Heat-treated alloy steel
Installation & Fitment
- Remove the prop nut but leave it threaded loosely to protect the shaft and catch the release
- Position the puller squarely against the hub, never against a blade
- Protect the shaft threads and tighten the forcing screw evenly with suitable lubrication
- Keep hands and body clear because a loaded propeller can release suddenly
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, electrical or fuel-system version, dimensions, installed options, and previous repairs can affect fitment. Compare the original part and application information before purchase.
Frequently Asked Questions
Q: Will this fit every 1-inch boat shaft? A: No. Propeller hub shape, blade clearance, shaft taper, and working space must also fit the puller.
Q: Should I hit the propeller to help it release? A: Avoid striking blades, the shaft, or transmission. Use controlled puller force and the service method recommended for the driveline.
Q: How do I confirm fitment before ordering? A: Match the original reference number where available, then compare the removed part, dimensions, connections, mounting details, model, serial or production information, and package photos.
Q: Is this an original-equipment part? A: No. This is a new aftermarket part. Brand names and reference numbers are used only to identify compatible applications.
Part Summary
keywords: inboard propeller puller, 1 inch prop shaft tool, 1-1/8 boat prop puller, ski boat prop removal, wake boat C clamp puller, three four blade prop tool
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
