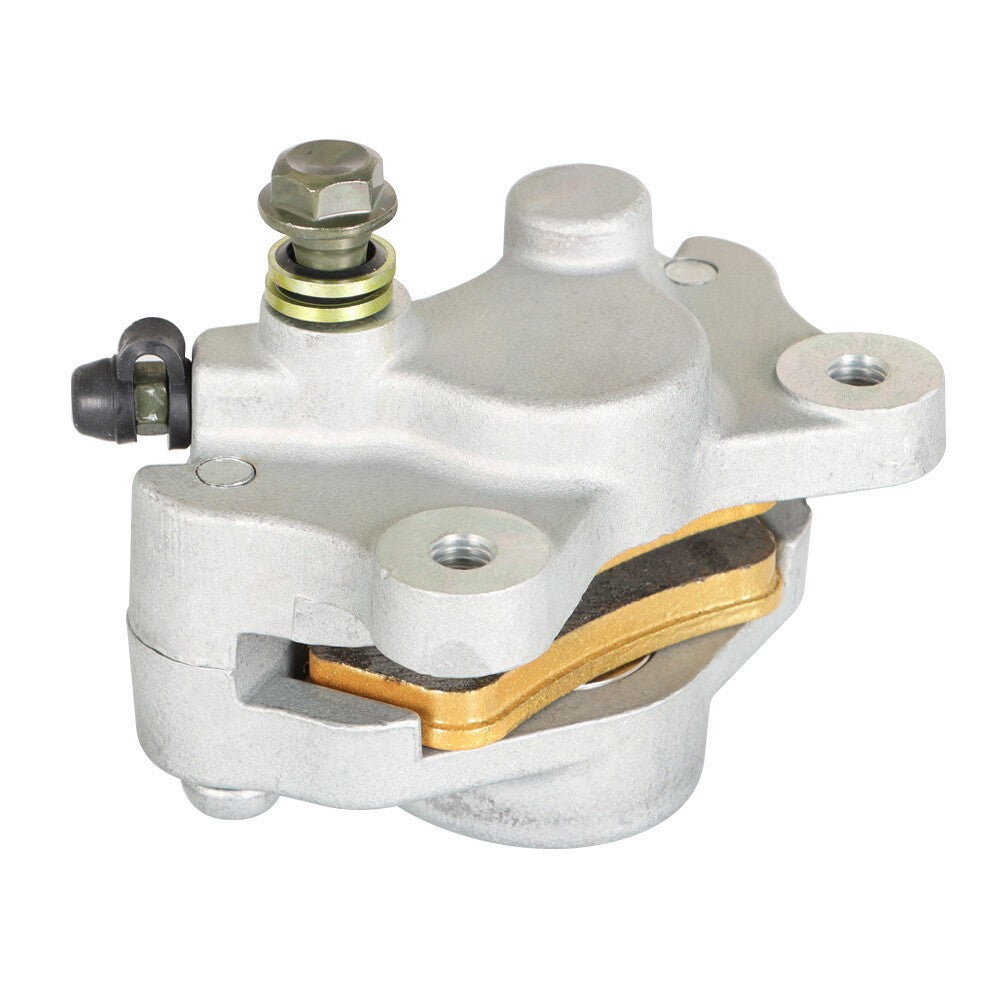

Arctic Cat Rear Right Brake Caliper 0402-010 for 250–500 ATVs
$44.99
In Stock
$44.99
Sale price
$44.99
Regular price
Rear-right hydraulic brake caliper replacing Arctic Cat 0402-010 on compatible 250, 300, 400, and 500 2x4 or 4x4 ATV applications.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Select Arctic Cat 250 2x4 and 4x4 models calling for 0402-010
- Select Arctic Cat 300 2x4 and 4x4 models calling for 0402-010
- Select Arctic Cat 400 and 500 models calling for rear-right caliper 0402-010
Product Overview
A dragging right-rear wheel, uneven pad wear, fluid leak, or piston that will not retract may point to caliper damage. Old fluid, a collapsed hose, blocked master-cylinder return, bent bracket, damaged rotor, or parking-brake adjustment can create the same symptom.
0402-010 is position-specific. Match the casting, mounting-center distance, hose fitting, bleeder direction, pad shape, rotor thickness, model code, and year before ordering.
Key Features & Performance
- Rear-right caliper for matching Arctic Cat hydraulic systems
- Cross-references 0402-010
- Useful for seized, leaking, or physically damaged calipers
Replaces Part Numbers
- 0402-010
Common Uses
- Replacing a seized rear-right caliper
- Repairing fluid loss at the caliper body
- Correcting uneven braking after hose and master-cylinder tests
Technical Specifications
- Product Type: Rear-Right Brake Caliper
- Position: Right rear
- Condition: New aftermarket
Installation & Fitment
- Secure the ATV and compare position and bleeder orientation
- Inspect hose, rotor, pads, master cylinder, and parking-brake parts
- Bleed with specified fluid and verify free rotation and balanced braking
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, electrical or fuel-system version, dimensions, installed options, and previous repairs can affect fitment. Compare the original part and application information before purchase.
Frequently Asked Questions
Q: Can I install this on the left rear? A: No. Hose, bleeder, and mounting geometry make calipers position-specific.
Q: Why does the wheel still drag after caliper replacement? A: A collapsed hose, trapped pressure, bent bracket, rotor damage, or parking-brake issue may remain.
Q: How do I confirm fitment before ordering? A: Match the original reference number where available, then compare the removed part, dimensions, connections, mounting details, model, serial or production information, and package photos.
Q: Is this an original-equipment part? A: No. This is a new aftermarket part. Brand names and reference numbers are used only to identify compatible applications.
