Rear Differential Ring Gear Locker Assembly 103871801 AM1301301 for Club Car Carryall 295 1500 1700
$1,602.79
In Stock
$1,602.79
Sale price
$1,602.79
Regular price

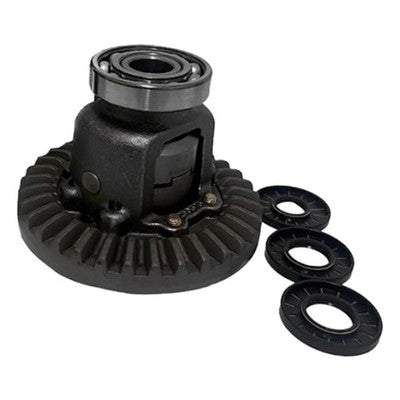

This is a rear differential ring gear/locker assembly for compatible Club Car Carryall 295, 1500 and 1700 utility vehicles, reference 103871801.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
We do our best to list all compatible models, but equipment can vary by engine, serial number and production configuration. Use the part numbers and fitment details below to confirm your application.
| Equipment / Engine | Compatible Application |
|---|---|
| Club Car Carryall | 295 / 1500 / 1700 |
| Club Car XRT | Select XRT 1500 / 1550-family applications using this differential configuration |
Product Overview
The differential gear assembly transfers torque through the rear axle while allowing the rear wheels to operate correctly through turns and uneven terrain. Broken teeth, excessive backlash or internal differential damage can cause grinding, clunking, loss of drive or metal contamination in the axle housing.
Research for 103871801 also links the assembly with related XRT platform applications and the AM1301301 cross-reference used in aftermarket catalogs. Internal axle components must match gear design and differential configuration, so inspect the original before teardown parts are ordered.
Key Features & Performance
- Rear differential internal gear assembly
- Reference 103871801
- Application coverage includes Carryall 295/1500/1700 and related XRT platform vehicles
- Intended for drivetrain repair when differential gear damage is confirmed
Specifications
| Reference number | 103871801 |
| Common aftermarket cross-reference | AM1301301; verify |
| Part type | Rear differential ring gear / locker assembly |
Before You Order
Open and identify the existing differential before ordering internal parts. Match the original gear design, spline configuration and part number to avoid mixing incompatible axle components.
Frequently Asked Questions
What symptoms point to differential gear damage?
Grinding or clunking from the rear axle, metal in the gear oil, excess backlash or loss of drive to the rear wheels can indicate internal gear damage.
Is this an OEM part?
This listing is for a replacement component for the applications shown above. Match the reference number, physical configuration and machine or engine details before ordering.
