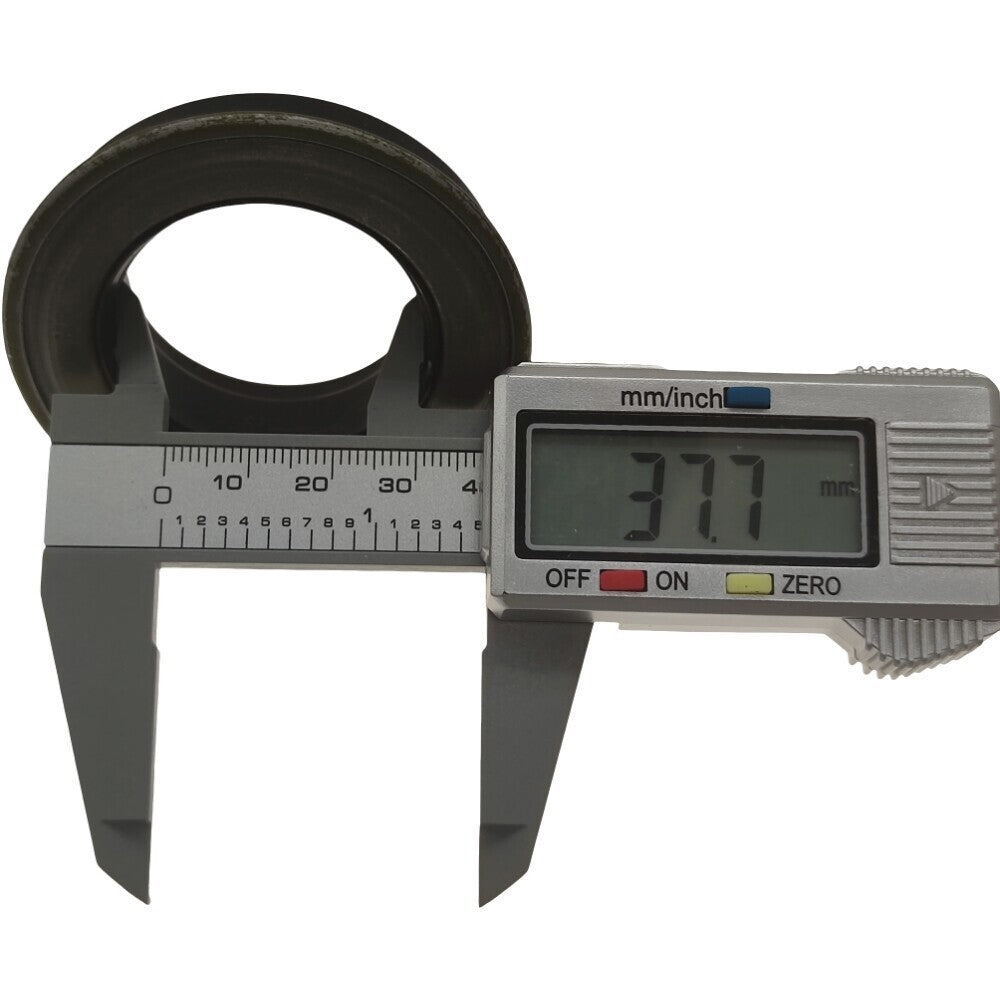

Kubota M9540 PTO Shaft Oil Seal 35822-80380
$36.99
In Stock
$36.99
Sale price
$36.99
Regular price
This new aftermarket PTO shaft oil seal replaces Kubota 35822-80380 for compatible M9540DT, M9540DTC, M9540F, and related M9540 tractor configurations.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Kubota M9540DT and M9540DT-1
- Kubota M9540DTC and M9540DTC-1
- Kubota M9540F and M9540F-1
- Kubota M9540FC, HD, HDC, HDL, and HFL variants only after exact seal and parts-diagram verification
Product Overview
Transmission oil running down the PTO stub or collecting inside the driveline guard can indicate a hardened or cut shaft seal. Shaft wear, bearing looseness, overfill, and a blocked transmission vent must be inspected before the new seal is installed.
The seal keeps lubricant in the PTO housing as the output shaft rotates. It cannot compensate for a groove or radial movement at the sealing surface.
Match 35822-80380, shaft and bore dimensions, lip profile, installation depth, tractor suffix, and serial number. Several different oil seals are used near the M9540 PTO assembly.
Key Features & Performance
- Rotary oil seal for the matching PTO shaft location
- Molded sealing lip with rigid outer support
- Replacement for a brittle, worn, or damaged original seal
- Part-number-specific fit for compatible M9540 transmissions
Replaces Part Numbers
- 35822-80380
Common Uses
- Stopping transmission oil at the rear PTO output
- Replacing a seal disturbed during shaft work
- Repairing contamination entry after a torn lip
Technical Specifications
- Product Type: PTO shaft oil seal
- System: Rear PTO / transmission housing
- Primary Reference: 35822-80380
- Condition: New aftermarket replacement
Installation & Fitment
- Identify the leaking seal from the parts diagram
- Drain fluid and remove guards as required
- Check the PTO shaft for groove and bearing play
- Drive the seal square to the specified depth
- Refill, run the PTO unloaded, and recheck for leakage
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Why are several seals listed for M9540 tractors? A: The PTO and transmission contain multiple seal locations. Use the diagram and removed part to identify the correct one.
Q: Can I install it over a grooved shaft? A: A deep wear groove can quickly damage the new lip and may require shaft repair or replacement.
Q: Will it fit an M8540? A: Only if the parts catalog calls for the same 35822-80380 seal at the serviced location.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: Kubota 35822-80380 PTO seal, M9540DT rear shaft oil leak, M9540DTC transmission seal, M9540F PTO output seal, Kubota tractor PTO leaking
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, specifications, and application before purchase.
