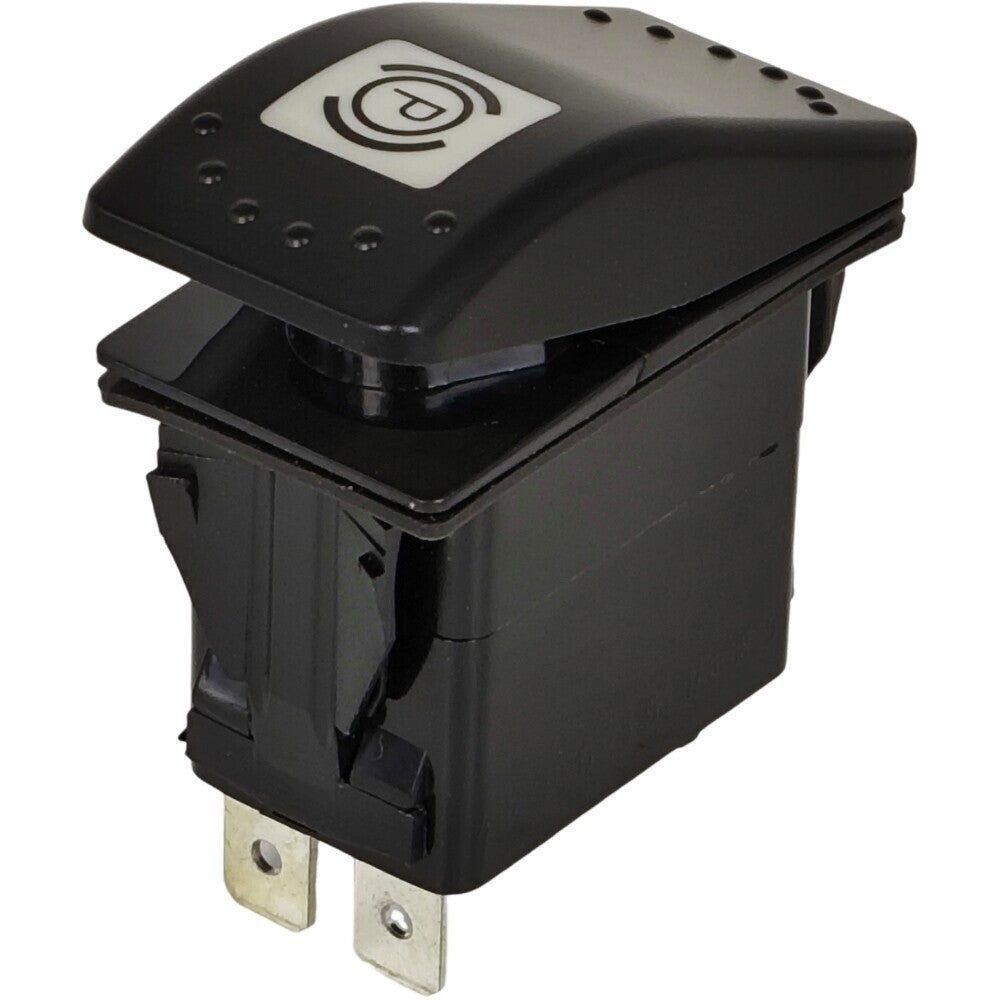

Caterpillar Parking Brake Rocker Switch 142-9320
$35.99
In Stock
$35.99
Sale price
$35.99
Regular price
This new aftermarket illuminated 12-volt parking-brake rocker switch replaces Caterpillar 142-9320 for compatible skid steer and compact track loaders including 252B, 257B, 259B3, 262B, 267B, and 277B.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Caterpillar 247, 247B, 247B3, 257, 257B, 257B3, 259B3
- Caterpillar 267, 267B, 277, 277B, 287, 287B
- Caterpillar 216, 216B, 216B3, 226, 226B, 226B3, 228
- Caterpillar 232, 232B, 236, 236B, 236B3, 242, 242B, 242B3
- Caterpillar 246, 246B, 248, 248B, 252, 252B, 252B3, 262, 262B, 268B
Product Overview
A broken rocker, missing illumination, or no electrical command to release the parking brake can stop a loader even when the brake hardware is sound. Interlocks, seat bar, solenoid, fuse, harness, brake coil, and controller faults should be diagnosed before the switch is replaced.
The switch requests parking-brake engagement or release through the machine electrical system. It does not mechanically release the brake and should never be bypassed.
Match 142-9320, four-pin connector, brake symbol, illuminated 12-volt circuit, panel opening, model, and serial number. Similar Cat rocker switches control lights and auxiliary functions.
Key Features & Performance
- Parking-brake symbol and 12-volt illumination
- Four-pin connector for matching Cat harnesses
- Panel-mount rocker assembly
- Replacement for worn contacts or a broken actuator
Replaces Part Numbers
- 142-9320
- 1429320
Common Uses
- Repairing a brake switch that will not command release
- Replacing a cracked or missing rocker face
- Correcting intermittent switch output after circuit testing
Technical Specifications
- Product Type: Illuminated parking-brake rocker switch
- Voltage: 12 V
- Connector: Four-pin matching applications
- Condition: New aftermarket replacement
Installation & Fitment
- Lower the lift arms and attachment
- Engage mechanical safety supports where required
- Disconnect power and compare connector keying
- Test the brake and interlock circuit after installation
- Confirm the machine cannot move when the brake is commanded on
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Will this release a mechanically stuck brake? A: No. It only supplies the electrical command; brake hardware, coil, controller, and interlocks must work.
Q: Can I bypass it to move the machine? A: No. Bypassing the parking-brake safety circuit can cause unexpected movement.
Q: Does it fit every 259B3? A: Verify serial number, connector, symbol, and 142-9320.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: Caterpillar 142-9320 brake switch, 259B3 parking brake rocker, 262B loader brake switch, Cat skid steer will not move, illuminated parking switch replacement
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, specifications, and application before purchase.
