SKU:
NLT2T04566
Ships for free in 2–4 business days.
Kawasaki Mule 500 520 550 Vacuum Fuel Pump 49040-2067 – KAF300A/B/C
$30.89
In Stock
$30.89
Sale price
$30.89
Regular price

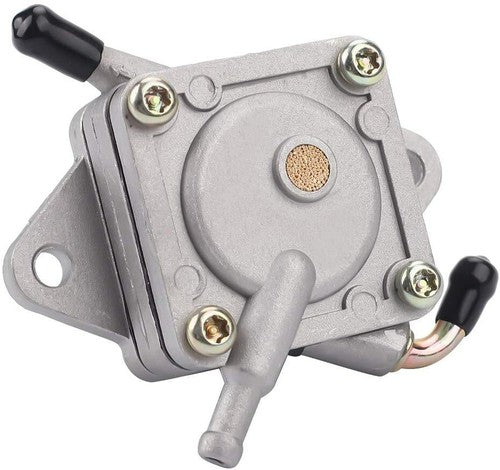

This vacuum-operated fuel pump replaces Kawasaki 49040-2067 on Mule 500, Mule 520 and Mule 550 utility vehicles in the KAF300 family.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
| Make / Family | Applications |
|---|---|
| Kawasaki Mule 500 | KAF300A |
| Kawasaki Mule 520 | KAF300B |
| Kawasaki Mule 550 | KAF300C |
Product Overview
The pump uses engine pulse/vacuum rather than an electrical motor to move fuel from the tank toward the carburetor. A weak diaphragm can show up as hard starting, fuel starvation under load, intermittent stalling or an engine that runs better only after the fuel system is manually primed.
Kawasaki parts information lists 49040-2067 as the fuel pump on the Mule 500 KAF300A, and the same pump is widely cross-listed for Mule 520 and 550 KAF300 applications. Hose routing and condition should be checked during installation because cracked pulse or fuel lines can mimic a failed pump.
Key Features & Performance
- Vacuum/pulse-operated design—no electrical hookup required
- Restores fuel delivery to the carburetor when the original diaphragm pump weakens
- Direct service replacement for the listed Kawasaki pump number
Technical Details
- Pump type: vacuum / pulse fuel pump
- Fuel system: carbureted gasoline
- Electrical connection: none
Replaces Part Numbers
- 49040-2067
Frequently Asked Questions
Q: Does this pump use 12-volt power?
A: No. This style of Mule fuel pump is driven by engine pulse/vacuum.
Q: What else should I inspect if the Mule still starves for fuel?
A: Check the pulse hose, fuel lines, filter, tank vent and carburetor inlet before assuming the new pump is the only cause.
Confirm the original pump number and KAF300 model designation before purchase.
