Ford NAA Jubilee Carburetor EAE9510C B2NN9510A TSX428
$65.99
In Stock
$65.99
Sale price
$65.99
Regular price
Marvel-Schebler-style TSX428 carburetor replacing Ford EAE9510C, EAE9510A, and B2NN9510A on compatible NAA and Jubilee tractors.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 1953–1954 Ford NAA tractor
- 1953 Ford Golden Jubilee tractor
- Ford NAB applications specifically using TSX428 / EAE9510C
Product Overview
A Jubilee that will not idle, floods, leaks, or falls flat under load may have a worn throttle shaft, blocked passage, damaged float system, or corrosion inside the carburetor. Fuel flow, sediment bowl, manifold leaks, ignition timing, compression, and governor operation should be checked first.
TSX428 and TSX580 are not the same calibration: TSX428 belongs to the NAA/Jubilee application, while TSX580 is associated with later 600/700 tractors. Match the tag or casting and the 2-1/4-inch mounting centers before ordering this unit.
Key Features & Performance

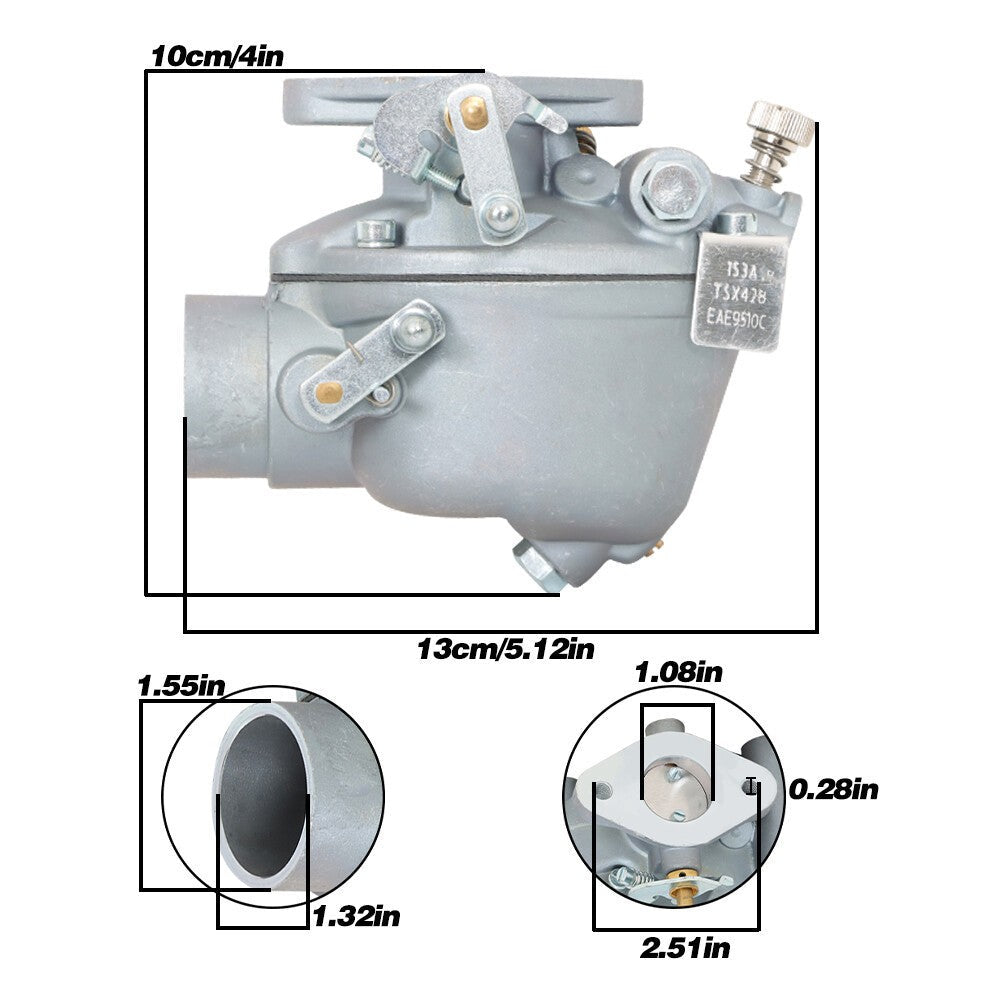

- TSX428-style carburetor for Ford 134 CID NAA/Jubilee tractors
- 2-1/4-inch mounting-stud spacing
- 1-1/16-inch throttle bore and 1-5/8-inch air inlet on the referenced design
Replaces Part Numbers
- EAE9510C
- EAE9510A
- B2NN9510A
- TSX428
- 13880
Common Uses
- Replacing a fire-damaged or corroded carburetor
- Correcting leakage after float and seat inspection
- Restoring fuel metering on a confirmed TSX428 application
Technical Specifications
- Product Type: Updraft Tractor Carburetor
- Engine: Ford 134 CID gasoline
- Mounting Centers: 2.25 in
- Fuel Inlet: 1/8 in NPT on the referenced design
Installation & Fitment
- Read the original carburetor tag and compare all dimensions
- Clean the tank, sediment bowl, line, and manifold surfaces
- Set float, idle, and load mixture by the tractor service procedure
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, electrical or fuel-system version, dimensions, installed options, and previous repairs can affect fitment. Compare the original part and application information before purchase.
Frequently Asked Questions
Q: Does TSX428 fit Ford 600 and 700 tractors that used TSX580? A: Do not assume it does. TSX428 and TSX580 have application and fuel-inlet differences; match the removed carburetor.
Q: Can weak ignition feel like a carburetor problem? A: Yes. Points, timing, coil, plugs, compression, and manifold leaks should be verified.
Q: How do I confirm fitment before ordering? A: Match the original reference number where available, then compare the removed part, dimensions, connections, mounting details, model, serial or production information, and package photos.
Q: Is this an original-equipment part? A: No. This is a new aftermarket part. Brand names and reference numbers are used only to identify compatible applications.
Part Summary
keywords: Ford EAE9510C carburetor, TSX428 replacement, Jubilee tractor carb, B2NN9510A fuel system, Ford NAA rough idle, 134 CID carburetor
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
