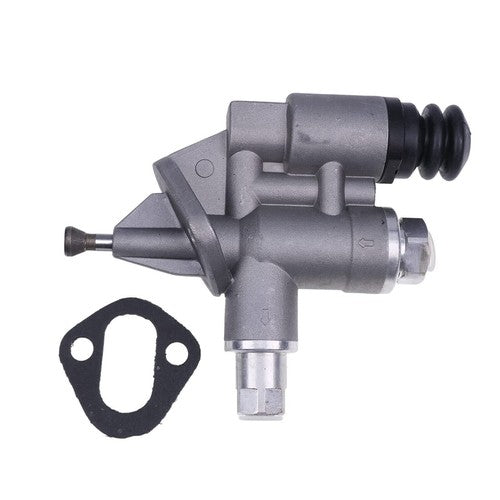

Fuel Transfer Pump for Case IH 7110–7150, 1660–2166 & More – J936318
$78.99
In Stock
$78.99
Sale price
$78.99
Regular price
This mechanical fuel transfer pump fits a broad range of Case IH Magnum tractors, combines and construction equipment and crosses to J936318-family numbers.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
| Case IH tractors | 7110 |
|---|---|
| 7120 | |
| 7130 | |
| 7140 | |
| 7150 | |
| 7210 | |
| 7220 | |
| 7230 | |
| 7240 | |
| 7250 | |
| 9110 | |
| 9130 | |
| 9210 | |
| 9230 | |
| 9240 | |
| 9310 | |
| 9330 | |
| Case IH combines | 1660 |
| 1666 | |
| 1670 | |
| 1680 | |
| 2166 | |
| Case equipment | 1840 |
| 1845C | |
| 60XT | |
| 70XT | |
| 75XT | |
| 85XT | |
| 90XT | |
| 95XT | |
| 570MXT | |
| 580M | |
| 580SM | |
| 590SM |
Product Overview
The transfer pump provides the low-pressure fuel supply needed by the diesel injection system. Case IH application data for the J936318 replacement family covers 7110–7150 tractors, several 1600/2100-series combines, skid steers and construction machines.
Some applications have serial-number cutoffs and Case parts books can show more than one inlet size. That makes the pump's port size and original reference number especially important when ordering.
Key Features & Performance
- Broad Case IH agricultural and construction application coverage
- Reference J936318 with multiple earlier/superseded numbers
- 1/4-inch female pipe-thread inlet on the referenced replacement configuration
- Mechanical low-pressure transfer pump
Part Numbers & Specifications
- Reference: J936318
- Replaces/crosses J906795, J917998, J930201, J932226, J933254, 87473337, 87648717
- Inlet on referenced replacement: 1/4 in female pipe thread
Before You Order
Check serial-number notes and inlet size before ordering. Some 7210/7220 and other applications can use an alternate transfer pump configuration.
Frequently Asked Questions
Why are serial numbers important on this pump?
Case IH catalogs show pump changes within some model runs, especially tractors and combines.
What does the transfer pump do?
It feeds low-pressure diesel to the injection system.
What should I compare besides J936318?
Compare the inlet thread size, outlet orientation, mounting flange and the old pump's reference number.
