Black Aluminum Front-Sump Oil Pan Kit for GM LS1 LS2 LS3 LS6 – 81004
$435.39
In Stock
$435.39
Sale price
$435.39
Regular price
This black aluminum front-sump oil pan kit is intended for custom GM LS-family engine installations using the matching front-sump configuration. It is associated with kit reference #81004.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- GM LS1 / LS2 / LS3 / LS6 engine builds with compatible front-sump clearance
- Custom LS swaps requiring a front-sump oil pan
Product Overview
Oil pan choice matters during an engine swap because steering racks, crossmembers and engine placement affect sump clearance. A front-sump pan may solve packaging problems in one chassis but interfere with another; oil pickup and baffle geometry must also be correct.
Key Features & Performance
- Package: Black aluminum front-sump oil pan kit as pictured
- Application: GM LS1 / LS2 / LS3 / LS6 engine builds with compatible front-sump clearance
- Important fitment detail: Confirm sump location, pan rail, pickup-tube match, dipstick, steering clearance, oil filter provisions and installation hardware
Replaces / Cross-References
- 81004
What Is Included

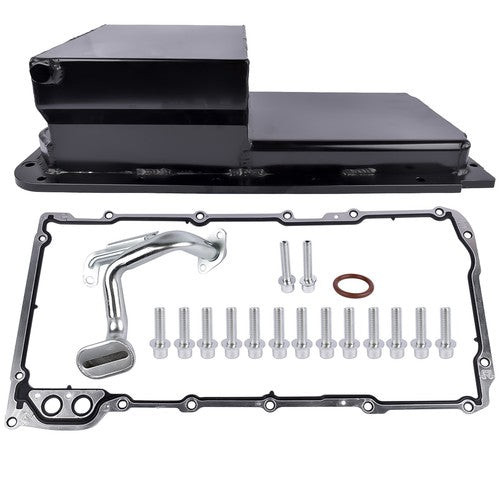

Black aluminum front-sump oil pan kit as pictured.
Common Reasons for Replacement
- Custom engine swap clearance
- damaged oil pan
- front-sump conversion
Fitment Notes
Confirm sump location, pan rail, pickup-tube match, dipstick, steering clearance, oil filter provisions and installation hardware. Not a universal drop-in for every LS chassis.
Frequently Asked Questions
Is this an OEM part? This listing describes a replacement or upgrade component, not a genuine manufacturer-branded part unless explicitly stated otherwise. Brand and part numbers identify the intended application.
How do I confirm fitment? Compare the original component, part number and the configuration notes above. Use the equipment VIN, engine serial number or manufacturer parts diagram when necessary.
Part Summary
keywords: Black Aluminum Front-Sump Oil Pan Kit, 81004, GM LS1 / LS2 / LS3 / LS6 engine builds with compatible front-sump clearance, Custom LS swaps requiring a front-sump oil pan
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
