Blue Billet Battery Tie-Down Bar with 10-Inch J-Bolts Universal Kit

Blue Billet Battery Tie-Down Bar with 10-Inch J-Bolts Universal Kit

SKU: NLT1M00264
$27.99 In Stock
$27.99
$27.99
Ships for free in 2–4 business days.
This blue anodized billet aluminum battery tie-down includes a 220mm crossbar and 10-inch J-bolts for measured universal installations on batteries up to approximately 6.89 inches wide.
Estimated delivery between
Shop at Northline Parts Best Customer Service Best Online Parts

Let Northline Parts Do the Heavy Lifting for You!

Not sure which part you need? Our team can help you find the right replacement.

Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT

Live Chat: Available 24/7

Call 314-403-0109

I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks

Edward H. — Verified customer

Product Overview

A battery must be held firmly enough that it cannot slide, tip, or reach a terminal against nearby metal. This blue billet crossbar and J-bolt kit is a measured universal option for trays and batteries within the listed dimensions.

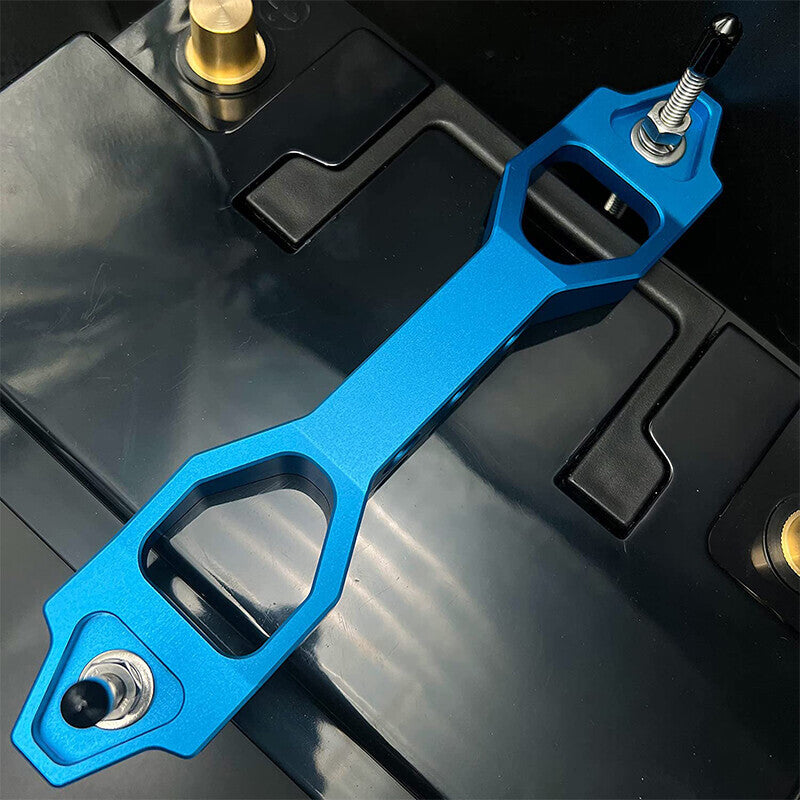

The crossbar and J-bolts clamp a compatible battery to its tray. Universal hardware still requires measurement and must not contact battery terminals or crush the case.

Key Features & Performance

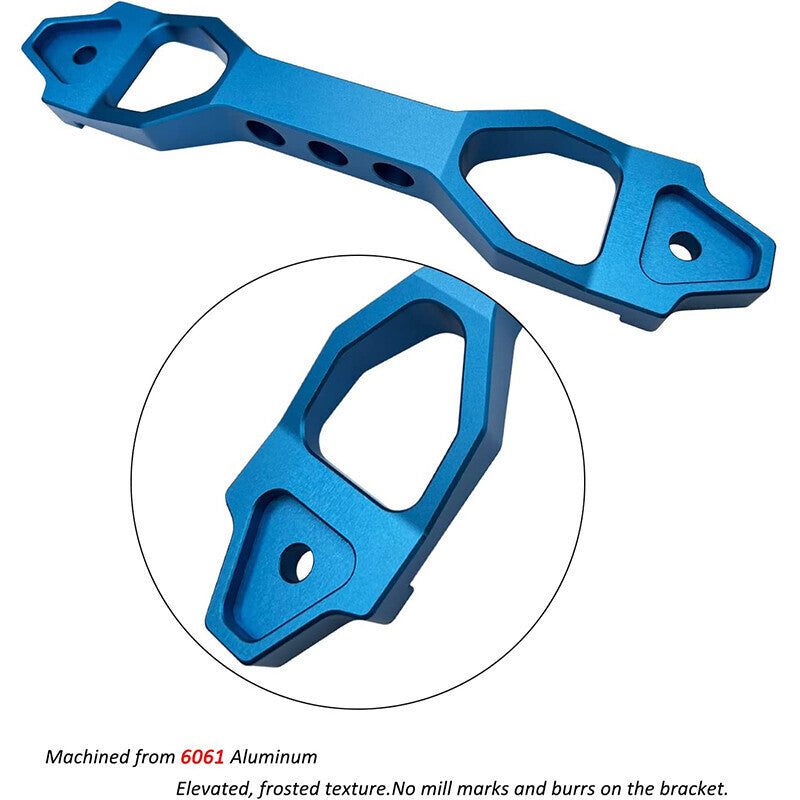

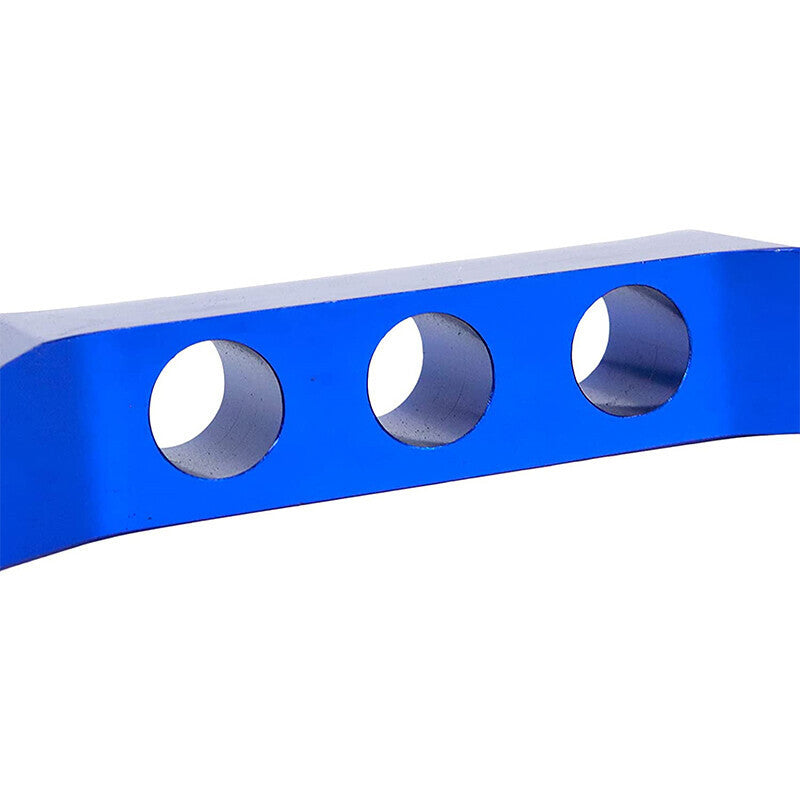

  • Billet aluminum crossbar
  • Blue anodized-style finish
  • Includes J-bolts and securing hardware

Common Uses

  • Replacing a missing battery hold-down
  • Securing a battery in a custom tray
  • Adding a cleaner engine-bay appearance

Technical Specifications

  • Product Type: Battery tie-down kit
  • Material: Billet aluminum
  • Finish: Blue anodized

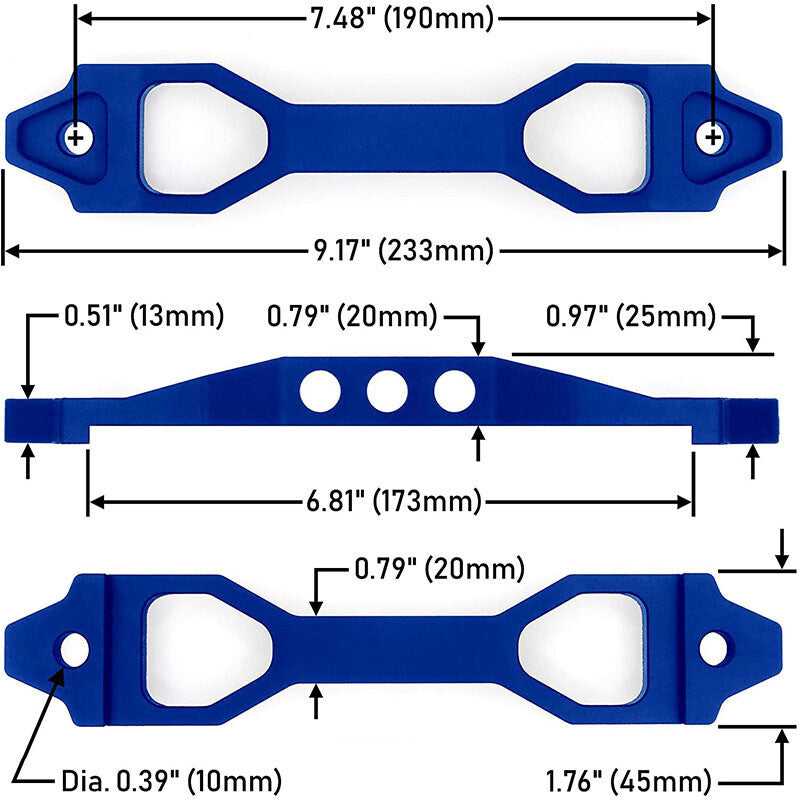

  • Crossbar Length: 220mm / 8.66 inches

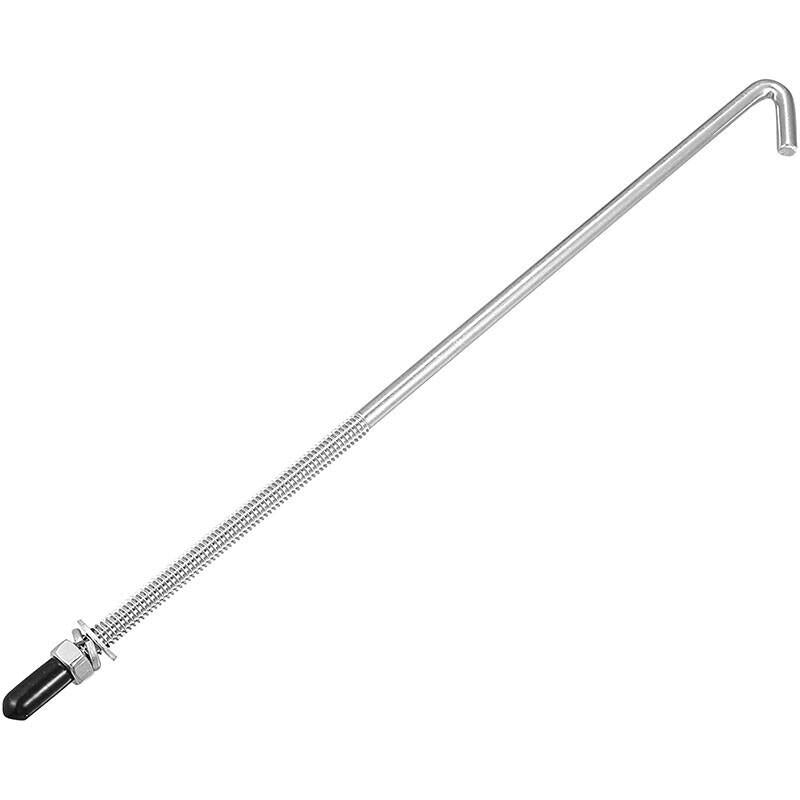

  • J-Bolt Length: 250mm / 10 inches
  • Bolt Center Spacing: 190mm / 7.48 inches
  • Battery Width: Up to approximately 6.89 inches as listed

Installation & Fitment

  • Measure battery and anchor points
  • Inspect tray for rust or cracks
  • Position bar away from terminals
  • Tighten evenly without deforming case
  • Check hood clearance and retighten after use

Compatibility Notice

Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.

Measure battery width, J-bolt length, tray anchor locations, hood clearance, and terminal positions. The bar must not bridge or touch electrical posts.

Frequently Asked Questions

Q: Will it fit every battery group size? A: No. Bar width and J-bolt length must match.

Q: How tight should it be? A: Tight enough to prevent movement, not enough to crush the battery case.

Q: Can it touch a battery terminal? A: No. Metal contact can cause a dangerous short circuit.

Q: Why inspect the tray? A: A strong bar cannot secure a battery to a rusted or broken tray.

Part Summary

keywords: blue battery tie-down, billet battery hold-down bar, universal J-bolt mount, custom battery bracket, engine bay battery brace

Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
