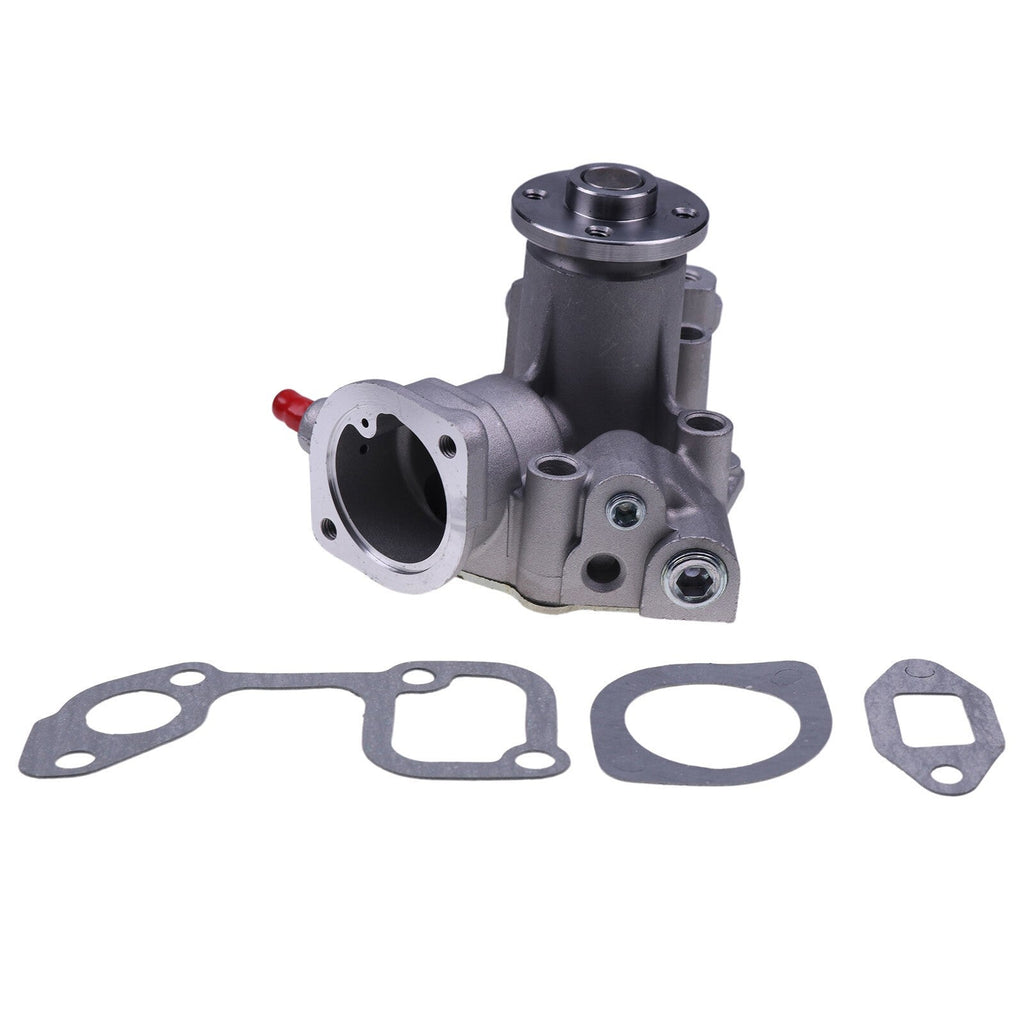

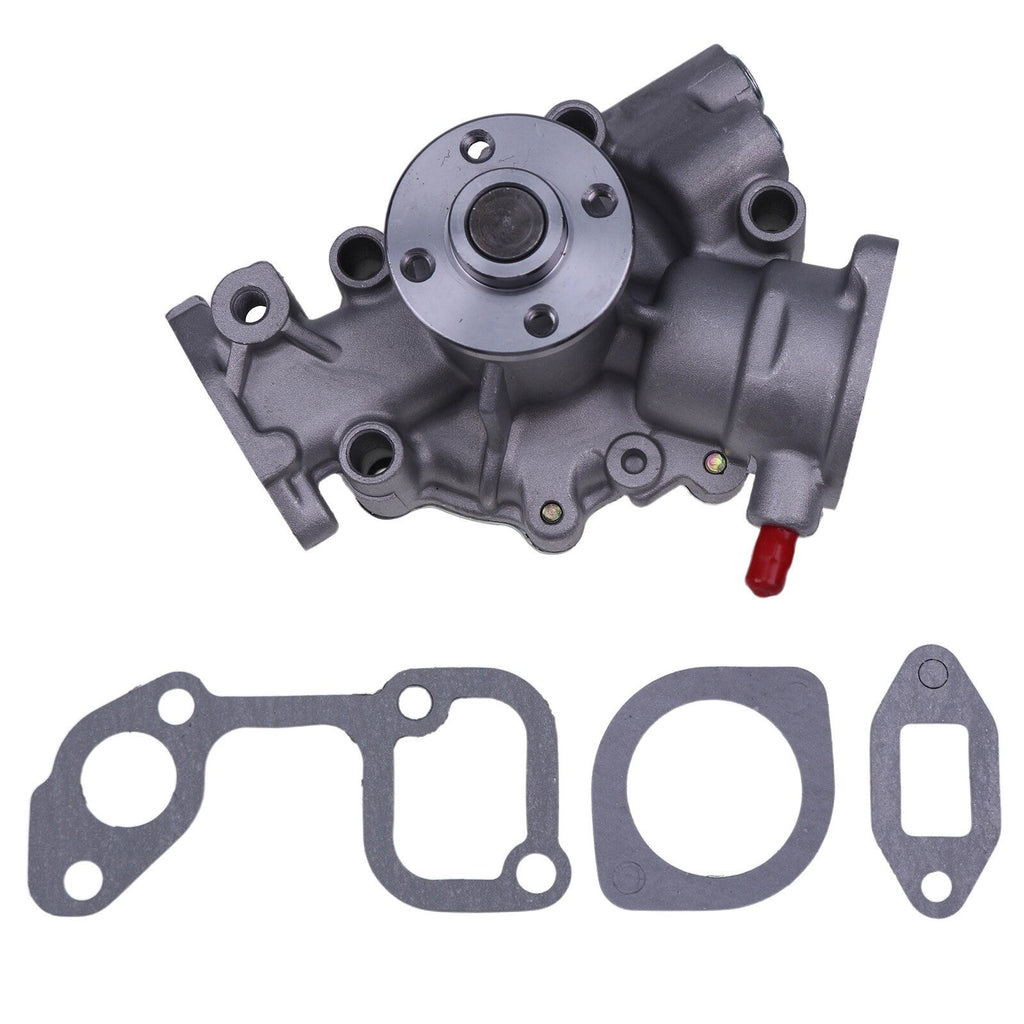

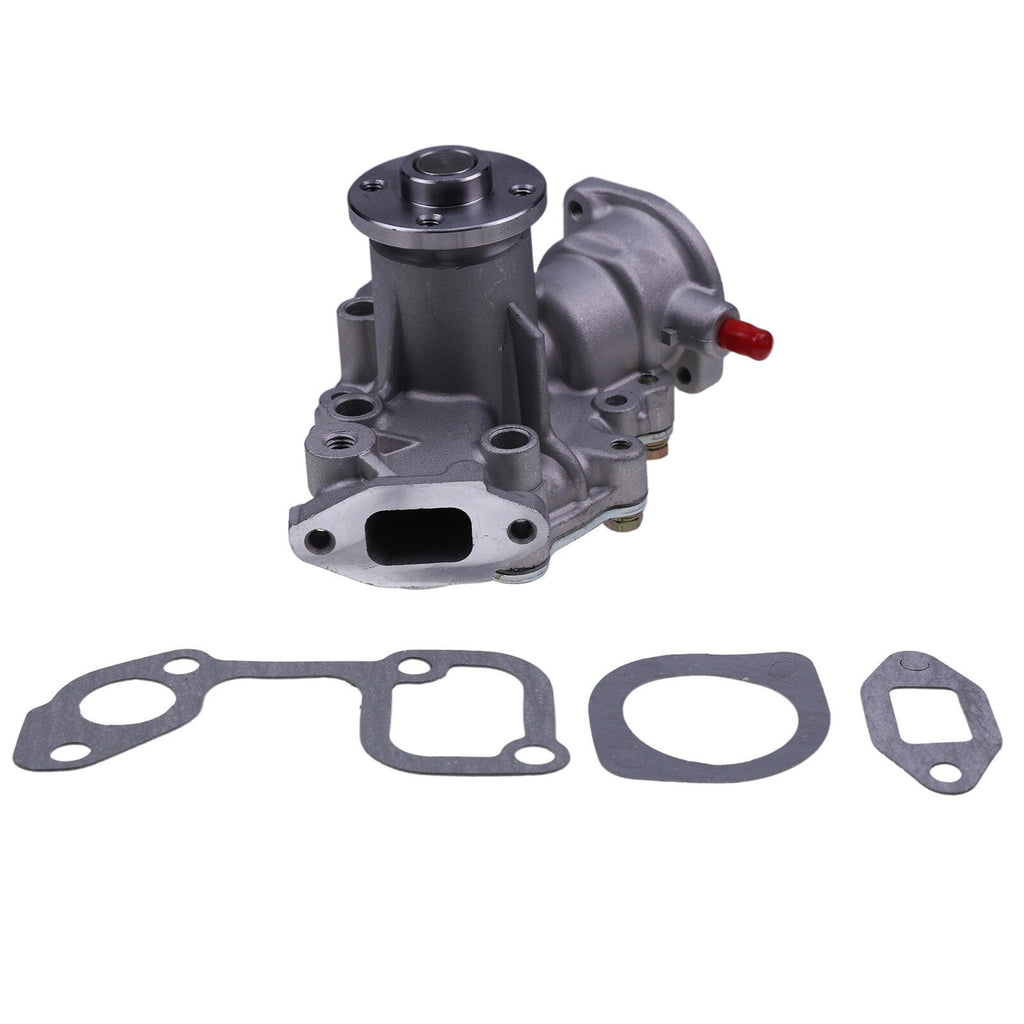

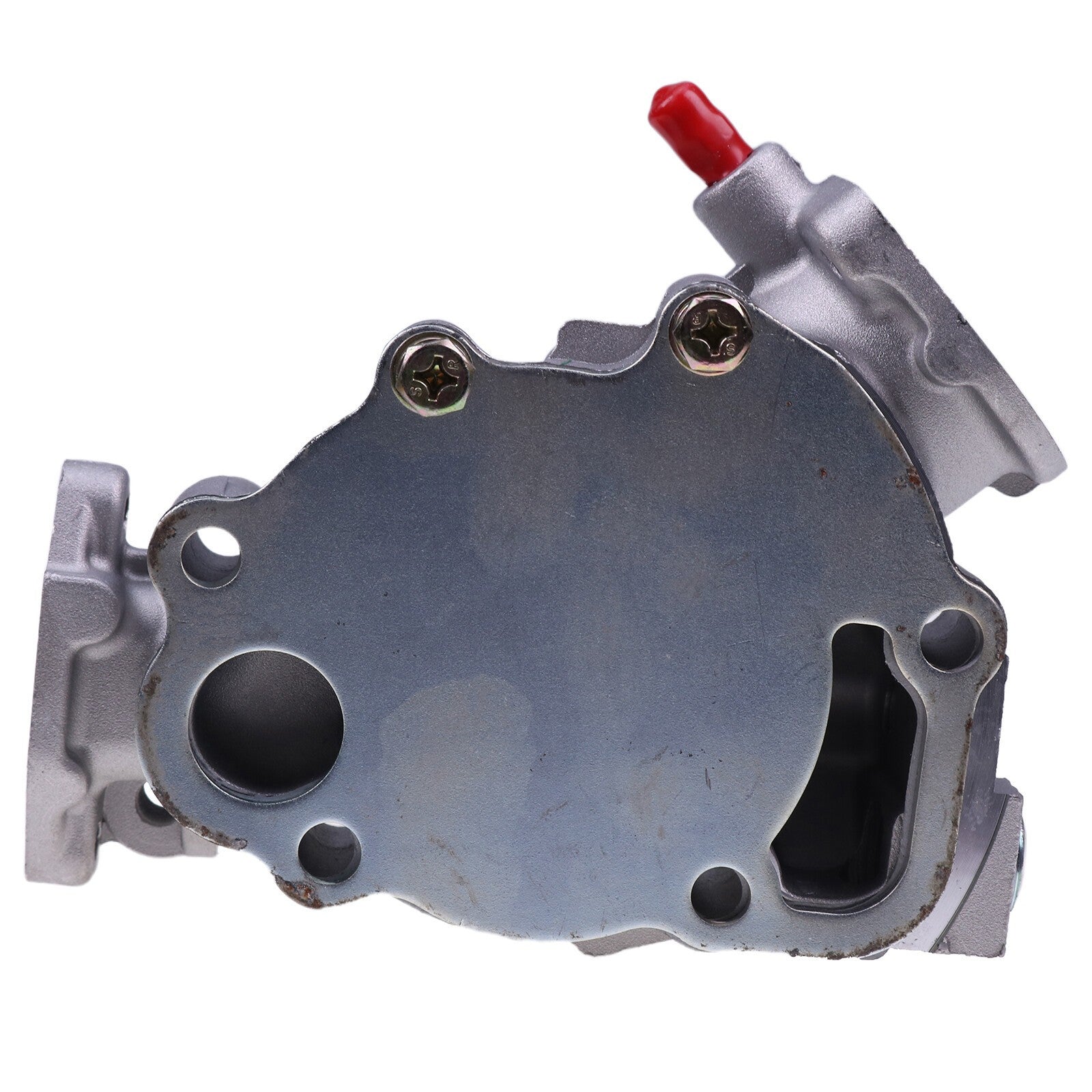

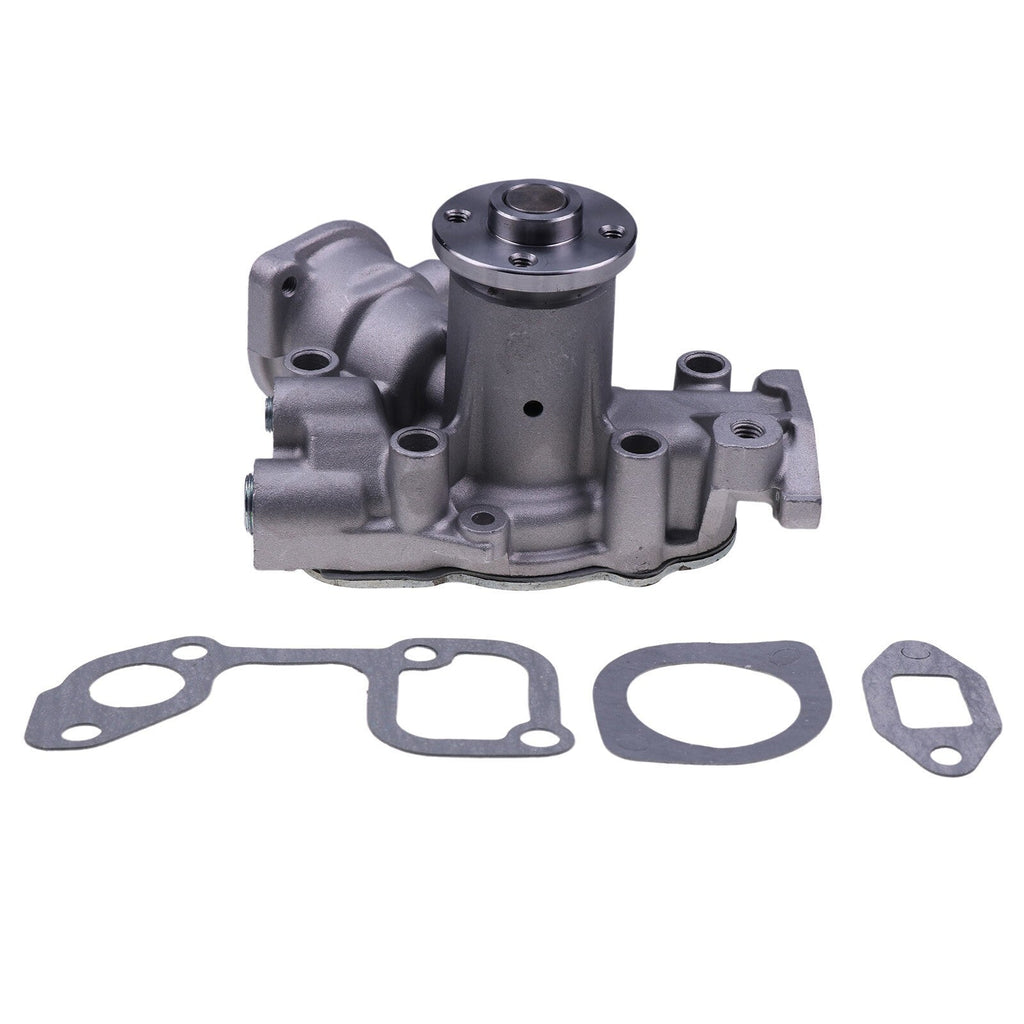

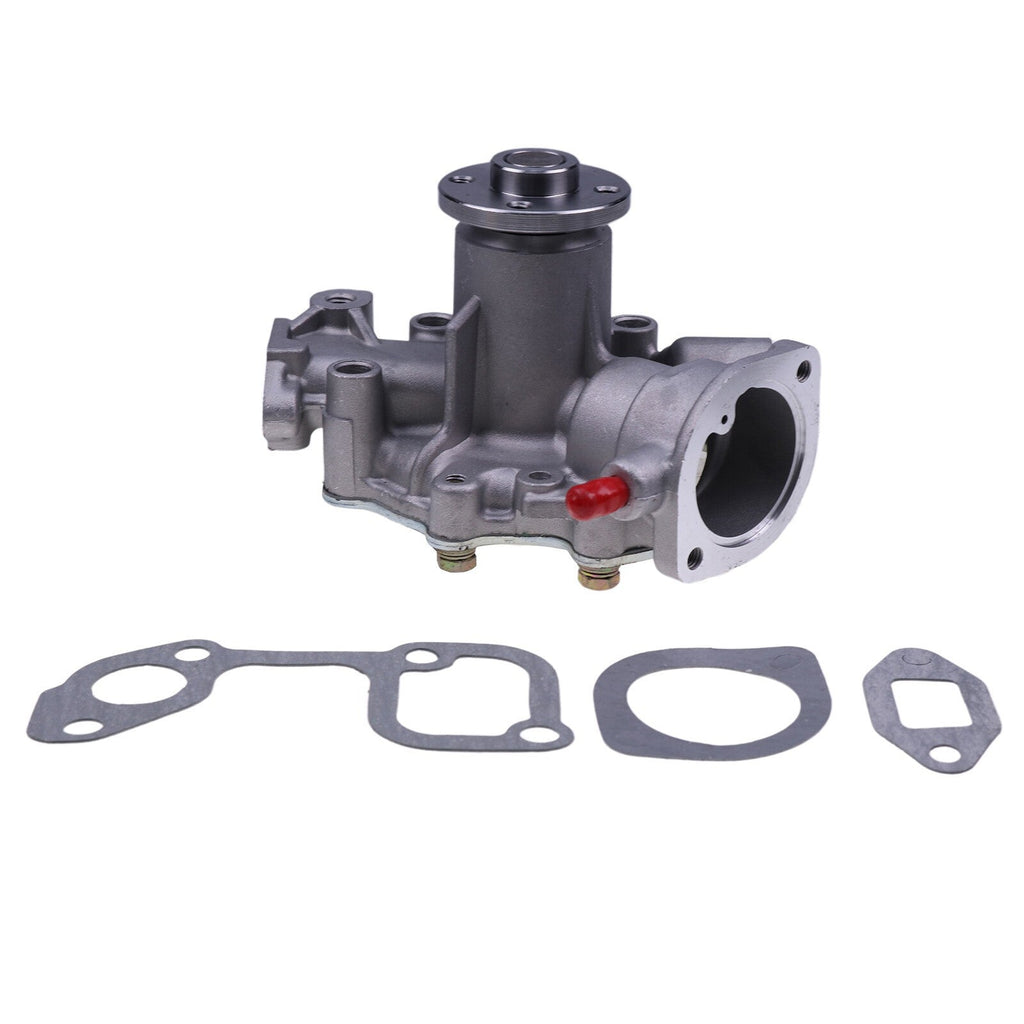

Water Pump 49301-0001 with Gaskets for Kawasaki Mule 3010 and 4010 Diesel
$136.99
In Stock
$136.99
Sale price
$136.99
Regular price
Aftermarket engine water pump with mounting gaskets, replacing Kawasaki 49301-0001 on compatible Mule 3010 and 4010 diesel utility vehicles.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 2008 Kawasaki Mule 3010 Diesel 4x4 KAF950-D8F
- 2008 Kawasaki Mule 3010 Trans4x4 Diesel KAF950-E8F
- 2009 Kawasaki Mule 4010 Diesel 4x4 KAF950-F9F
- 2010 Kawasaki Mule 4010 Diesel 4x4 KAF950-FAF
- 2011 Kawasaki Mule 4010 Diesel 4x4 KAF950-FBF
- 2012 Kawasaki Mule 4010 Diesel 4x4 KAF950-FCF
- 2013 Kawasaki Mule 4010 Diesel 4x4 KAF950-FDF
- 2009 Kawasaki Mule 4010 Trans4x4 Diesel KAF950-G9F
- 2010 Kawasaki Mule 4010 Trans4x4 Diesel KAF950-GAF and Realtree KAF950-HAF
- 2011 Kawasaki Mule 4010 Trans4x4 Diesel KAF950-GBF
- 2012 Kawasaki Mule 4010 Trans4x4 Diesel KAF950-GCF
- 2013 Kawasaki Mule 4010 Trans4x4 Diesel KAF950-GDF
Product Overview
Coolant at the pump weep hole, bearing noise, pulley play, or overheating after the radiator, belt, thermostat, fan, and coolant level are checked can make the water pump the right repair. Continuing to run a hot diesel risks damage far beyond the pump.
The pump circulates coolant through the KAF950 diesel engine and radiator. This assembly includes the mounting gaskets, but the cooling system still needs clean sealing surfaces, correct belt drive, proper coolant, and complete air bleeding.
Key Features & Performance
- Circulates coolant through compatible KAF950 diesel engines
- Replaces Kawasaki 49301-0001
- Includes mounting gaskets for the pump service
- Addresses leakage, bearing play, or failed circulation after diagnosis
Replaces Part Numbers
- 49301-0001
Common Uses
- Replacing a pump leaking from its seal or weep passage
- Correcting rough pump bearings or pulley play
- Restoring coolant circulation after the pump is confirmed failed
- Preventing a known pump problem from overheating the diesel engine
Technical Specifications
- Product Type: Engine Water Pump
- Engine Family: Kawasaki KAF950 diesel
- Included: Pump mounting gaskets
- Condition: New
- Replacement Type: Aftermarket
Installation & Fitment
- Let the engine cool completely and drain coolant into a suitable container
- Inspect the radiator, hoses, cap, thermostat, fan, and drive belt while the system is open
- Clean the gasket surfaces without gouging them and follow the specified bolt torque
- Refill with approved coolant, bleed trapped air, and inspect for leaks at operating temperature
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Production date, serial number, engine option, dimensions, connections, and previous repairs can change the part used within the same model. Compare the removed item and service information before purchase.
Frequently Asked Questions
Q: Will this pump fix every overheating Mule? A: No. Restricted airflow, a dirty radiator, low coolant, combustion leakage, thermostat trouble, fan issues, or a slipping belt can also cause overheating.
Q: Are the mounting gaskets included? A: Yes, the pump is supplied with mounting gaskets. Compare all included pieces with the removed parts before installation.
Q: How do I make the final fitment check? A: Use the compatible list as a starting point, then compare the original reference number, dimensions, connections, mounting details, production date, and equipment or engine serial information.
Q: What does aftermarket mean for this listing? A: This is a new aftermarket part. The brand and model names identify the applications it is intended to service.
Part Summary
