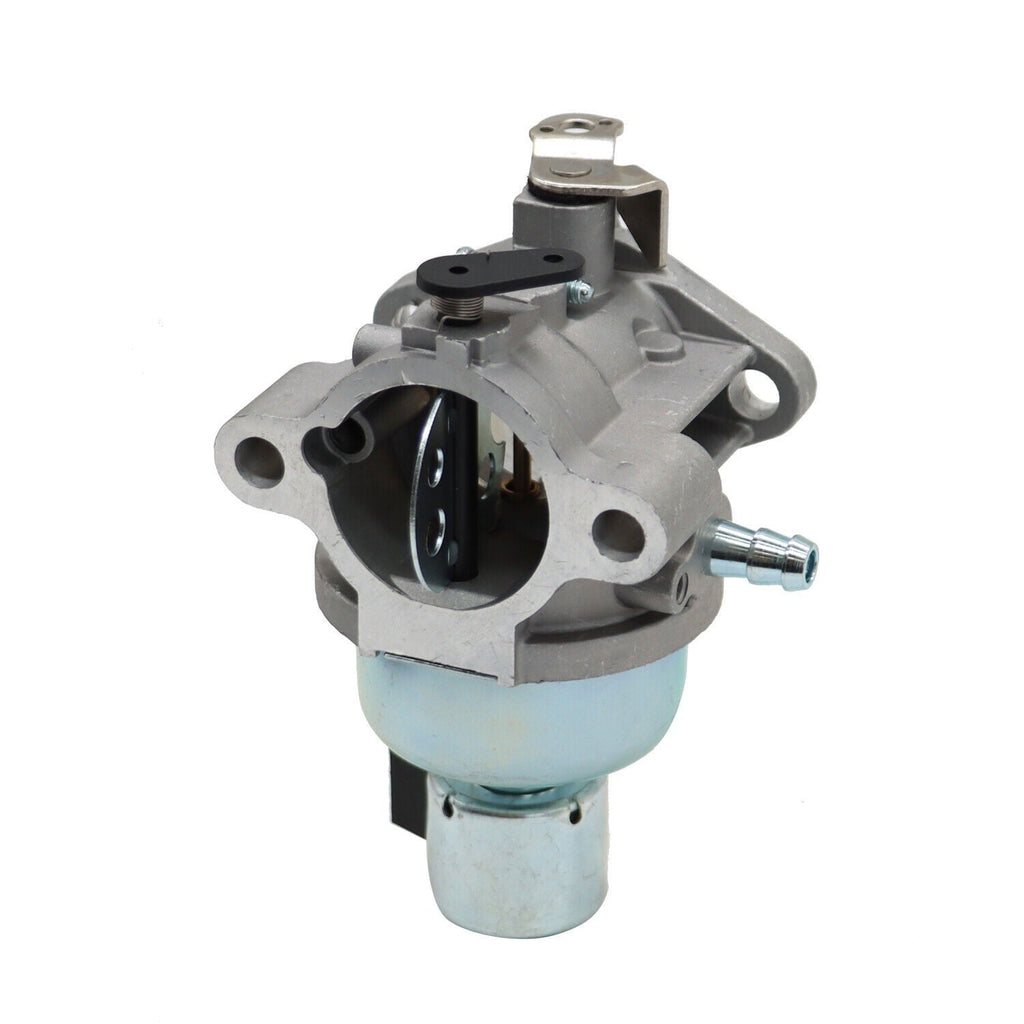

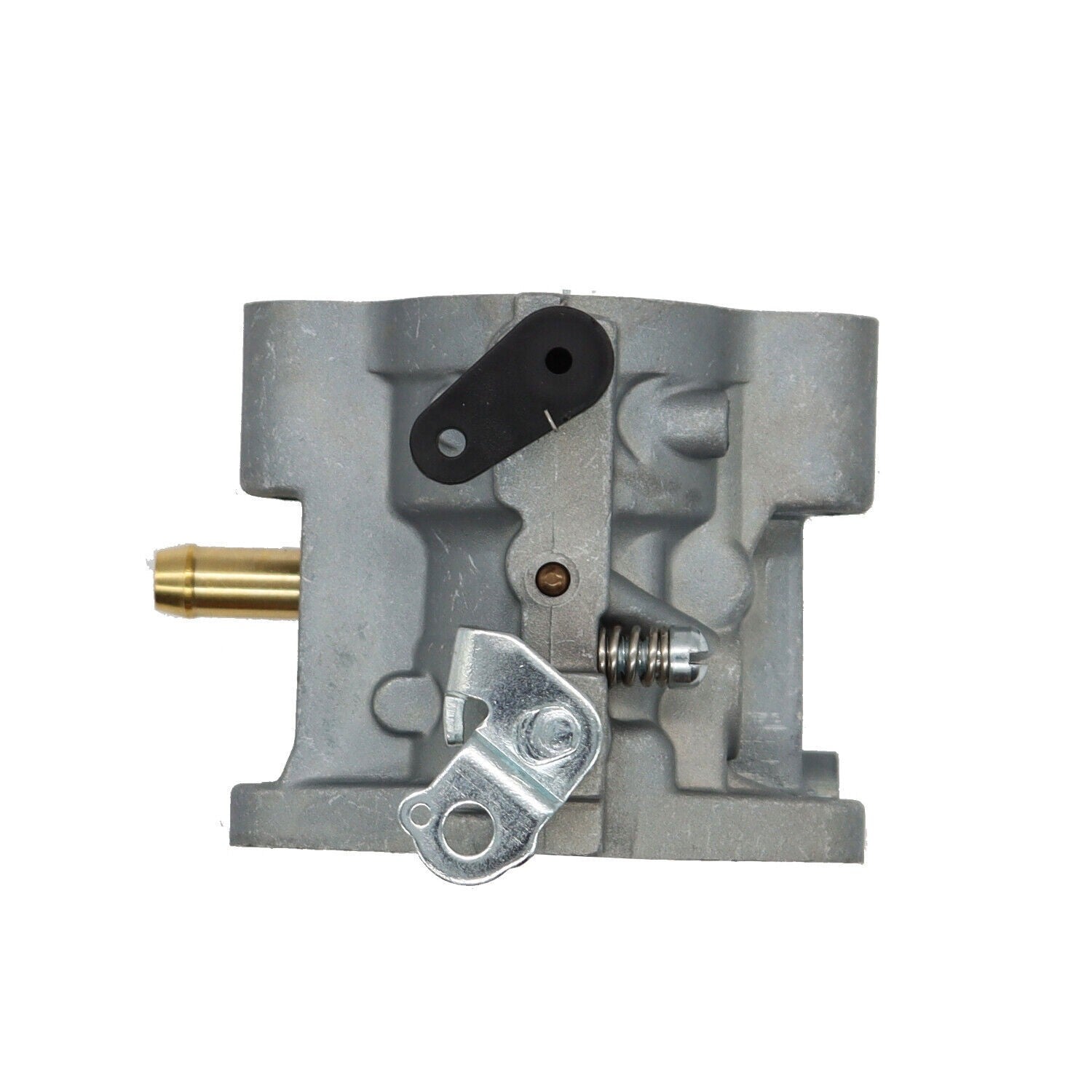

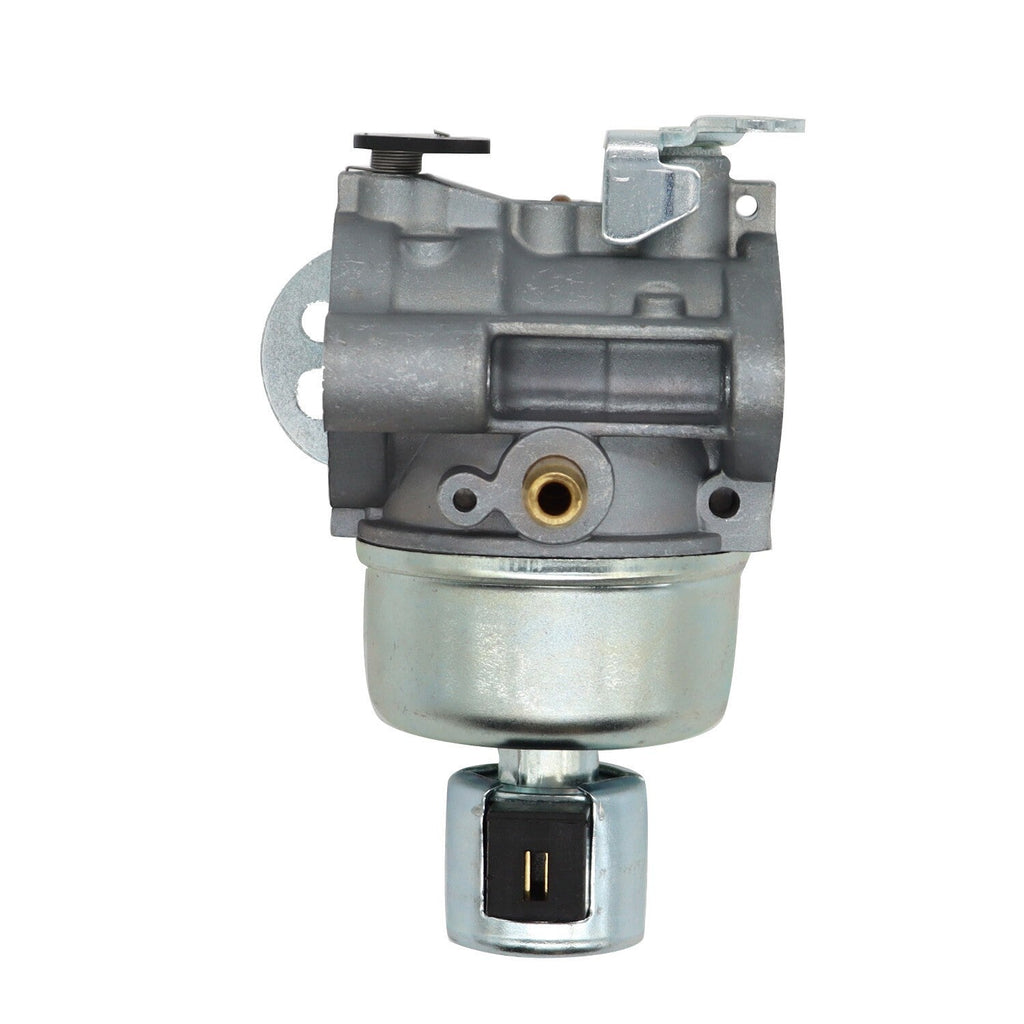

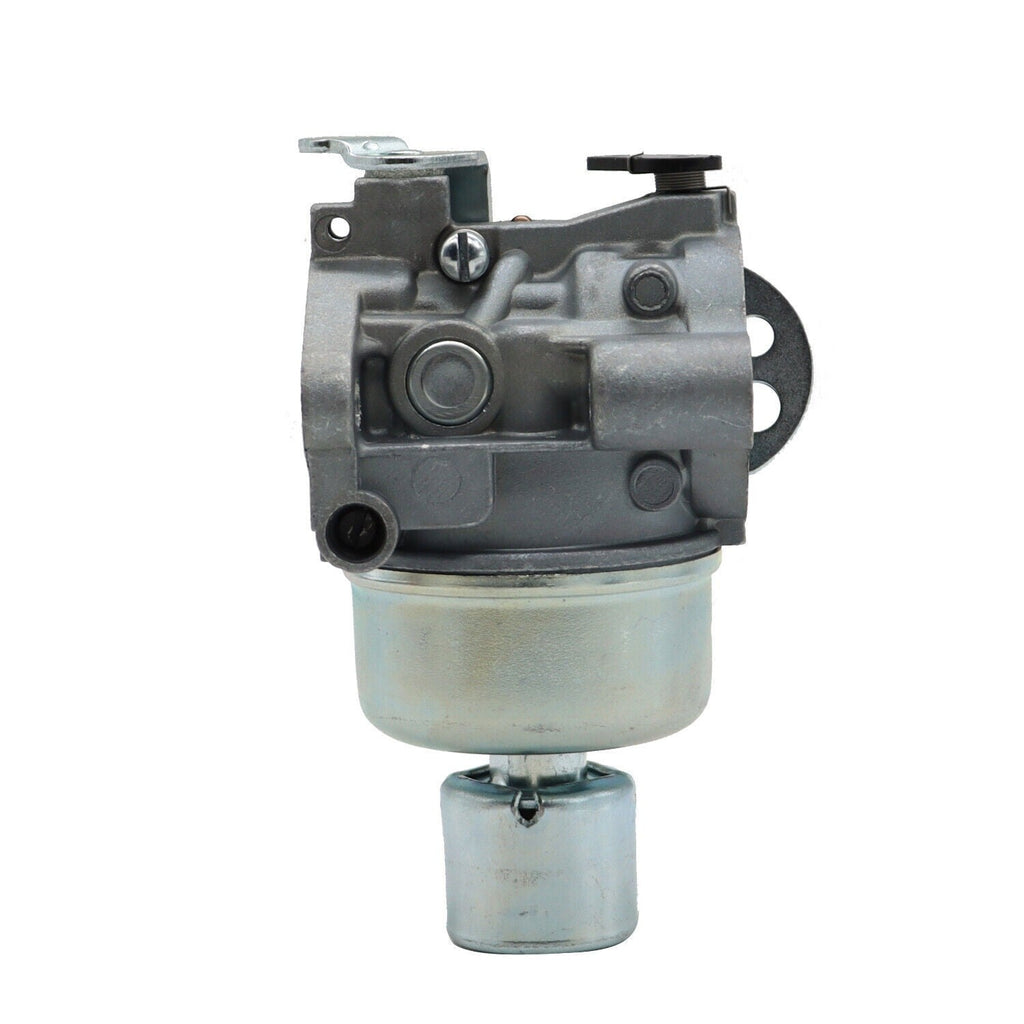

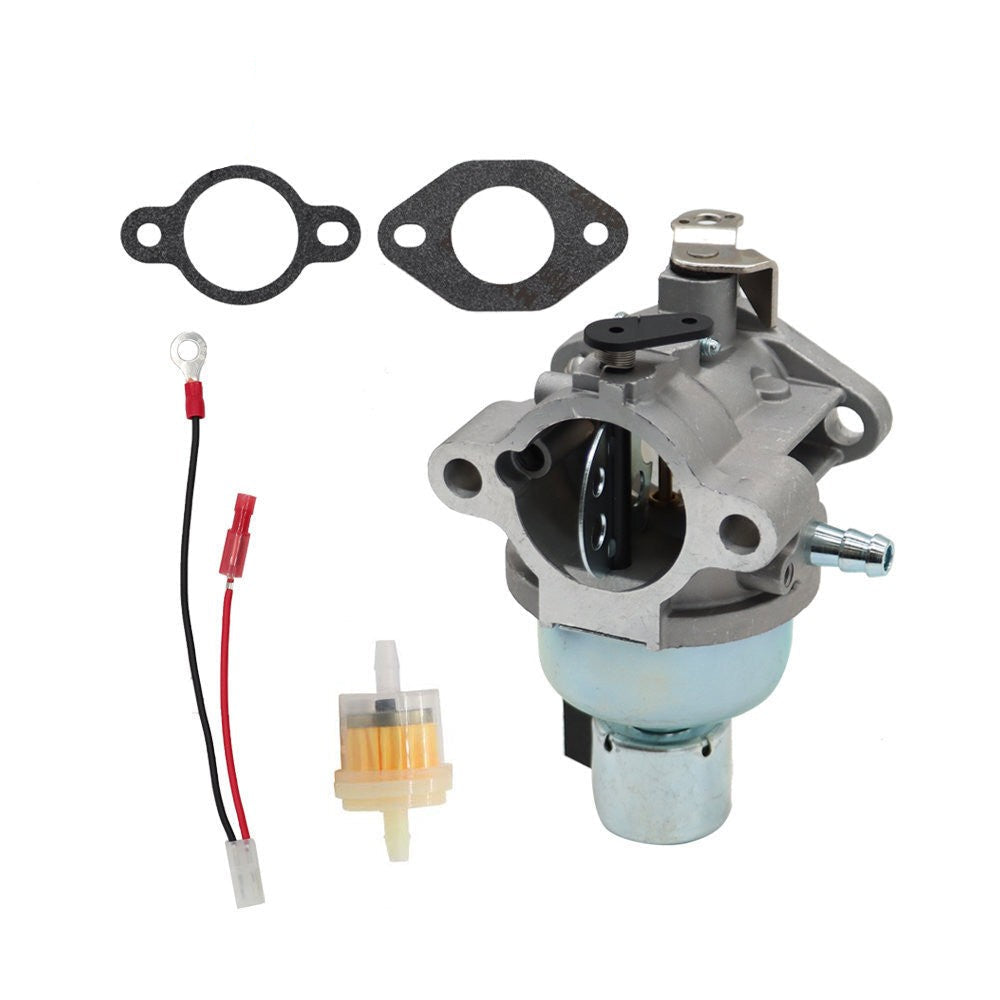

John Deere STX30 Carburetor with Fuel Solenoid | AM132722
$22.99
In Stock
$22.99
Sale price
$22.99
Regular price
This aftermarket carburetor with fuel-shutoff solenoid replaces AM132722 on compatible John Deere STX30 and matching Kohler engine applications.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- John Deere STX30 lawn tractor using AM132722
- John Deere L110 applications using the same AM132722 carburetor configuration
- Kohler CV490 engine specifications with carburetor marking 12 053 06 or 12 053 23
Product Overview
An STX30 that cranks but receives no fuel, backfires after shutdown, or runs unevenly may have a carburetor or anti-afterfire solenoid problem. This assembly renews both items together when testing confirms the original components are the cause.

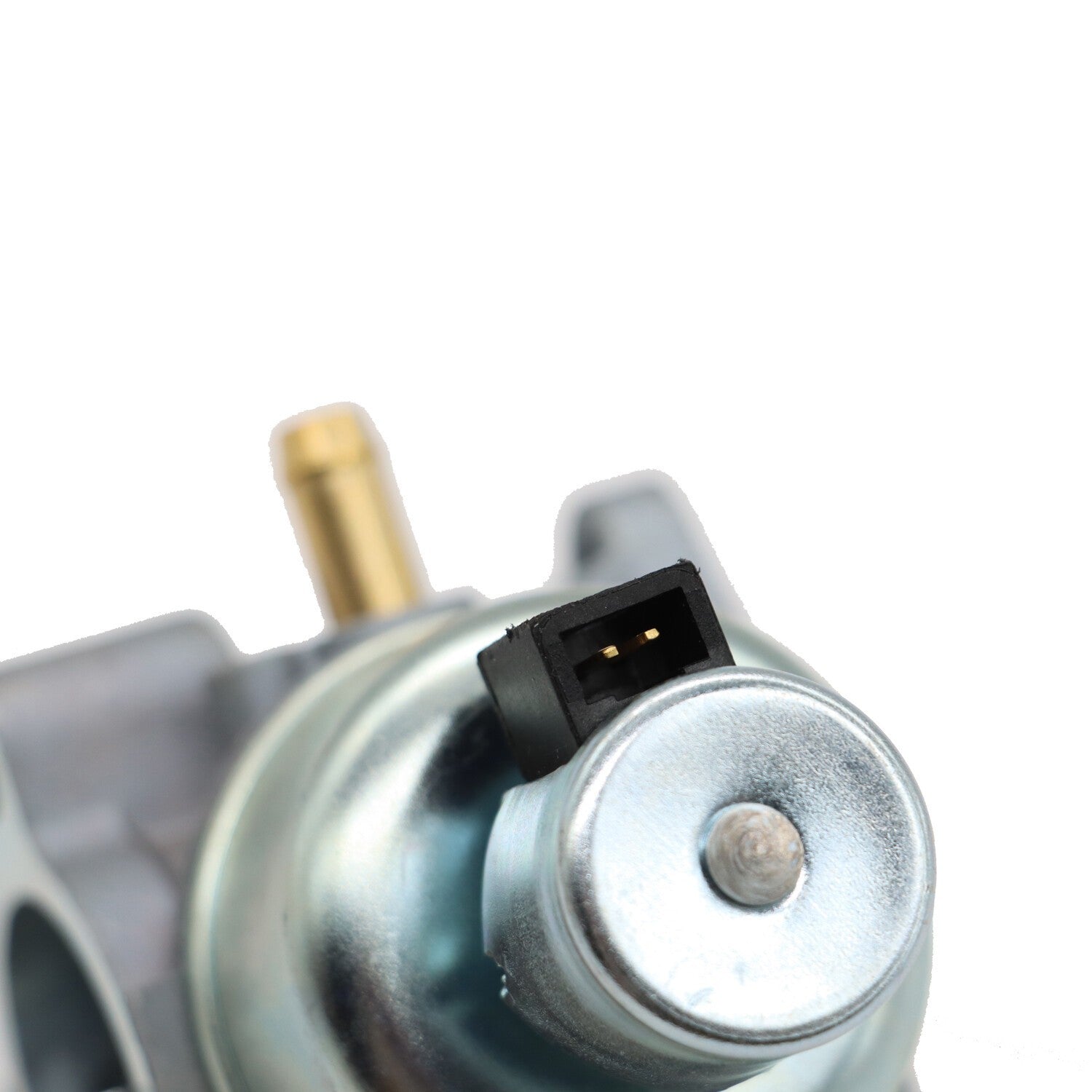

Confirm the AM132722 reference, carburetor casting, solenoid voltage and connector, choke arrangement, and Kohler engine specification. A silent solenoid can also be caused by missing power or ground.
This is a high-quality aftermarket replacement or service part and is not manufactured or supplied by the original equipment brand.
Key Features & Performance
- Carburetor assembly with matching fuel-shutoff solenoid provision
- Restores fuel metering and controlled bowl shutoff together
- Suitable for confirmed internal carburetor or solenoid failure
- Aftermarket replacement centered on the AM132722 application
Replaces Part Numbers
- AM132722
- 12 053 06
- 12 053 23
Common Uses
- Repairing a tractor that will not receive fuel despite a clean supply
- Correcting afterfire caused by a failed shutoff function
- Replacing a corroded or leaking original carburetor

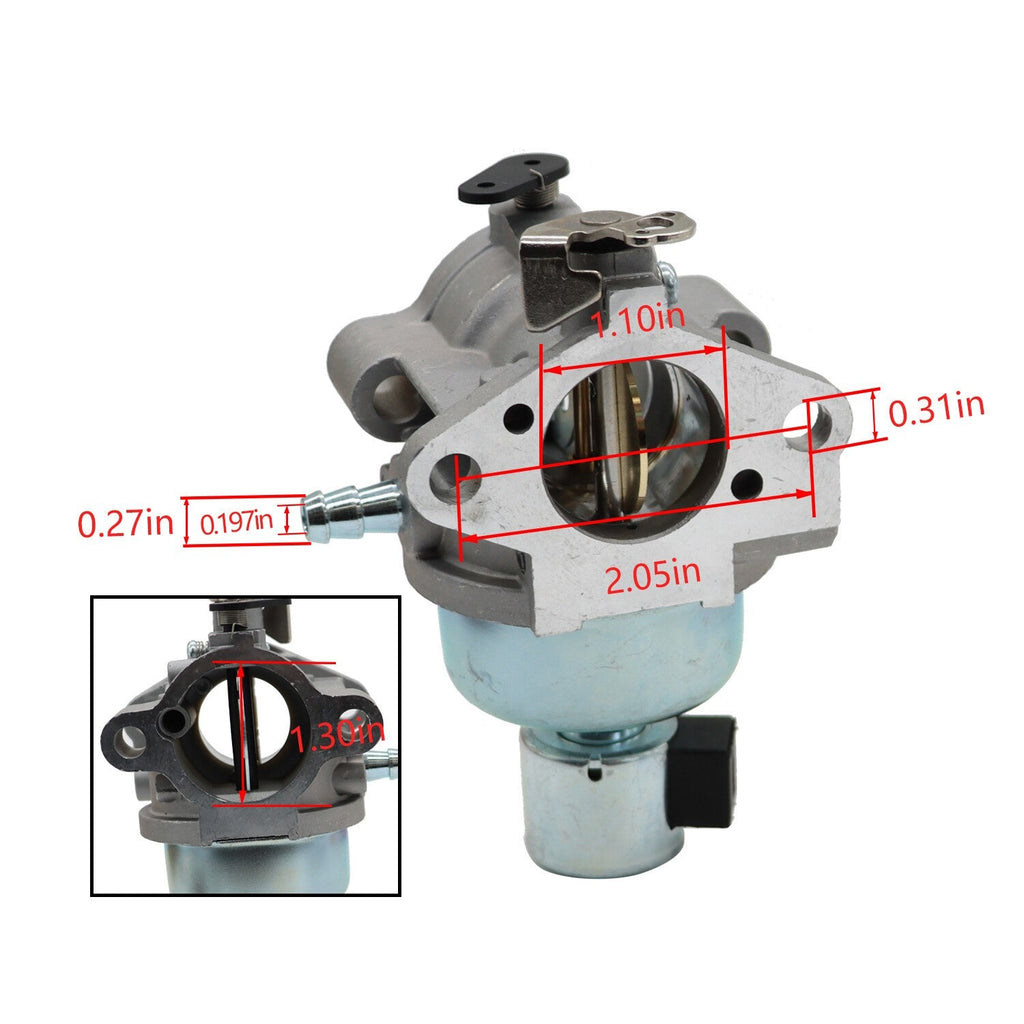

Technical Specifications
- Product Type: Carburetor with fuel-shutoff solenoid
- Primary Tractor: John Deere STX30
- Compatible Engine Family: Matching Kohler CV490 specifications
- Replacement Type: Aftermarket
Installation & Fitment
- Verify solenoid power and ground before condemning the carburetor
- Record choke, throttle, and governor linkage positions
- Clean the tank and replace compromised fuel line or filter
- Check for leaks, solenoid operation, idle quality, and governed speed
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown. Model names and year ranges alone may not guarantee fitment. Always compare the original component, reference number, dimensions, connectors, engine or vehicle identification, and installed configuration before purchase.
Frequently Asked Questions
Q: How can I tell whether the solenoid or wiring is bad? A: Verify battery voltage and ground at the connector while the key is in the run position.
Q: Will this fit every John Deere with a Kohler engine? A: No. Match AM132722, the engine specification, and physical configuration.
Q: Why does the engine backfire when switched off? A: Fuel entering a hot muffler can ignite; the shutoff solenoid is one possible cause among mixture and ignition issues.
Q: How should final fitment be confirmed? A: Match the original component and every listed identifier and physical detail; contact Northline Parts with the model, serial number, VIN, engine code, or clear photos when additional help is needed.
Part Summary
keywords: John Deere STX30 carburetor, AM132722 replacement carb, STX30 fuel solenoid repair, Kohler CV490 carburetor fit, mower afterfire shutoff valve part
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
