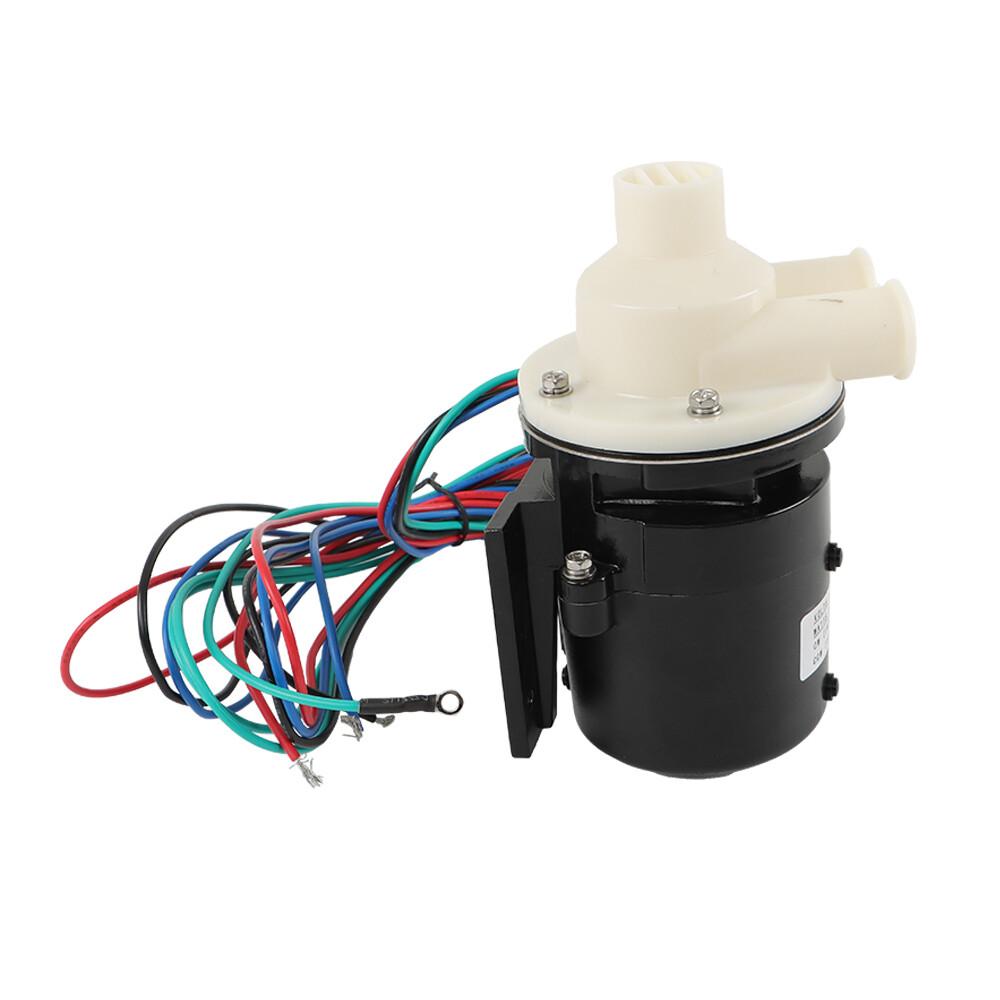

PA0613 Water Pump Motor Assembly with Capacitor for Hoshizaki Ice Machines
$124.99
In Stock
$124.99
Sale price
$124.99
Regular price
This aftermarket water pump motor assembly replaces Hoshizaki PA0613 and APTA92P10WD1 in compatible KM-series ice machines and includes the motor capacitor.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Hoshizaki KM-320MAH, KM-320MWH
- Hoshizaki KM-450MAH and matching KM-450 variants
- Hoshizaki KM-500MAE, KM-500MAF, KM-500MAH, KM-500MRE, KM-500MRF, KM-500MRH, KM-500MWE, KM-500MWF, KM-500MWH
- Hoshizaki KM-501MAH, KM-501MRH, KM-501MWH
- Hoshizaki KM-515MAH, KM-515MRH, KM-515MWH
- Hoshizaki KM-600 series using PA0613
- Hoshizaki KM-630MAE, KM-630MAF, KM-630MAH, KM-630MRE, KM-630MRF, KM-630MRH, KM-630MWF, KM-630MWH
- Hoshizaki KM-650MAH, KM-650MRH, KM-650MWH
- Hoshizaki KM-800MAE, KM-800MRE, KM-800MWE
- Hoshizaki KM-900MAF, KM-900MAH, KM-900MRF, KM-900MRH, KM-900MRH3, KM-900MWF, KM-900MWH
- Hoshizaki KM-901MAH, KM-901MRH, KM-901MWH
- Additional machines specifying PA0613; verify model and serial
Product Overview
When an ice machine fills but water does not circulate evenly over the evaporator, makes abnormal pump noise, or stops during the freeze cycle, the circulation pump may be the failed part. After the water path, float, wiring, control output, and pump voltage are checked, this assembly restores water movement on matching Hoshizaki machines.
KM model lists are broad and serial breaks can change service parts. Match PA0613, the machine model and serial number, motor voltage, connector, plumbing, bracket, and impeller layout before installation.
Key Features & Performance
- Water circulation pump motor assembly for selected Hoshizaki KM machines
- Includes the matched motor capacitor
- Restores evaporator water flow after a confirmed pump failure
- References PA0613 and APTA92P10WD1
- Aftermarket commercial ice-machine service component
Replaces Part Numbers
- PA0613
- APTA92P10WD1
- S-0613
- 321444A01
- 321444A02
- 3A2638A03
- HS-0176
Common Uses
- Replacing a pump motor that will not circulate water
- Correcting abnormal pump noise after cleaning and inspection
- Repairing poor evaporator water coverage caused by a failed pump
- Returning a commercial ice machine to production after electrical diagnosis
Technical Specifications
- Product Type: Ice-machine water pump motor assembly
- Included: Pump motor assembly and capacitor
- Voltage: 120V application; verify original label
- System: Evaporator water circulation
- Replacement Type: Aftermarket
Installation & Fitment
- Disconnect electrical power and shut off water before service
- Confirm PA0613, complete machine model, serial number, voltage, and capacitor
- Clean the reservoir, hoses, distributor, and impeller area so restriction is not left behind
- Transfer plumbing and wiring exactly and keep connections dry
- Run the manufacturer's wash and freeze-cycle checks and inspect for leaks and normal flow
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model names and year ranges are a starting point. Match the original reference number, configuration, connections, mounting points, and product-specific details before ordering.
Frequently Asked Questions
Q: Can a clogged water distributor look like a bad pump? A: Yes. Scale, slime, a blocked hose, or a float problem can reduce water coverage even when the motor runs.
Q: Is the capacitor included? A: Yes. This assembly is identified as including the motor capacitor.
Q: Why is the serial number important? A: Commercial ice-machine parts can change during a model run, so model and serial together are the safest lookup.
Part Summary
keywords: Hoshizaki PA0613 pump motor assembly, APTA92P10WD1 replacement, Hoshizaki KM-900 water pump, KM-500 ice machine circulation motor, commercial ice maker no water flow, PA0613 capacitor motor, Hoshizaki evaporator pump repair, aftermarket Hoshizaki pump assembly
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
