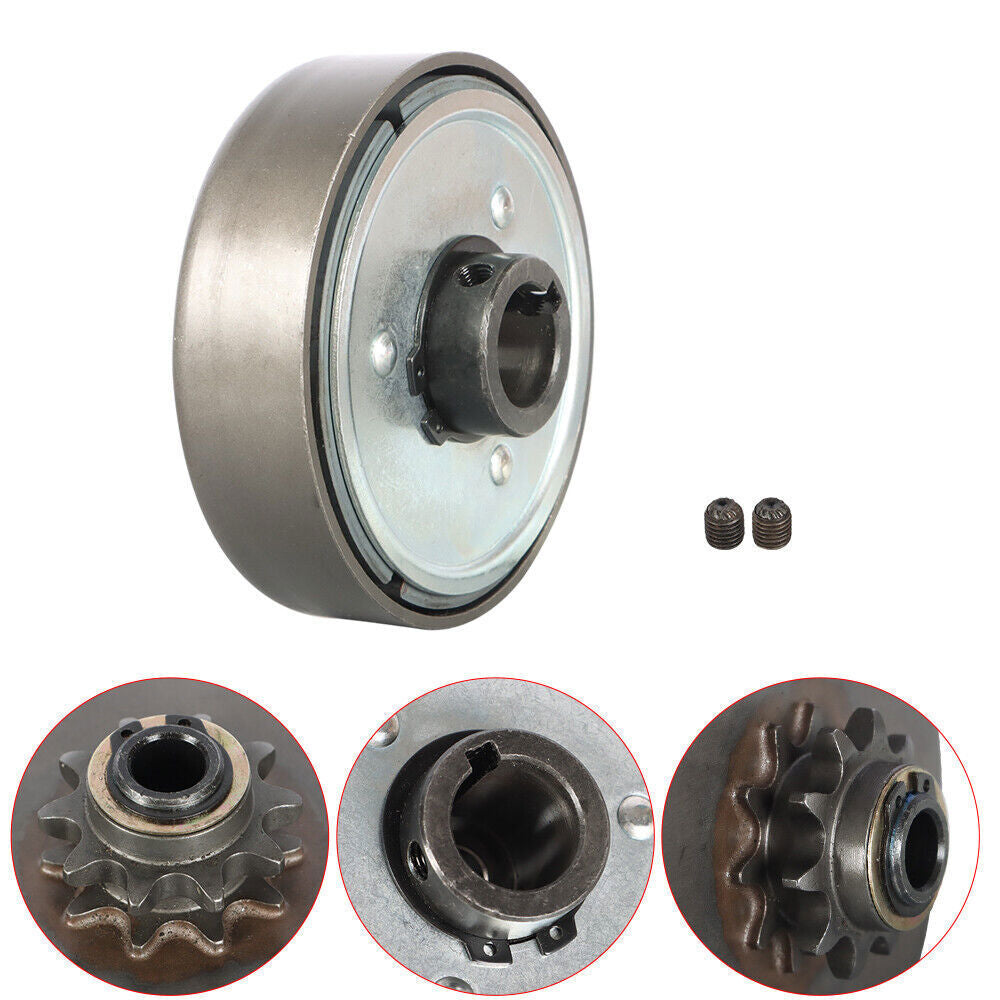

Go-Kart Centrifugal Clutch 1in Bore 10T #41 #420
$69.99
In Stock
$69.99
Sale price
$69.99
Regular price
This new heavy-duty centrifugal clutch has a 1-inch keyed bore and 10-tooth sprocket for #40, #41, or #420 chain on compatible go-karts, mini bikes, and small-engine builds.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Go-karts and mini bikes with a straight 1-inch keyed engine shaft
- Drives using #40, #41, or #420 roller chain
- Heavy-duty small-engine builds within the clutch maker rating
- Custom equipment only after dimensions, load, gearing, and guard clearance are checked
Product Overview
A kart that will not pull, slips after warming up, chatters, or creeps at idle may have worn shoes or springs. High idle speed, incorrect gearing, an oil-contaminated drum, misaligned chain, oversized tires, or an engine outside the clutch rating can cause the same problems.
The clutch automatically engages as engine RPM increases and transfers torque through the 10-tooth sprocket. It is a dimensional component, not a vehicle-specific bolt-on part.
Measure a straight 1-inch crankshaft bore, keyway, shaft length, retaining-bolt thread, chain pitch, sprocket alignment, engine horsepower and RPM, tire diameter, and mounting clearance.
Key Features & Performance
- One-inch keyed bore
- 10-tooth chain sprocket
- Compatible with #40 / #41 / #420 chain pitch
- Centrifugal shoe-and-drum engagement
Common Uses
- Replacing a clutch with glazed or broken shoes
- Correcting slippage after alignment and gearing checks
- Completing a properly guarded custom driveline
Technical Specifications
- Product Type: Centrifugal chain clutch
- Bore: 1 in straight keyed shaft
- Sprocket: 10 tooth
- Chain Compatibility: #40, #41 and #420; verify
Installation & Fitment
- Remove the spark-plug lead
- Confirm idle speed and shaft dimensions
- Align clutch sprocket with the axle sprocket
- Install the key and correct retaining hardware
- Fit a complete chain and clutch guard before testing
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Why does the kart move at idle? A: Idle may be too high, clutch springs may be damaged, or the drum may be binding.
Q: Can I use it with #35 chain? A: No. The sprocket is identified for #40, #41, or #420 chain.
Q: Will it fit every engine with a 1-inch shaft? A: No. Shaft length, keyway, retaining bolt, horsepower, gearing, and clearance must also match.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: 1 inch bore centrifugal clutch, 10 tooth 420 chain clutch, go kart clutch slips when hot, mini bike 41 chain clutch, heavy duty kart clutch replacement
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, specifications, and application before purchase.
