John Deere GX20497A Front Draft Arm Deck Lift Linkage Kit
$35.99
In Stock
$35.99
Sale price
$35.99
Regular price
This new aftermarket front draft arm and deck-linkage kit replaces GX20497 and GX20497A for compatible John Deere lawn tractors.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- John Deere 102, 105, 115, 125, 135, 145, 155C, 190C
- John Deere D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170
- John Deere E100, E110, E120, E130, E140, E150, E160, E170, E180
- John Deere L100, L105, L107, L108, L110, L111, L118, L120, L130, L2048, L2548
- John Deere LA105, LA115, LA125, LA135, LA145, LA155, LA165, LA175
- John Deere X105, X106, X110, X120, X126, X140, X166
- John Deere G110 and select S100 / S240 applications; verify deck linkage
Product Overview
If the mower deck shifts, hangs low at the front, or will not hold an even cutting pitch, a bent or missing front draft arm may be the reason after hangers and deck brackets are checked. This kit restores the link between the tractor frame and compatible mower deck.
A draft arm positions the deck; it does not correct bent deck shells, worn lift pivots, mismatched tires, or an out-of-level setup by itself. Included hardware should be compared with the removed linkage.
John Deere used this linkage across many 100-series families, but deck size, frame revision, and serial range still matter. Match GX20497/GX20497A and the arm shape before purchase.
Key Features & Performance

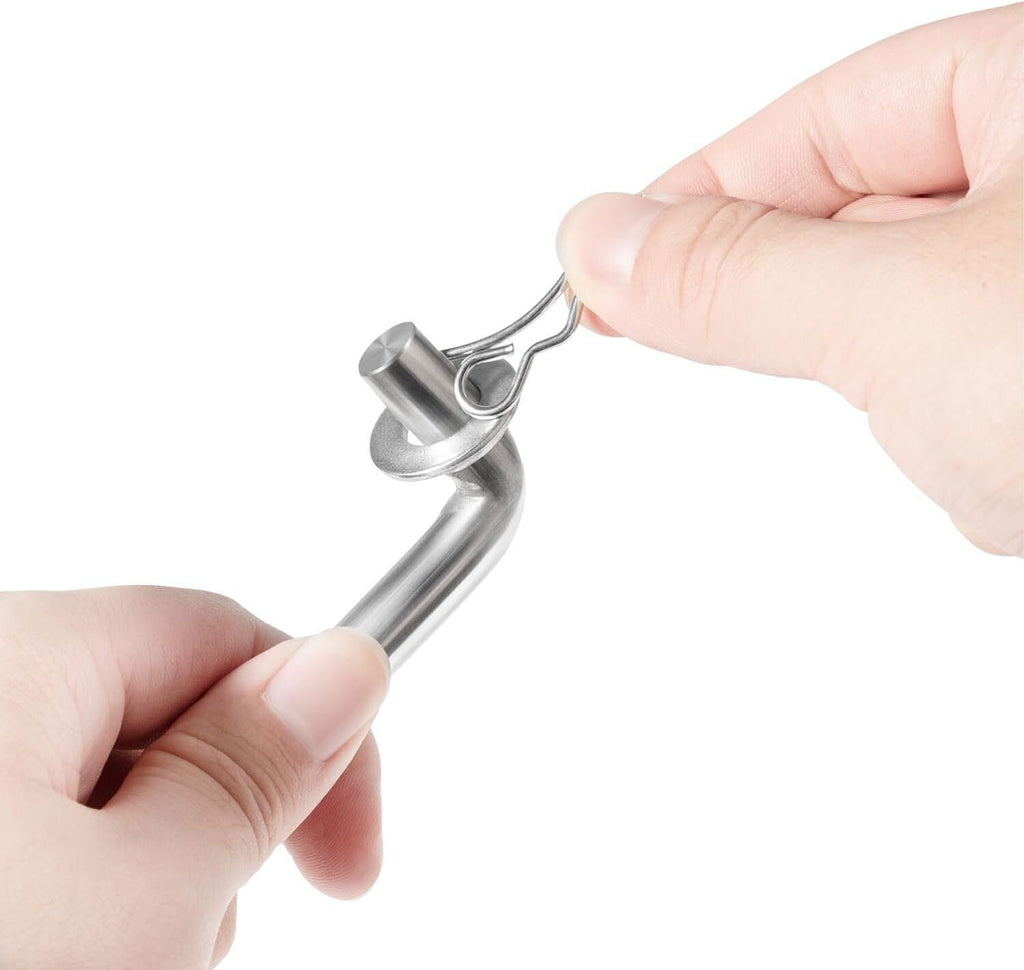

- Front draft arm with service hardware shown
- Helps restore deck position and cutting pitch
- Direct linkage replacement for matching tractor frames
- Useful after impact, corrosion, or lost hardware
Replaces Part Numbers
- GX20497
- GX20497A
- M112982 ball reference
- H135891 nut reference
- 24M7044 washer reference
- M144705 spring-pin reference
Common Uses
- Repairing a deck that shifts during mowing
- Replacing a bent front hanger after striking an object
- Restoring missing linkage during a used-deck installation
Technical Specifications
- Product Type: Mower deck front draft arm kit
- System: Deck lift and support linkage
- Brand Compatibility: John Deere
- Condition: New aftermarket replacement

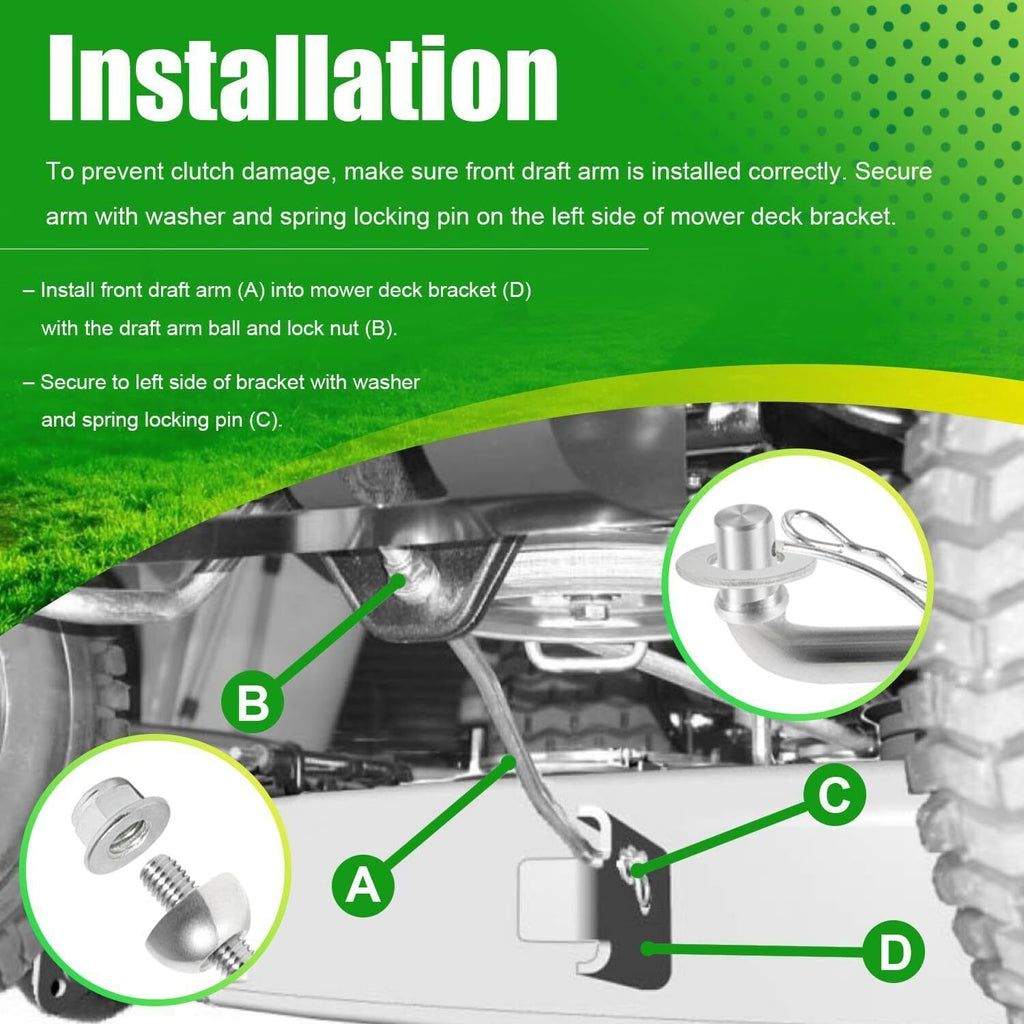

Installation & Fitment
- Park safely and remove the key
- Support the deck before releasing linkage tension

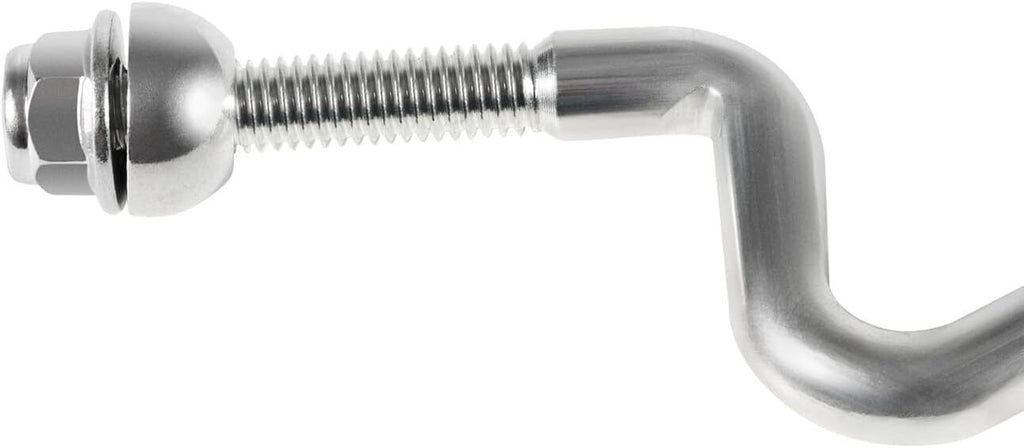

- Compare arm length, bends, ball, pin, and hardware
- Level the deck side-to-side and front-to-rear after installation
- Recheck retainers after the first mowing session
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Can this fix an uneven cut? A: It can if a bent or loose front draft arm is changing deck pitch; blades, tires, deck shell, spindles, and leveling also matter.
Q: Does it fit every deck used on these tractors? A: No. Match the linkage and part number because deck and frame combinations vary.
Q: Is GX20497A the same reference family as GX20497? A: Yes, listings commonly use GX20497A as a kit or replacement reference for the GX20497 front draft arm.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
