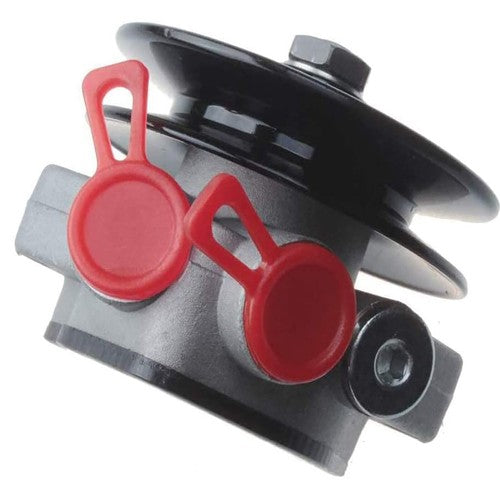

Fuel Lift Pump 04503573 for Deutz BF4M1012 / BF6M1013 – 02112673, 02113800
$109.79
In Stock
$109.79
Sale price
$109.79
Regular price
This engine-driven fuel lift pump cross-references Deutz 04503573, 02112673 and 02113800 for compatible 1012/1013-series diesel engines.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
| Brand / Family | Compatible Applications |
|---|---|
| Deutz engines | BF4M1012 E/EC, BF6M1013 E/EC/FC/ECP and related 1012/1013 variants |
| Equipment examples | Deutz-Fahr AgroFarm/Agrotron, Fendt, SAME/Lamborghini and other machines using the matching engine/pump |
Product Overview
It supplies low-pressure fuel to the injection system on a wide range of agricultural and industrial equipment. A weak pump can cause extended cranking, fuel starvation under load or repeated need to hand-prime after shutdown.
The same engine family appears in many equipment brands; pump number and port layout are the best identifiers.
Key Features & Performance
- Supports consistent fuel delivery: Provides the low-pressure fuel supply needed by the engine's injection or carburetion system.
- Useful for starvation symptoms: A weak pump can contribute to hard starting, loss of prime, hesitation or power loss once restrictions and air leaks are ruled out.
- Configuration-sensitive fitment: Mounting, ports, voltage/connector when applicable and reference number should be matched to the original.
- Product-specific note: The same engine family appears in many equipment brands; pump number and port layout are the best identifiers.
Technical Specifications
- Component: Mechanical fuel lift / transfer pump
- Pulley reference: 85 mm on matching replacement catalogs
- Ports: M16x1.5 inlet / M14x1.5 outlet on matching pump configuration
Replaces / Reference Part Numbers
04503573, 02112673, 02113800, 02112754, 02112559, 04255394
Common Replacement Reasons
- Long cranking or repeated loss of fuel prime
- Fuel starvation or power loss under load
- Pump output remains weak after the filter, tank outlet, hoses and electrical supply (if applicable) are checked
Frequently Asked Questions
How do I confirm this is the correct part?
Confirm the Deutz pump/reference number, pulley and threaded port sizes before installation.
Is this an OEM part?
Unless the listing is explicitly identified as genuine/OEM in the product data, treat it as a replacement component. Use the verified reference numbers, equipment application and physical configuration above to match your original part.
What should I check before installation?
Air leaks on the suction side can mimic a weak lift pump.
Fitment note: Equipment manufacturers may use different components within the same model family based on engine, serial number or production date. Confirm the original part number and machine/engine details before ordering.
