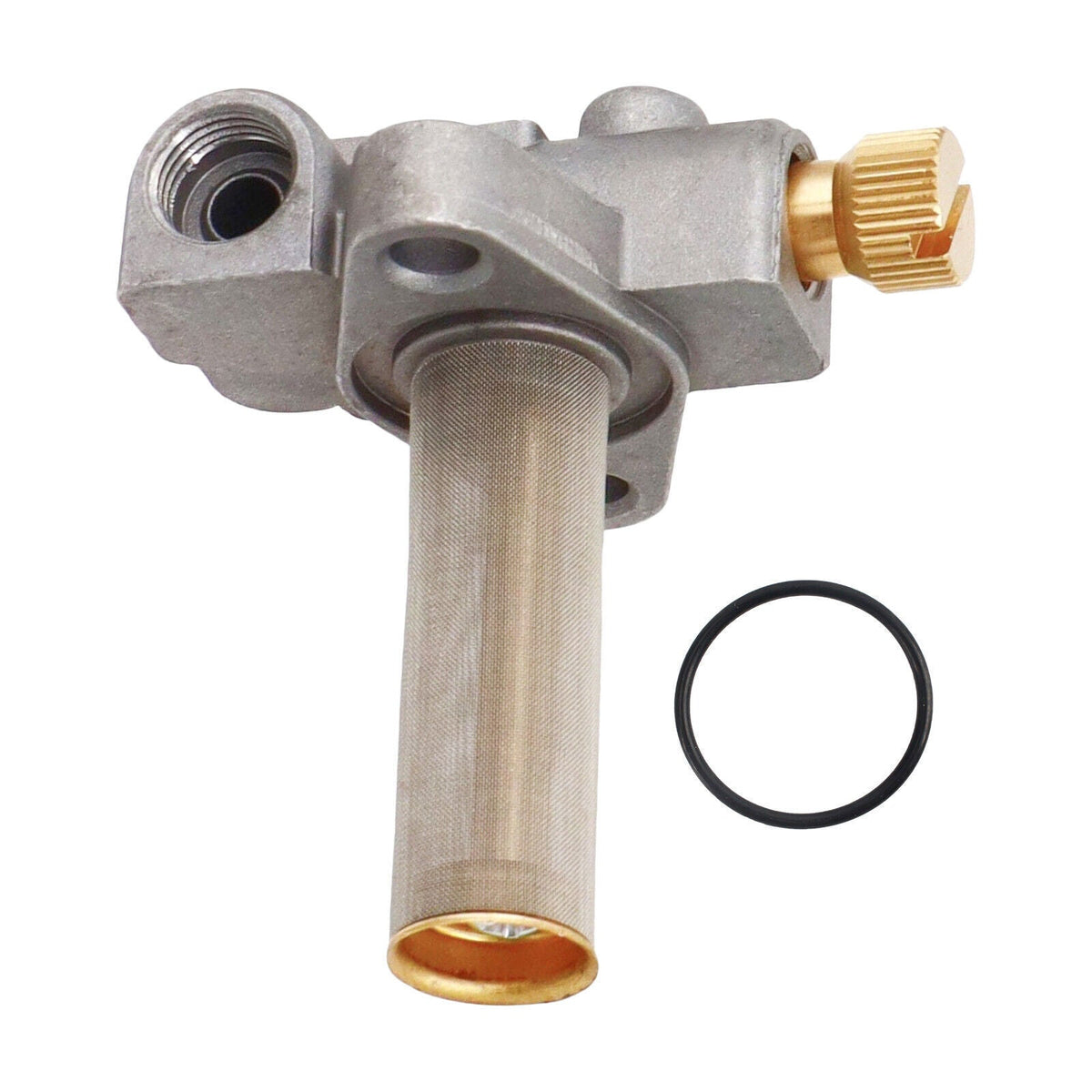

Fuel Shutoff Valve 311292 for Ford 600 601 700 701 800 801 900 Tractors
$26.99
In Stock
$26.99
Sale price
$26.99
Regular price
This aftermarket tank-mounted fuel shutoff valve replaces Ford and New Holland 311292 on compatible 501, 600, 601, 700, 701, 800, 801, 900, and 901 tractors.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Ford / New Holland 501, 600, 601, 700, 701, 2000 (1955-1964 compatible applications)
- Ford / New Holland 800, 801, 900, 901 before serial 126524 with 1/4-in line
- Ford / New Holland 4-cylinder diesel 501, 601, 701, 801, 901, 2000, 4000 (1958-1964 compatible applications)
Product Overview
A tractor that smells of fuel in the shed, drips at the tank outlet, or cannot be shut off for carburetor service may have a worn valve stem or hardened tank seal. Sediment in an old steel tank can also keep a new valve from sealing unless the tank is cleaned.
The valve mounts to the tank with two screws, uses an O-ring, and connects to compatible 1/4-inch fuel line layouts. Ford gas and diesel applications differ by year and serial number, especially 800/900 families before serial 126524.
Key Features & Performance
- Tank-mounted manual fuel shutoff valve
- O-ring seal included for the tank connection
- 1/4-inch fuel-line application
- Cross-references Ford 311292
Replaces Part Numbers
- 311292
- 311292WORGV
- HF311292
- NCA9285B
Common Uses
- Stopping a leak at the tractor fuel tank outlet
- Restoring a working manual fuel shutoff
- Replacing a seized valve during tank or carburetor service
Technical Specifications
- Product Type: Fuel tank shutoff valve
- Mounting: Two-screw tank mount
- Fuel Line: 1/4 in compatible line
- Seal: O-ring included
- Condition: New aftermarket replacement
Installation & Fitment
- Drain fuel safely and work away from ignition sources
- Clean sediment from the tank mounting area
- Do not overtighten screws into an aged tank flange
- Verify fuel type, tractor model, serial break, line size, and mounting pattern
Compatibility Notice
Northline Parts does its best to list all known compatible models. The correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Why is serial 126524 important? A: Certain 800/801/900/901 applications changed after that serial range.
Q: Does the valve include the tank O-ring? A: Yes, an O-ring is listed with this valve.
Q: Can tank rust keep a new valve from sealing? A: Yes. Debris can damage the valve and contaminate the carburetor.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: Ford tractor 311292 fuel valve, 600 601 tank shutoff, Ford 800 801 fuel tap, 900 901 tractor fuel leak, New Holland tank valve replacement
