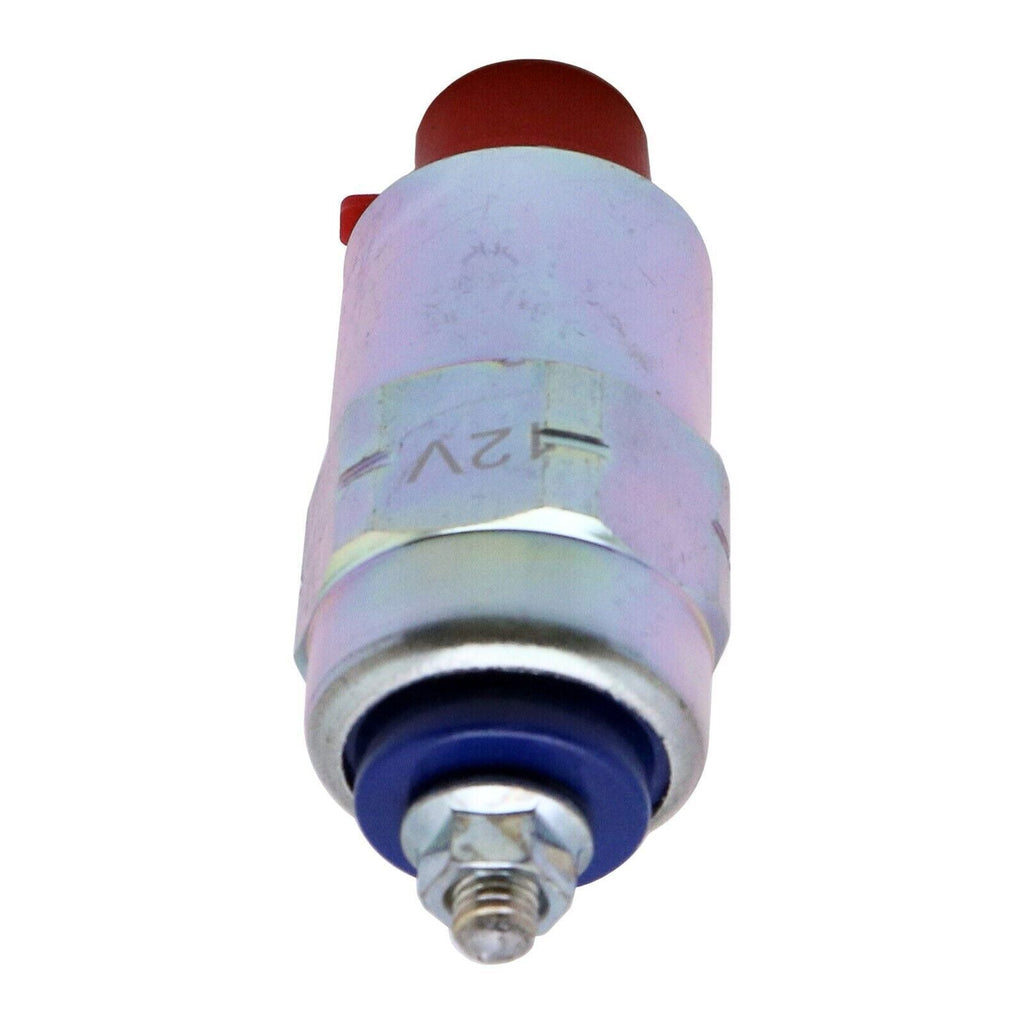

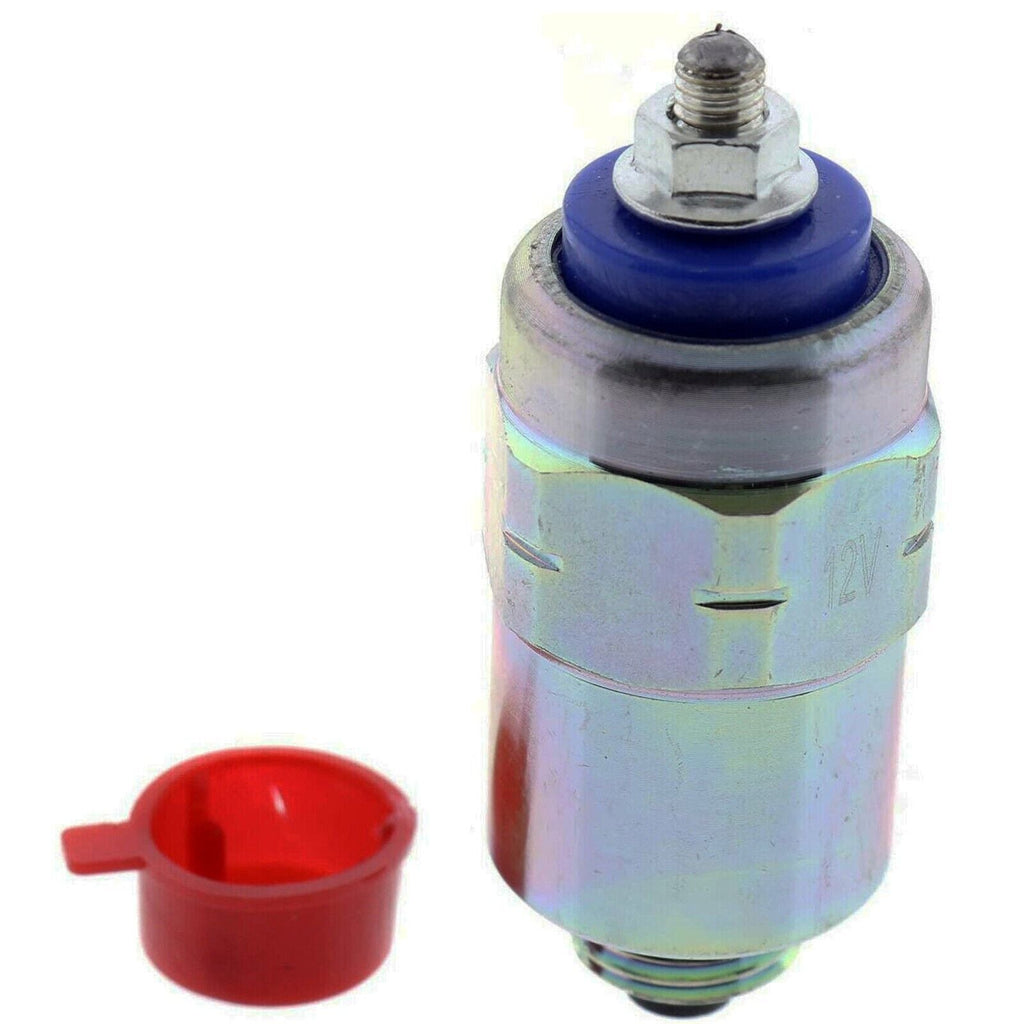

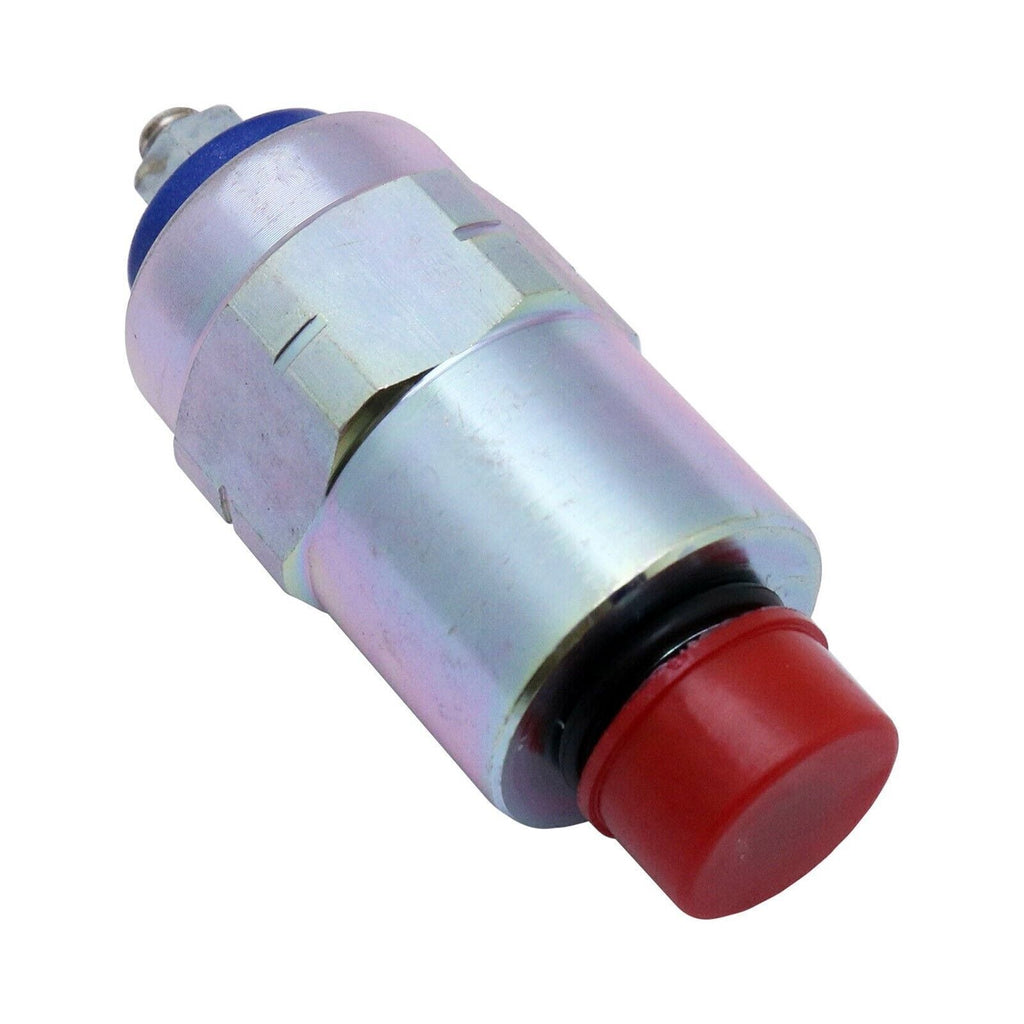

7167-620A 12V Fuel Shutoff Solenoid for CAV Lucas DPA DPS Pumps
$22.99
In Stock
$22.99
Sale price
$22.99
Regular price
Restore key-controlled fuel shutoff on compatible CAV and Lucas DPA or DPS injection pumps with a 12V solenoid replacing 7167-620A, 7167-620B, and 7185-900W.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- CAV DPA injection pumps using 7167-620A or 7167-620B
- CAV DPS injection pumps using 7185-900W
- Lucas DPA and DPS rotary pumps with matching thread and plunger
- Select DP200 pumps only when the original reference and dimensions match
Product Overview
A pump solenoid that does not click or move its plunger can leave a diesel cranking without fuel. If it sticks open, the engine may keep running after the key is turned off. This threaded replacement addresses that control point on matching rotary pumps.
Check for the correct voltage at the terminal and compare the plunger parts before installation. Some DP200 pumps look similar but use a different solenoid.
This is an aftermarket replacement part and is not manufactured or supplied by the original equipment brand.
Key Features & Performance
- 12V fuel stop solenoid
- For compatible CAV and Lucas DPA/DPS pumps
- Replaces three common reference numbers
- Simple service point for a confirmed electrical shutoff fault
Replaces Part Numbers
- 7167-620A
- 7167-620B
- 7185-900W
Common Uses
- Repairing a crank-no-start caused by closed fuel shutoff
- Correcting an engine that will not stop with the key
- Replacing an open solenoid coil
- Freeing a pump control from a sticking solenoid plunger
Technical Specifications
- Product Type: Injection-pump fuel shutoff solenoid
- Voltage: 12V DC
- Pump Families: CAV / Lucas DPA and DPS
- Replacement Type: Aftermarket
Installation & Fitment
- Test key-on voltage and ground first
- Clean the top or side of the injection pump
- Compare the plunger, spring, seal, and thread
- Keep all dirt out of the open pump port
- Test start, shutdown, and leakage after installation
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown. Model names alone may not guarantee fitment. Compare the original component, reference number, connector or mounting design, dimensions, and any serial-number or production-date break before purchase.
Frequently Asked Questions
Q: Does this fit all DPA pumps? A: No. Match one of the listed reference numbers and the moving parts.
Q: What if the new solenoid has no power? A: The key switch, relay, fuse, wiring, or ground must be repaired.
Q: Can it fit some DP200 pumps? A: Only when the original solenoid is the same 7167-620 / 7185-900W style.
Part Summary
keywords: 7167-620A fuel solenoid, 7185-900W CAV replacement, Lucas DPA no start, DPS injection pump shutoff, diesel engine will not stop, 12V pump stop valve
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
