Fuel Pump for Onan P216G P218G P220G P224G B43/B48 Engines – 149-2501-01
$34.09
In Stock
$34.09
Sale price
$34.09
Regular price

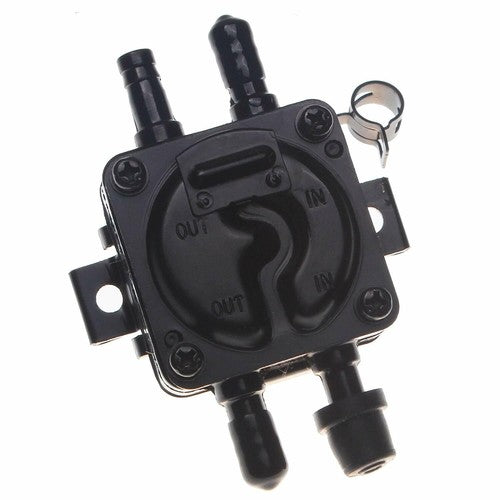

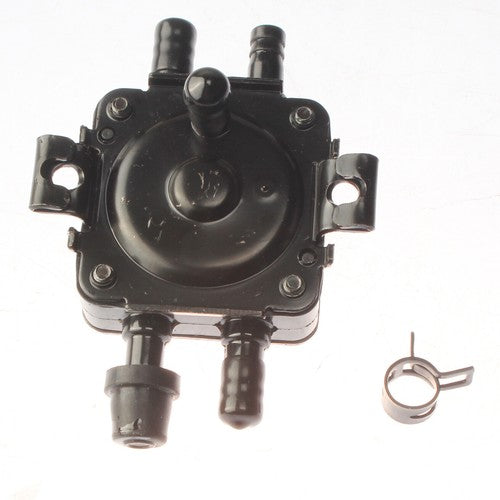

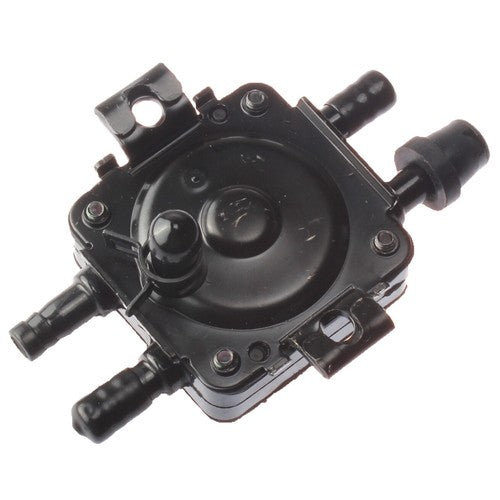

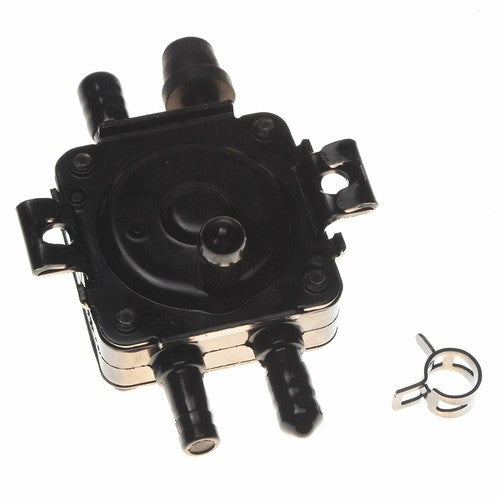

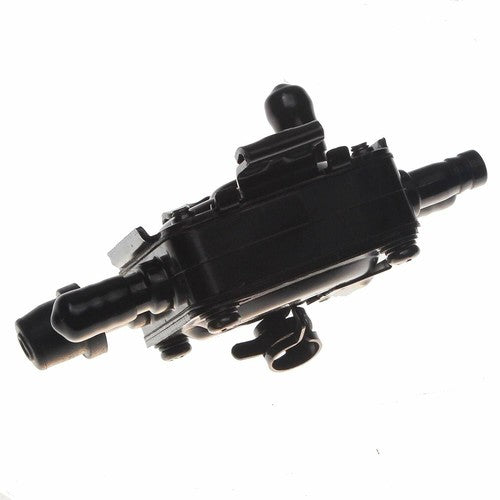

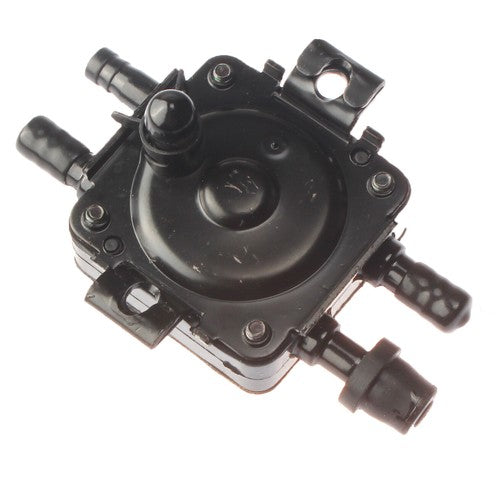

This pulse-style fuel pump is used on supported Onan P216G, P218G, P220G, P224G and B43/B48-series opposed-twin engines, with 149-2501-01 a key matched reference.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
| Application | Models / Details |
|---|---|
| Onan Performer engines | P216G, P218G, P220G, P224G |
| Onan B-series | B43, B43E, B43G, B48, B48G and compatible variants when the pump configuration matches |
Product Overview
Onan carbureted engines use this pump to move fuel from the tank to the carburetor using crankcase pulse/vacuum. A worn diaphragm or check valves can cause long cranking, fuel starvation at load, intermittent stalling, or an empty carburetor after the machine sits.
Application information for 149-2501-01 describes the later square-style pump and notes that it can replace older rectangular configurations in supported installations. The pulse-port location and fuel-hose routing should still be matched carefully.
Key Features & Performance
- Pulse/vacuum-operated fuel pump for carbureted Onan opposed-twin engines
- Reference 149-2501-01 in matched Onan application data
- Supports P216G, P218G, P220G, P224G and selected B43/B48 variants
- Later square-style service configuration is commonly listed as a replacement for older pump designs on applicable engines
Specifications & Reference Numbers
- Reference: 149-2501-01
- Pump type: Pulse / vacuum diaphragm fuel pump
- Fuel system: Carbureted gasoline engine
Before You Order
Check the pulse hose for cracks and verify the pump’s pulse-port orientation before installation. Incorrect hose routing or a weak crankcase pulse can prevent fuel delivery even with a new pump.
Frequently Asked Questions
Q: Is this pump electric?
A: No. This type is operated by engine crankcase pulse/vacuum.
Q: What if fuel still does not reach the carburetor?
A: Inspect the tank pickup, filter, fuel hoses, pulse line and carburetor inlet in addition to the pump.
