Fuel Lift Pump for Kubota M4700 M4800 M4900 M5400 & V2203 – 1903-3001 / 17121-52030
$45.09
In Stock
$45.09
Sale price
$45.09
Regular price

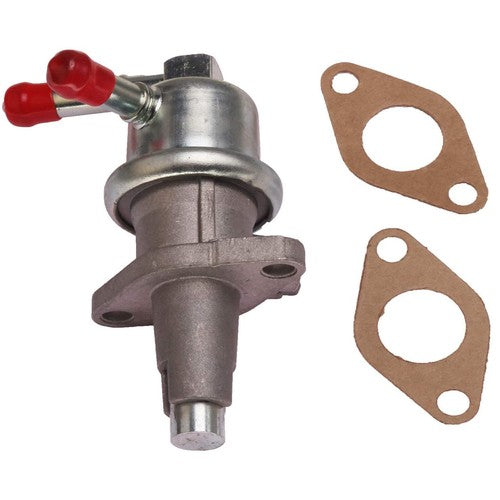

This mechanical fuel lift pump supplies low-pressure fuel to compatible Kubota tractors and V2203-powered equipment, with 1903-3001 and 17121-52030 among the key references.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
| Application | Models / Details |
|---|---|
| Kubota tractors | M4700, M4800, M4900, M5400; additional L/M-series applications use this pump format |
| Engine | Kubota V2203 and other supported Kubota industrial diesel applications |
| Bobcat cross-applications | 751G, 753G, 763G, 773G, S130, S150, S160, S175, S185, S205, T140, T180, T190 when the original pump reference matches |
Product Overview
The lift pump sits on the supply side of the diesel fuel system and draws fuel toward the injection system. Hard starting, loss of power under load, repeated loss of prime, or fuel leakage around the pump can point to a weak or damaged lift pump after filters, lines, and tank supply have been checked.
Cross-reference research for this pump also ties the same basic pump format to several Kubota L/M-series machines and Bobcat equipment using compatible Kubota diesel engines. Because those applications span multiple equipment families, matching the mounting pattern and original part number is the safest way to confirm the pump.
Key Features & Performance
- Mechanical low-pressure fuel supply pump for diesel injection systems
- Two-hole mounting pattern; supplied with mounting gasket on commonly matched versions
- Cross-references include 1903-3001, 17121-52030, 17121-52032 and related Kubota/Bobcat numbers
- Useful for restoring fuel prime and consistent feed pressure when the original mechanical pump is worn
Specifications & Reference Numbers
- Primary references: 1903-3001; 17121-52030
- Additional cross-references: 17121-52032; 17123-63013; Bobcat 6655216
- Mounting: Mechanical, two-bolt style
Before You Order
Kubota and Bobcat used several pump variations across these model families. Compare the stamped/cast pump, inlet/outlet orientation, mounting holes, and the original equipment number before ordering.
Frequently Asked Questions
Q: Can a bad lift pump cause a diesel to start and then lose power?
A: Yes. A weak supply pump can allow the injection system to starve under load, although clogged filters, air leaks, and tank restrictions can cause similar symptoms.
Q: Does Bobcat 6655216 cross to this pump family?
A: Yes, it appears in cross-reference listings for the same pump format; verify the physical configuration on your machine before installation.
