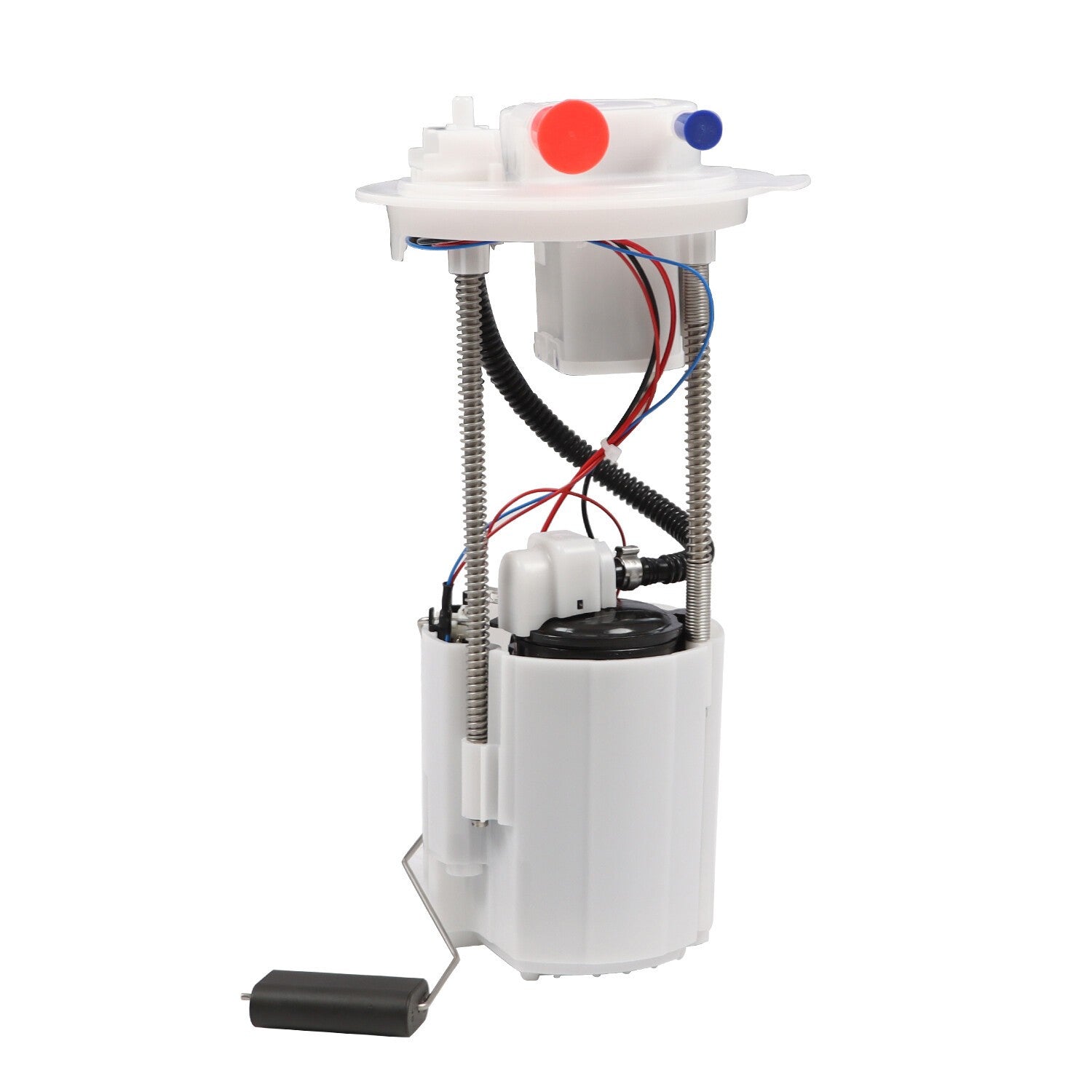

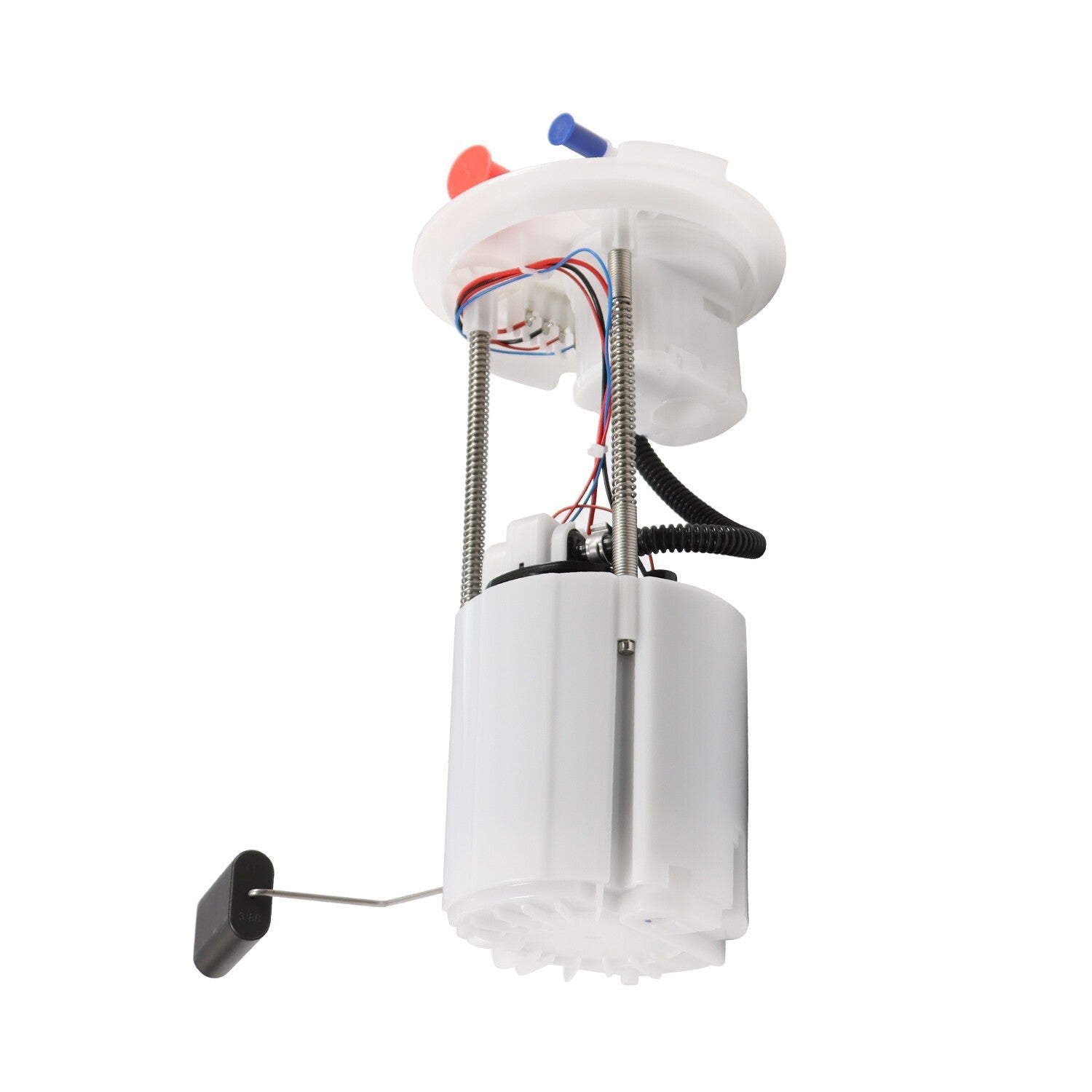

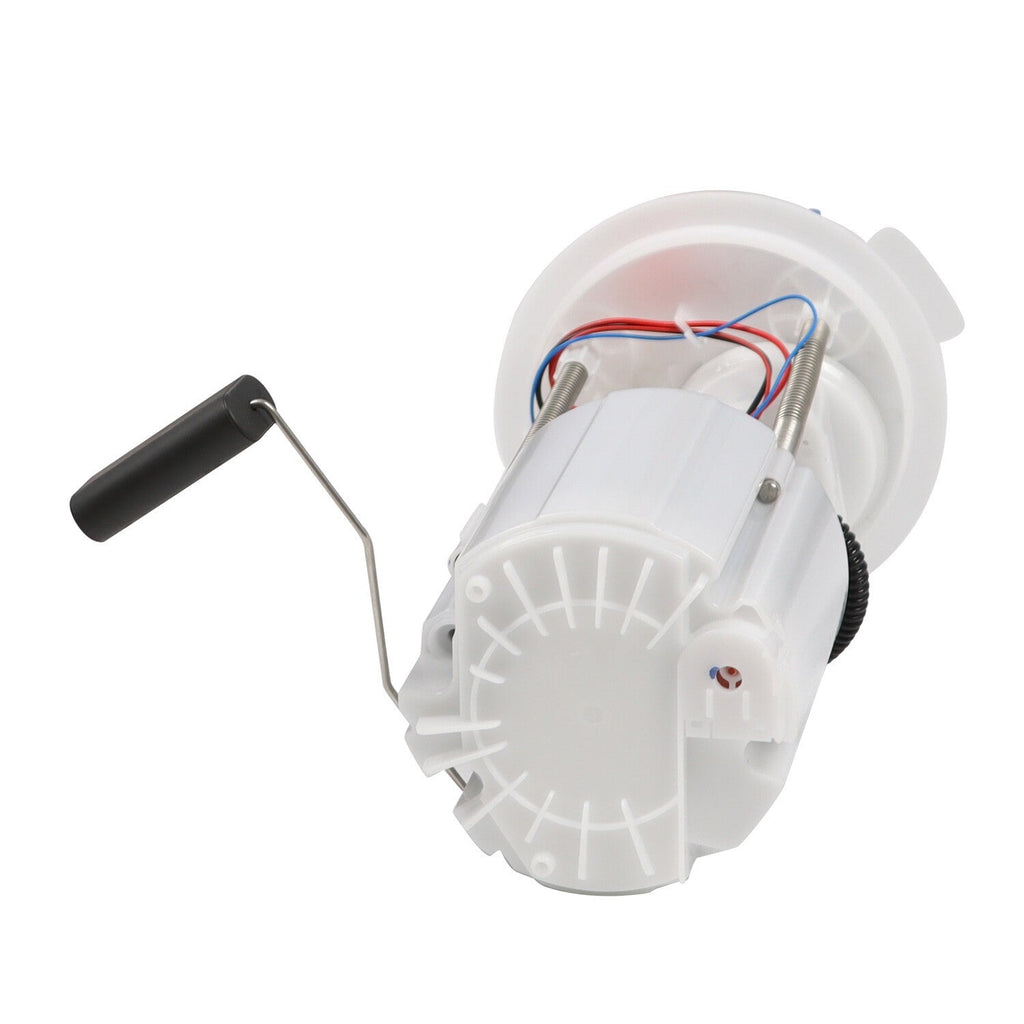

In-Tank Fuel Pump Module for Fiat 500 1.4L 2012-2017 68104562AB
$163.99
In Stock
$163.99
Sale price
$163.99
Regular price
Aftermarket in-tank fuel pump and level-sender module for compatible 2012-2017 Fiat 500 1.4L applications; replaces 68104562AA, 68104562AB, and related module references.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Fiat 500 1.4L naturally aspirated 2012-2017
- Fiat 500 1.4L turbocharged 2012-2017 where the original module matches 68104562AB
Product Overview
A Fiat 500 that cranks without starting, loses power under load, or has low measured fuel pressure may need the in-tank module after fuses, relay command, wiring, pressure data, injectors, and tank contamination are checked. The assembly supplies fuel and reports tank level through the matching sender.

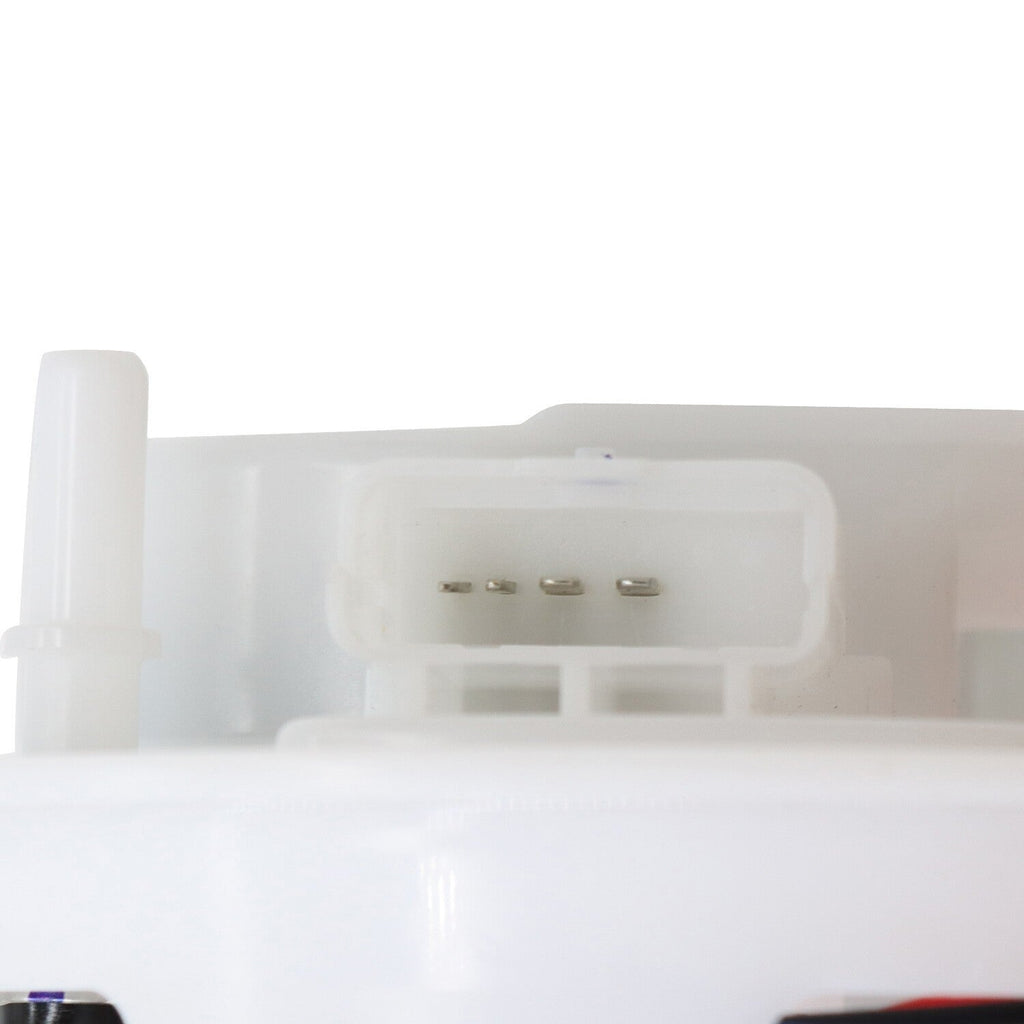

Naturally aspirated and turbocharged applications can have year and module differences. Match the original flange, connector, outlet, sender arm, lock-ring diameter, tank shape, and 68104562 number. Never replace a pump without checking the tank for water, rust, or debris.
Key Features & Performance

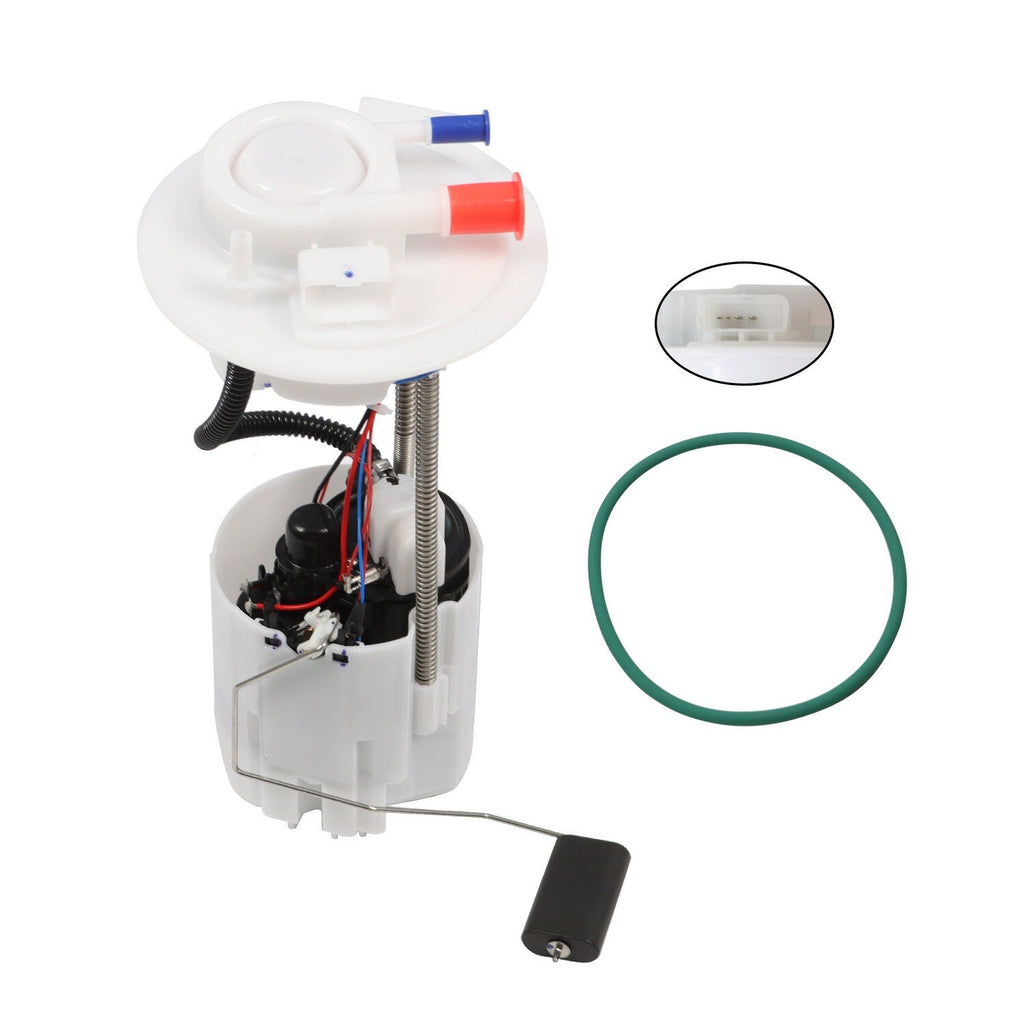

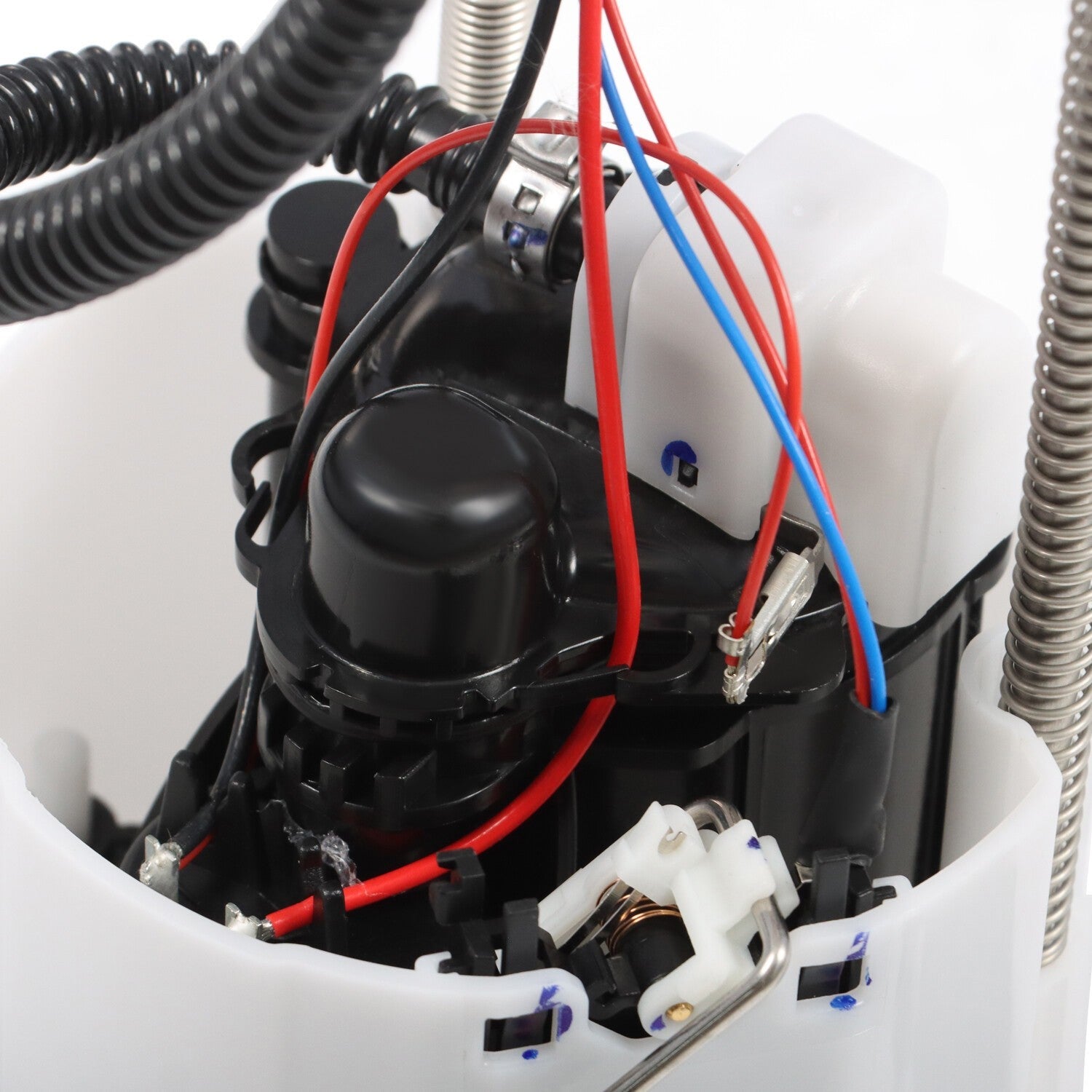

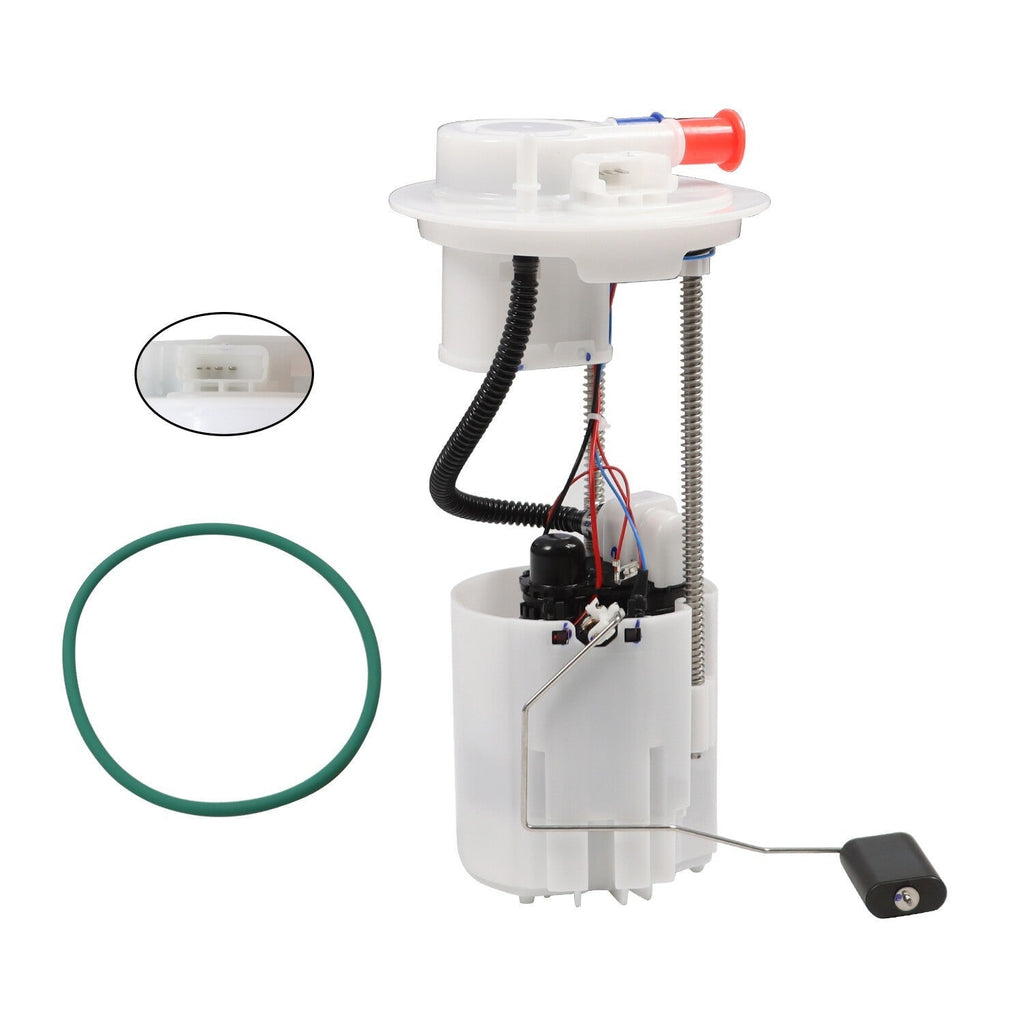

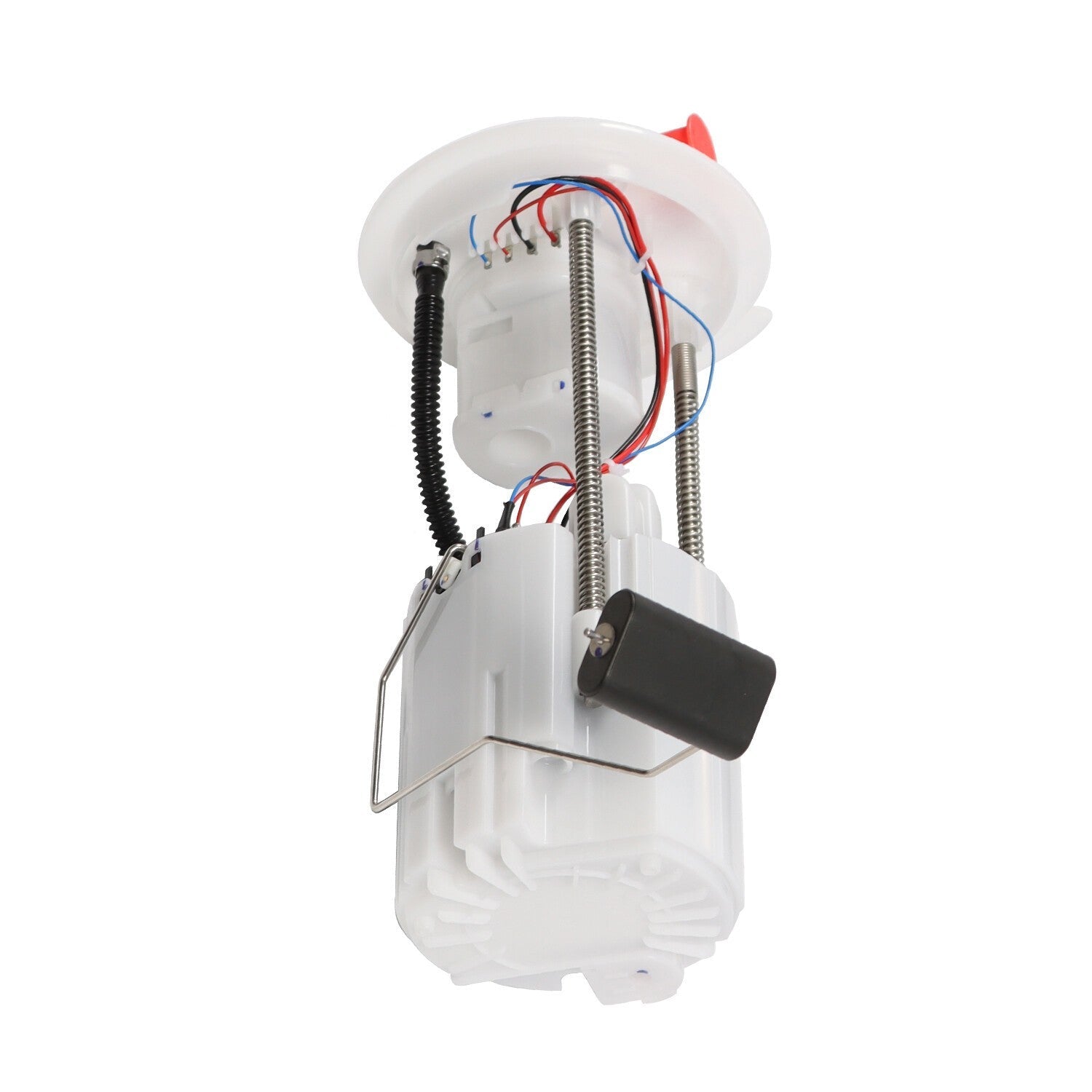

- Complete in-tank electric fuel pump module
- Integrated fuel-level sender configuration

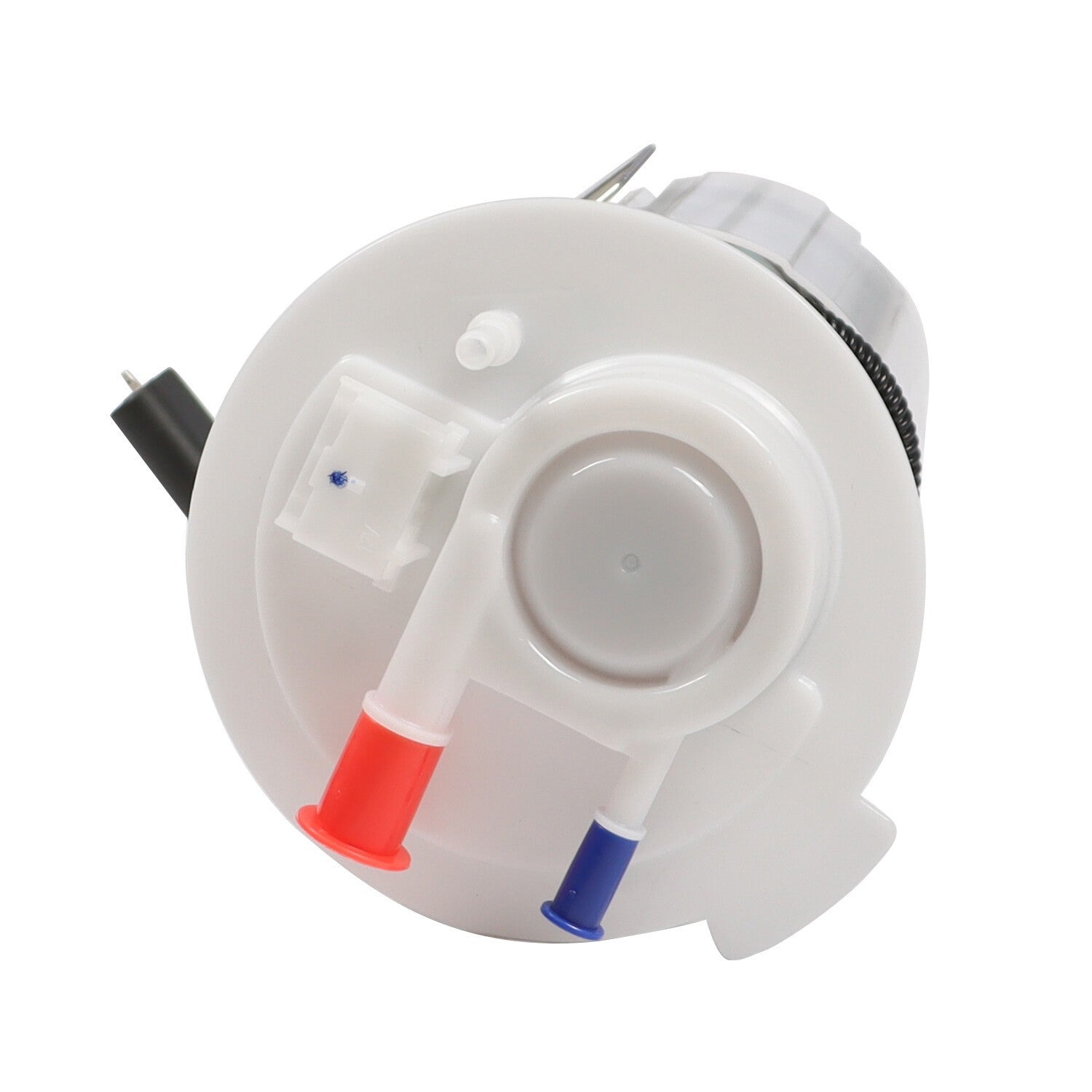

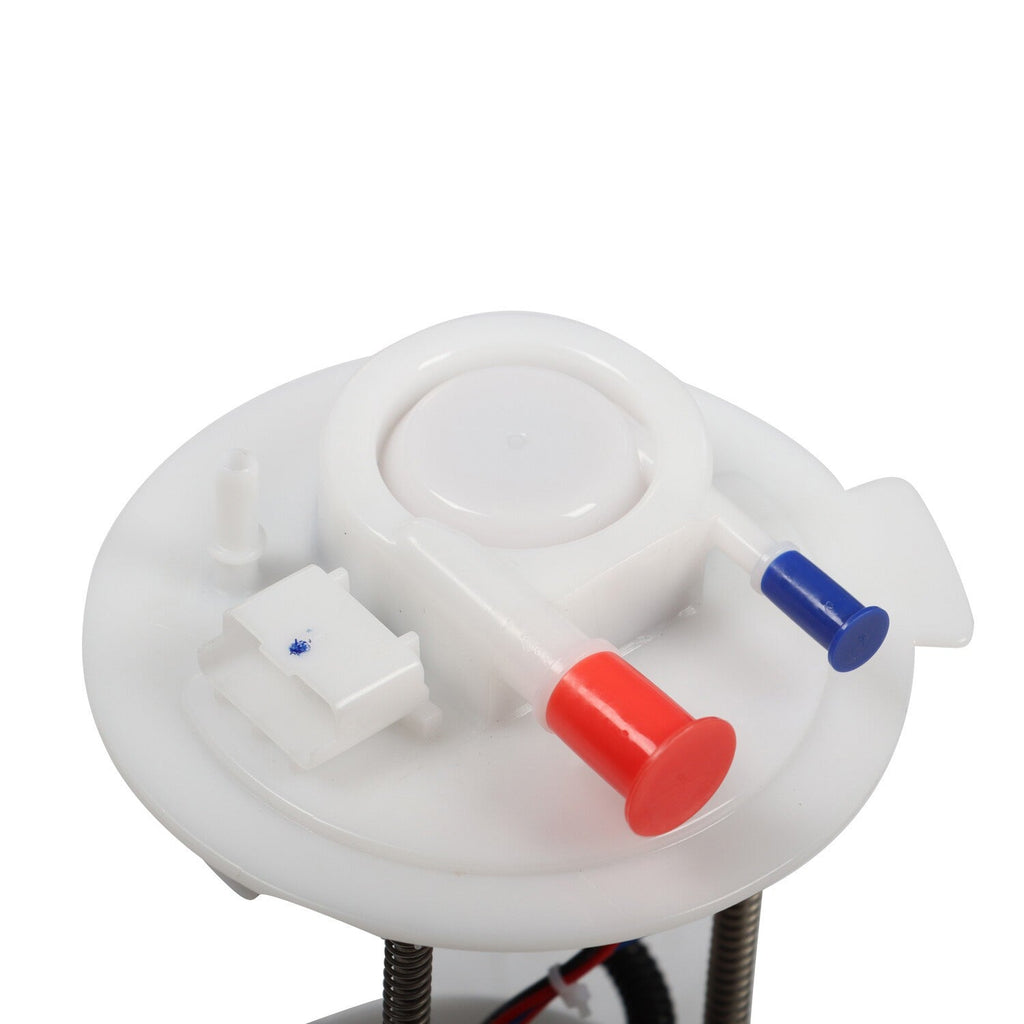

- Application-specific top flange and outlet
- Replacement for low-pressure, no-run, or damaged module faults
- Cross-references multiple Mopar/Fiat module numbers
Replaces Part Numbers
- 68104562AA
- 68104562AB
- 68104562AC
- 68143629AA
- 68143629AB
- 68143629AC
- 68070715AB
- P77071M
- RL104562AA
Common Uses
- Repairing a confirmed low-fuel-pressure condition
- Replacing a pump that does not run with proper power and ground
- Correcting an inaccurate fuel level when the sender is damaged
- Replacing a contaminated or impact-damaged tank module
Technical Specifications
- Product Type: Fuel Pump Module Assembly
- Location: In tank
- Fuel: Gasoline
- Engine: 1.4L
- Compatible Model: Fiat 500 2012-2017
- Condition: New aftermarket
Installation & Fitment
- Work in a ventilated area away from sparks, flame, heaters, and static discharge
- Relieve fuel pressure and disconnect the battery
- Clean the tank top before opening the module flange
- Inspect the tank and replace contaminated fuel before installing the pump
- Use a new sealing ring, lock the module correctly, and leak-test before driving
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, engine or equipment configuration, installed options, and previous repairs can affect fitment. Compare the original part, identifying numbers, dimensions, connections, and mounting details before purchase.
Frequently Asked Questions
Q: Can a bad pump cause crank-no-start? A: Yes when pressure is absent or too low, but power supply, relay, immobilizer, ignition, and engine faults can also prevent starting.

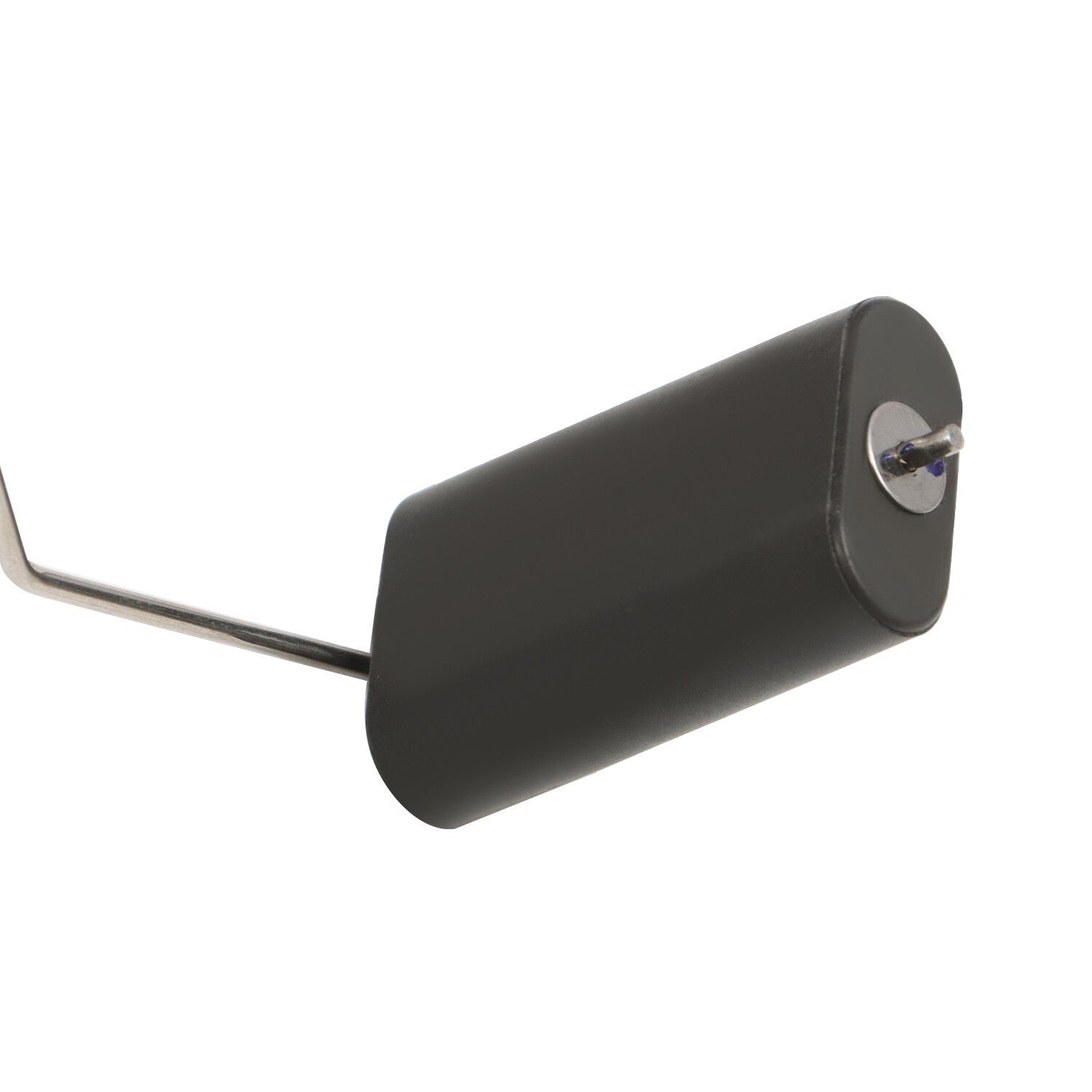

Q: Does the module include a fuel-level sender? A: It is listed as a pump/level module; compare the sender arm and pictured contents to the original.
Q: Will it fit turbo and non-turbo cars? A: Some references cover both, but the exact original module, connector, flange, and model year must match.
Q: Should the tank be cleaned? A: Yes if debris, water, or degraded fuel is present. Contamination can quickly damage the new pump.
Part Summary
keywords: Fiat 500 68104562AB fuel pump, 68104562AA module replacement, Fiat 500 crank no start pump, 1.4L in tank fuel module, P77071M pump fit, Fiat fuel level sender, aftermarket Fiat 500 fuel pump
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
