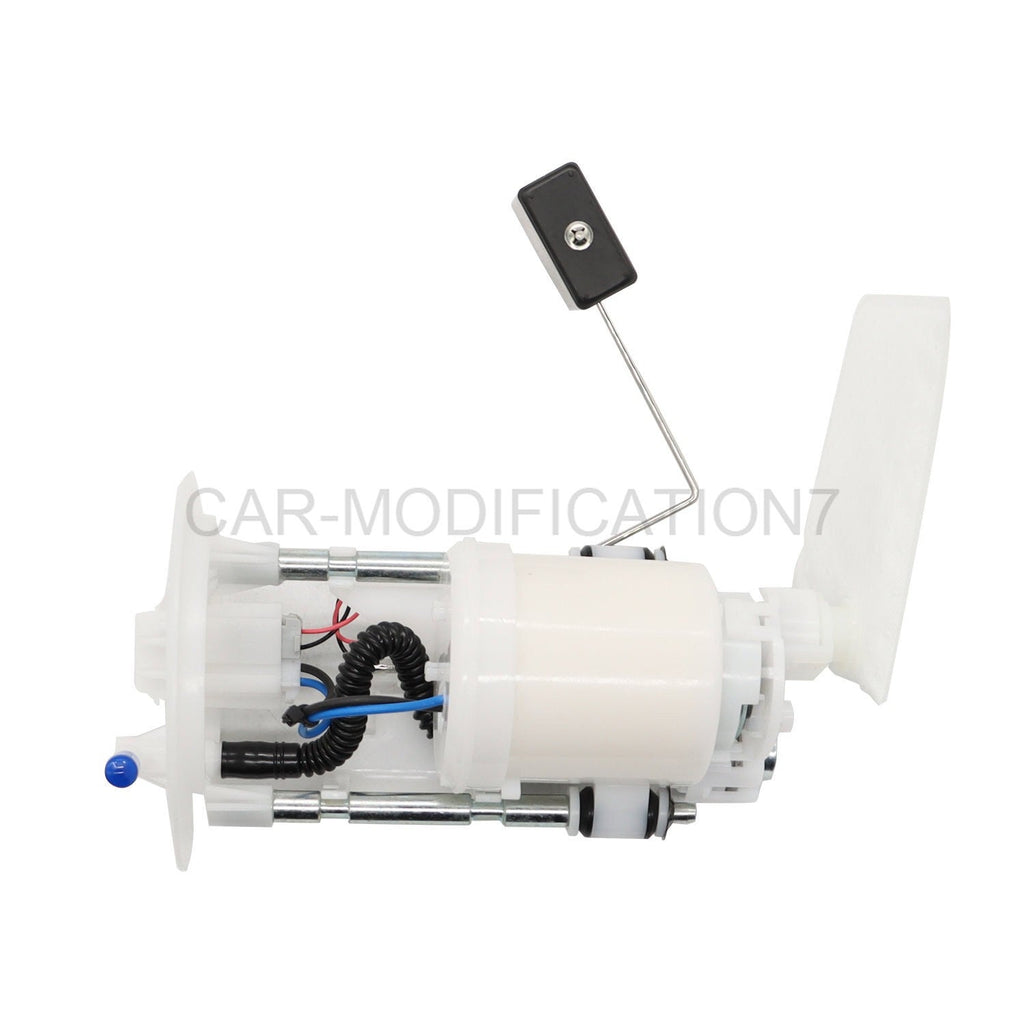

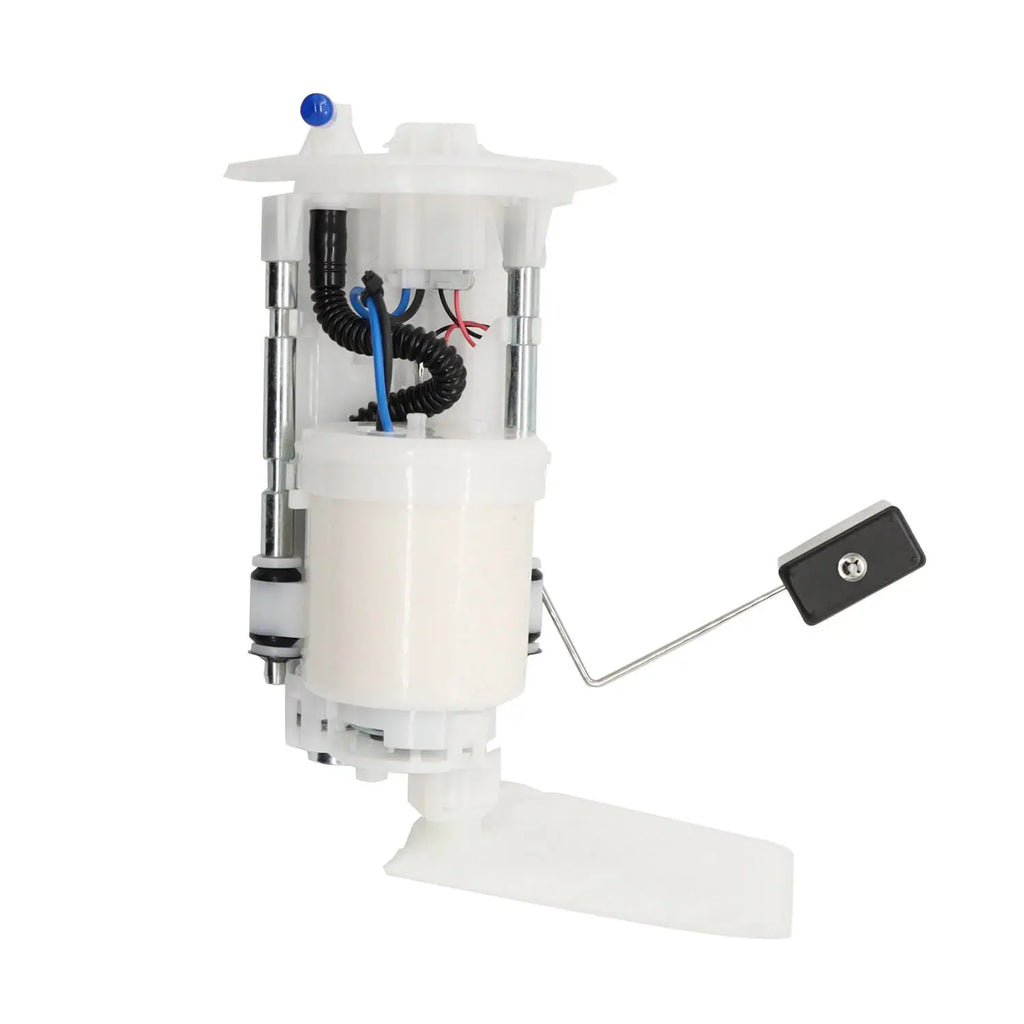

Fuel Pump Module for 2007–2013 Yamaha Rhino 700 and 2014–2019 Viking 700 – 3B4-13907-10
$76.99
In Stock
$76.99
Sale price
$76.99
Regular price
New aftermarket in-tank fuel pump module for compatible Yamaha 700cc EFI side-by-sides using 3B4-13907-10-00, including matching Rhino 700 and Viking 700 applications.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 2007–2013 Yamaha Rhino 700 FI—matching module
- 2014–2019 Yamaha Viking 700/Viking VI—matching module
- Yamaha Viking EPS/Hunter variants using 3B4-13907-10-00
Product Overview
A 700cc Yamaha that cranks but will not start, cuts out on long climbs, or loses pressure when hot may have a weak pump after relay, voltage, injector, vent, and filter checks. This module renews the in-tank supply assembly.
The original title incorrectly called the entire 2007–2019 range Viking. The Viking began later; early applications are Rhino 700. Match the OEM number, plug, flange, regulator, and module height.
Key Features & Performance
- In-tank EFI fuel pump module
- Covers matching Rhino 700 and Viking 700 configurations
- Restores fuel pressure after a confirmed pump fault
- Cross-reference 3B4-13907-10-00
Replaces Part Numbers
- 3B4-13907-10-00
- 3B4-13907-10
Common Uses
- Repairing hot fuel-pressure loss
- Replacing a no-prime in-tank pump
- Renewing a corroded pump module after contaminated fuel
Technical Specifications
- Product Type: Fuel pump module assembly
- Mounting: In tank
- Engine: Yamaha 700 EFI
- Condition: New
- Replacement Type: Aftermarket
Installation & Fitment
- Measure fuel pressure and verify pump voltage
- Drain old fuel and clean the tank
- Compare module height, seal, connector, and outlet
- Prime the system and test pressure under load
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Vehicle family, build date, tank, connector, and OEM number affect fit. Verify 3B4-13907-10-00; do not use the old broad '2007 Viking' claim.
Frequently Asked Questions
Q: Was there a 2007 Yamaha Viking 700? A: No. Early years in this reference family are Rhino 700 applications; Viking 700 models came later.
Q: Can a clogged tank vent cause stalling? A: Yes. Test venting before condemning the pump.
Q: Does the module need programming? A: A fuel pump module normally does not require electronic programming.
Q: Why test pressure when hot? A: Some pumps fail only after heat and operating load increase.
Part Summary
keywords: 3B4-13907-10-00 fuel pump, Yamaha Rhino 700 pump module, Viking 700 fuel pressure repair, Yamaha side by side hard start, 700 EFI in tank pump
