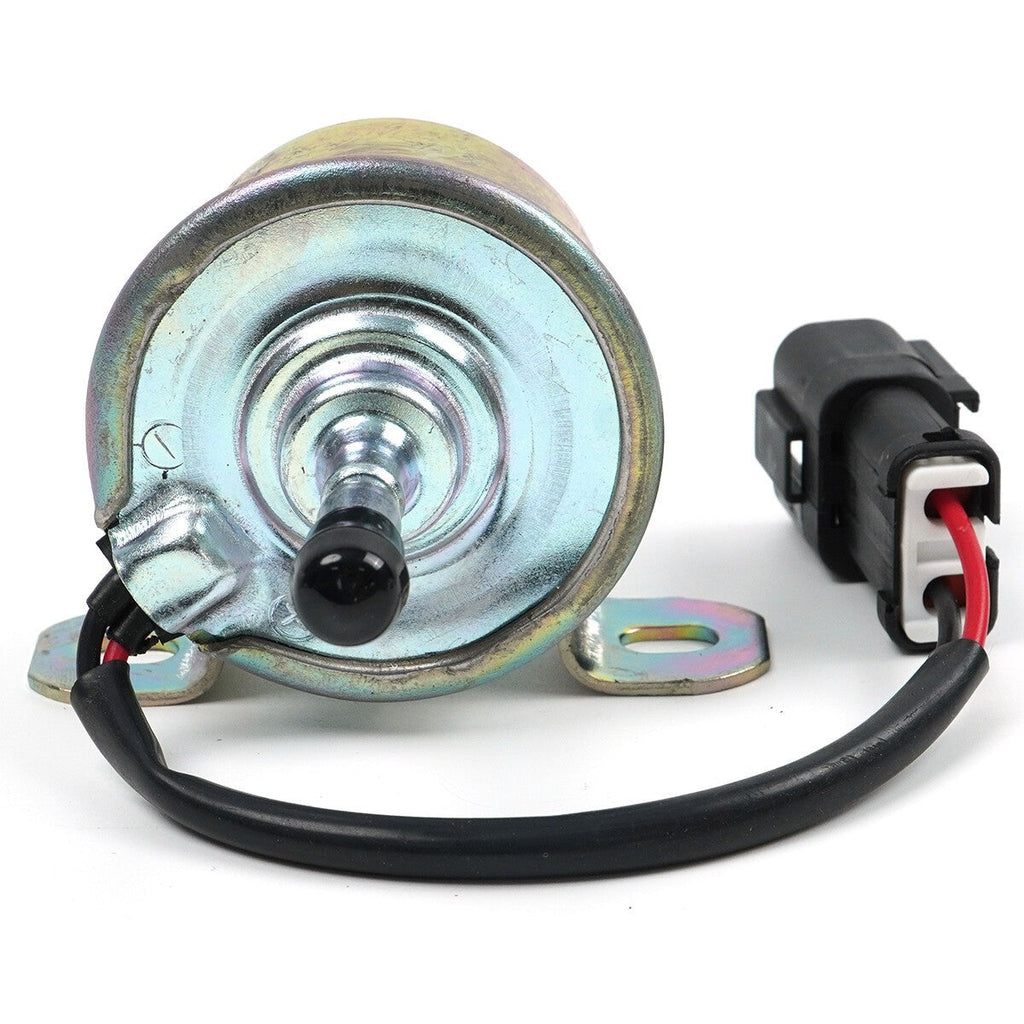

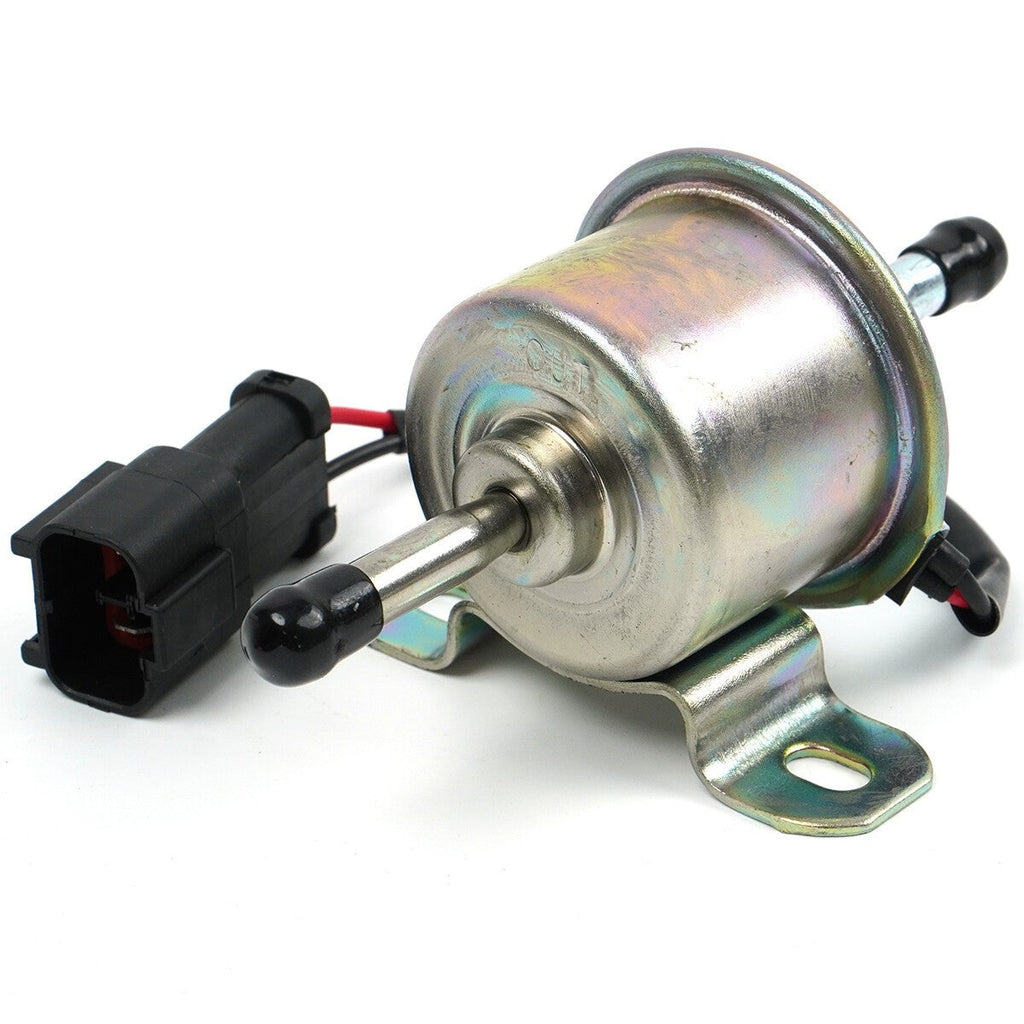

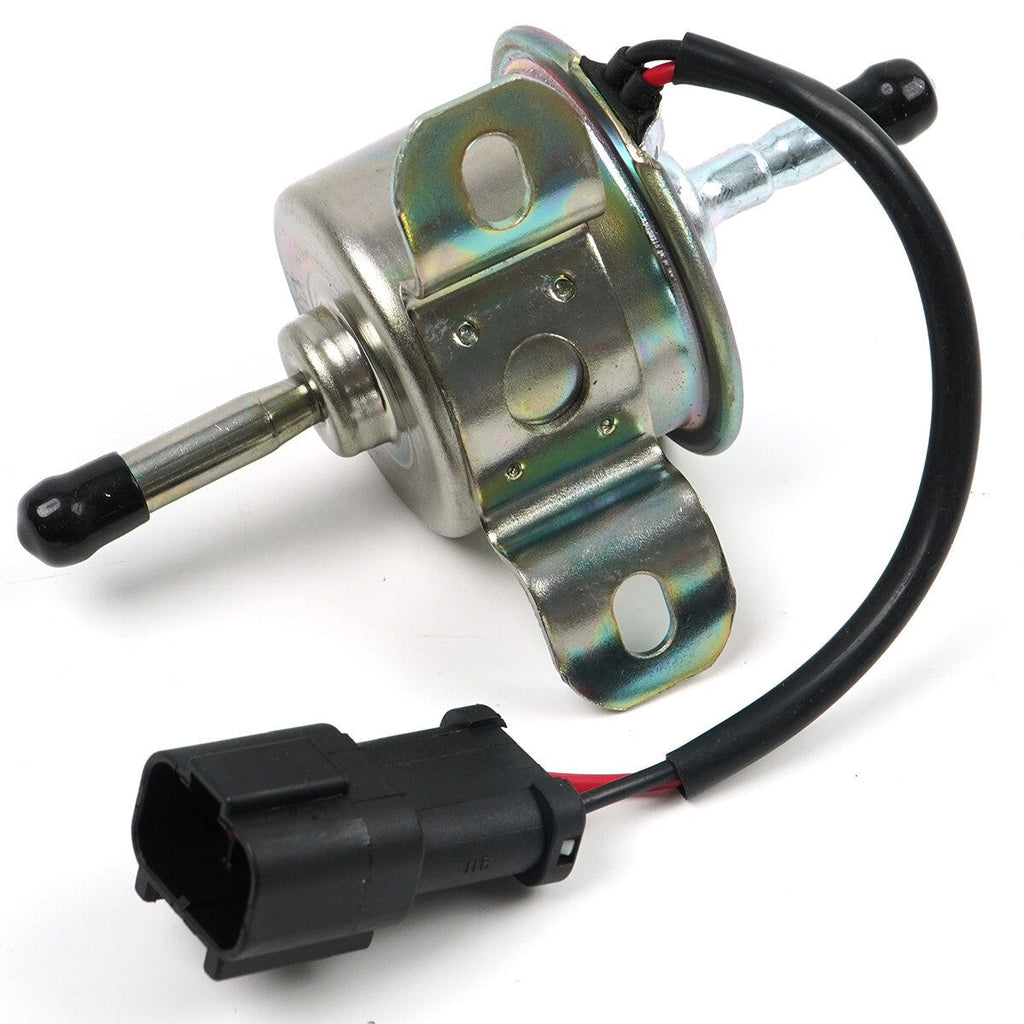

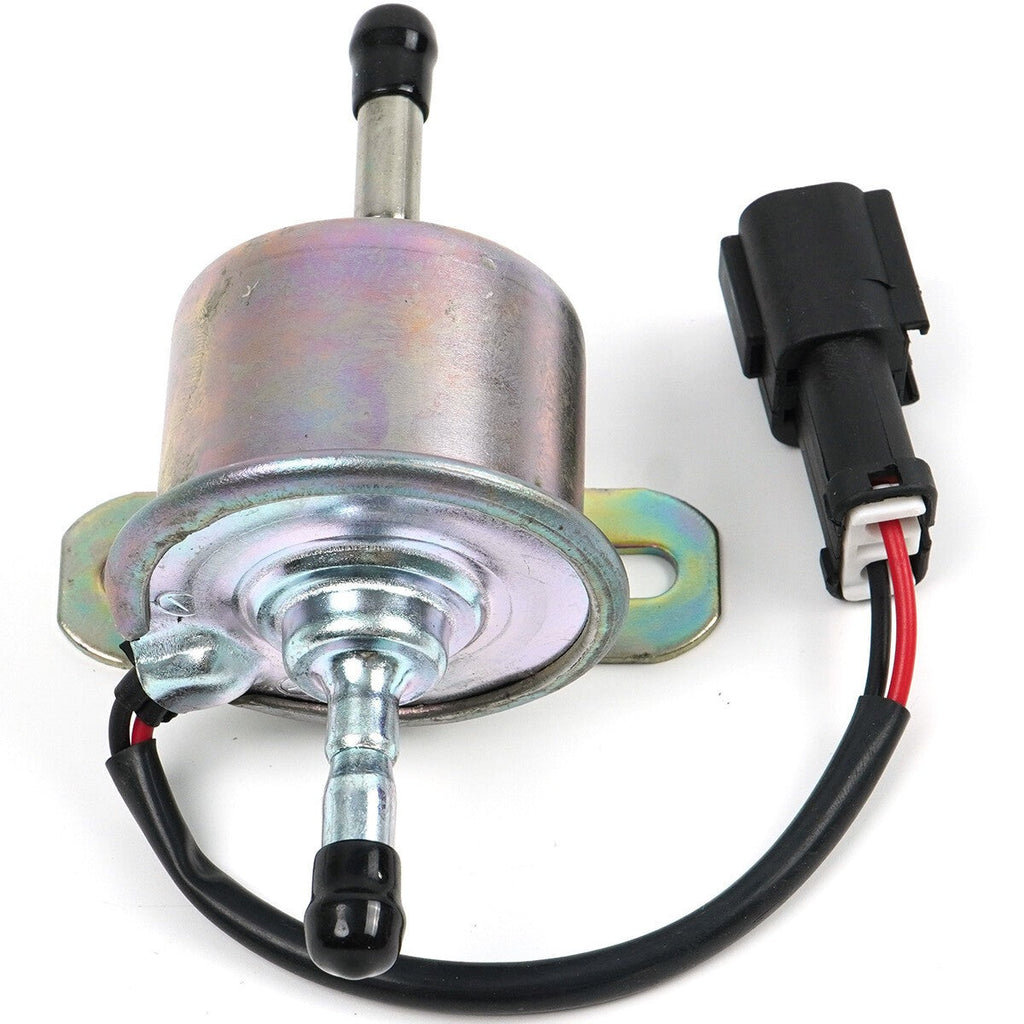

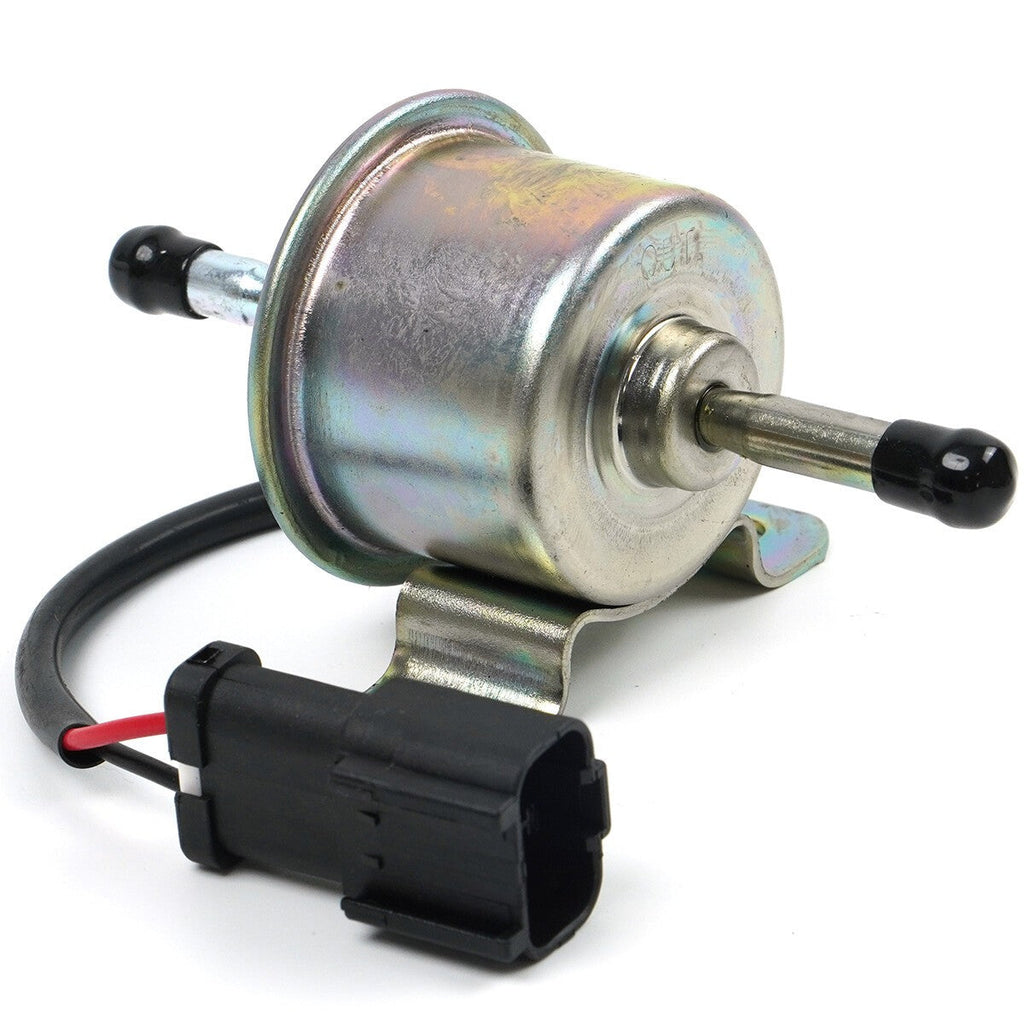

Bobcat 7016409 Diesel Fuel Pump for 3400 3400XL 3450 3600 3650
$30.99
In Stock
$30.99
Sale price
$30.99
Regular price
This electric diesel fuel pump replaces Bobcat 7016409 on compatible 3400, 3400XL, 3450, 3600, and 3650 utility vehicles.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Bobcat 3400 utility vehicle
- Bobcat 3400XL utility vehicle
- Bobcat 3450 utility vehicle
- Bobcat 3600 utility vehicle
- Bobcat 3650 utility vehicle
Product Overview
Long cranking, power loss on a grade, or a machine that starts only after the filter is manually filled can mean the supply pump is no longer keeping up. Before replacing it, check for stale fuel, a plugged pickup or filter, air leaks, pinched lines, and correct voltage at the pump.
The pump supplies filtered diesel fuel to the engine's injection system and is intended as a drop-in service part where 7016409 is specified. Connector, hose direction, mounting points, and machine serial number must agree with the removed pump.
Key Features & Performance
- Electric low-pressure diesel supply pump
- Replaces Bobcat 7016409
- For five listed Bobcat utility-vehicle families
- Addresses verified low-flow or no-flow pump failure
- New aftermarket pump
Replaces Part Numbers
- 7016409
Common Uses
- Repairing extended cranking caused by fuel drain-back or weak supply
- Restoring fuel flow after electrical and filter checks
- Replacing a noisy, seized, leaking, or corroded pump
Technical Specifications
- Product Type: Electric Diesel Fuel Pump
- Primary Application: Bobcat utility vehicles using fuel pump 7016409
- Package Quantity: 1 pump
- Condition: New
- Replacement Type: Aftermarket
- Reference: 7016409
- Fuel: Diesel
- Operation: Electric supply / lift pump
- Application: Bobcat utility vehicles
- Condition: New aftermarket
Installation & Fitment
- Disconnect battery power and work away from ignition sources
- Clean the tank and replace contaminated fuel and filters
- Mark inlet, outlet, and electrical connections before removal
- Prime the system, inspect for leakage, and confirm flow under load
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, connector, dimensions, installed options, and previous repairs can affect fitment. Compare the original component and reference information before purchase.
Frequently Asked Questions
Q: Will a new pump fix a machine that has algae or rust in the tank? A: Not by itself. Contamination must be removed or it can restrict and damage the replacement pump.
Q: Can a loose ground make the pump run slowly? A: Yes. Check power and ground under load because an unloaded voltage reading can miss resistance in the circuit.
Q: How do I confirm this is the correct part? A: Match 7016409, machine serial number, voltage, connector, inlet and outlet orientation, hose size, body diameter, mounting bracket, and pressure requirement.
Q: Is this supplied by the original equipment manufacturer? A: No. This is a new aftermarket item. Brand, model, and part numbers are used only to identify compatible applications.
Part Summary
keywords: Bobcat 7016409 fuel pump, Bobcat 3400 diesel lift pump, 3400XL fuel delivery repair, Bobcat 3650 hard start, aftermarket Bobcat utility vehicle pump
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
