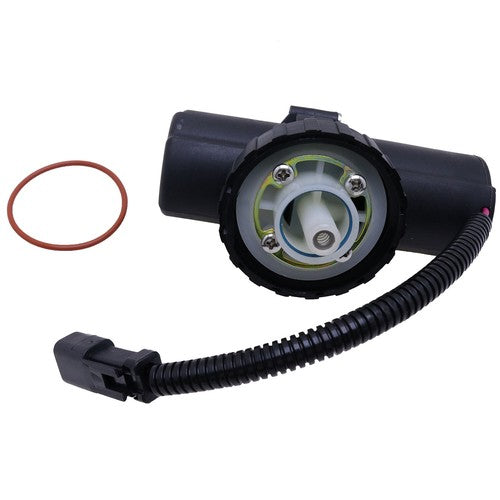

Fuel Primer / Water Separator Pump Assembly for Cat Backhoes & D3G-D5G – 228-9129
$61.69
In Stock
$61.69
Sale price
$61.69
Regular price
This assembly matches Caterpillar 228-9129 and combines fuel priming with the filter/water-separator mounting arrangement used on supported Cat backhoes and D3G, D4G and D5G tractors.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
| Application | Models / Details |
|---|---|
| Cat backhoe loaders | 414E, 416D/E, 420D/E, 422E, 424D, 428D/E, 430D/E, 432D/E, 434E, 442D/E, 444E on applicable serial ranges |
| Cat track-type tractors | D3G, D4G, D5G applications using 228-9129 |
Product Overview
This is more than a generic “fuel pump.” Caterpillar identifies 228-9129 as a fuel-pump primer and primer-filter assembly with water separation. The hand-primer side helps refill and bleed the low-pressure fuel circuit after filter service or loss of prime, while the separator/filter portion helps remove water and contamination before fuel reaches sensitive injection components.
Cat application data places 228-9129 on multiple D-series backhoe loaders as well as D3G/D4G/D5G tractors. Because fuel-system arrangements can vary by machine serial number, the Cat part reference should be checked in the machine’s parts system.
Key Features & Performance
- Fuel primer and filter/water-separator assembly rather than a simple standalone electric fuel pump
- Caterpillar reference 228-9129
- Supports manual priming/bleeding after fuel-system service
- Used on supported Cat backhoe loaders and D3G/D4G/D5G tractors
Specifications & Reference Numbers
- Part number: 228-9129
- Component: Fuel primer / primer-filter with water separator
- Approx. catalog dimensions: Length 13.3 in.; height 5.3 in. on Caterpillar listing
Before You Order
Use the machine serial number and Caterpillar parts lookup to confirm 228-9129. Also inspect the fuel lines, seals, filter element and water bowl/hardware that interface with the assembly.
Frequently Asked Questions
Q: Is 228-9129 just a lift pump?
A: No. Caterpillar describes it as a fuel-pump primer and primer-filter assembly with water-separator function.
Q: When is the primer used?
A: It is used to refill and purge air from the low-pressure fuel circuit after service or when the system has lost prime.
