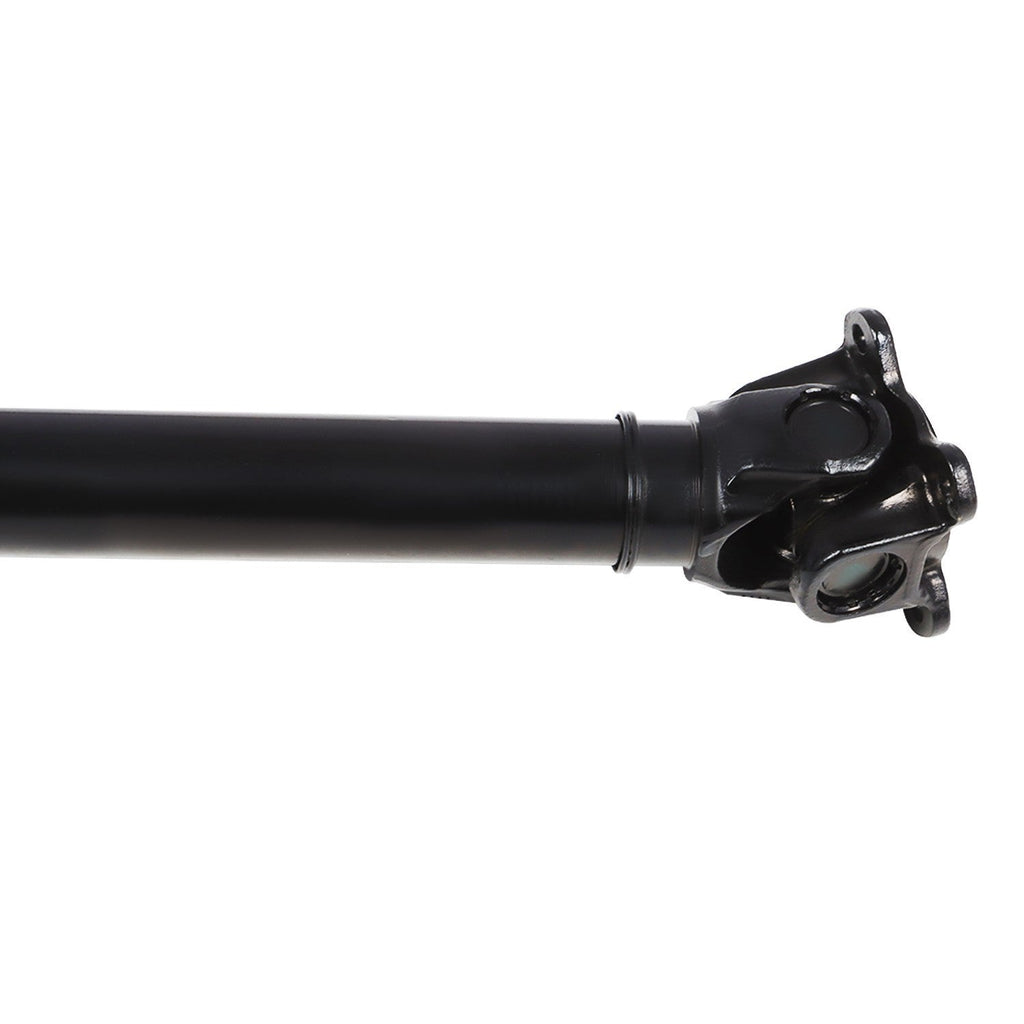

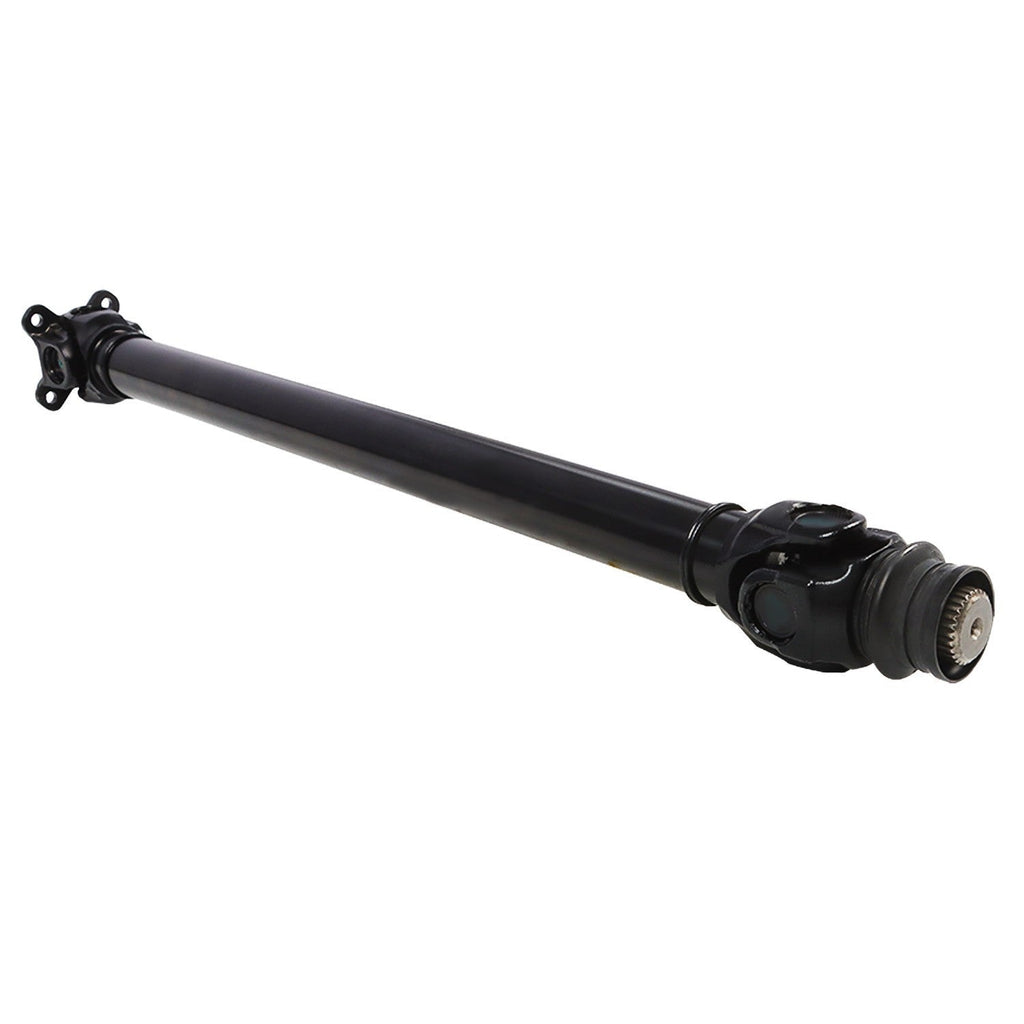

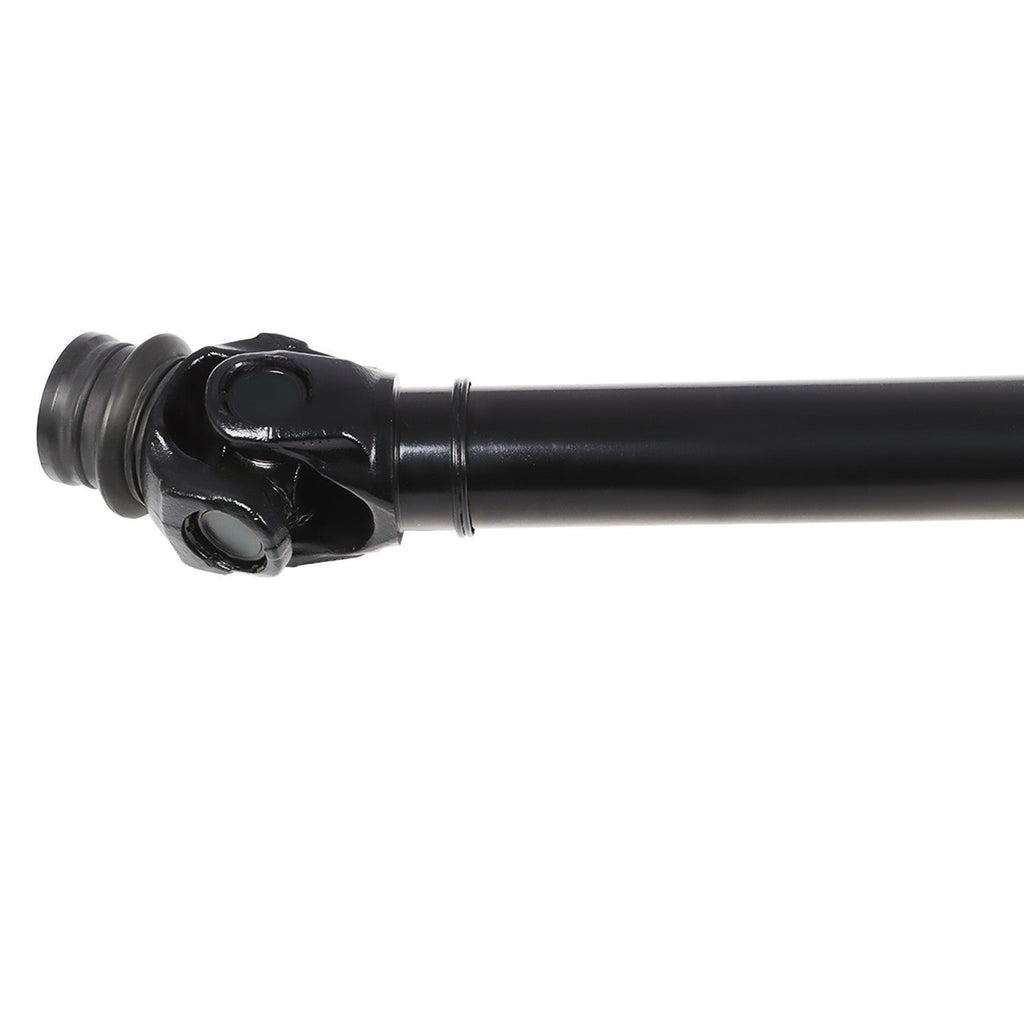

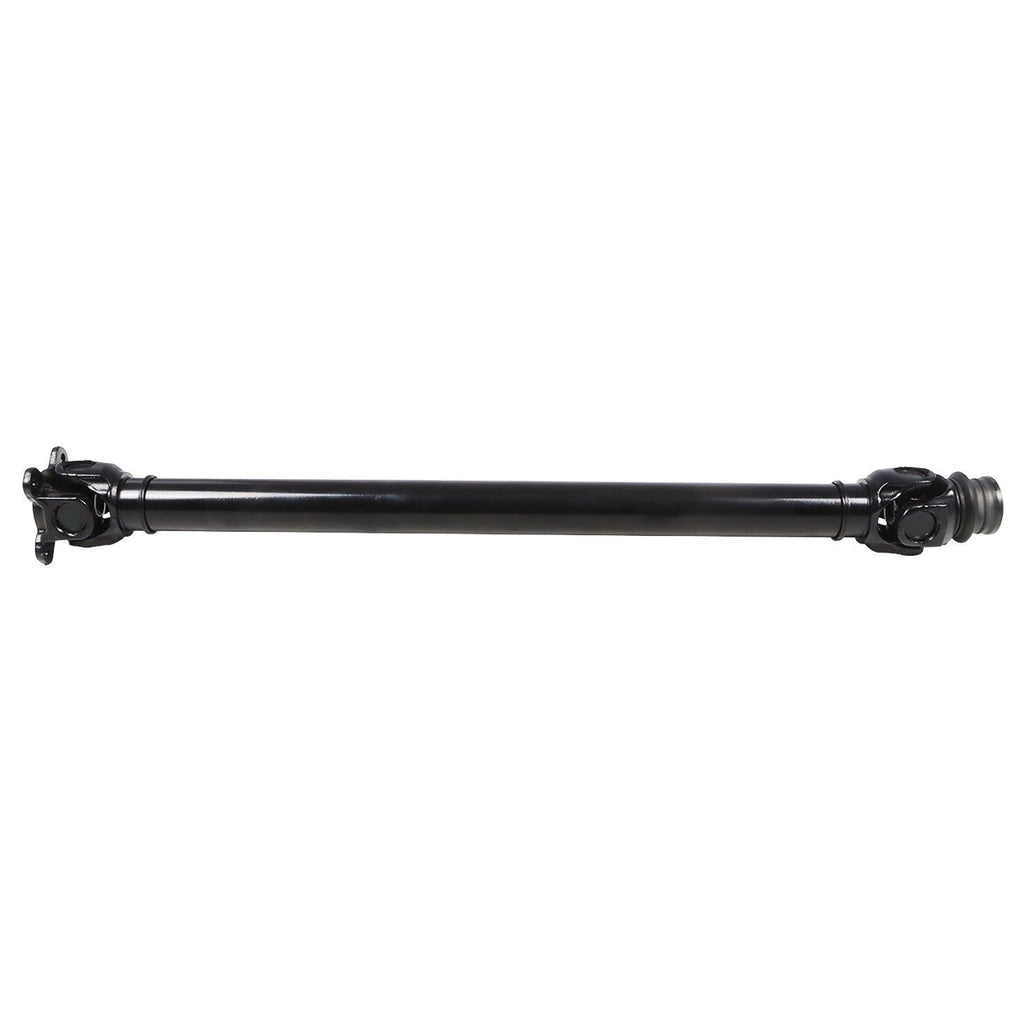

Front Driveshaft Assembly for BMW X5/X6 F15/F16 xDrive – 26209425907
$102.99
In Stock
$102.99
Sale price
$102.99
Regular price
New aftermarket front propeller/driveshaft assembly for compatible BMW F15 X5 and F16 X6 xDrive applications using part number 26209425907; verify engine, wheelbase, and build date.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- BMW F15 X5 xDrive—matching engine/build and shaft length
- BMW F16 X6 xDrive—matching engine/build and shaft length
Product Overview
A front driveline clunk, vibration under acceleration, torn flex joint, loose CV joint, or seized universal joint can require the complete shaft after transfer-case output, differential input, mounts, and tires are checked. This assembly restores torque transfer from the transfer case to the front differential.
The source title's 2012 start date conflicts with the F15/F16 generation. Order by chassis, VIN, exact length, flange pattern, and 26209425907—not the broad year claim.
Key Features & Performance
- Complete front propeller shaft assembly
- Transfers power to the front differential on xDrive vehicles
- Cross-reference 26209425907
- Replacement for worn joints, splines, or damaged tube
Replaces Part Numbers
- 26209425907
- 26 20 9 425 907
Common Uses
- Repairing vibration under load
- Replacing a shaft with worn CV/U-joint components
- Correcting clunk traced to the front propeller shaft
Technical Specifications
- Product Type: Front driveshaft/propeller shaft assembly
- Drive System: BMW xDrive/AWD
- Placement: Transfer case to front differential
- Condition: New
- Replacement Type: Aftermarket
Installation & Fitment
- Confirm VIN, chassis, shaft length, and flange pattern
- Mark flange orientation and inspect mating splines
- Replace required one-time bolts and torque in sequence
- Check transfer-case and differential mounts before road testing
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Chassis code, engine, production date, flange, and length determine fit. The F15/F16 identity is more reliable than an unverified 2012–2017 range.
Frequently Asked Questions
Q: Will this fit an E70 X5? A: No direct fit should be assumed; this listing identifies F15/F16 and 26209425907.
Q: Can mismatched tires cause xDrive vibration? A: Yes. Tire circumference differences can load the transfer case and mimic driveline problems.
Q: Does the shaft include joints? A: A complete assembly normally includes its attached joint components as shown.
Q: Why replace flange bolts? A: BMW service procedures may specify one-time-use fasteners for driveline joints.
Part Summary
keywords: 26209425907 driveshaft, BMW F15 front prop shaft, F16 X6 xDrive vibration, BMW front driveline clunk, X5 transfer case shaft
