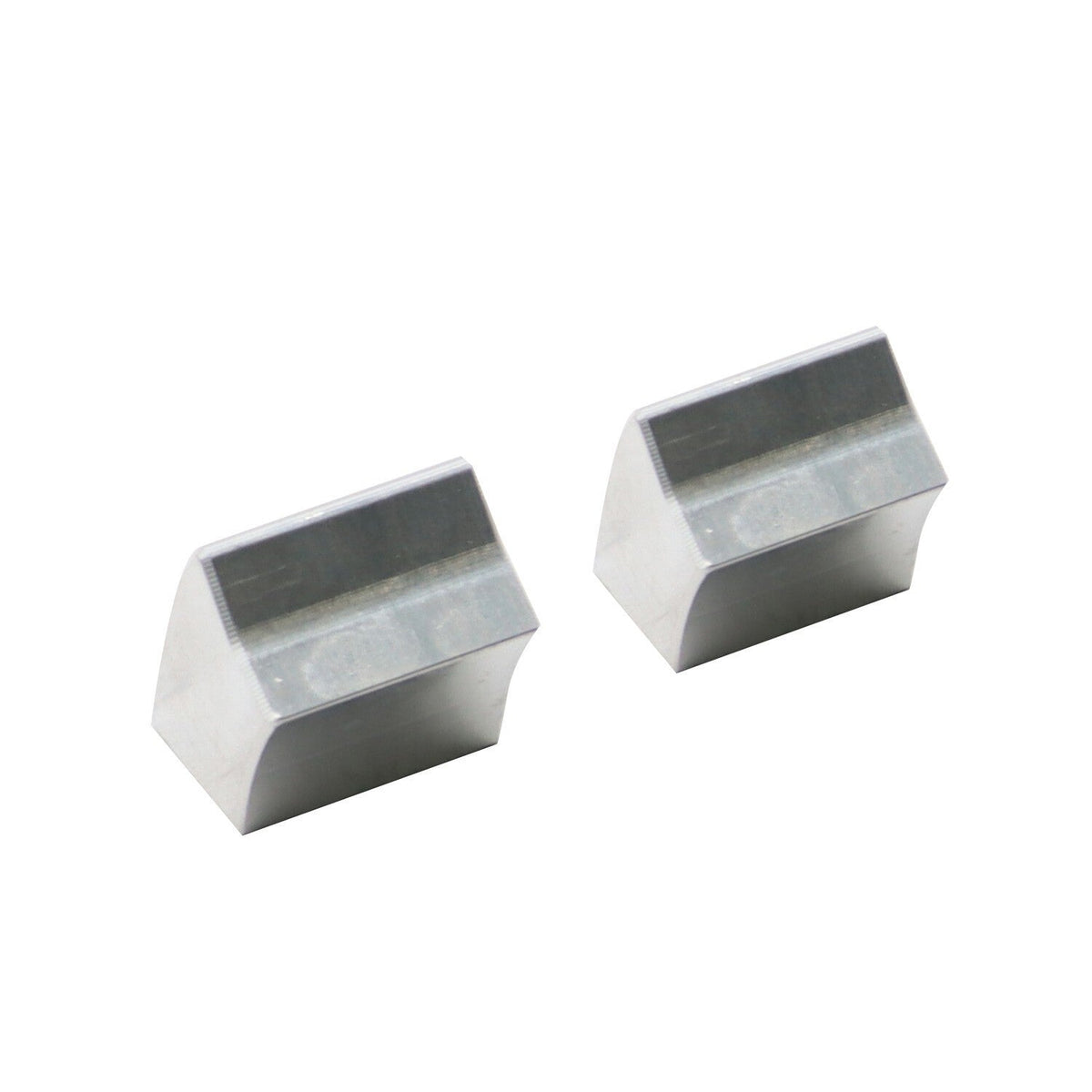

Cam Phaser Lockout & Timing Chain Tool Kit for Ford 4.6L 5.4L 3-Valve Engines
$31.99
In Stock
$31.99
Sale price
$31.99
Regular price
This cam-phaser lockout and timing-chain service tool kit is designed for compatible Ford 4.6L and 5.4L three-valve engines after exact engine and procedure verification.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Ford 4.6L 3-valve engines using the matching timing design
- Ford 5.4L 3-valve engines using the matching timing design
- Select Ford F-150 and F-250 applications
- Select Ford Expedition applications
- Select Lincoln Navigator applications
- Select Ford Mustang and Explorer applications with compatible three-valve engines
Product Overview
Rattle at startup, timing-correlation faults, rough running, or low oil-pressure-related phaser behavior can lead a technician to inspect the timing system. These tools support controlled cam-phaser or timing-chain service on matching Ford three-valve engines; they are not a substitute for diagnosis or worn components.
Timing work is precision engine service. Lockout strategy, replacement phasers, chain position, oil supply, solenoids, guides, tensioners, and required engine calibration must be addressed according to the chosen repair.
Key Features & Performance
- Service tooling for select Ford three-valve timing systems
- Supports cam and chain positioning during compatible repairs
- Useful for phaser inspection, replacement, or approved lockout procedures
- Reusable mechanical workshop tools after inspection
Common Uses
- Holding timing components during cam-phaser service
- Supporting timing-chain, guide, or tensioner replacement
- Investigating startup rattle after oil-pressure diagnosis
- Completing professional three-valve engine timing repair
Technical Specifications
- Product Type: Cam-phaser lockout/timing service tool kit
- Engine Family: Select Ford 4.6L and 5.4L 3V
- Application: Professional engine timing service
- Material: Machined metal service components
Installation & Fitment
- Identify the exact engine VIN and timing design
- Follow the factory service sequence and timing marks
- Correct oil-pressure and lubrication faults before reassembly
- If permanent lockouts are used, verify calibration requirements with a qualified tuner
Compatibility Notice
Incorrect timing can cause severe engine damage. Permanent phaser lockouts may require compatible engine calibration and may not be legal or appropriate for every vehicle.
Frequently Asked Questions
Q: Will a lockout alone fix timing rattle? A: Not necessarily. Chains, guides, tensioners, oil pressure, solenoids, phasers, and engine wear all require inspection.
Q: Does it fit two-valve engines? A: This listing is identified for compatible three-valve systems.
Q: Is tuning required? A: Permanent lockout strategies commonly require calibration; confirm with the repair-system provider.
Part Summary
keywords: Ford 5.4 3V cam phaser tool, 4.6L timing chain service kit, F150 cam phaser lockout, F250 timing repair tool, Ford startup rattle diagnosis, Expedition 3 valve timing, cam chain holding tool, professional Ford phaser service
