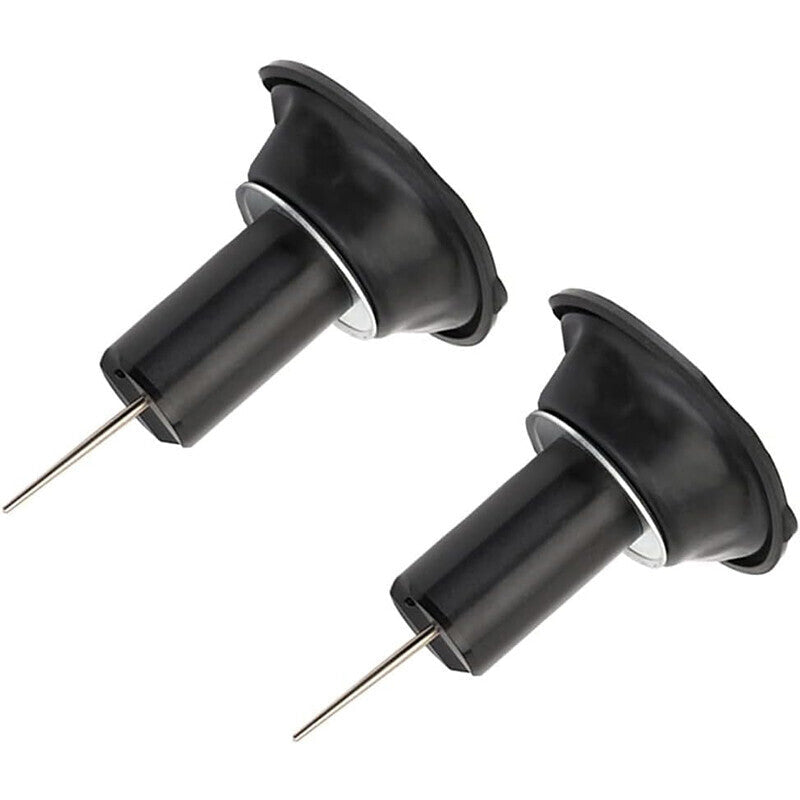

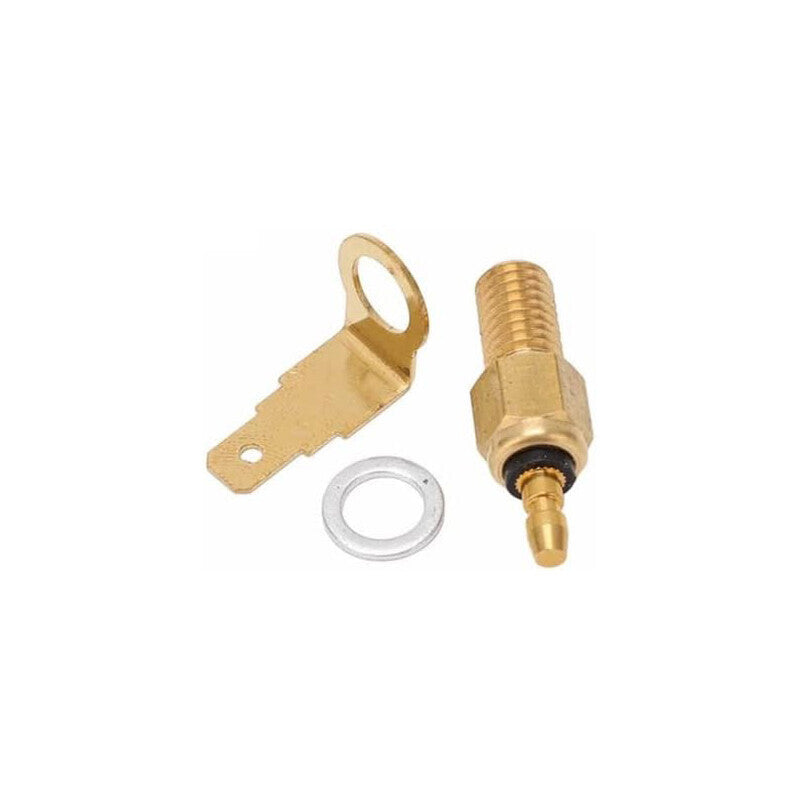

Carburetor Rebuild and Intake Manifold Kit for 1998-2016 Yamaha V Star 650
$69.99
In Stock
$69.99
Sale price
$69.99
Regular price
This new aftermarket two-carburetor rebuild and intake manifold kit fits compatible 1998-2016 Yamaha V Star 650 XVS650 models and cross-references 4TR-13586-01-00, 4TR-13596-01-00, and 93210-36769.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Yamaha V Star 650 XVS650 Custom — compatible 1998-2016 applications
- Yamaha V Star 650 XVS650A Classic — compatible applications
- Yamaha V Star 650 XVS650AT Silverado — compatible applications
- Yamaha V Star 650 Midnight Custom / Custom Raven — compatible applications
Product Overview
Hard starting after storage, fuel leaks, hesitation, and uneven running are common reasons to open the dual carburetors on a V Star 650. This kit also addresses cracked intake manifolds, but cleaning, float setting, jet choice, and synchronization still matter.
The kit services wear inside both carburetors while replacing the aging intake connection. Cleaning, float setting, synchronization, and correct jet selection remain essential.
Key Features & Performance
- Services the V Star dual-carb system
- Includes compatible intake-manifold parts
- Useful after stale fuel or an intake leak is confirmed
Replaces Part Numbers
- 4TR-13586-01-00
- 4TR-13596-01-00
- 93210-36769
Common Uses
- Rebuilding carbs after storage
- Repairing fuel seepage
- Correcting a verified intake-boot vacuum leak
Technical Specifications
- Product Type: Carburetor rebuild and intake manifold kit
- Motorcycle: Yamaha V Star 650 / XVS650
- Model Range: 1998-2016
- Fuel System: Dual carburetor
- Condition: New
- Replacement Type: Aftermarket
Installation & Fitment
- Drain stale fuel and clean tank/petcock
- Photograph linkage and hose routing
- Clean passages without enlarging jets
- Set floats to specification
- Check intake leaks and synchronize both carbs
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Compare every gasket, jet marking, needle, float component, and intake-port shape. Submodels and production years may use different carburetor details.
Frequently Asked Questions
Q: Can it fix a bike that only runs with the choke on? A: That often points to restricted pilot circuits or an intake leak, but fuel, ignition, and compression also matter.
Q: Do the carburetors need synchronization? A: Yes, after installation for balanced idle and response.
Q: Will new seals remove varnish? A: No. Metal passages and jets must be cleaned correctly.
Q: Why replace the intake boot too? A: A cracked boot admits unmetered air and can imitate a carburetor problem.
Part Summary
