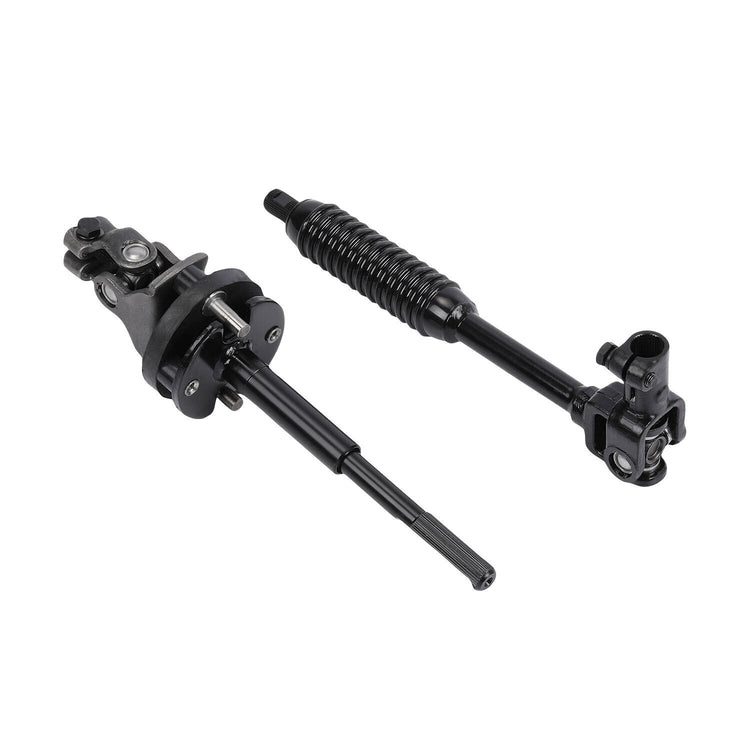

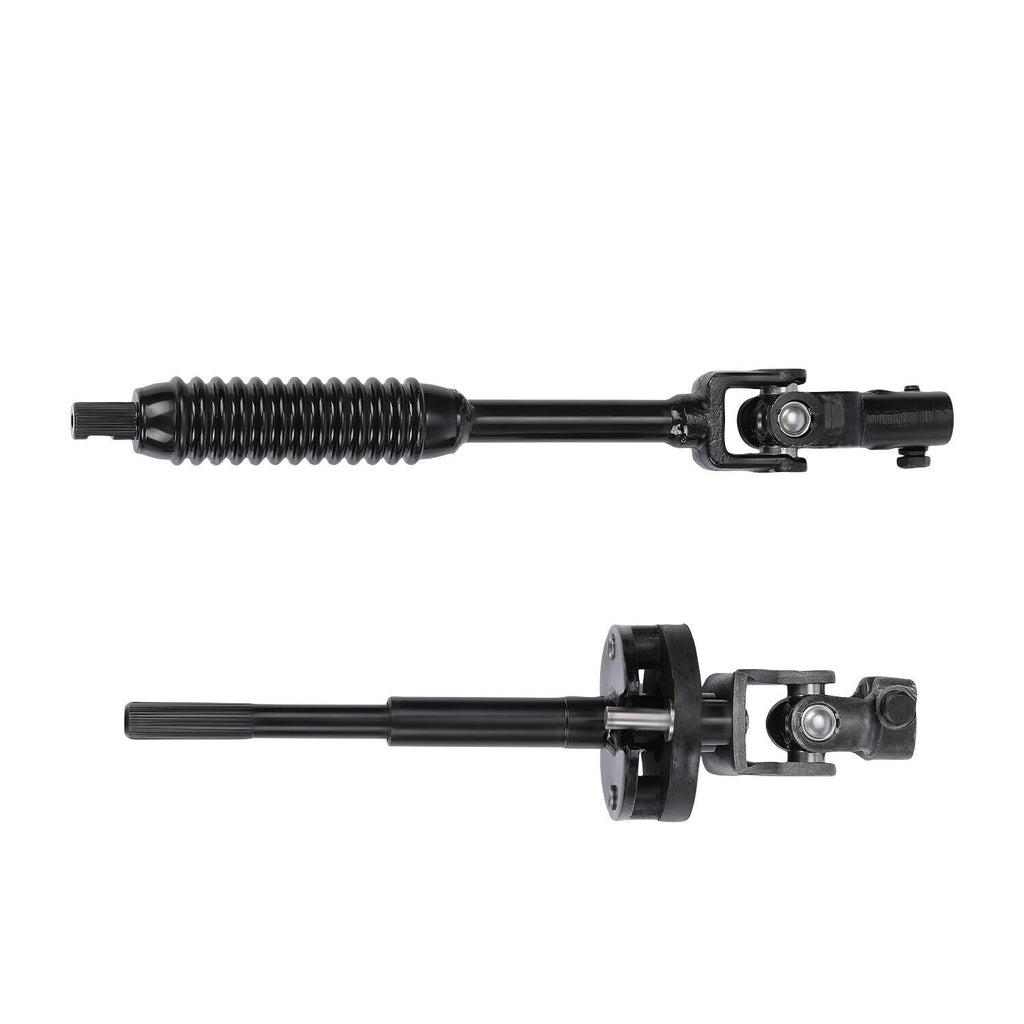

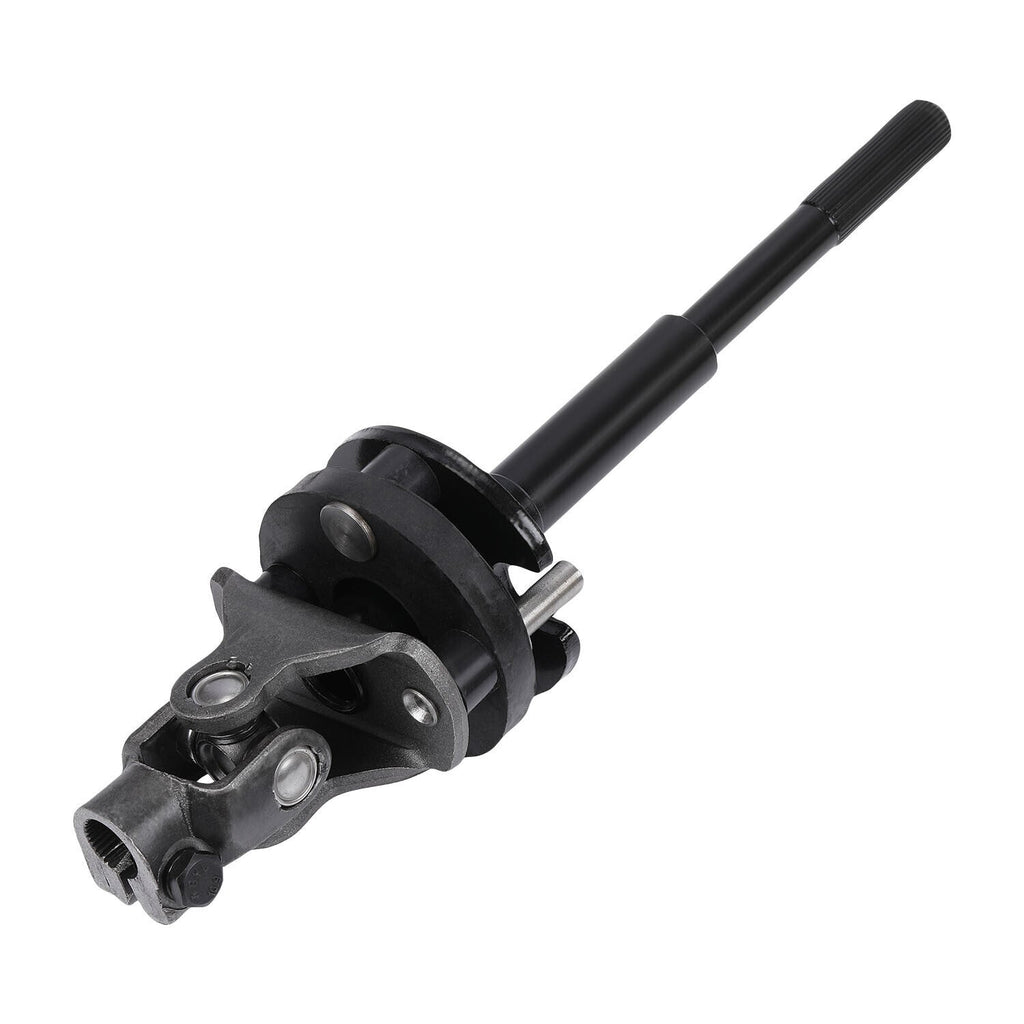

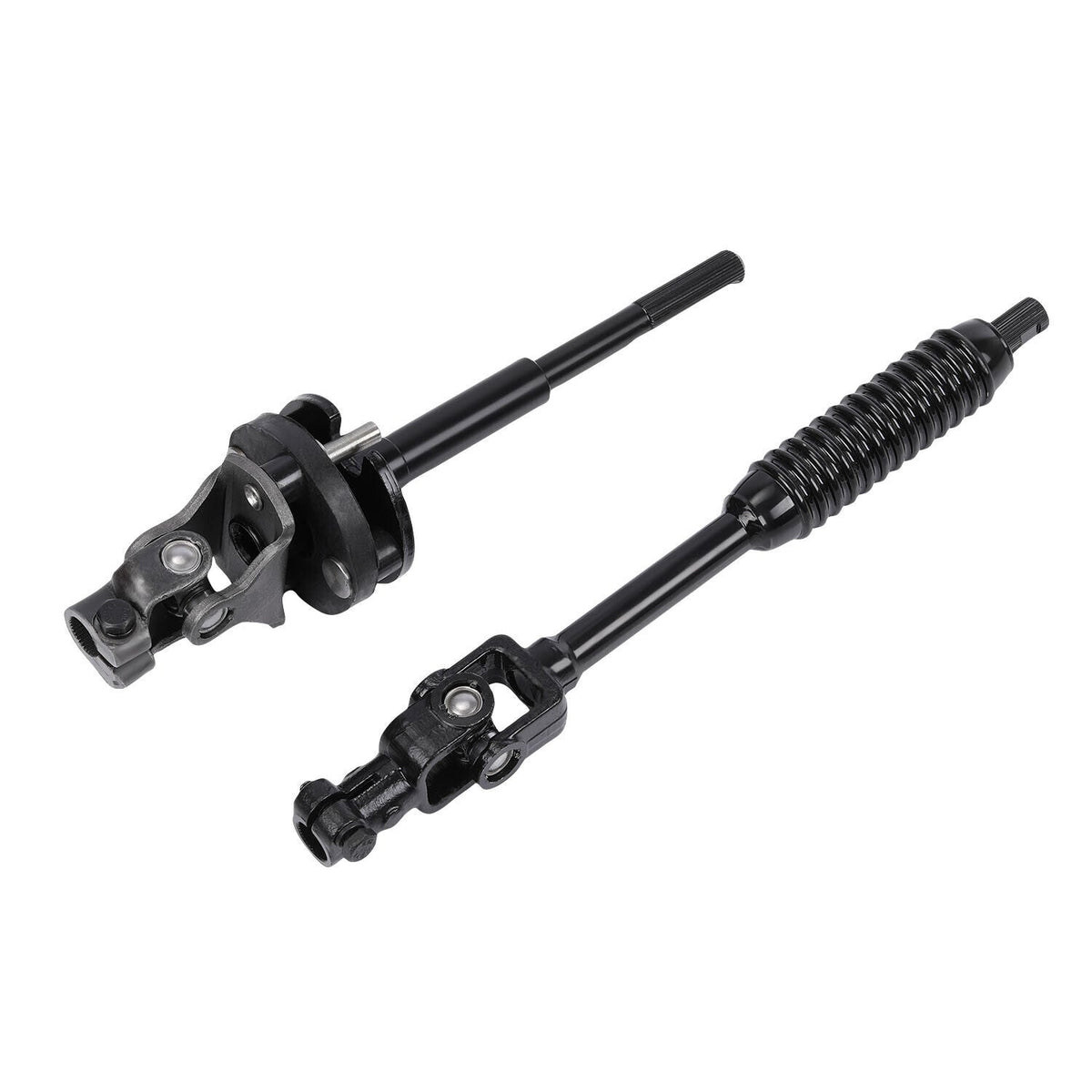

2005-2015 Toyota Tacoma Upper and Lower Intermediate Steering Shaft Kit
$170.99
In Stock
$170.99
Sale price
$170.99
Regular price
This new aftermarket upper-and-lower intermediate steering shaft kit fits compatible 2005-2015 Toyota Tacoma columns and replaces common 45220- and 45203-series shaft references.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Toyota Tacoma 2WD and 4WD with matching shafts (2005-2015)
- Toyota Tacoma Access Cab, Double Cab, and Regular Cab applications only where original shaft numbers match
Product Overview
A clunk through the wheel, binding, excess play, or a notchy feel over bumps can come from seized slip joints or worn universal joints after suspension and column mounts are checked. Replacing both intermediate sections addresses the linked shafts between the column and steering gear.

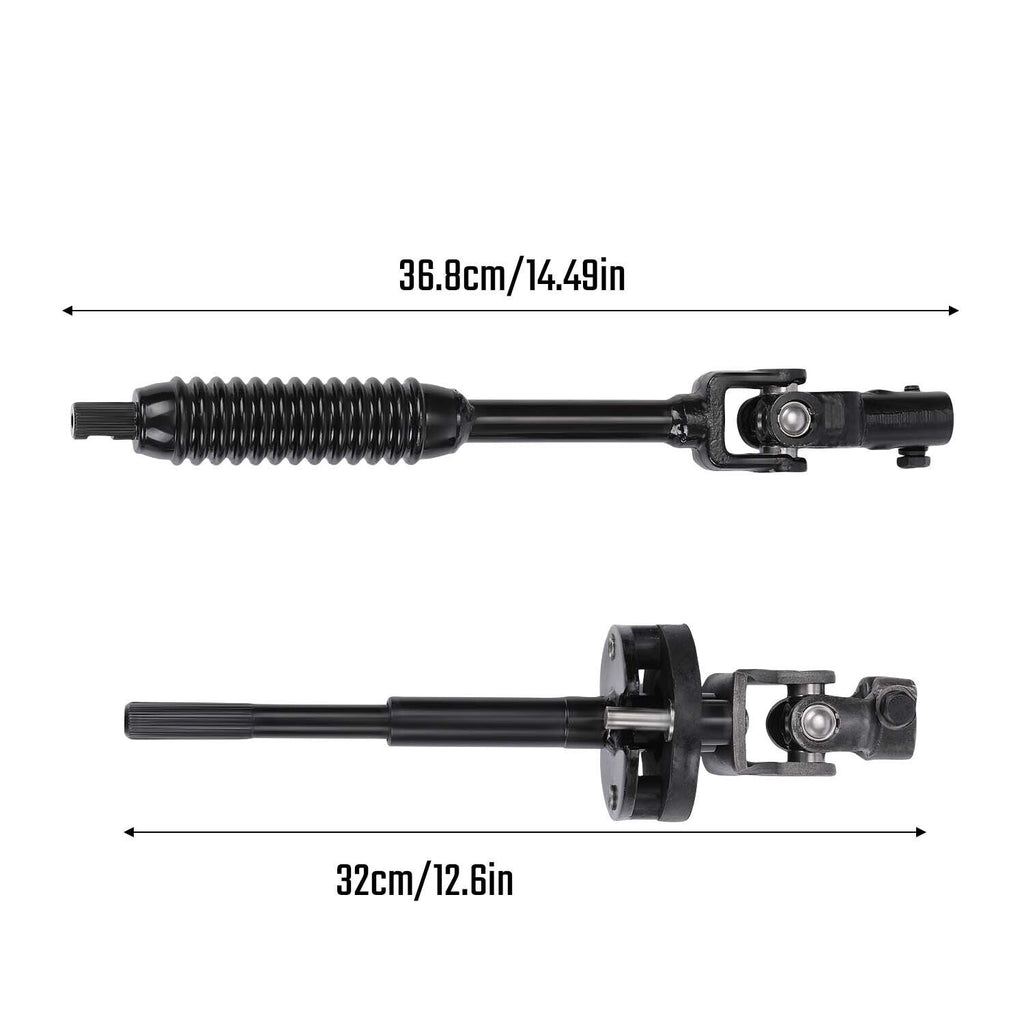

Steering is safety-critical. Compare both shaft lengths, spline profiles, pinch-bolt grooves, joint clocking, and original numbers. Do not allow the steering wheel to spin while disconnected; that can damage the clock spring.
Key Features & Performance
- Upper and lower intermediate steering shaft pair
- Replaces worn slip-joint and universal-joint sections
- Targets Tacoma steering clunk, play, and binding diagnoses
- Application-shaped splines and pinch-bolt locations
Replaces Part Numbers
- 45220-04010
- 45203-04010
- 45203-04011
- 45203-04020
- 45203-04021
Common Uses
- Correcting a confirmed steering-column clunk
- Replacing a seized lower U-joint
- Repairing shaft play found during front-end inspection
Technical Specifications
- Product Type: Intermediate steering shaft kit
- Sections: Upper and lower
- Vehicle System: Steering column to steering gear
- Condition: New aftermarket replacement
Installation & Fitment
- Center the wheels and lock the steering wheel
- Mark shaft orientation and joint clocking
- Confirm the pinch bolt passes through the machined groove
- Torque all steering fasteners to specification
- Check full-lock movement and steering-wheel center before road use
Compatibility Notice
Northline Parts does its best to list all known compatible models. The correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Can this fix a clunk in the steering wheel? A: Yes, if wear in an intermediate shaft joint is confirmed. Column mounts, rack, suspension, and body hardware can also clunk.
Q: Why must the wheel stay locked? A: Turning the wheel with the shaft disconnected can over-rotate and damage the clock spring.
Q: Will it fit every 2005-2015 Tacoma? A: Compare both removed shafts, splines, lengths, and reference numbers before ordering.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: 2005-2015 Tacoma steering shaft, 45220-04010 intermediate shaft, Tacoma steering clunk repair, 45203-04020 lower shaft, Toyota upper lower steering shaft kit
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, specifications, and application before purchase.
