E-Z-GO TXT Electric Rear Brake Drum & Shoe Kit 19186G1 — 24-Spline
$126.99
In Stock
$126.99
Sale price
$126.99
Regular price
Rear brake service kit with two 24-spline hub drums and four shoes for compatible E-Z-GO TXT electric golf carts; replaces 19186G1 and related brake references.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- E-Z-GO TXT Electric — 1996 and newer models using 24-spline rear hubs
Product Overview
If the cart takes more pedal to stop, grinds at the rear wheels, or moves poorly because a hub has stripped its splines, this kit puts the main wear parts for both rear brakes in one box. It is aimed at owners repairing an older electric TXT rather than replacing one drum at a time.

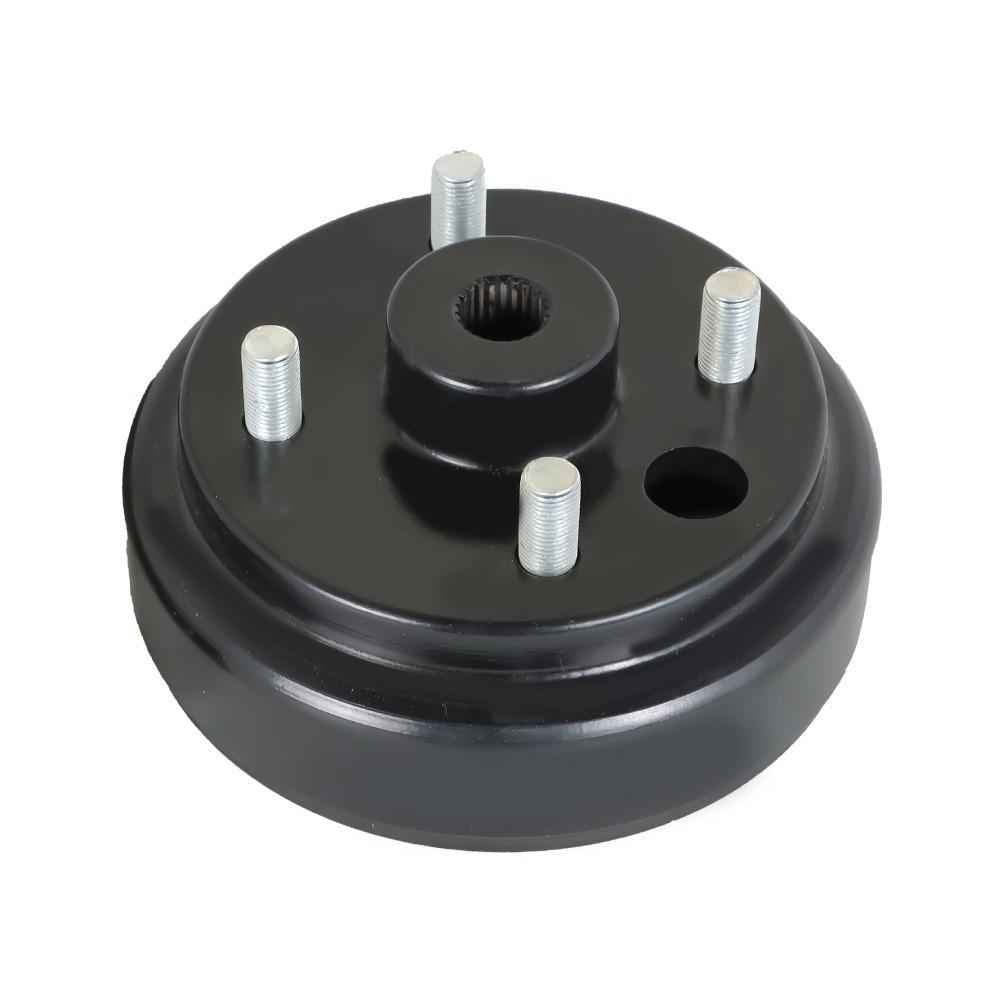

The drums slide over 24-spline axles and the shoes renew the friction surface inside each assembly. Verify axle spline count and brake layout because E-Z-GO changed components across years and platforms.
Key Features & Performance

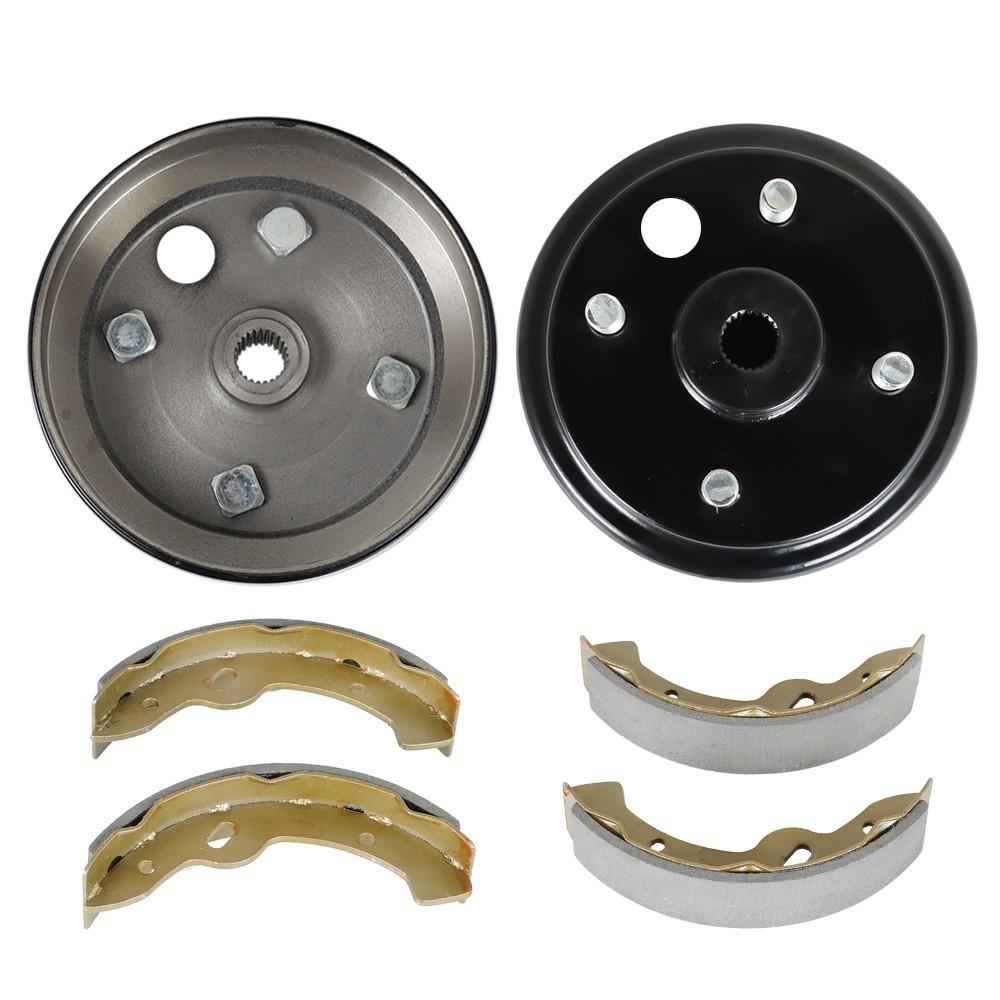

- Two rear 24-spline brake hub drums
- Four brake shoes for left and right rear service
- Addresses worn friction material and damaged hub splines
- Matched kit for a two-wheel brake refresh
Replaces Part Numbers
- 19186G1
- 17082-G2
- 17298-G1
- 70794-G01
- 70795-G01
- 27943-G01
- 27945-G01
Common Uses
- Weak or uneven rear braking
- Grinding from worn shoes or drum surfaces
- Cart motor runs but a stripped hub does not drive the wheel
- Brake overhaul during rear axle service

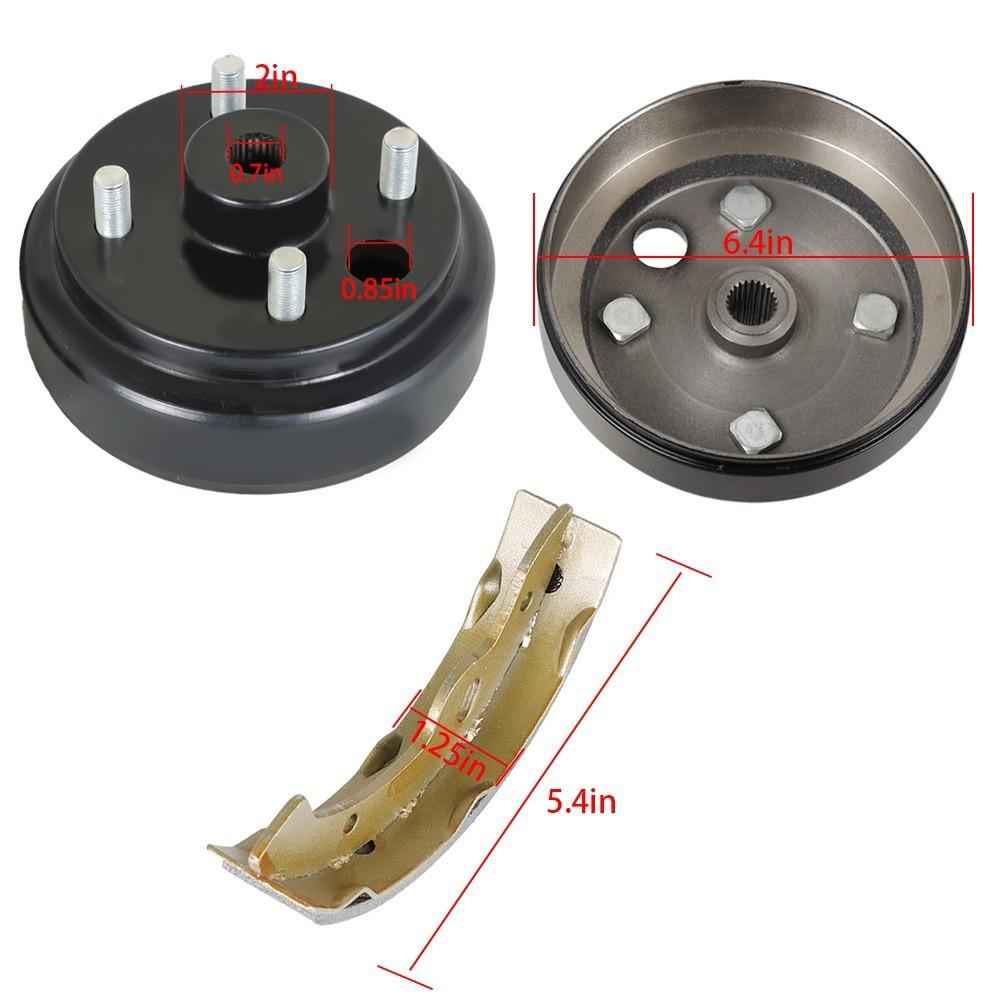

Technical Specifications
- Product Type: Rear brake drum and shoe kit
- Drum Quantity: 2
- Shoe Quantity: 4
- Hub Spline Count: 24
- Application: Electric golf cart rear brakes
Installation & Fitment
- Chock the cart and support it safely before wheel removal
- Confirm 24 splines on the axle before fitting the drums
- Inspect springs, adjusters, cables, seals, and axle nuts
- Adjust both brakes evenly and test at low speed first
Compatibility Notice
This listing is for compatible electric TXT brake systems and is not a blanket fit for RXV or every gas model. Verify the original drum number, spline count, and brake-shoe shape.
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Frequently Asked Questions
Q: Can stripped hub splines keep the cart from moving? A: Yes. The axle may turn inside a damaged hub even though the motor and differential are working.
Q: Does the kit service both rear wheels? A: Yes, it includes two drums and four shoes for the left and right rear brakes.
Q: Will it fit an RXV? A: No RXV fitment is claimed. Match a TXT application using a 24-spline hub and the listed references.
Q: Should the brake springs be replaced too? A: Inspect them closely; reused springs and adjusters must be sound and move freely.
