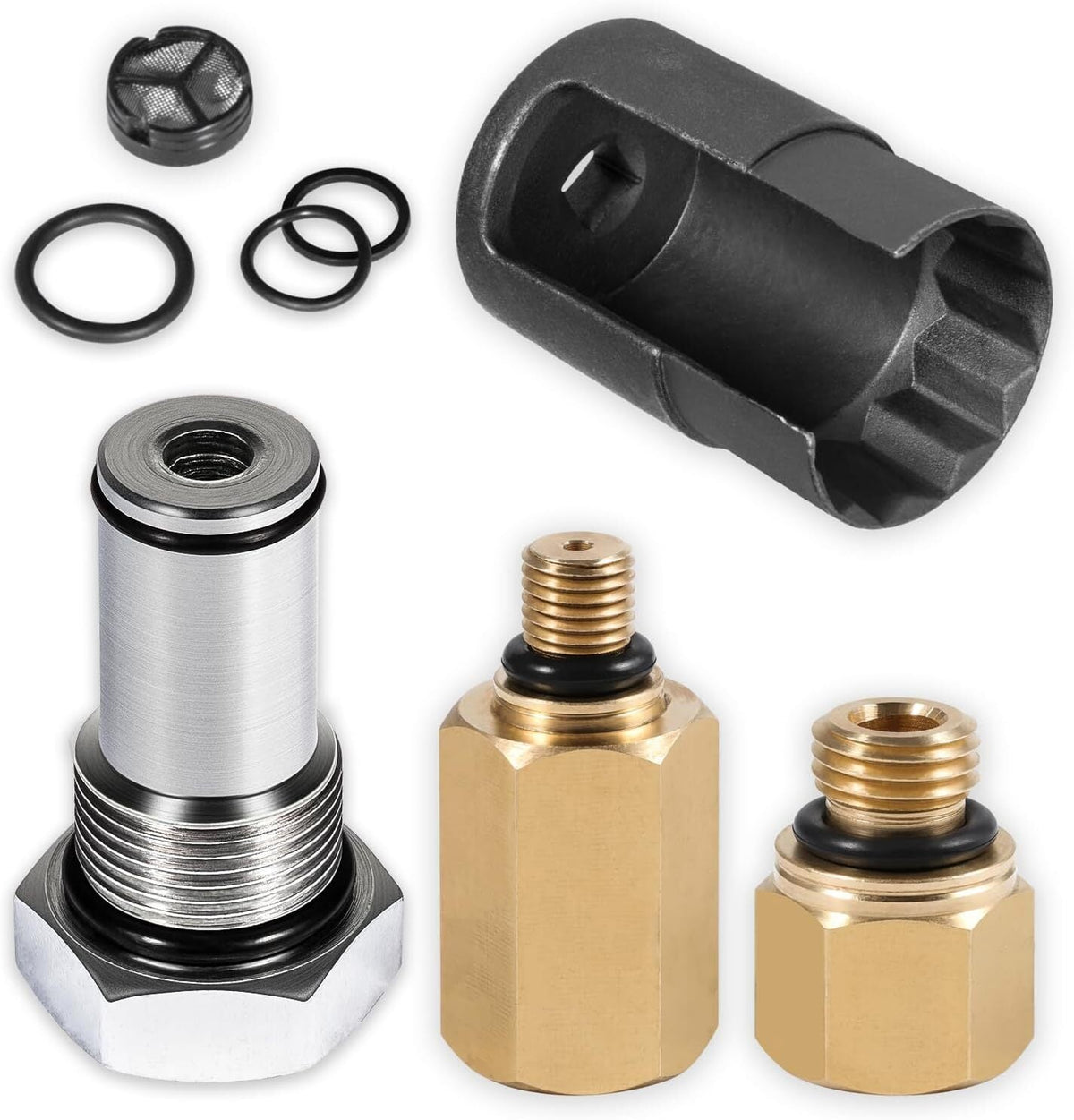

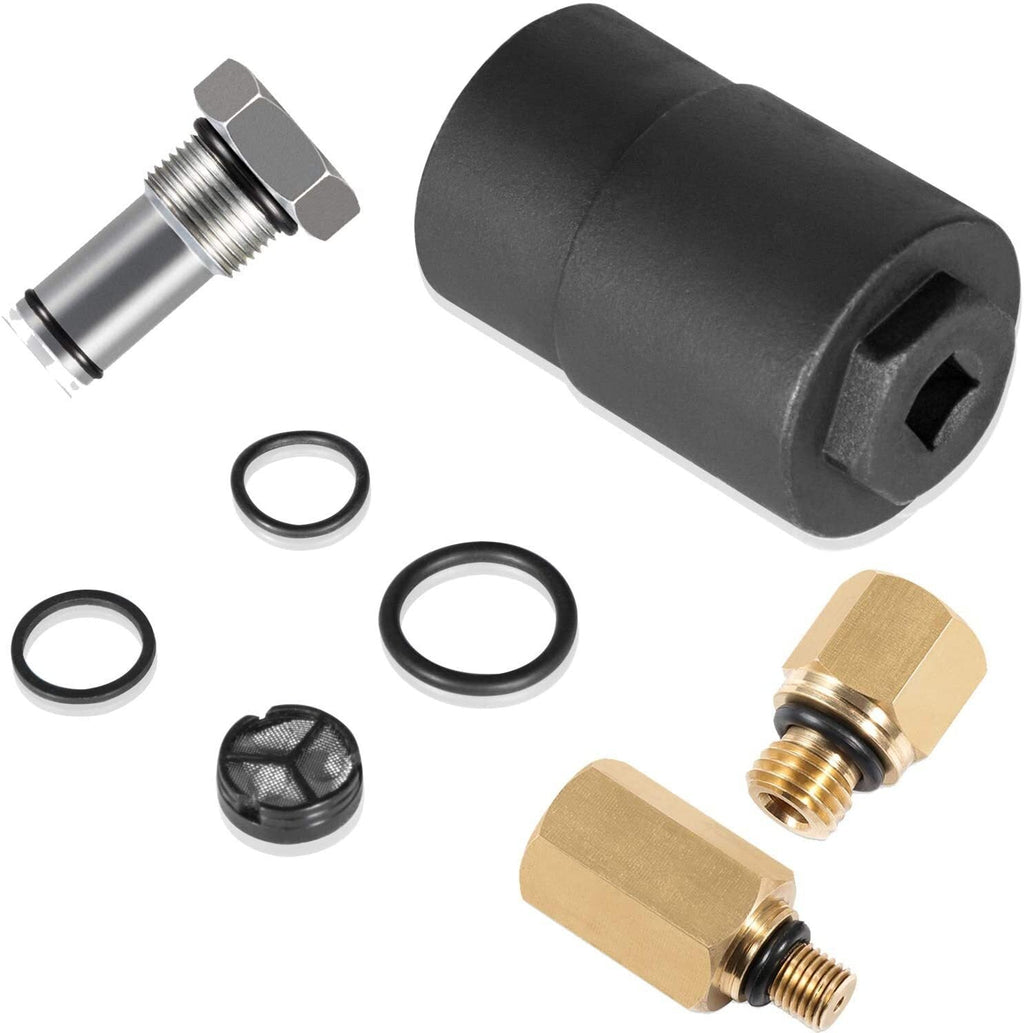

Ford 6.0L Power Stroke IPR Socket and HPOP Leak Test Kit
$59.99
In Stock
$59.99
Sale price
$59.99
Regular price
This new aftermarket diagnostic tool kit services the IPR valve and tests the high-pressure oil system on compatible Ford 6.0L Power Stroke engines.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Ford F-250 Super Duty 6.0L Power Stroke (2003-2007)
- Ford F-350 Super Duty 6.0L Power Stroke (2003-2007)
- Ford F-450 / F-550 Super Duty 6.0L Power Stroke (2003-2007)
- Ford Excursion 6.0L Power Stroke (2003-2005)
- Ford E-Series 6.0L Power Stroke (2004-2010; verify engine and access)
Product Overview
A 6.0L that cranks but will not start—especially when hot—may not be building the high-pressure oil needed to fire the injectors. This kit gives the technician the cutaway socket and test connections needed to reach the IPR and listen for internal HPOP-system leaks after scan data points in that direction.
The socket clears the IPR electrical connector during removal. The test fitting and oil-rail adapters help isolate leaks at injector seals, standpipes, dummy plugs, branch tubes, or the pump circuit; they do not identify the failed part by themselves.
Confirm the 6.0L engine, IPR access path, adapter thread, and every included piece shown. Follow a proven air-test procedure and regulate shop air; never treat a no-start as proof that the IPR is bad.
Key Features & Performance
- Cutaway IPR socket clears the regulator connector
- Multiple adapters support system and rail leak checks
- Useful for hot no-start and long-crank diagnosis
- Reusable service set for 6.0L high-pressure oil work
Replaces Part Numbers
- OTC 6765-style IPR socket reference
- 6.0L HPOP IPR-port air-test fitting
- 6.0L high-pressure oil-rail test adapters
Common Uses
- Removing a stuck or failed IPR valve
- Air-testing a suspected high-pressure oil leak
- Confirming the cause before buying HPOP-system parts
Technical Specifications
- Product Type: IPR removal and HPOP air-test tool kit
- Engine: Ford 6.0L Power Stroke diesel
- Drive: Verify socket drive size shown
- Condition: New aftermarket tools
Installation & Fitment
- Read the engine-specific test procedure first
- Review ICP pressure and IPR command while cranking
- Depressurize the oil system and keep all ports clean
- Use regulated air and approved IPR control during testing
- Replace disturbed seals and confirm hot and cold starts afterward
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Will this fix a hot no-start? A: No. It helps locate the cause; the repair may be an IPR, injector seal, standpipe, dummy plug, branch tube, HPOP, wiring, or another fault.
Q: Why is the socket cut away? A: The slot allows the socket to pass over the IPR valve body and electrical connector.
Q: Can I test without a scan tool? A: Some checks are possible, but scan data and correct IPR control make the diagnosis far more reliable.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: Ford 6.0L IPR socket kit, 6.0 Power Stroke HPOP air test tool, hot no start high pressure oil leak test, oil rail adapter set, IPR valve removal socket
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, specifications, and application before purchase.
