92mm Top-End Rebuild Kit for 1996-2013 Polaris 500 Engines
$329.99
In Stock
$329.99
Sale price
$329.99
Regular price

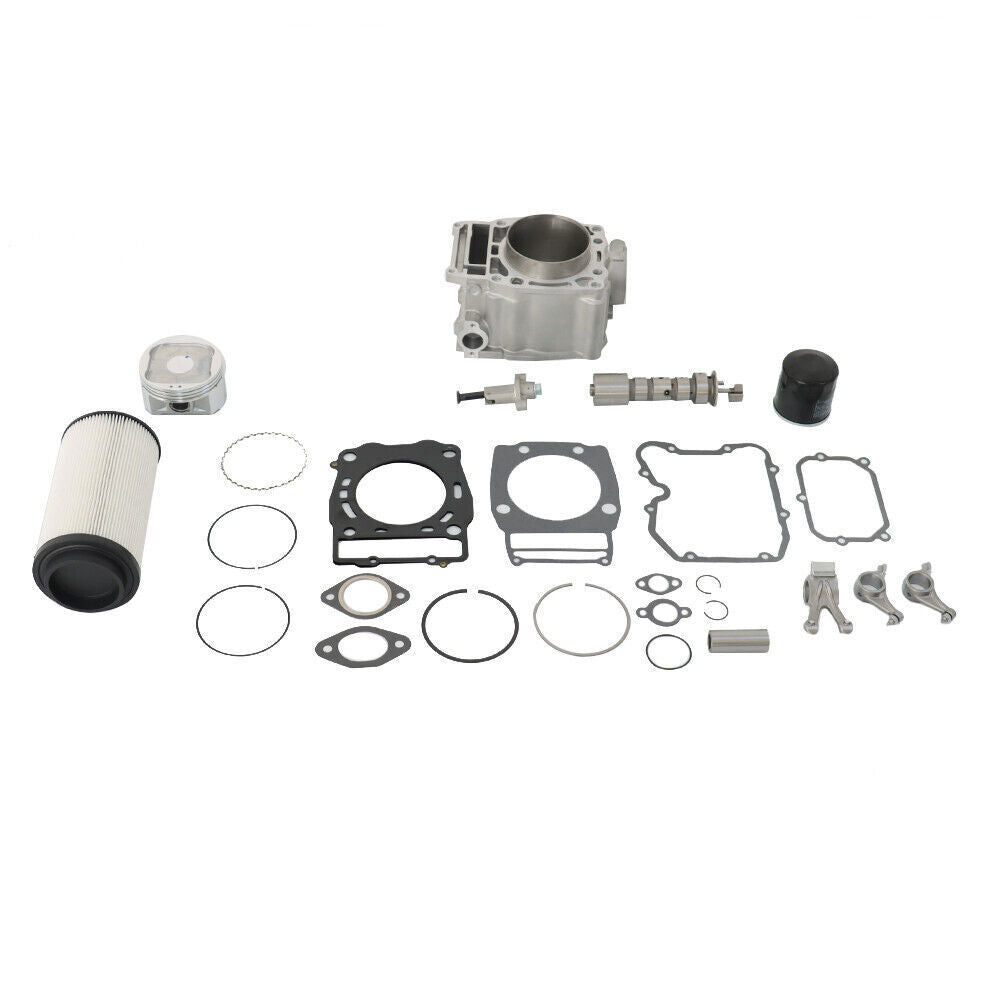

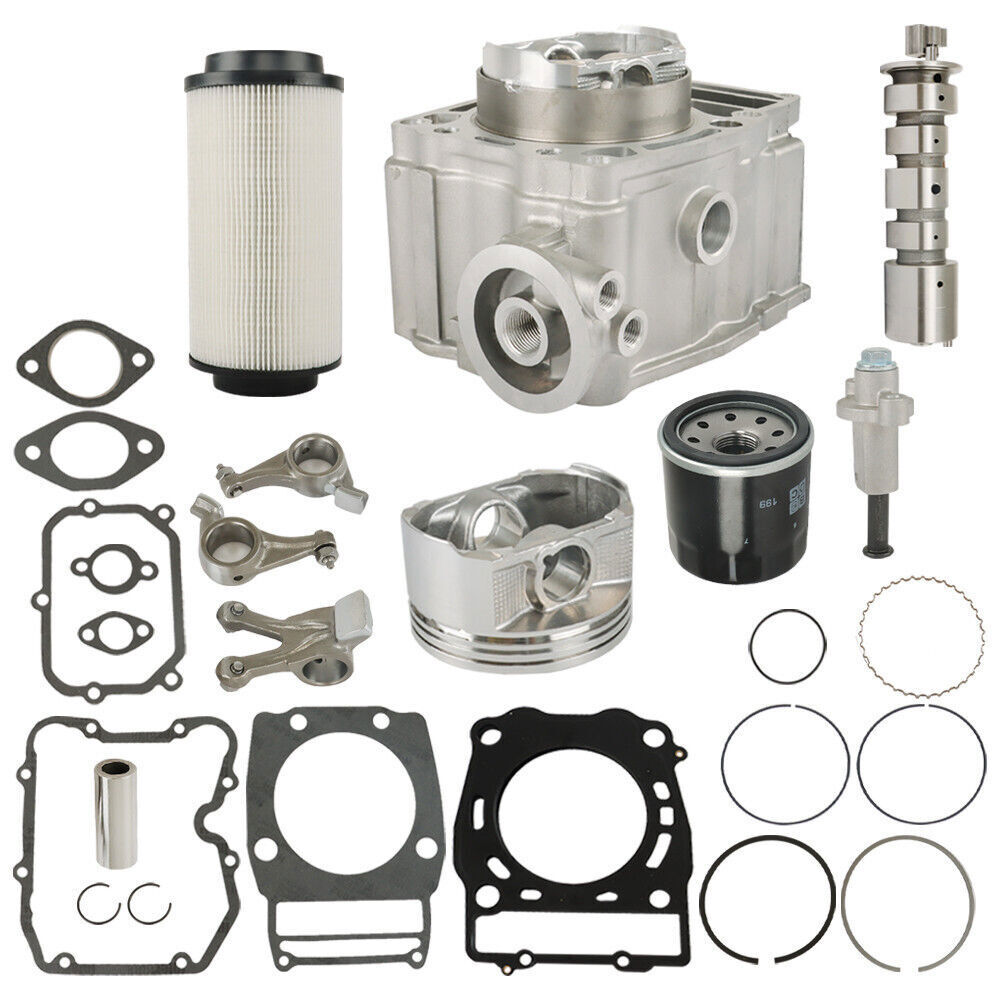

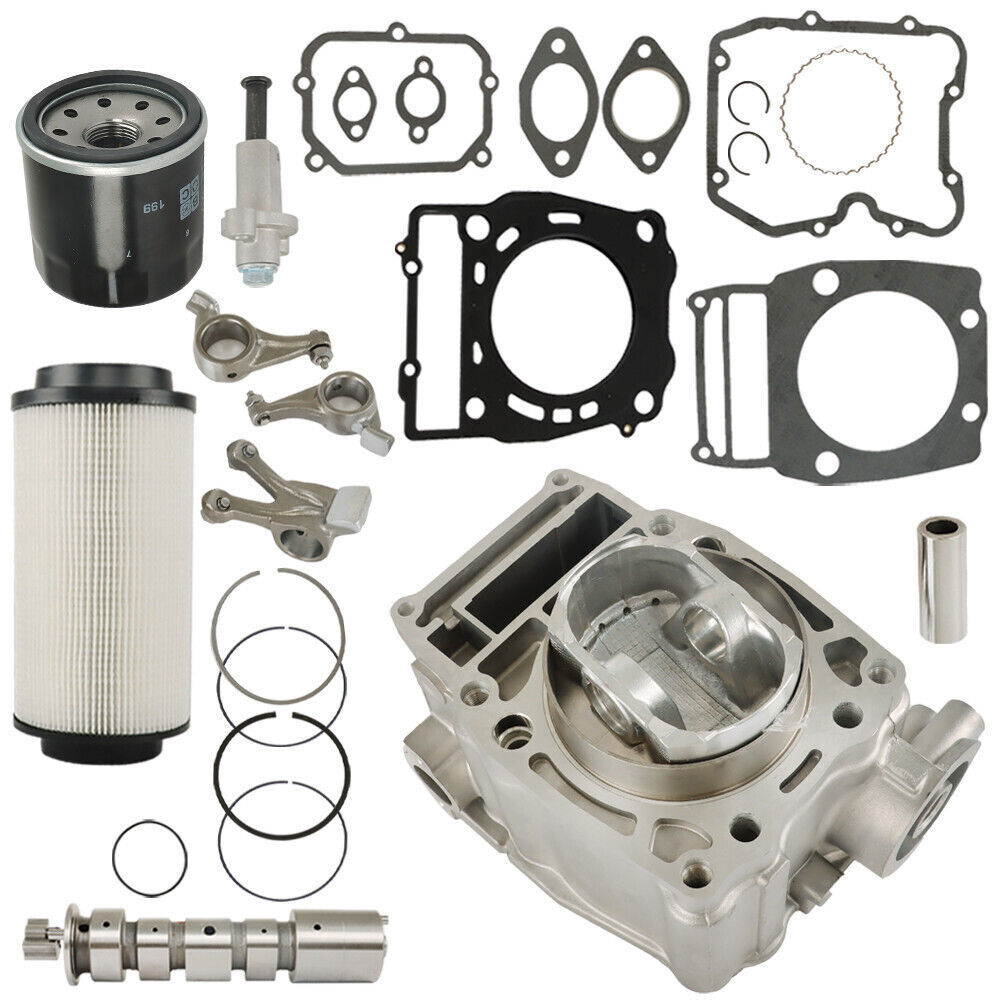

This aftermarket 92 mm top-end rebuild kit fits compatible Polaris 500 engines and includes the cylinder, piston, rings, gaskets, camshaft, rocker arms, tensioner, and related service parts shown.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Polaris Sportsman 500 / 500 HO (1996-2013, verify engine)
- Polaris Ranger 500 (1999-2012)
- Polaris Magnum 500 (1999-2003)
- Polaris Scrambler 500 (1997-2012)
- Polaris Xplorer 500 (1997)
- Polaris ATP 500 4x4 (2004-2005)
- Polaris Sportsman X2 500 (2006-2009)
- Polaris Big Boss 500 (1998-2002)
- Polaris Worker 500 (1999 and 2001)
Product Overview
Low compression, oil burning, a damaged cam lobe, top-end noise, or cylinder scoring can turn a running issue into a rebuild decision. This kit groups the major cylinder-head-side wear parts so a compatible Polaris 500 engine can be repaired without sourcing each item separately.
A complete teardown and measurement still comes first. Polaris 500 cylinders use early and late cam-chain-opening designs, and engine history may reveal crank, rod, oiling, or head damage beyond this kit. Compare the original numbers, 92 mm bore, cam-chain opening, piston design, and every included part before assembly.
Key Features & Performance

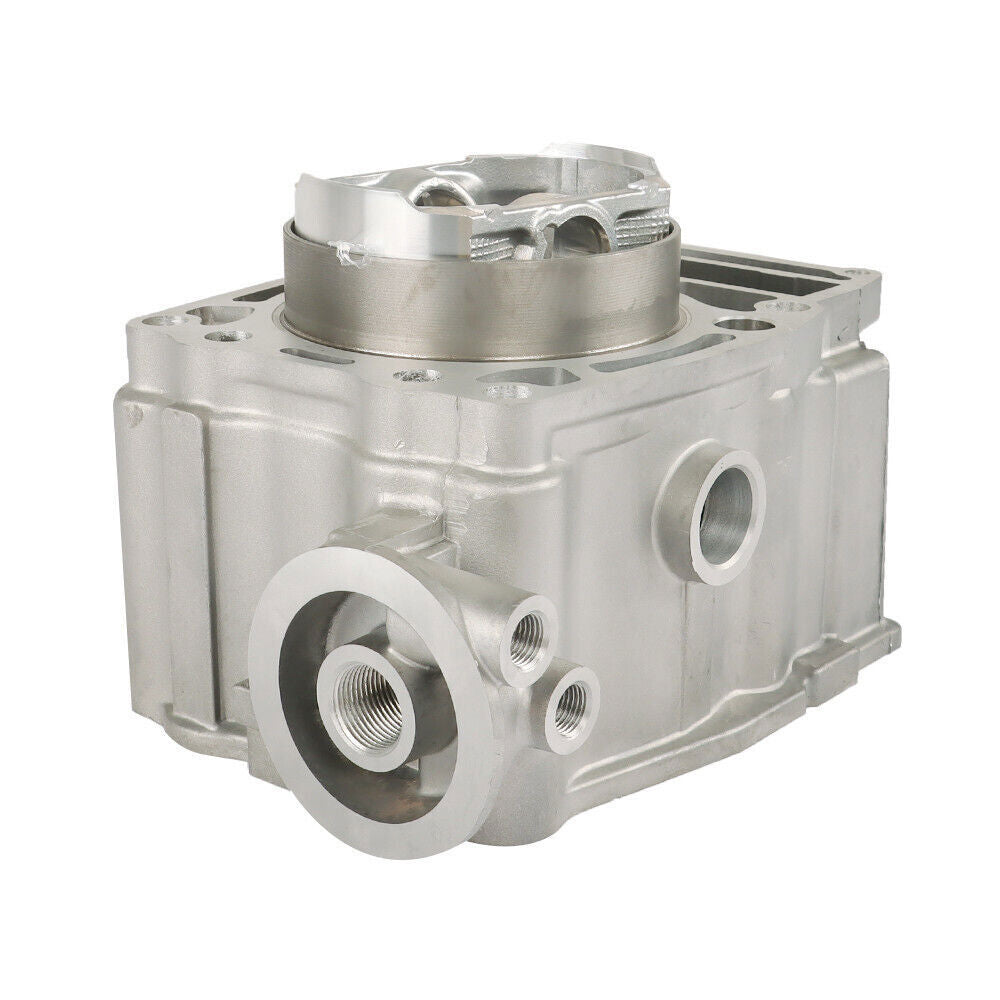

- Standard 92 mm cylinder and piston package
- Includes piston rings, wrist pin, and circlips

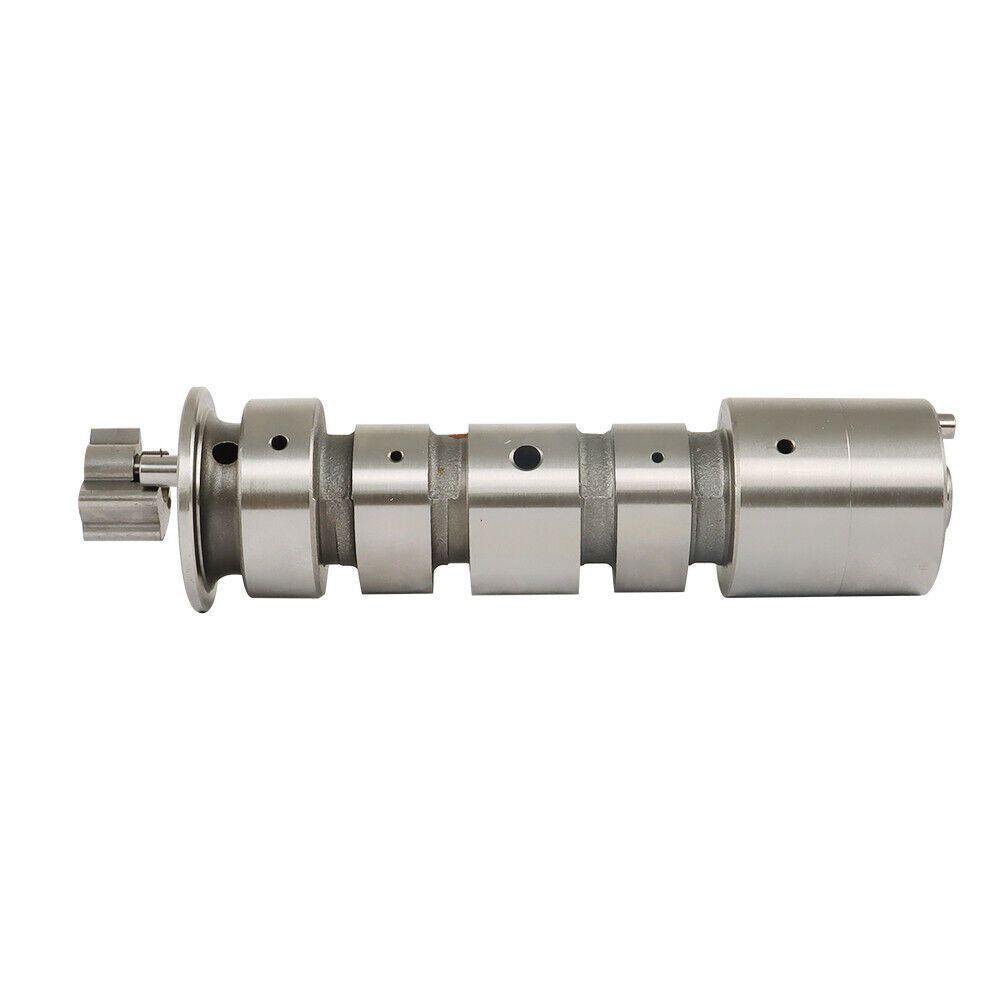

- Includes camshaft, three rocker arms, and chain-tensioner parts
- Gasket set supports top-end reassembly
- Broad compatible Polaris 500 application when the engine version is matched
Replaces Part Numbers
- 3087221
- 3087224
- 3089966
- 3086811
- 3086200
- 3085074
- 3085371
- 3085075
- 3085655
- 3087170
- 3085534
- 3084890
- 3089256
- 3090293
Common Uses
- Repairing low compression from a worn cylinder or piston
- Replacing a damaged camshaft and rocker arms
- Rebuilding after top-end oiling or timing-component wear
- Returning an older Sportsman, Ranger, or Scrambler 500 to service
Technical Specifications
- Product Type: Top-end engine rebuild kit
- Cylinder Bore: 92.00 mm standard bore
- Engine Platform: Compatible Polaris 500 four-stroke
- Core Contents: Cylinder, piston set, gaskets, camshaft, rockers, tensioner and filters as shown
- Condition: New aftermarket engine parts
Installation & Fitment
- Measure the crankshaft, connecting rod, head, valves, and oil system before assembly
- Compare the early/late cam-chain opening and every reference number
- Check piston-to-cylinder, ring end gap, valve clearance, and timing marks
- Prime the oil system and use assembly lubricant where specified
- Professional engine assembly and break-in are strongly recommended
Compatibility Notice
Northline Parts does its best to list all known compatible models. The correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and the product photos before purchase.
Frequently Asked Questions
Q: Is this a complete bottom-end rebuild kit? A: No. It is a top-end-focused kit; inspect the crankshaft, rod, bearings, and cases separately.
Q: Why does the cam-chain opening matter? A: Polaris used different cylinder castings, and the opening size must match the engine.
Q: Will this fix low compression automatically? A: Only if the cause is in the supplied top-end parts and the head, valves, lower end, timing, and oiling system are serviceable.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: Polaris 500 top end rebuild kit, 92mm Sportsman 500 cylinder piston, Ranger Scrambler Magnum 500 engine kit, Polaris camshaft rocker arm replacement, 1996-2013 Polaris 500 low compression repair
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, specifications, and application before purchase.
