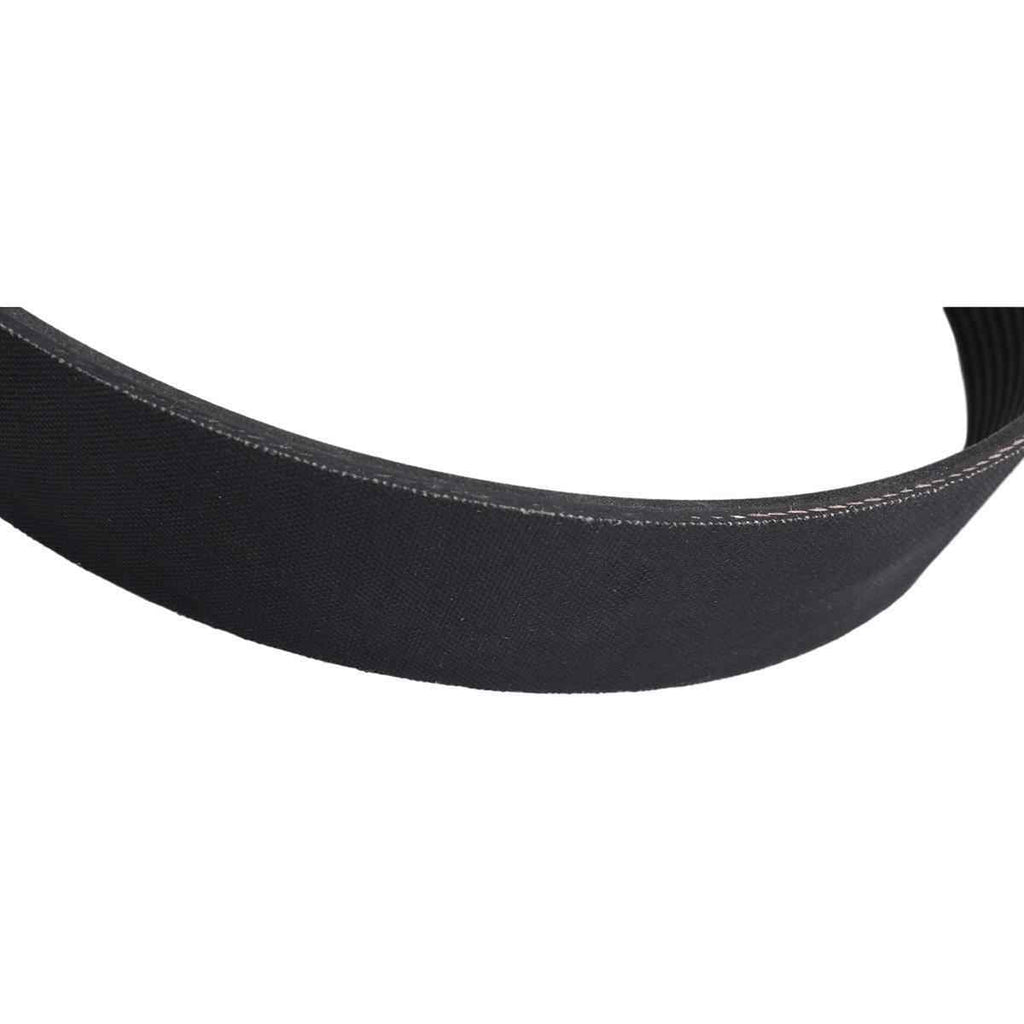

Cummins ISX15/QSX15 12-Rib Fan Drive Belt 12PK2315 — 3100189
$88.99
In Stock
$88.99
Sale price
$88.99
Regular price
Aftermarket 12-rib fan-drive belt for compatible Cummins ISX15 and QSX15 engine applications; replaces 3100189, 12PK2315, 013216318, 356541C3, and 3682893 references.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Cummins ISX15 engine applications using 3100189 / 12PK2315
- Cummins QSX15 engine applications using 3100189 / 12PK2315
Product Overview
A belt with cracked ribs, glazing, frayed edges, rubber dust, or squeal should be replaced before it leaves a truck without cooling or accessory drive. This 12PK2315 belt matches the listed Cummins references for compatible ISX15/QSX15 drive layouts.
Belt routing and accessory configuration vary by chassis. Read the number on the old belt and inspect the tensioner, idlers, fan drive, and pulley alignment before installation.
Key Features & Performance
- 12-rib multi-V belt
- 12PK2315 size designation
- For compatible ISX15/QSX15 accessory-drive layouts
- Aftermarket replacement for 3100189 references
Replaces Part Numbers
- 3100189
- 12PK2315
- 013216318
- 356541C3
- 3682893
Common Uses
- Cracked or chunked belt ribs
- Squeal or slip with good pulley alignment
- Frayed belt edges
- Preventive replacement during tensioner service
Technical Specifications
- Product Type: Multi-rib fan drive belt
- Rib Count: 12
- Size Reference: 12PK2315
- Engine Family: Cummins ISX15 / QSX15
- Replacement Type: Aftermarket
Installation & Fitment
- Record the routing before removing the old belt
- Inspect tensioner travel, idlers, pulleys, and fan drive
- Clean oil or coolant from the drive system
- Seat every rib and recheck alignment after rotation
Compatibility Notice
ISX15/QSX15 engines use different belts by chassis and accessory package. Match the old belt number, 12 ribs, effective length, routing, fan drive, alternator, and air-conditioning arrangement.
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Frequently Asked Questions
Q: Does this fit every ISX15 truck? A: No. Chassis and accessory-drive layout determine the correct belt.
Q: What does 12PK2315 mean? A: It identifies a 12-rib metric multi-V belt with the corresponding nominal length designation.
Q: Should the tensioner be replaced too? A: Replace it if it binds, wobbles, lacks tension, or is outside service limits.
Q: Why did the old belt wear on one edge? A: Pulley misalignment, bearing play, or an incorrect routing can push the belt sideways.
Part Summary
