E-Z-GO Brake Pedal Microswitch 10606-G1 10606-G2
$22.99
In Stock
$22.99
Sale price
$22.99
Regular price

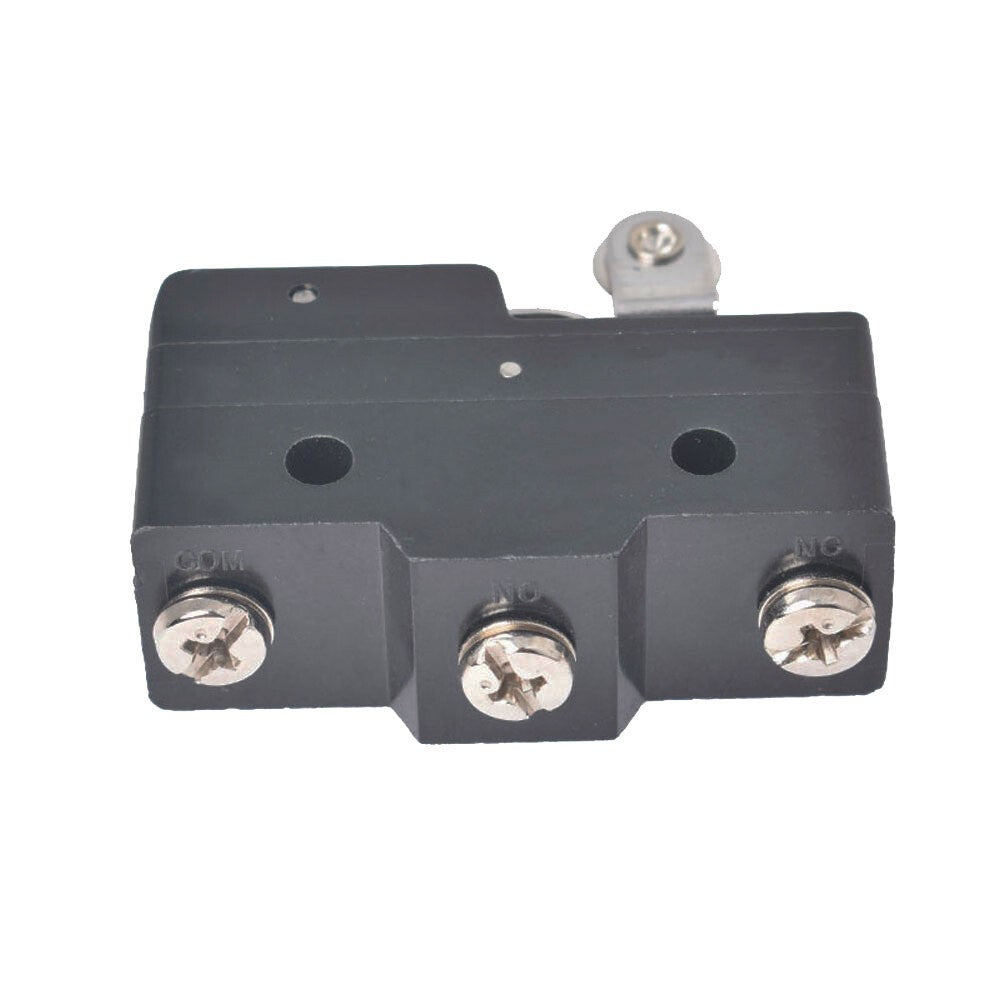

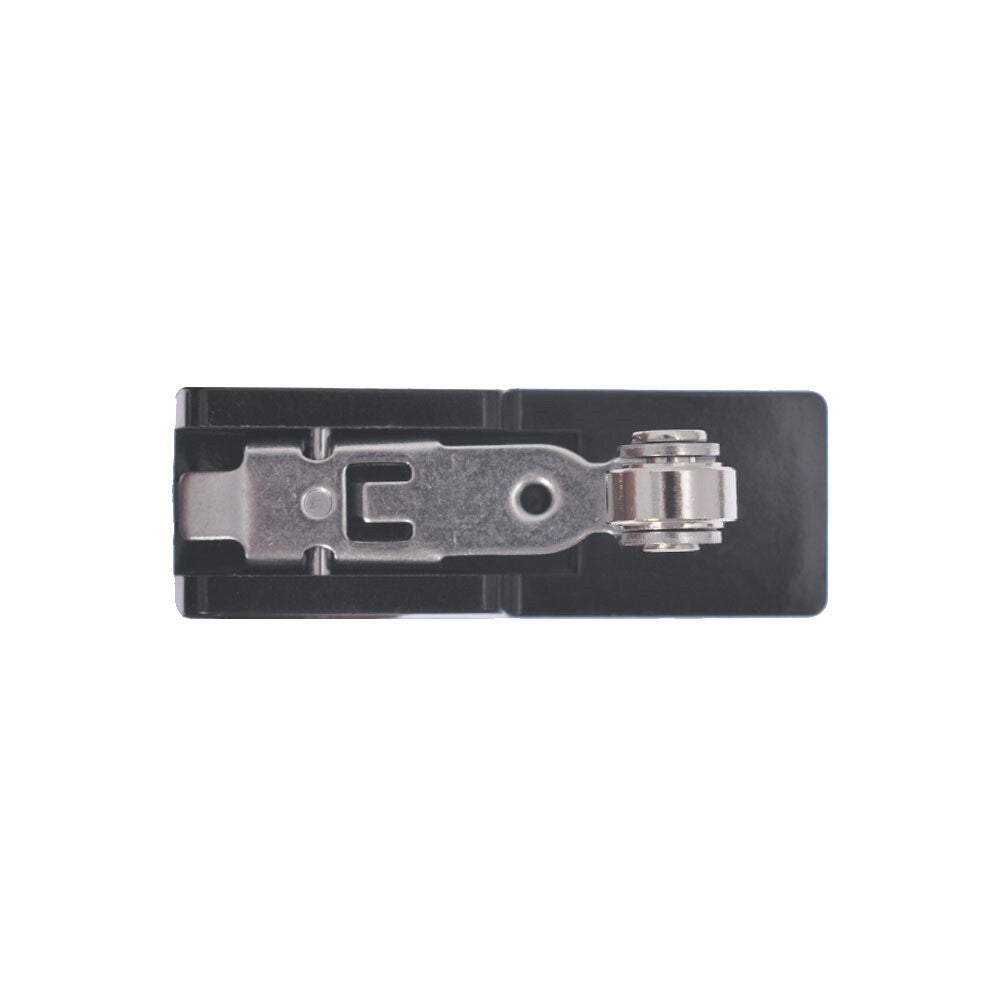

Three-terminal brake-pedal microswitch cross-referencing E-Z-GO 10606-G1, 10606-G2, 17928-G1, and 31535-G1 on compatible carts.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Select E-Z-GO Marathon carts using 10606-G1 / 10606-G2
- Select E-Z-GO Medalist and TXT applications using the same three-terminal pedal switch
- Gas or electric applications only when the installed switch and circuit match
Product Overview
A brake-related interlock, stop circuit, or pedal-triggered function that works only when the pedal is wiggled may come from worn switch contacts or a misadjusted actuator. Wiring continuity and the exact circuit function should be confirmed first.
The same-looking microswitch can be used for different pedal or interlock duties. Match three terminals, lever or plunger style, bracket position, actuation point, and every reference number.
Key Features & Performance
- Restores a pedal-triggered electrical signal after continuity testing confirms failure
- Application-specific electrical function for the listed circuit
- Reference, connector, pinout, and mounting details support a safer match
- Cross-references 10606-G1, 10606-G2, 17928-G1, 31535-G1
Replaces Part Numbers
- 10606-G1
- 10606-G2
- 17928-G1
- 31535-G1
Common Uses
- Replacing burned contacts or a broken switch actuator at the pedal assembly
- Replacing an open, shorted, intermittent, or physically damaged unit after testing
- Restoring the affected control or charging circuit after wiring faults are repaired
Technical Specifications
- Part Type: Pedal Microswitch
- Terminals: 3
- Condition: New aftermarket
Installation & Fitment
- Adjust the switch so it changes state reliably without preventing full pedal return
- Disconnect battery power and inspect plugs, grounds, terminals, and harness routing
- Test every affected function before returning the equipment to service
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, electrical or fuel-system version, dimensions, installed options, and previous repairs can affect fitment. Compare the original part and application information before purchase.
Frequently Asked Questions
Q: Is this a hydraulic brake-pressure switch? A: No. It is a mechanically actuated electrical microswitch mounted at a compatible pedal assembly.
Q: Why must the actuation point be adjusted? A: A switch set too early or too late can leave the circuit open, keep it energized, or interfere with pedal return.
Q: How do I confirm fitment before ordering? A: Match the original reference number where available, then compare the removed part, dimensions, connections, mounting details, model, serial or production information, and package photos.
Q: Is this an original-equipment part? A: No. This is a new aftermarket part. Brand names and reference numbers are used only to identify compatible applications.
Part Summary
keywords: EZGO 10606-G1 microswitch, 10606-G2 pedal switch, Marathon brake switch, golf cart three terminal switch, 17928-G1 replacement
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
