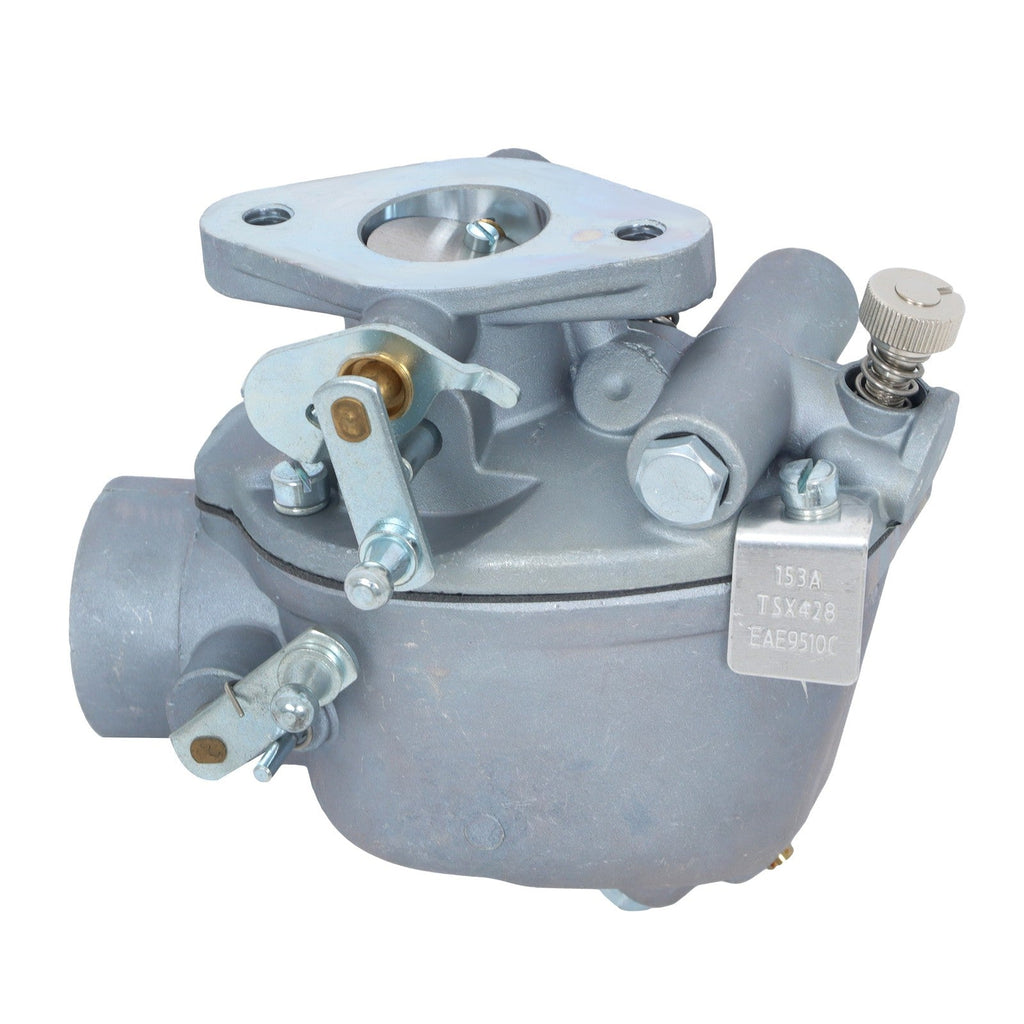

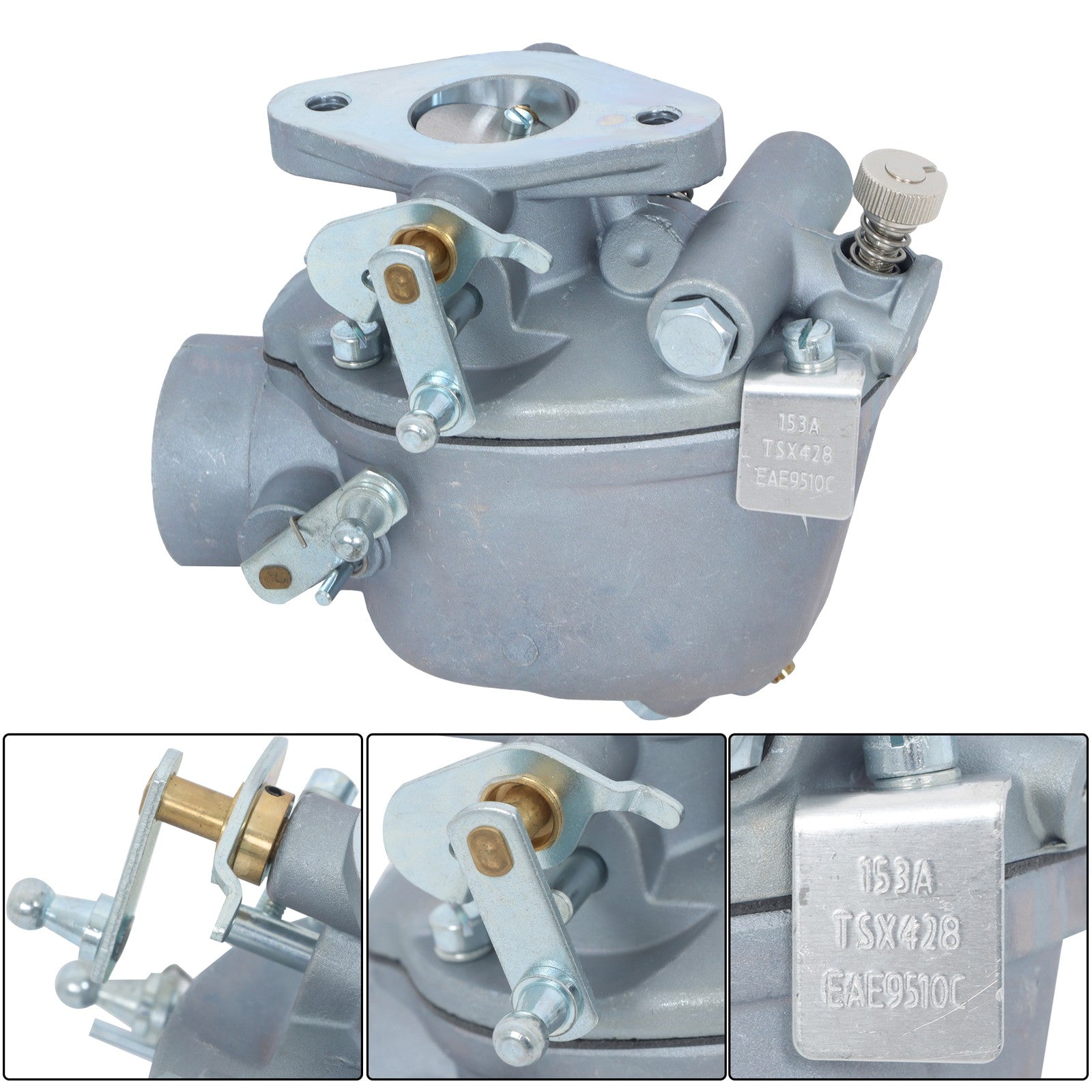

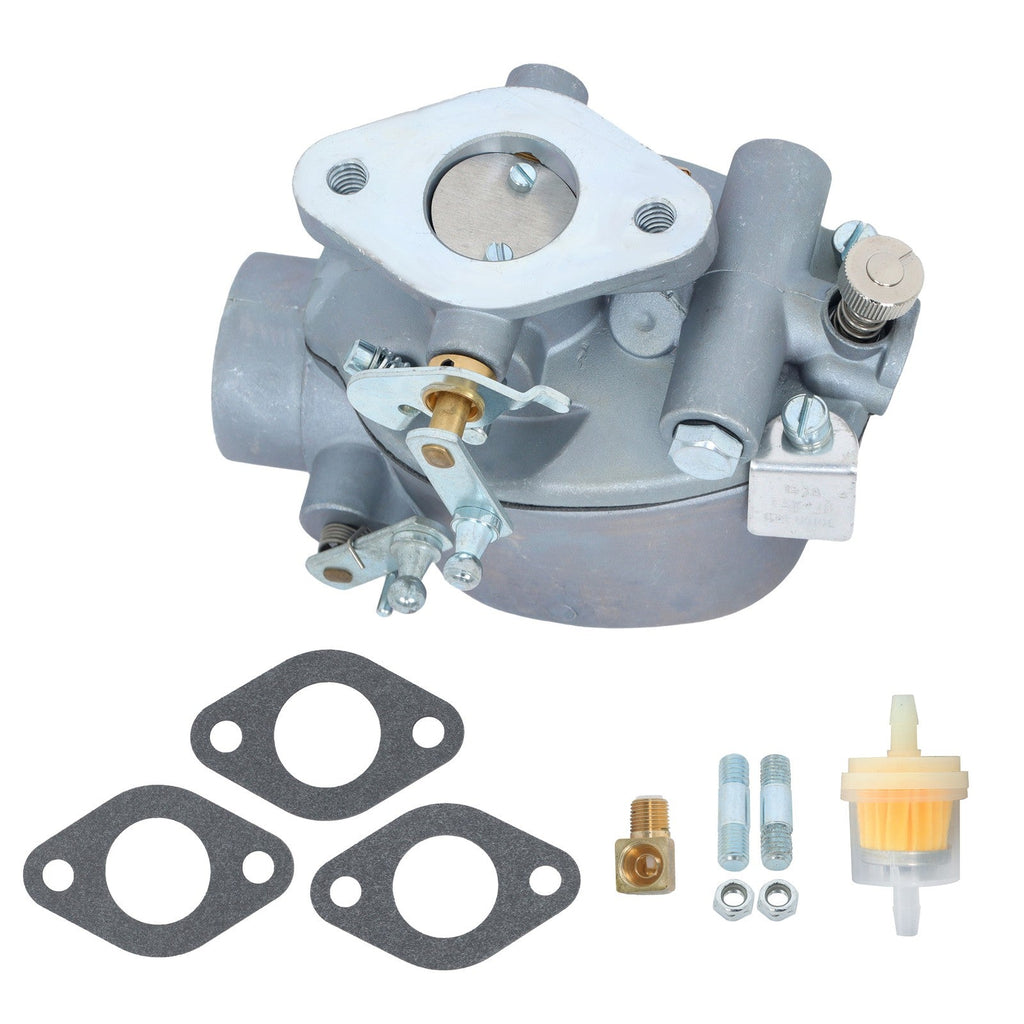

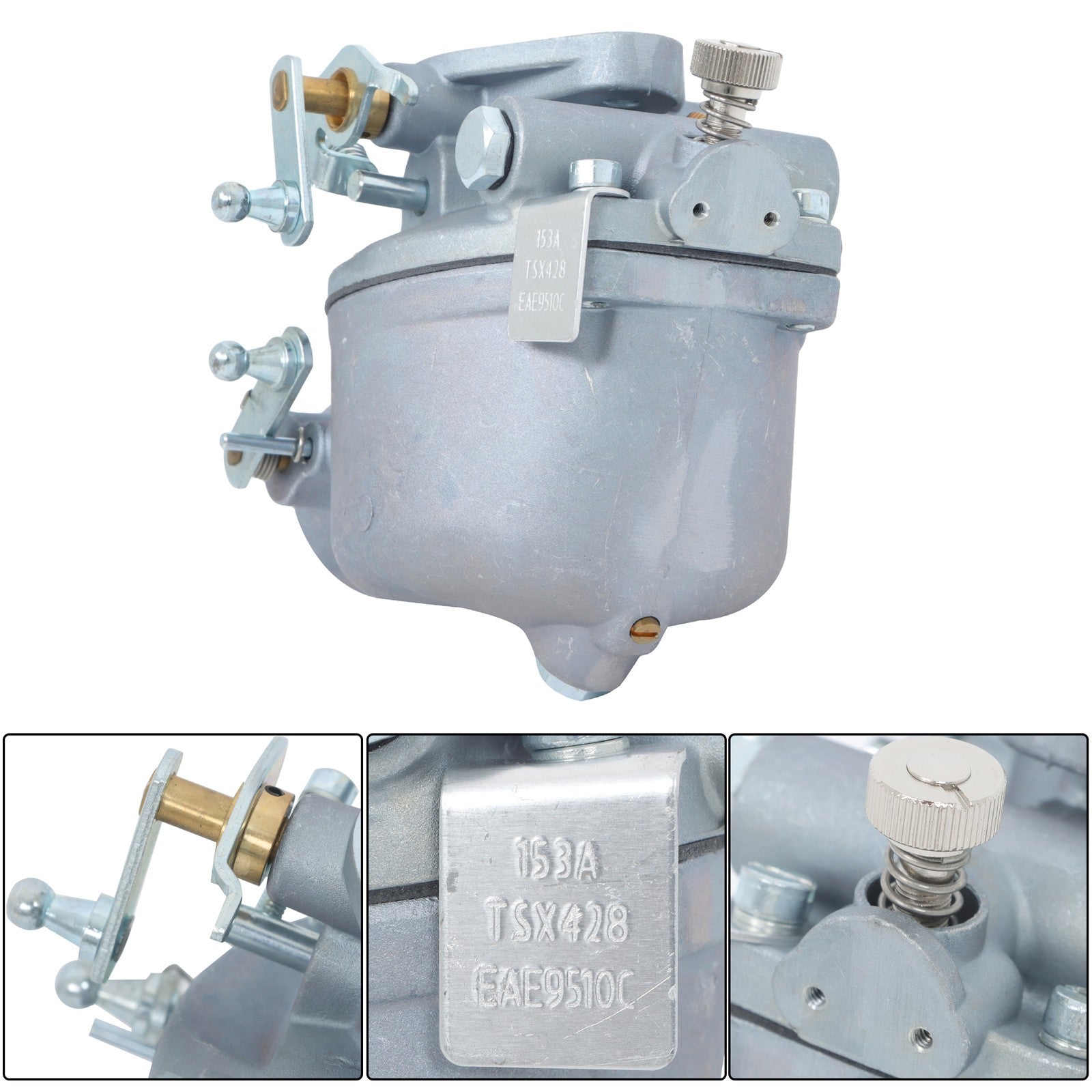

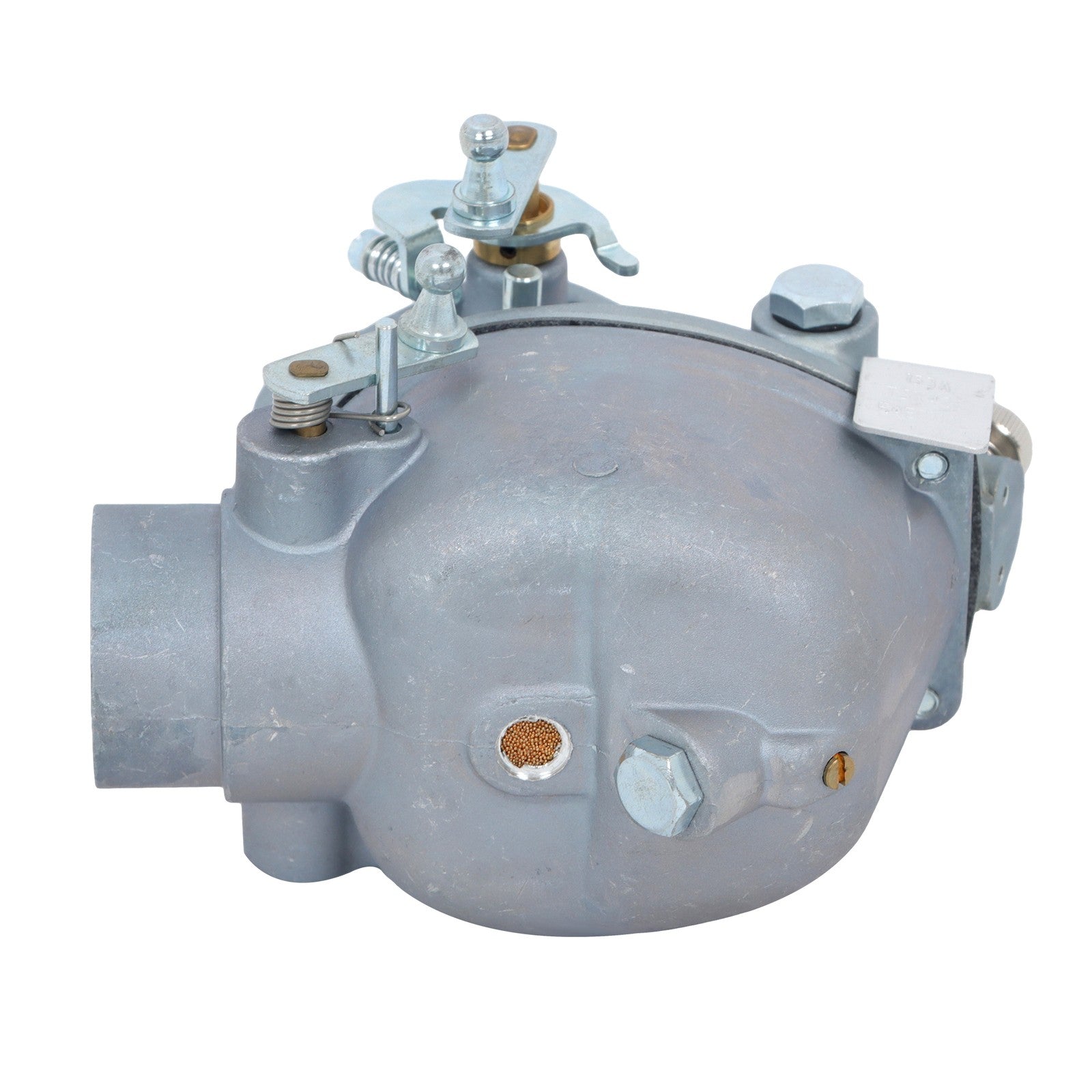

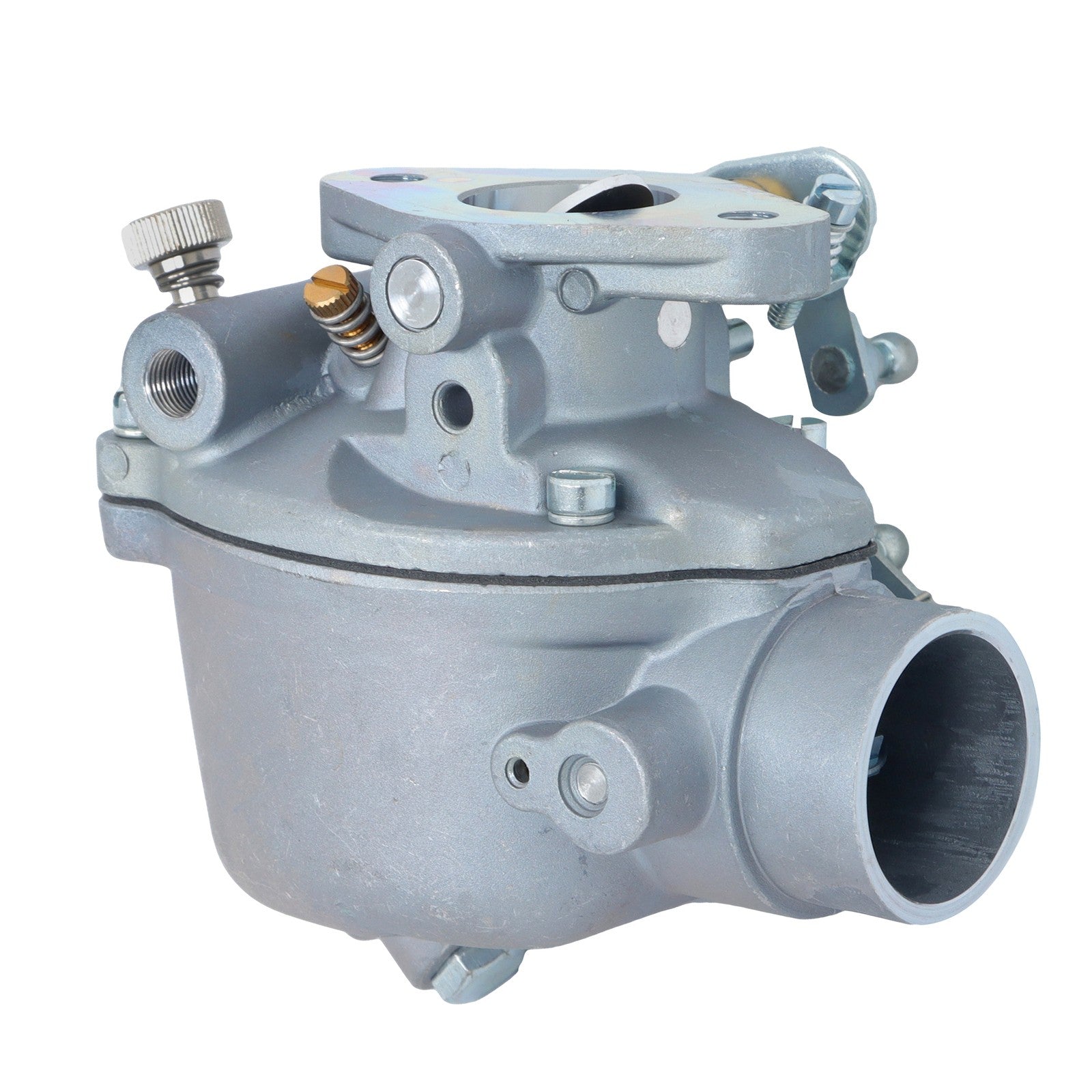

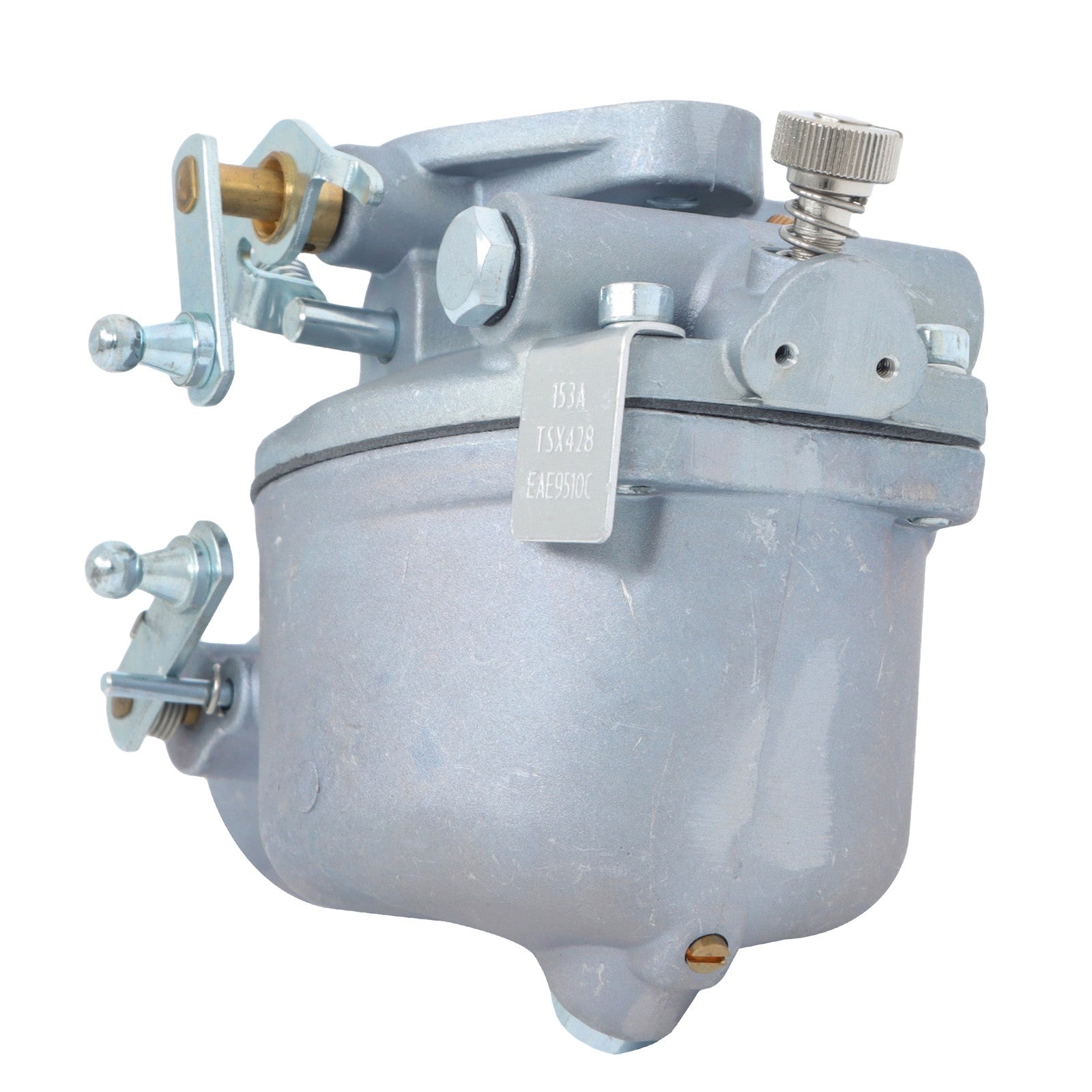

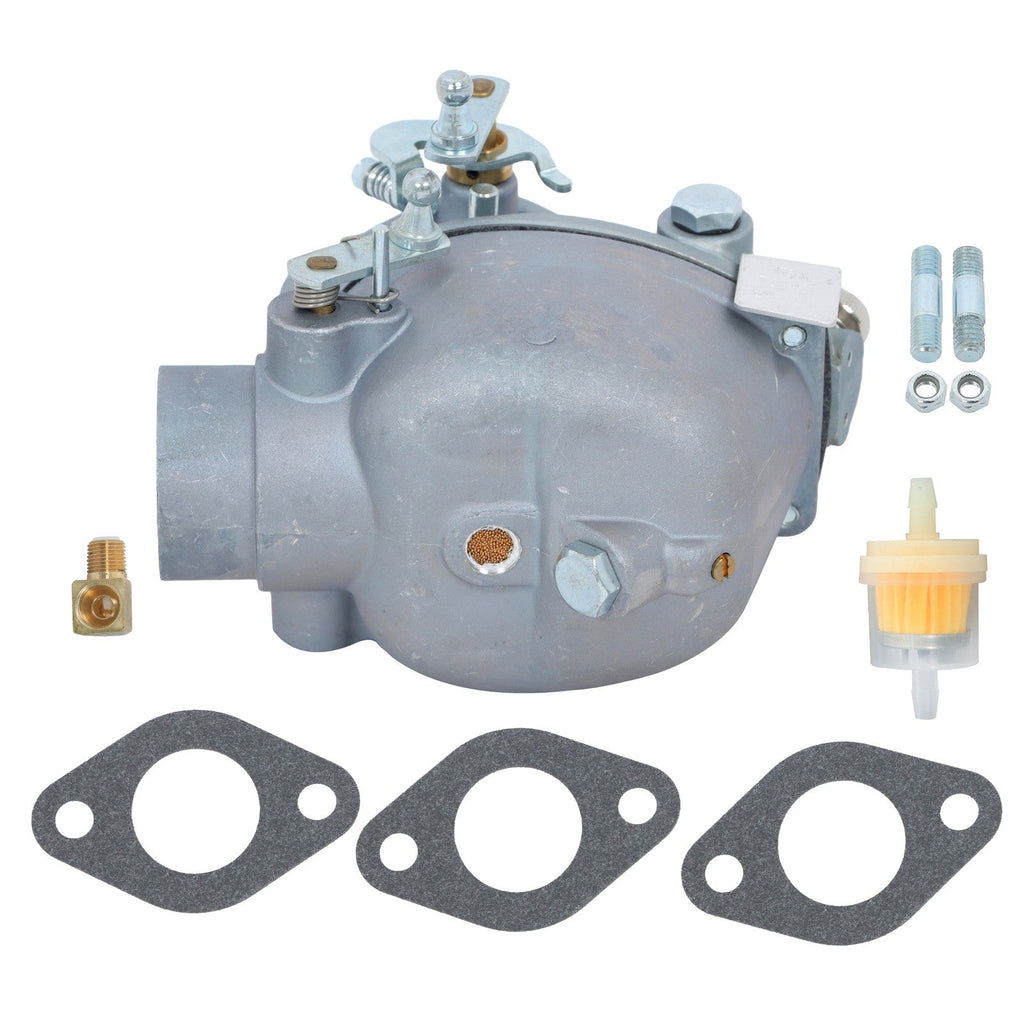

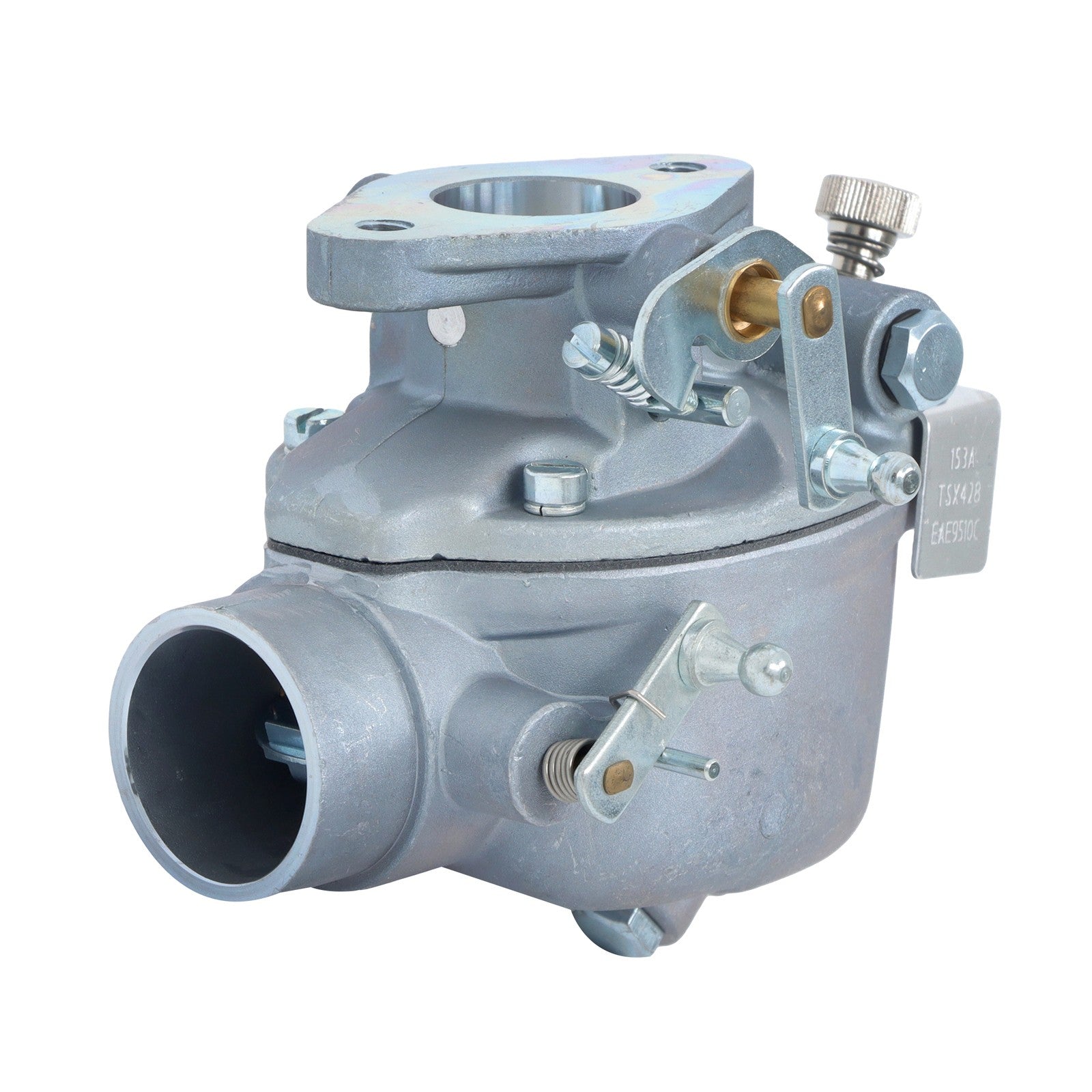

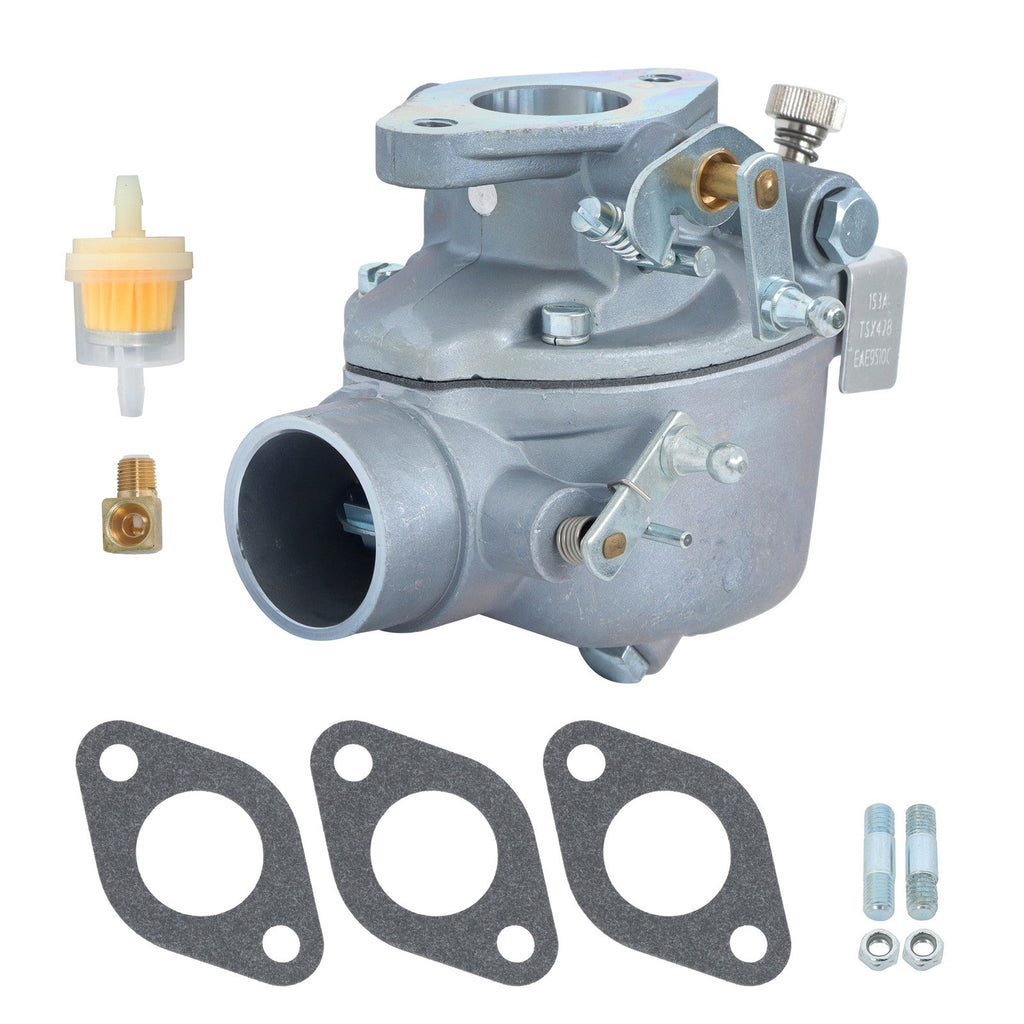

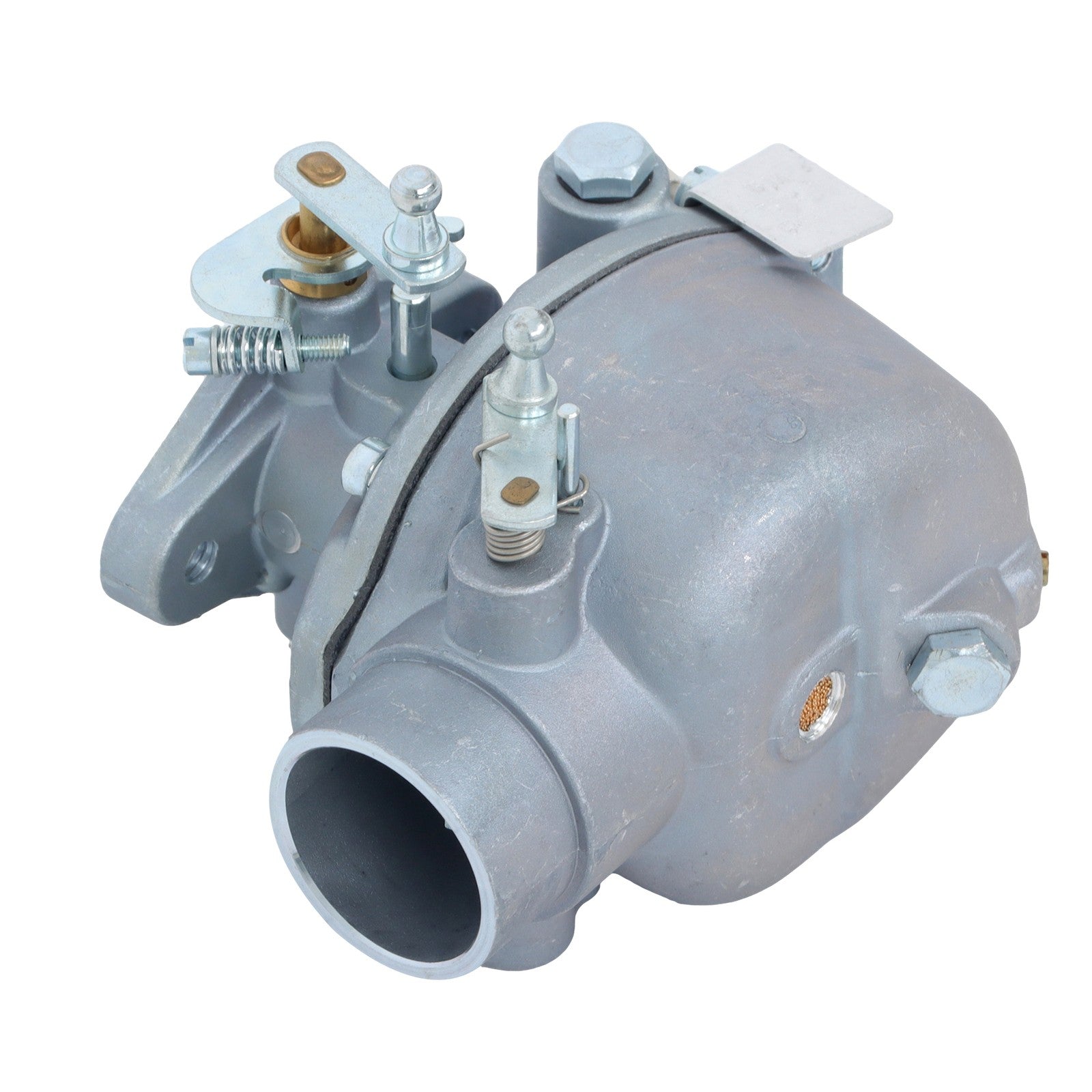

Ford Jubilee NAA 600 700 Carburetor TSX428 TSX580 EAE9510C
$63.99
In Stock
$63.99
Sale price
$63.99
Regular price
Updraft carburetor sold for matching Ford Jubilee, NAA, 600, and 700 applications after exact TSX identification.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Ford NAA and Golden Jubilee using TSX428 / EAE9510C
- 1955–1957 Ford 600/700 using TSX580 / EAE9510D only if the supplied version matches
Product Overview

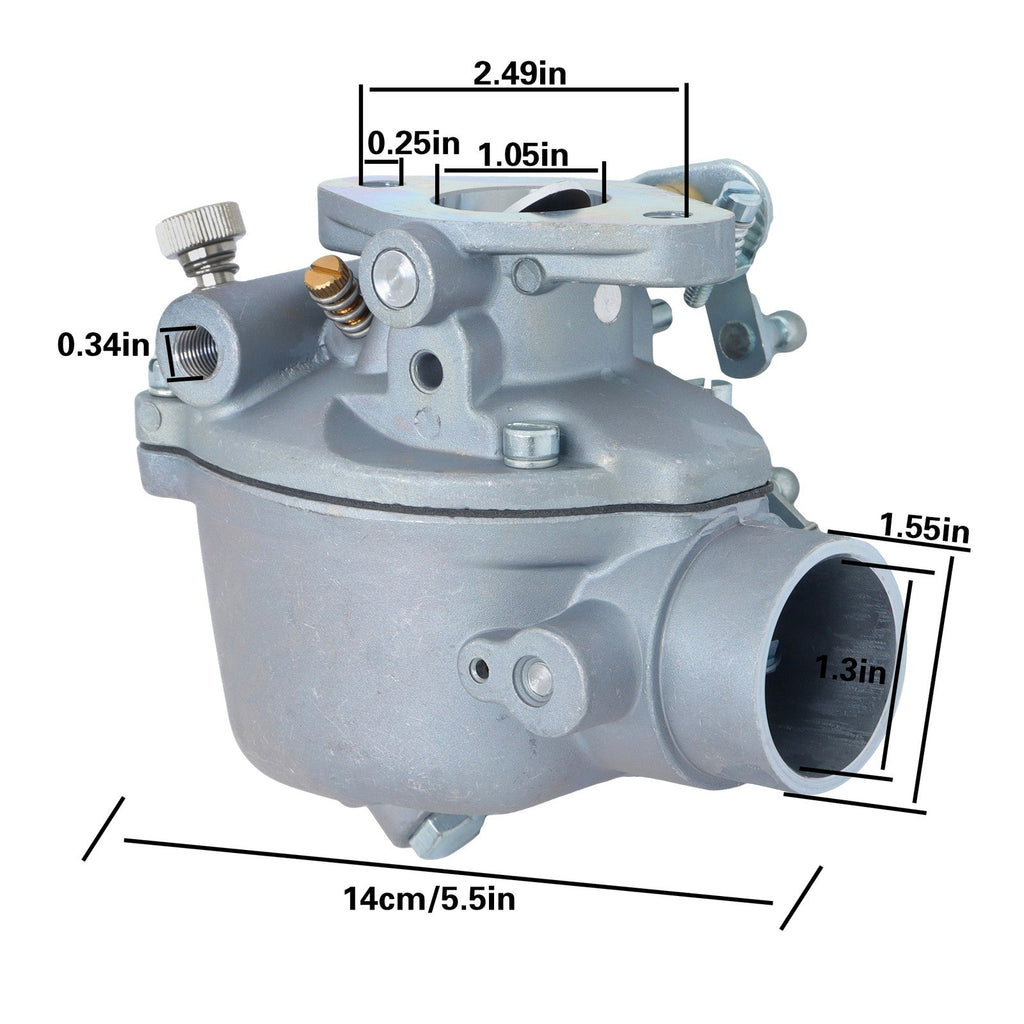

TSX428/EAE9510C belongs to NAA and Jubilee tractors; TSX580/EAE9510D is associated with many 600/700 tractors. They differ, so tag, inlet, dimensions, and calibration must match.
Fuel flow, manifold sealing, ignition, governor, and compression should be verified before replacement.
Key Features & Performance
- Complete fuel-metering assembly for the stated application
- Useful when cleaning cannot recover damaged passages, castings, or shafts
- Application and reference details are provided for comparison
Replaces Part Numbers
- TSX428
- EAE9510C
- B2NN9510A
- TSX580
- EAE9510D
Common Uses
- Replacing a carburetor damaged by stale or contaminated fuel
- Correcting persistent flooding or bowl leakage after diagnosis
- Restoring metering when the original body is no longer serviceable
Technical Specifications
- Product Type: Carburetor
- System: Carbureted fuel system
- Condition: New aftermarket
Installation & Fitment
- Flush the tank, valve, filter, and fuel line before installation
- Compare cable brackets, choke, boots, ports, fittings, and jetting
- Set free play and idle, check for leaks, and tune for the engine and elevation
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, electrical or fuel-system version, dimensions, installed options, and previous repairs can affect fitment. Compare the original part and application information before purchase.
Frequently Asked Questions
Q: Why does the engine run only with the choke on? A: That often points to a lean condition from restricted fuel flow or an intake leak, so both should be tested.
Q: Will this carburetor be perfectly adjusted out of the box? A: Not for every engine, altitude, intake, or exhaust setup. Final adjustment may be required.
Q: How do I confirm fitment before ordering? A: Match the original reference number where available, then compare the removed part, dimensions, connections, mounting details, model, serial or production information, and package photos.
Q: Is this an original-equipment part? A: No. This is a new aftermarket part. Brand names and reference numbers are used only to identify compatible applications.
Part Summary
keywords: Ford TSX428 carburetor, TSX580 tractor carb, EAE9510C Jubilee, Ford 600 carburetor, NAA fuel system, Ford 700 carb replacement
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
