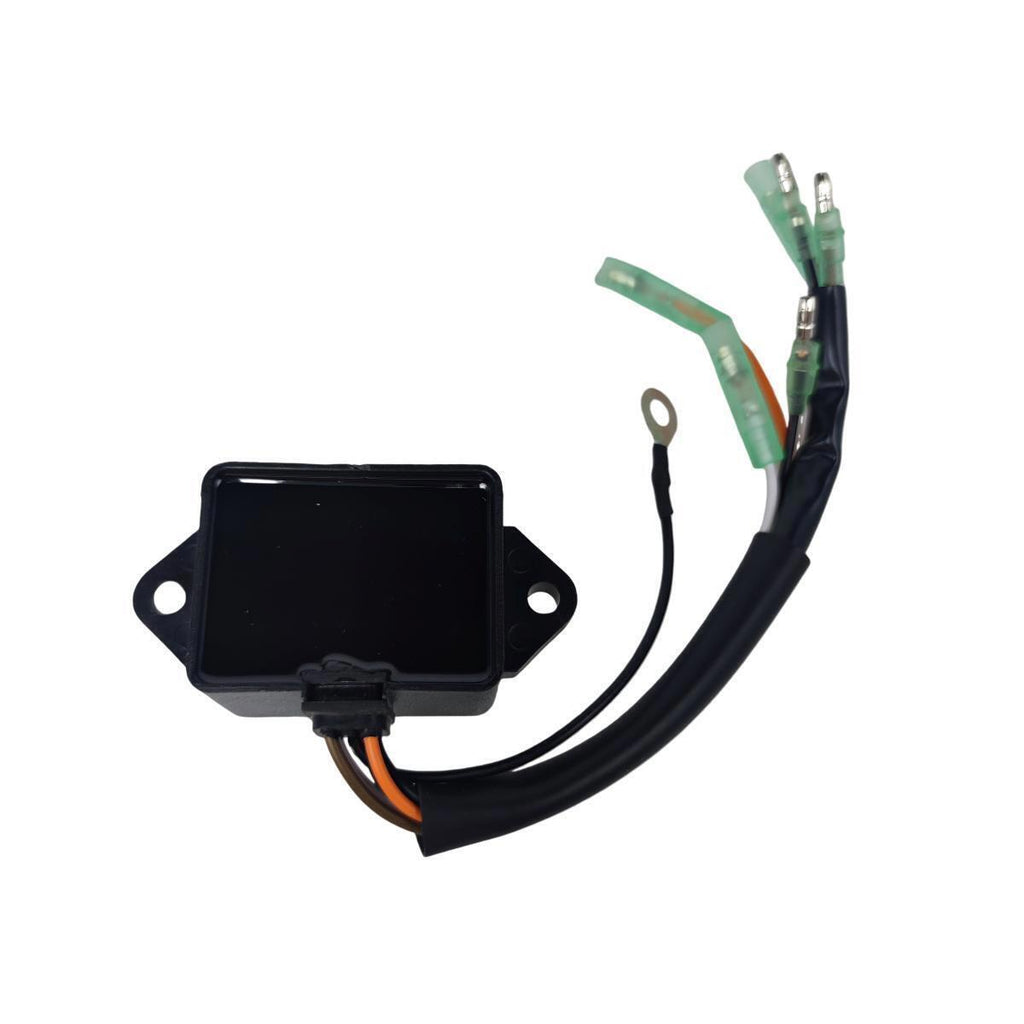

Yamaha 9.9-25 HP 2-Stroke CDI Unit 695-85540-11-00
$28.99
In Stock
$28.99
Sale price
$28.99
Regular price
This new aftermarket CDI ignition module replaces 695-85540-10-00, 695-85540-11-00, and 695-85540-12-00 for specific Yamaha 9.9, 15, 20, and 25 HP two-cylinder two-stroke outboards.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Yamaha 9.9 HP two-stroke (1984-1995; verify model)
- Yamaha 15 HP two-stroke (1984-1995; verify model)
- Yamaha C20 two-stroke (1992-1997)
- Yamaha / Mariner 20 and 25 HP applications using the listed CDI references
- Yamaha C25 (1990-1997)
- Yamaha CV25 (1990)
- Related two-cylinder outboards only after connector and part-number verification
Product Overview
An outboard with no spark on both cylinders, intermittent shutdown when hot, or an ignition signal that fails specification may need a CDI module. Before replacement, test the stop circuit, stator, trigger, grounds, coils, connectors, and cranking speed because the module is often blamed for faults upstream.
The CDI stores and switches ignition energy at the correct timing signal. It cannot restore spark if the charge coil or trigger does not supply the required output.
Order by exact engine model, year, cylinder count, connector colors, mounting pattern, and original module number. Horsepower alone is not enough.
Key Features & Performance
- Capacitor-discharge ignition control for matching two-cylinder outboards
- Connector layout for the 695-85540 module family
- Replacement for verified heat-related or no-output failure
- Covers several superseded Yamaha and cross-reference numbers
Replaces Part Numbers
- 695-85540-10-00
- 695-85540-11-00
- 695-85540-12-00
- 6F5-85540-21-00
- 6F5-85540-22-00
- 43077M
- 43077T
- 117-695-11
- 18-5131
Common Uses
- Repairing a confirmed loss of ignition on both cylinders
- Replacing a CDI that fails only after warming up
- Restoring an older outboard after electrical testing
Technical Specifications
- Product Type: CDI / switch-box ignition module
- Engine Type: Two-cylinder two-stroke outboard
- Horsepower: Specific 9.9-25 HP applications
- Condition: New aftermarket replacement
Installation & Fitment
- Disconnect the battery and remove the emergency-stop lanyard
- Test stator and trigger output with the correct peak-reading equipment
- Photograph connector colors and routing
- Clean grounds and mount the module securely
- Verify spark, timing, and stop-switch operation before launching
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Can a bad CDI cause no spark? A: Yes, but stator, trigger, stop circuit, grounds, coils, and wiring should be tested first.
Q: Does it fit every Yamaha 25 HP? A: No. Model, year, cylinder count, module number, and connectors must match.
Q: Can I return-test a CDI with a normal ohmmeter? A: Static resistance alone may not prove the module. Follow the ignition diagnostic procedure and peak-voltage specifications.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: Yamaha 695-85540-11 CDI, 9.9 15 HP outboard no spark module, Yamaha C25 ignition box, 695-85540-12 replacement, two stroke outboard CDI repair
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, specifications, and application before purchase.
