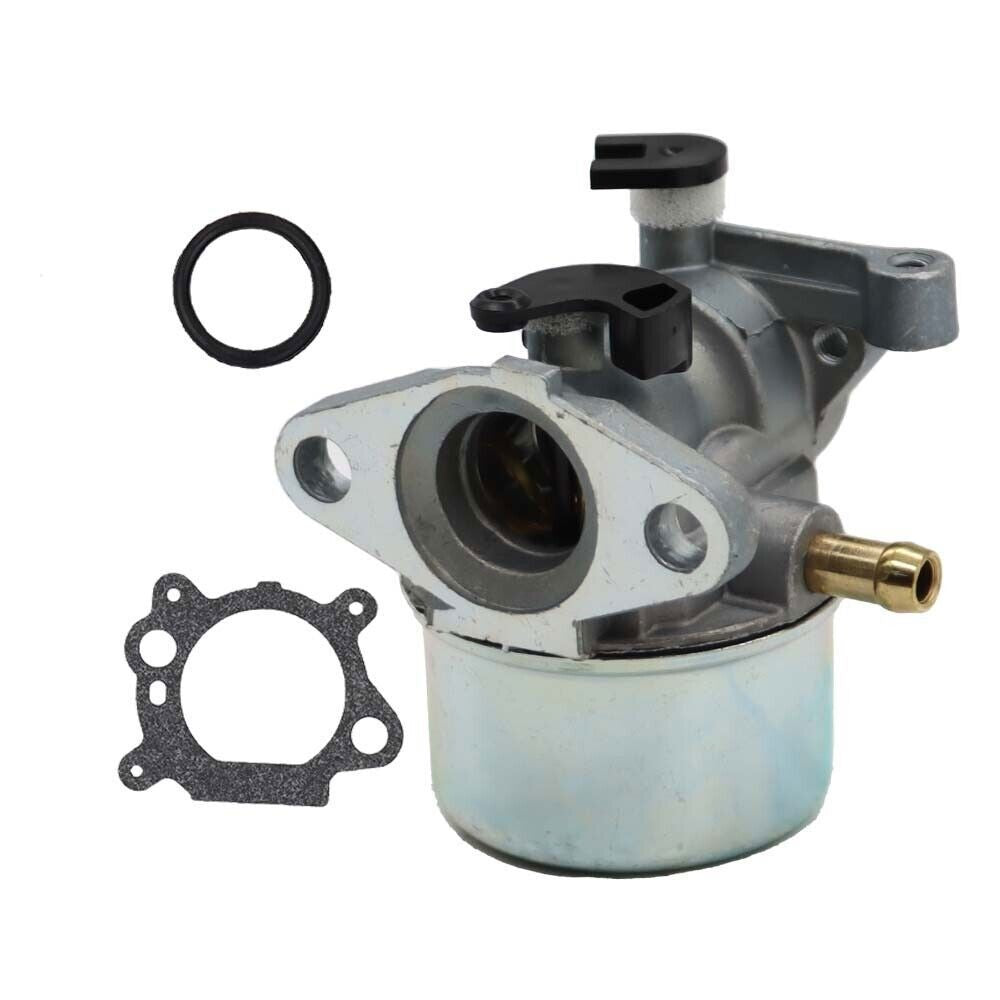

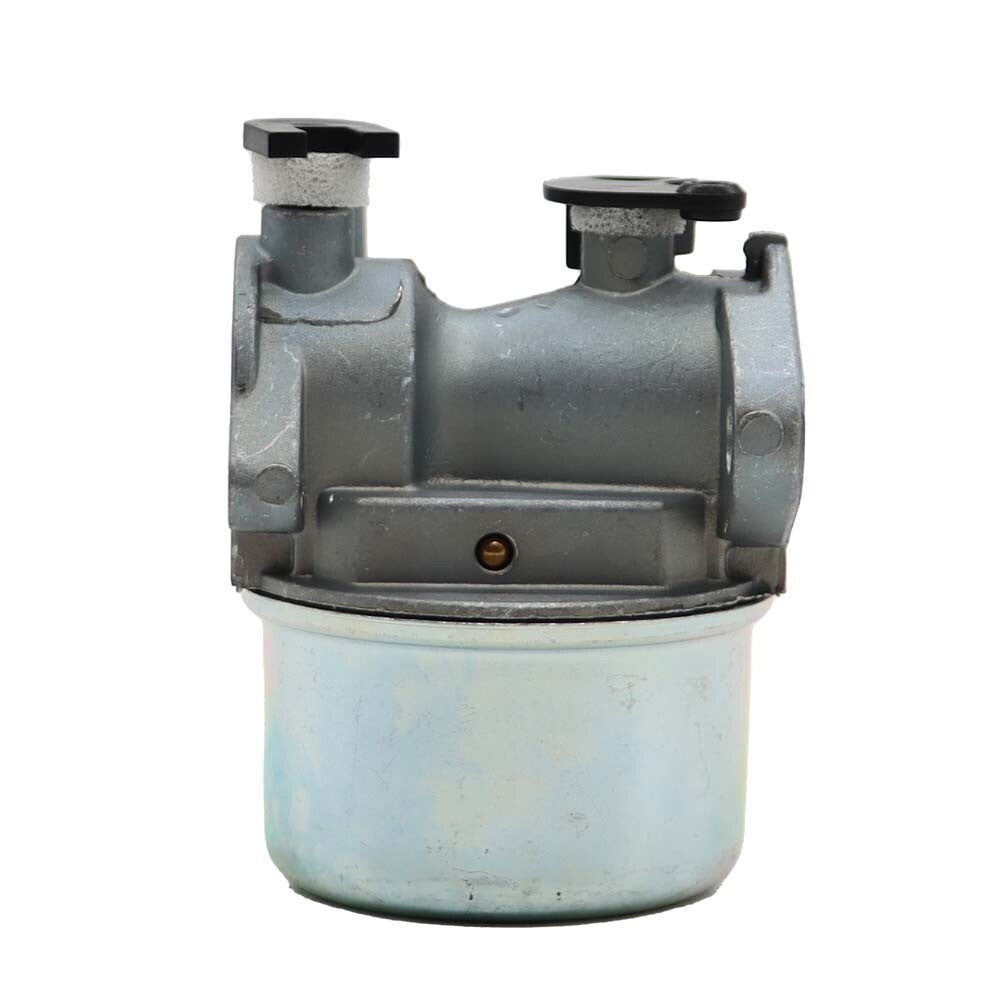

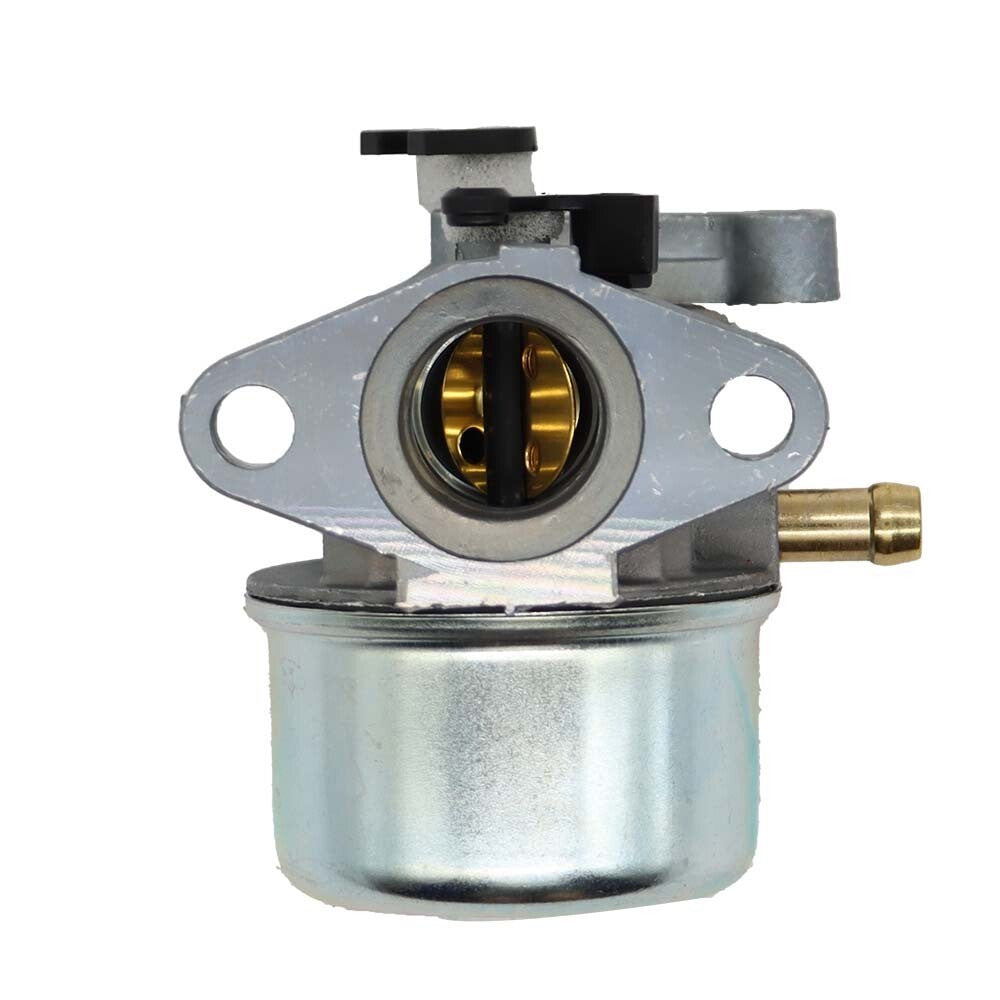

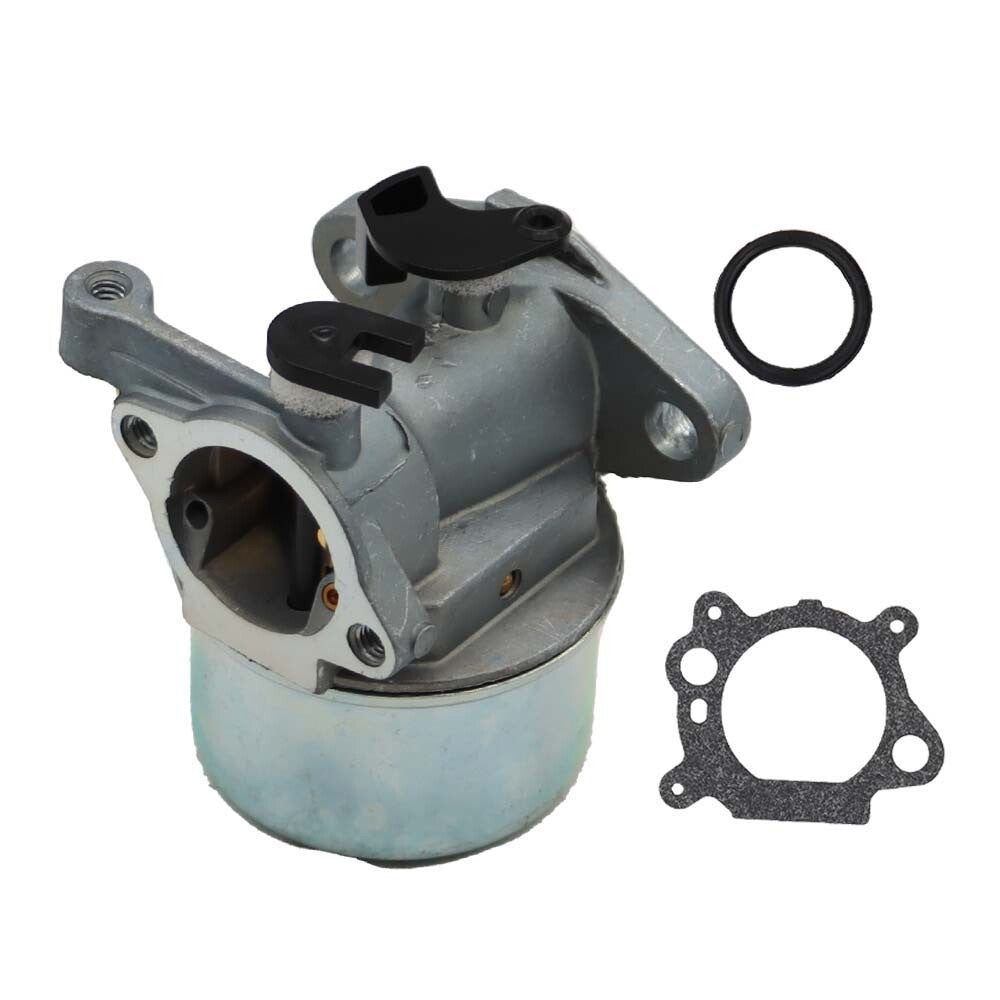

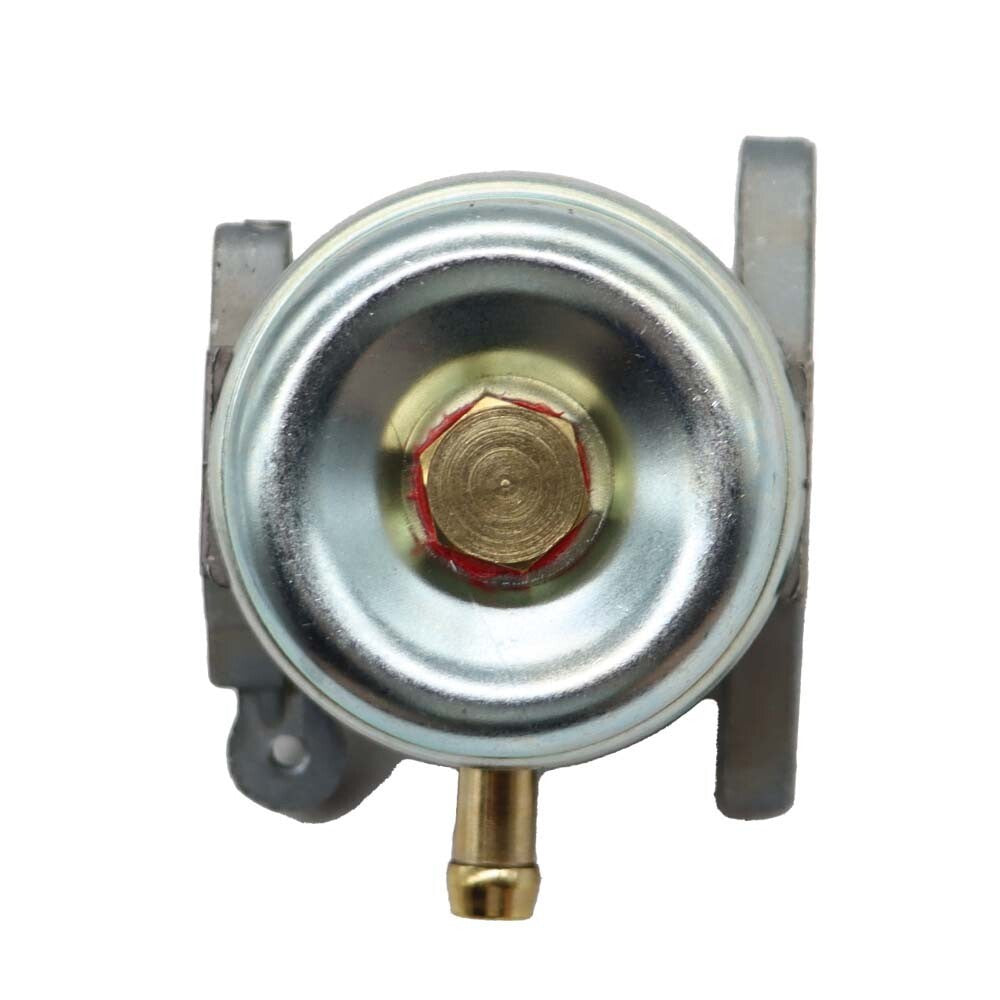

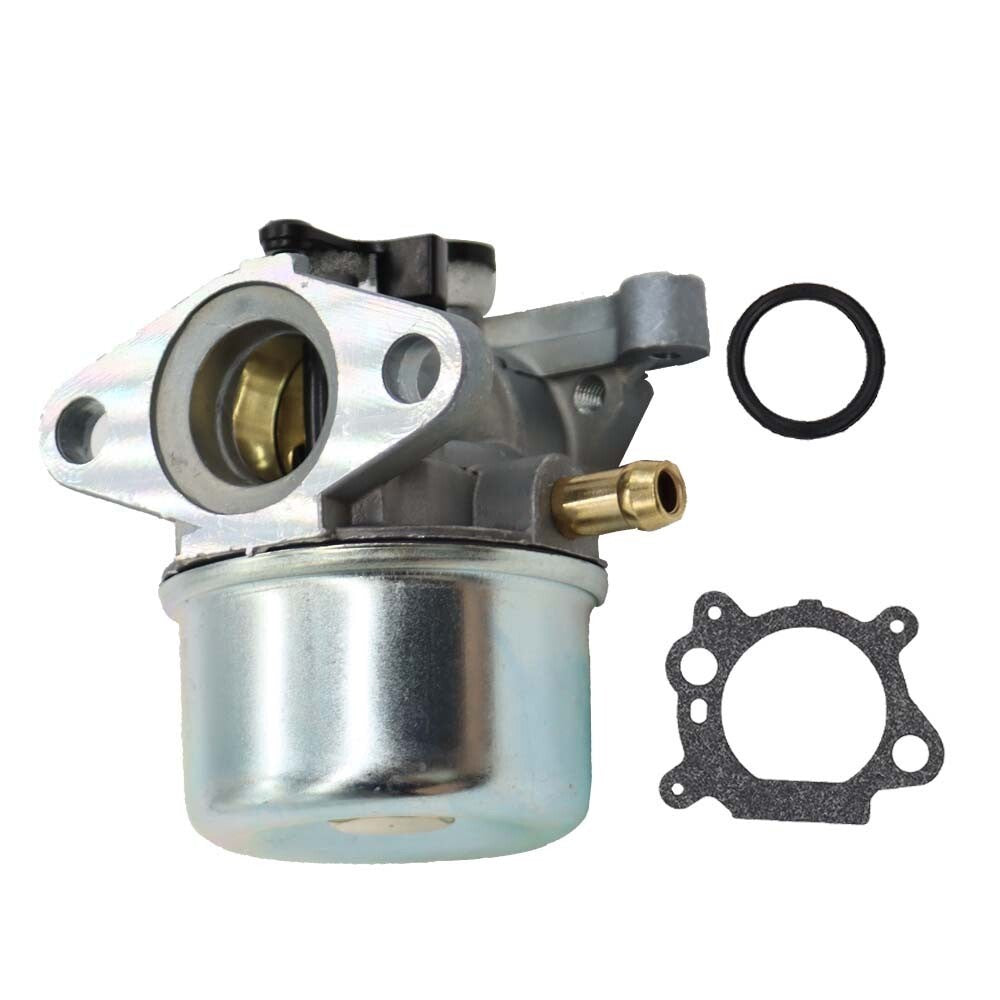

Carburetor for Briggs & Stratton 675 Series 190cc 122000 Lawn Mower Engines
$22.99
In Stock
$22.99
Sale price
$22.99
Regular price
This aftermarket carburetor is designed for compatible Briggs & Stratton 675 Series 190cc lawn mower engines, including select 122000-series applications using the matching carburetor configuration.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Briggs & Stratton 675 Series 190cc lawn mower engines
- Select Briggs & Stratton 122000-series engines
- Select 122K00, 122T00, and 123K00 engine applications
- Select Toro Recycler 22-inch mower applications
- Select Troy-Bilt TB230 and 725EX mower applications
- Select Craftsman 6.75-hp mower applications using the matching carburetor
Product Overview
If a 675 Series mower will only run with the choke partly closed, surges at a steady throttle, stalls under load, leaks fuel, or refuses to restart after seasonal storage, restricted carburetor passages may be the cause. Replacing a heavily varnished or damaged carburetor can restore controlled fuel delivery when cleaning is no longer practical.
Briggs & Stratton identifies stale fuel, dirt, and debris as common causes of small engines not starting or running properly. Confirm the engine model and carburetor layout first, since 190cc and 675 Series labels cover more than one fuel-system configuration.
Key Features & Performance
- Replacement fuel-metering assembly for compatible 190cc mower engines
- Helps restore starting, idle stability, and throttle response when the original carburetor is restricted
- Practical repair after gum or varnish from untreated stored fuel
- Direct-mount design for engines using the matching linkage and primer arrangement
Replaces Part Numbers
- 799866 in compatible applications
Common Uses
- Restoring a mower that has been stored with stale or degraded gasoline
- Correcting surging, hunting, or stalling caused by restricted fuel passages
- Replacing a carburetor with a stuck float, damaged inlet, or persistent fuel leak
- Repairing hard-starting equipment after fuel, spark, compression, and air-filter checks
Technical Specifications
- Product Type: Carburetor
- Engine Series: Briggs & Stratton 675 Series
- Displacement: 190cc
- Application: Walk-behind lawn mower engine
- Replacement Type: Aftermarket
Installation & Fitment
- Record the complete engine model, type, and code stamped on the engine
- Drain stale fuel and inspect the tank, line, filter, primer, and air filter
- Transfer the throttle, governor, and choke linkages to their original positions
- Check for intake-gasket leaks and verify safe operation before mowing
Compatibility Notice
Horsepower, displacement, or mower brand alone cannot confirm fitment. Compare the engine identification, primer or choke arrangement, linkage points, fuel inlet, and mounting flange with the original carburetor.
Frequently Asked Questions
Q: Can this fix an engine that surges after sitting all winter? A: It may when the cause is a restricted or damaged carburetor, but stale fuel, a dirty air filter, a fouled spark plug, air leaks, or governor problems should also be checked.
Q: Is this compatible with every Briggs & Stratton 190cc engine? A: No. Use the engine model/type/code and physical carburetor design to confirm the correct version.
Q: Should the old fuel be reused after installation? A: No. Drain degraded fuel and use fresh fuel so contamination is not carried into the replacement carburetor.
Part Summary
keywords: Briggs Stratton 675 Series carburetor replacement, 190cc lawn mower carburetor fit, 122000 series engine carburetor, 675 Series hard start repair, 190cc mower surging carburetor, TB230 carburetor replacement, Toro Recycler 22 carburetor, aftermarket Briggs mower carburetor
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
