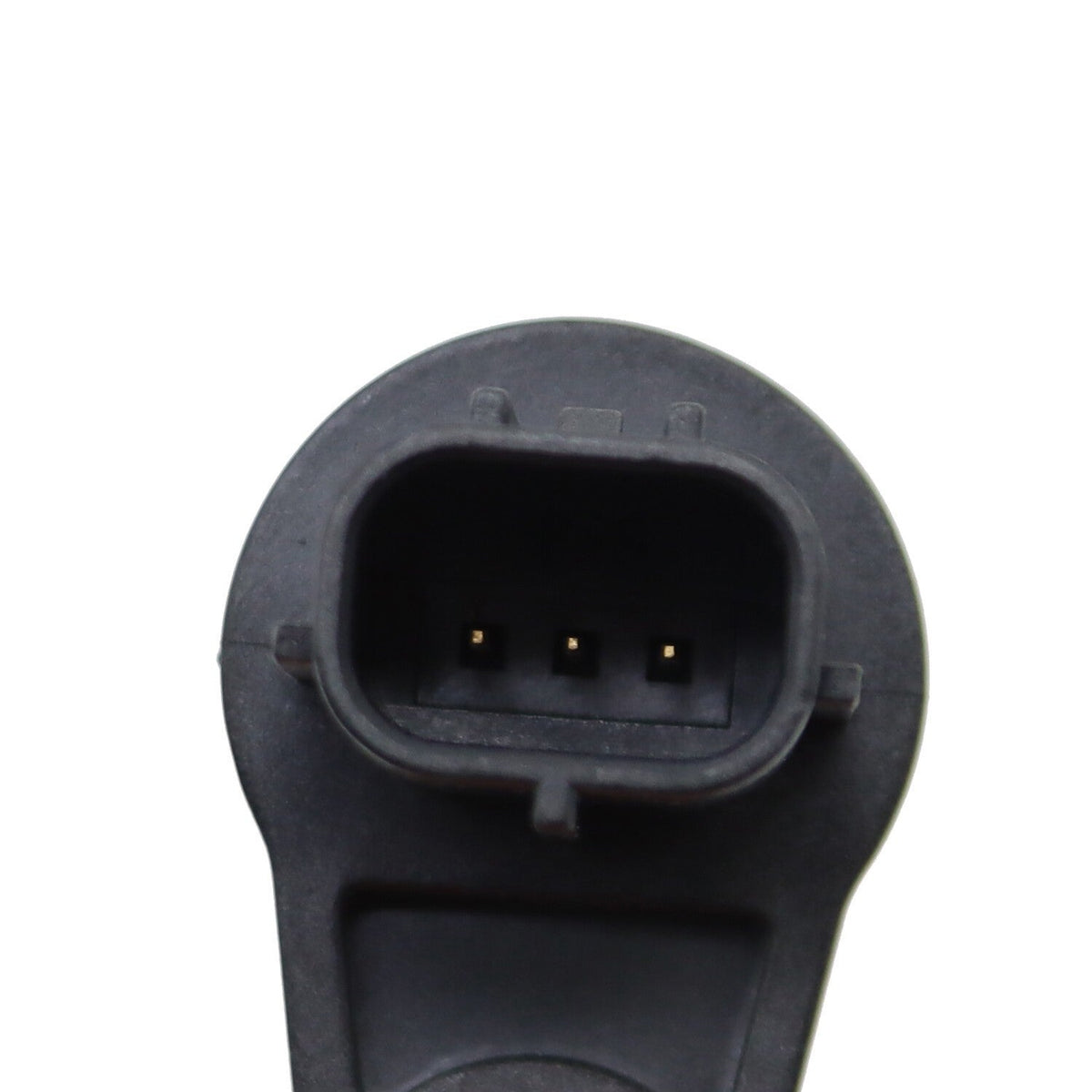

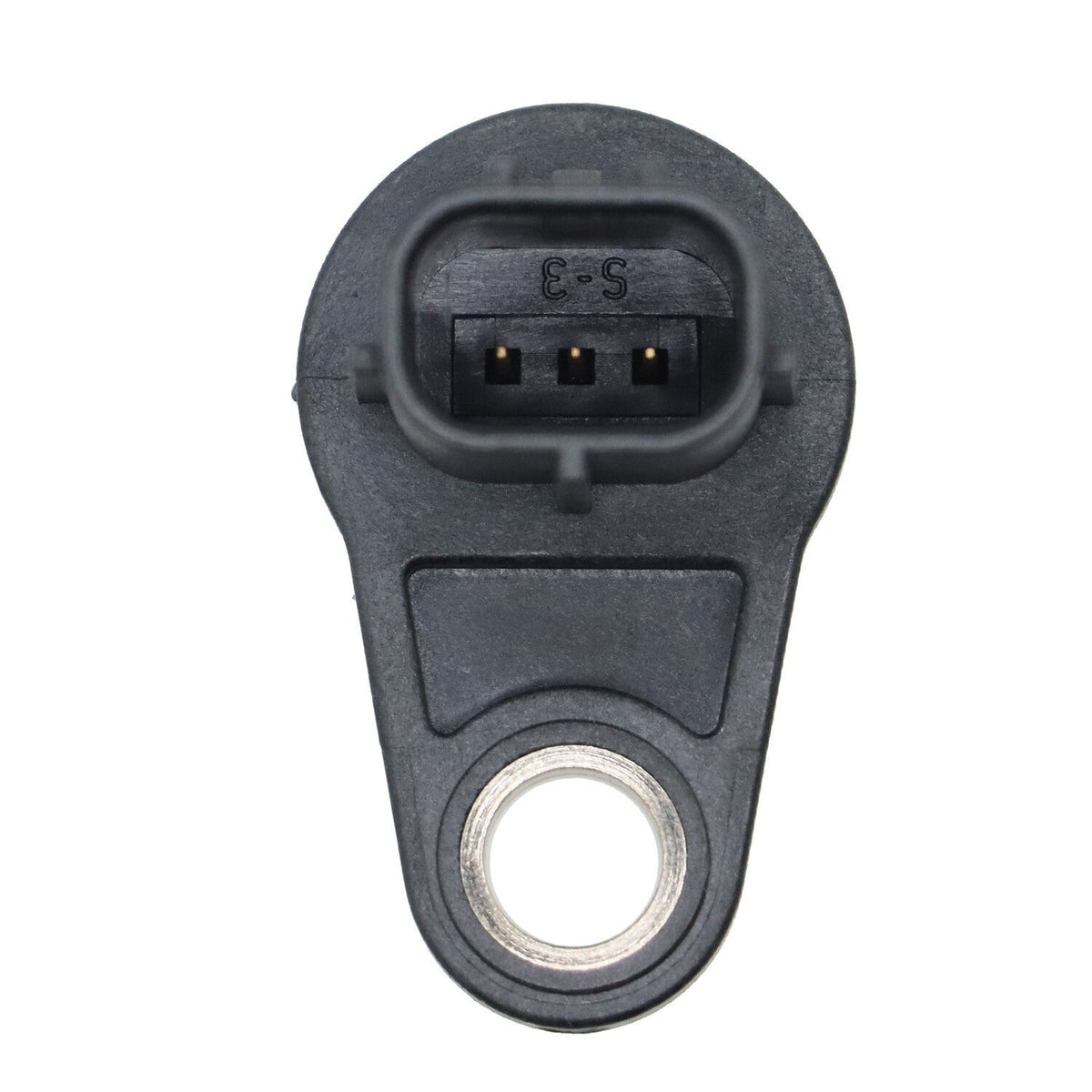

Camshaft Position Sensor for Select 2005–2012 Toyota 4Runner, Avalon and Camry
$22.99
In Stock
$22.99
Sale price
$22.99
Regular price
New aftermarket camshaft position sensor for compatible 2005–2012 Toyota 4Runner, Avalon, and Camry engine applications with the matching connector, mounting tab, and sensor length.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 2005–2012 Toyota 4Runner—matching engine and cam-sensor position
- 2005–2012 Toyota Avalon—matching engine and cam-sensor position
- 2005–2012 Toyota Camry—matching engine and cam-sensor position
Product Overview
A cam-sensor circuit code, extended crank, intermittent stall, or loss of synchronization can lead to this sensor—but oil contamination, wiring damage, timing problems, and a weak crank sensor can produce similar symptoms. Replace it after scan data and circuit testing identify the cam signal as the problem.
Toyota used different sensors by engine and bank. Match engine size, sensor location, connector key, O-ring, mounting ear, and original number.
Key Features & Performance
- Engine-position signal sensor
- Supports ignition and injection timing reference
- Direct mounting for matching Toyota engine locations
- Useful after a confirmed cam-signal fault
Common Uses
- Repairing a verified camshaft-sensor circuit fault
- Correcting intermittent sync loss
- Replacing a sensor damaged by heat or oil intrusion
Technical Specifications
- Product Type: Camshaft position sensor
- System: Engine management
- Condition: New
- Replacement Type: Aftermarket
Installation & Fitment
- Read the diagnostic code and identify the exact bank and sensor
- Inspect connector pins and harness routing
- Lubricate the new O-ring lightly with clean engine oil
- Clear codes and verify cam/crank synchronization after installation
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Year alone does not determine this sensor. Engine, bank, intake/exhaust position, connector, and original part number must match.
Frequently Asked Questions
Q: Can this sensor cause a no-start? A: It can on some systems, but battery, crank sensor, fuel, spark, and timing also need diagnosis.
Q: Are all cam sensors on a V6 identical? A: Not always. Location and connector can differ by bank or cam.
Q: Should I replace the crank sensor too? A: Not unless diagnosis finds it faulty; related codes do not automatically mean both sensors are bad.
Q: Why inspect the wiring first? A: Heat, oil, rodents, and connector corrosion can interrupt the signal even with a good sensor.
Part Summary
keywords: Toyota camshaft position sensor, 4Runner cam sensor replacement, Avalon extended crank sensor, Camry camshaft code repair, Toyota engine sync sensor
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
