2011-2020 Jeep Grand Cherokee HVAC Blower Relay RY1850 AL81719
$23.99
In Stock
$23.99
Sale price
$23.99
Regular price

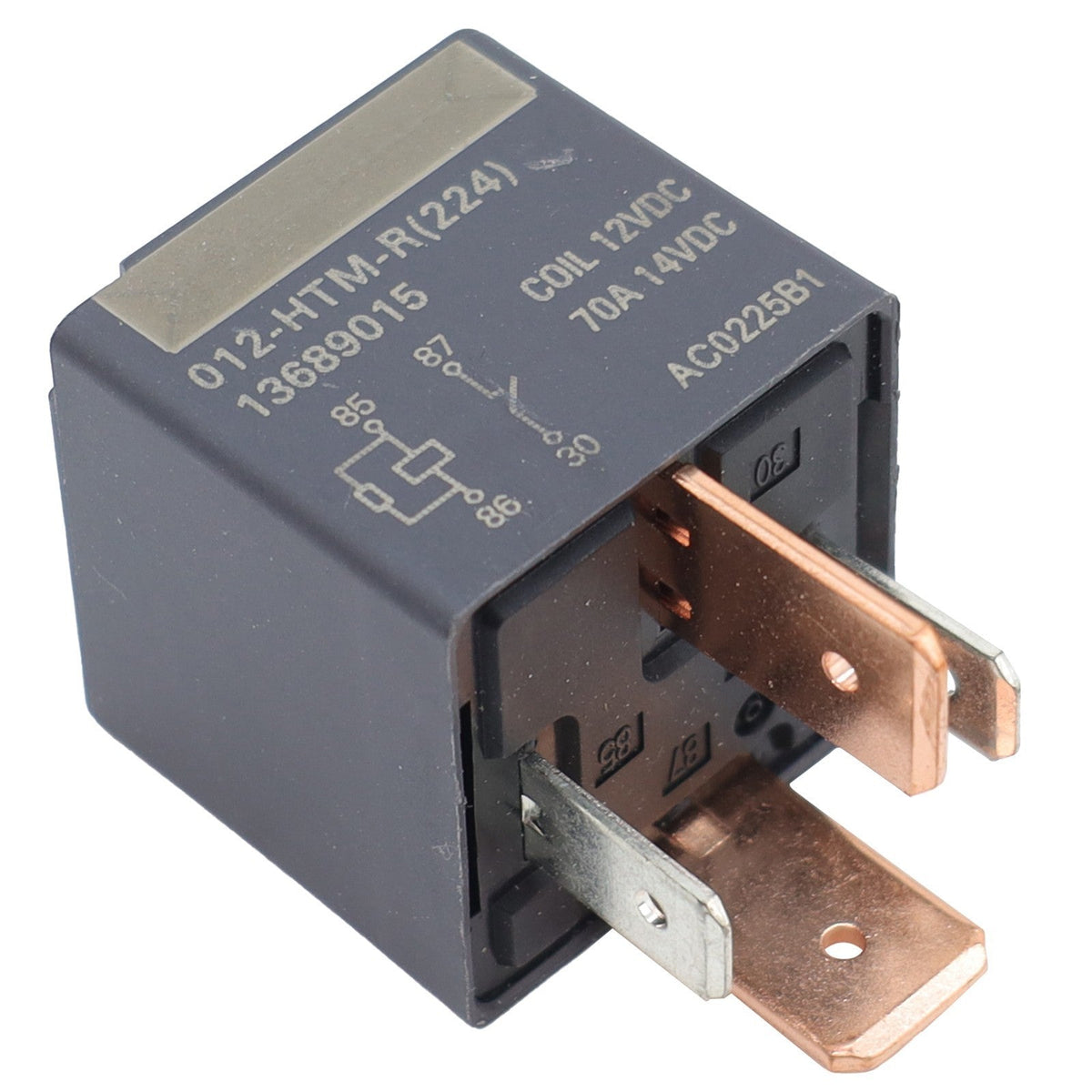

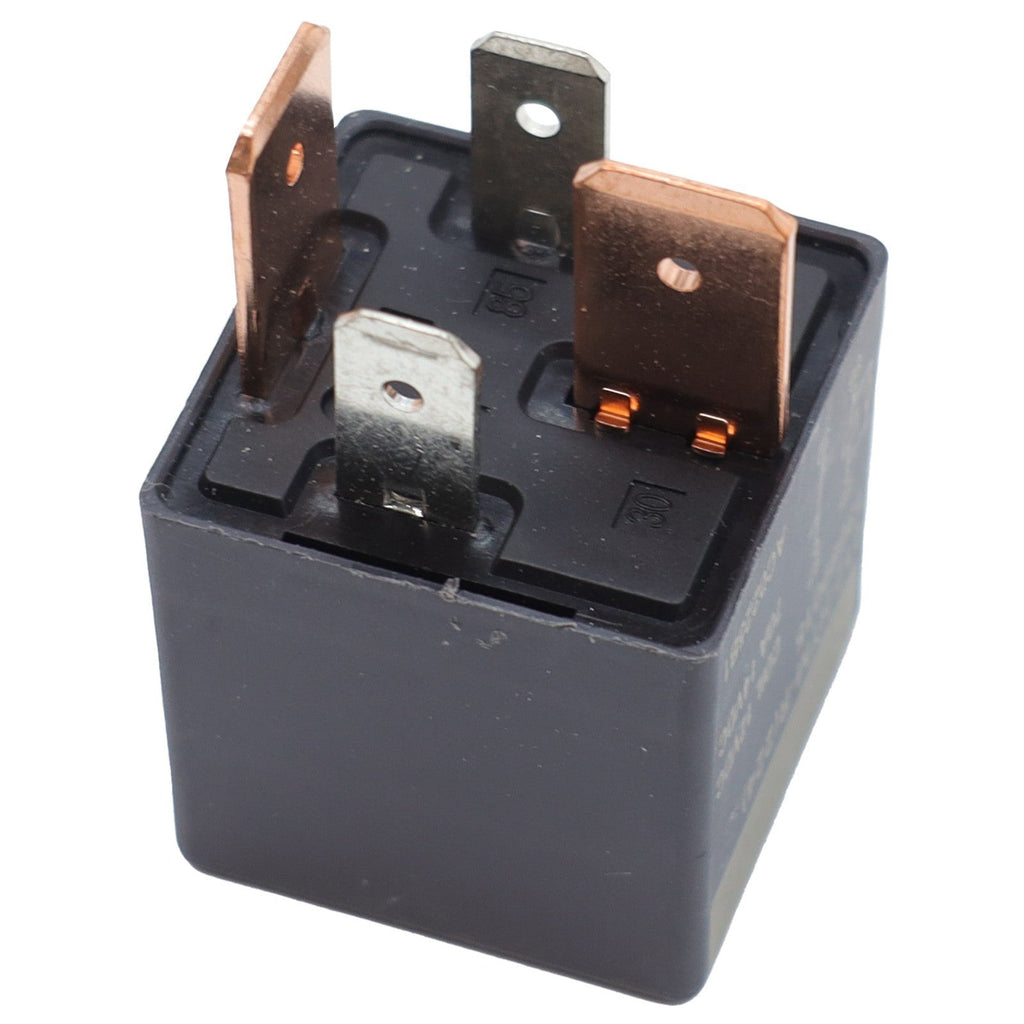

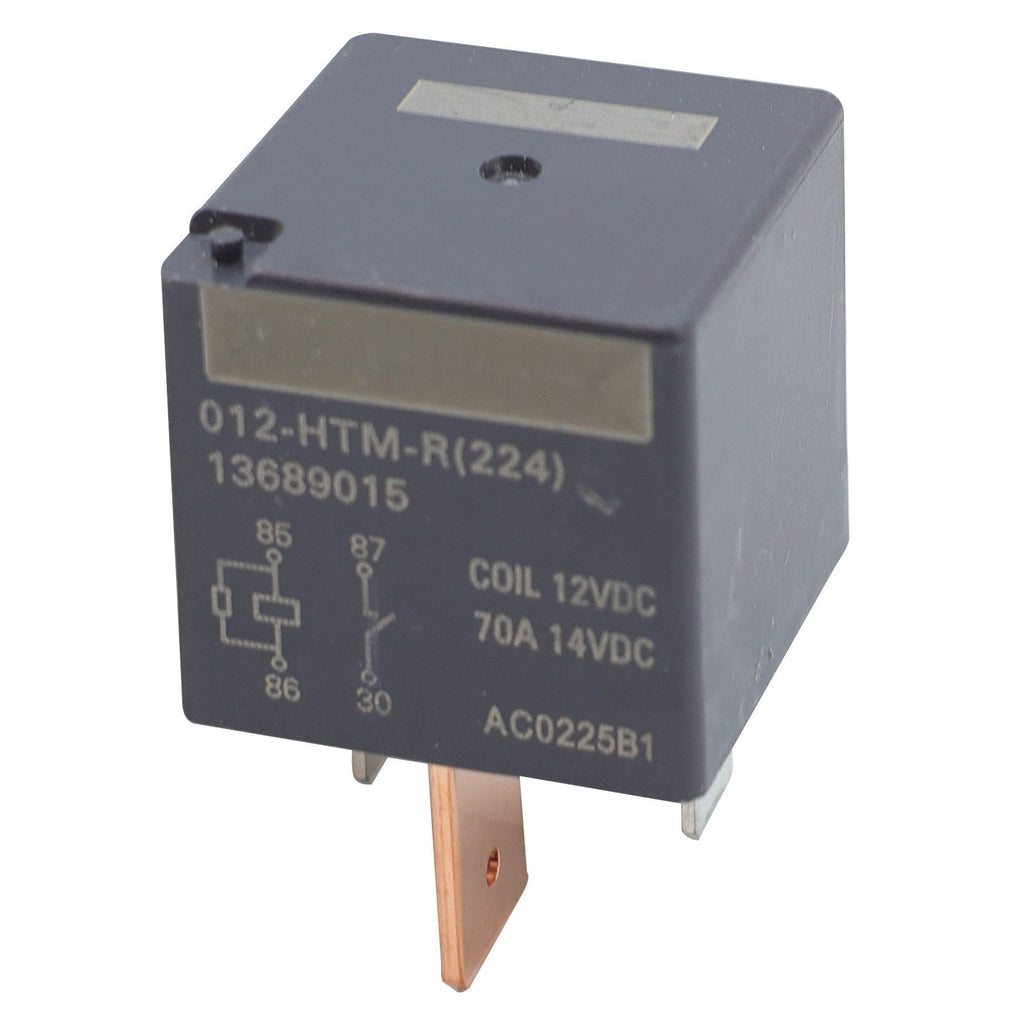

This black HVAC blower relay crosses to RY1850, AL81719, and 95230-2P010 for compatible 2011-2020 Jeep Grand Cherokee blower-control circuits.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 2011-2020 Jeep Grand Cherokee only when the fuse-box diagram and original relay match RY1850 / AL81719
- Other vehicle applications using 95230-2P010 only when terminal diagram and electrical rating match
Product Overview
A cabin fan that stops completely, works after the relay is tapped, or loses power intermittently may have burned relay contacts. The blower motor, fuse, resistor or control module, connector heat damage, ground, and control signal should be checked before replacement.
The relay isolates the low-current control circuit from the blower's higher current. Terminal pattern, coil voltage, contact rating, keying, and normally-open/closed arrangement must match; identical black housings can hide different internal circuits.
Key Features & Performance
- HVAC blower-circuit switching relay
- Crosses to RY1850 and AL81719
- For selected 2011-2020 Grand Cherokee electrical systems
- Addresses verified intermittent or open relay contacts
- New aftermarket relay
Replaces Part Numbers
- RY1850
- AL81719
- 95230-2P010
Common Uses
- Repairing intermittent blower power
- Replacing an overheated or internally open relay
- Confirming relay failure by controlled substitution with the exact same circuit type
Technical Specifications
- Product Type: HVAC Blower Motor Relay
- Primary Application: Jeep Grand Cherokee blower circuit using RY1850-style relay
- Package Quantity: 1 black relay
- Condition: New
- Replacement Type: Aftermarket
- References: RY1850; AL81719; 95230-2P010
- Color: Black
- System: HVAC blower motor power
- Circuit: Verify terminal diagram and rating
- Condition: New aftermarket
Installation & Fitment
- Turn ignition off and identify the correct fuse-box location
- Inspect the socket for heat, corrosion, or loose terminals
- Compare the diagram printed on both relays
- Seat fully and current-test the blower motor so excessive draw does not damage the new relay
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, connector, dimensions, installed options, and previous repairs can affect fitment. Compare the original component and reference information before purchase.
Frequently Asked Questions
Q: Can a failing blower motor burn the new relay? A: Yes. High current from worn bearings or a damaged motor can overheat contacts and the socket.
Q: Can I substitute another black relay from the fuse box? A: Only if every printed terminal number, circuit diagram, and rating is identical.
Q: How do I confirm this is the correct part? A: Match all reference numbers, relay footprint, pin count and orientation, coil voltage, contact diagram and rating, fuse-box location, and vehicle wiring schematic.
Q: Is this supplied by the original equipment manufacturer? A: No. This is a new aftermarket item. Brand, model, and part numbers are used only to identify compatible applications.
Part Summary
keywords: Jeep Grand Cherokee blower relay, RY1850 HVAC relay, AL81719 replacement, blower fan intermittent relay, 95230-2P010 black relay
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
