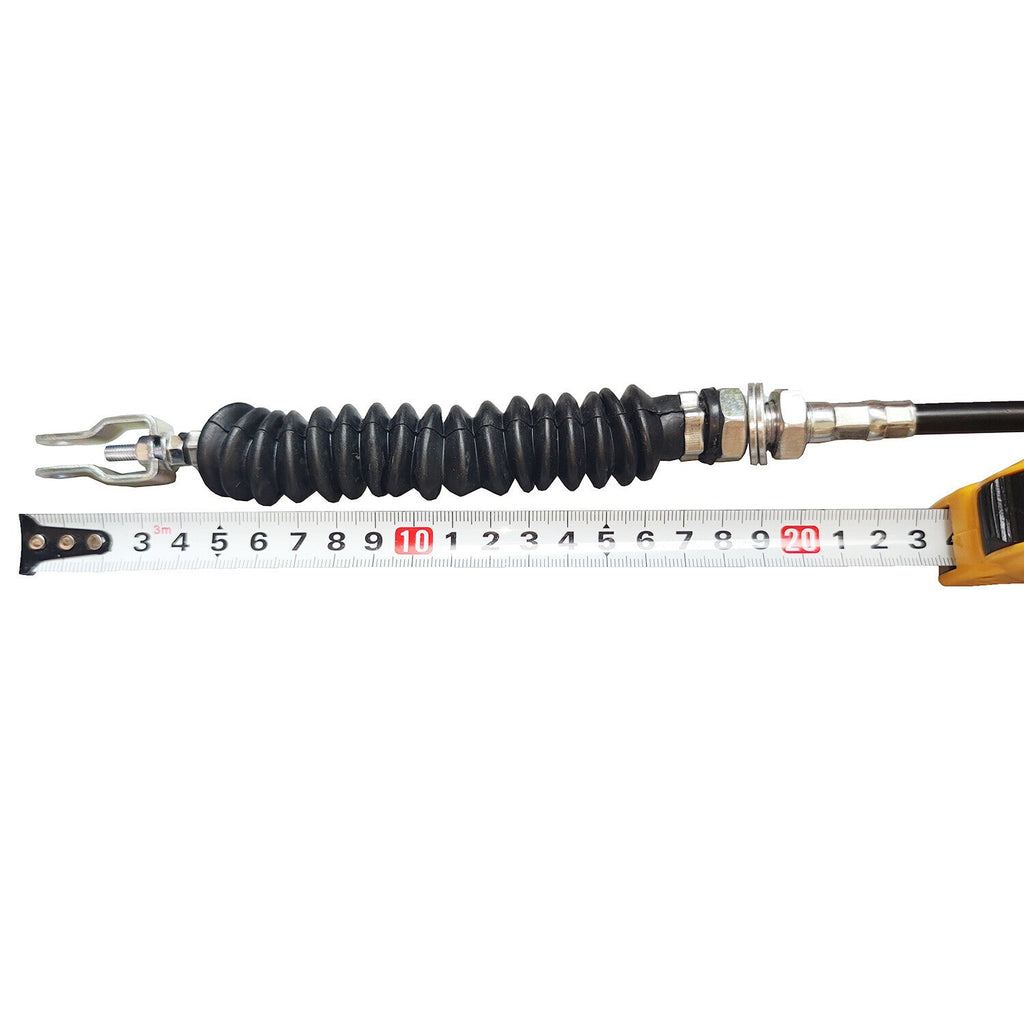

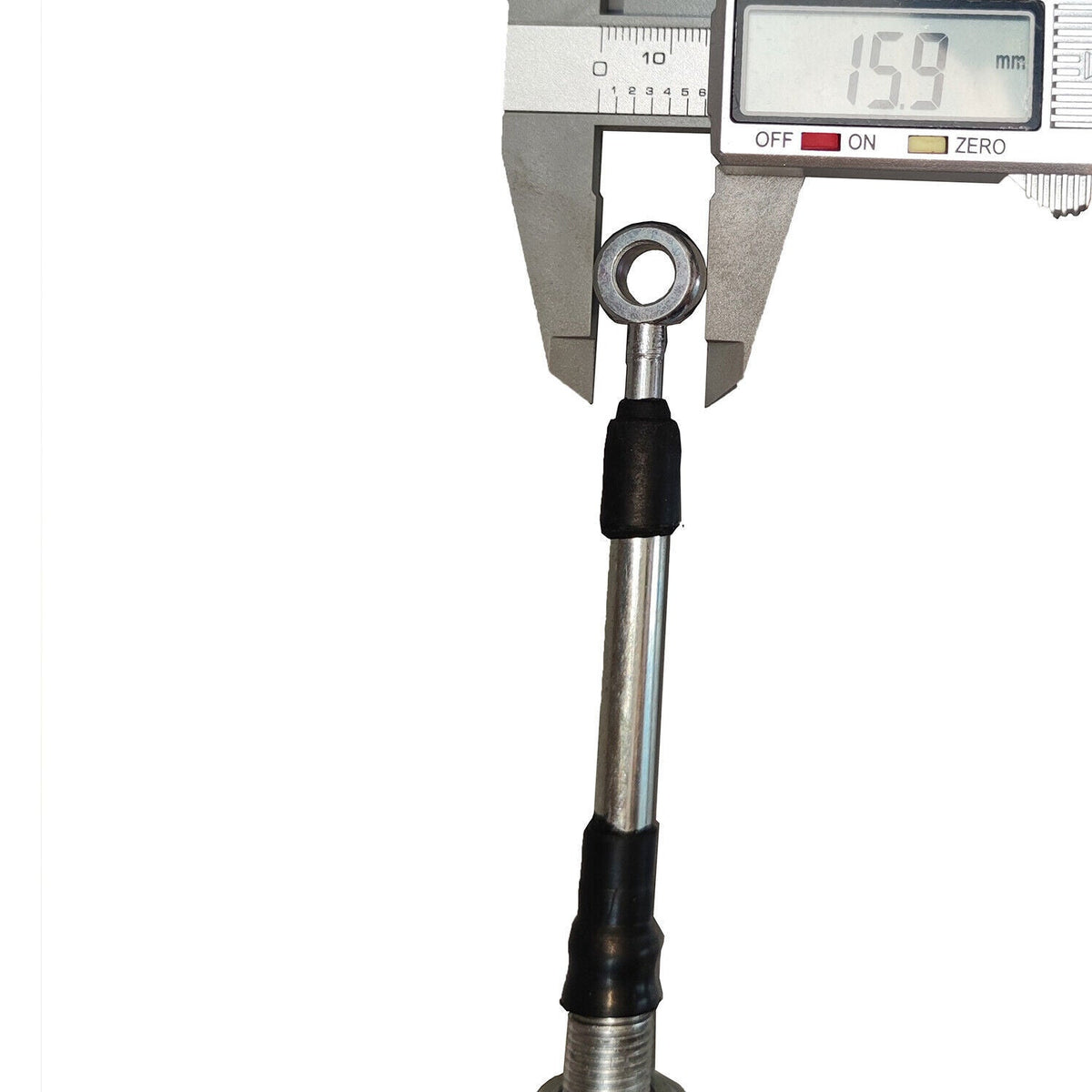

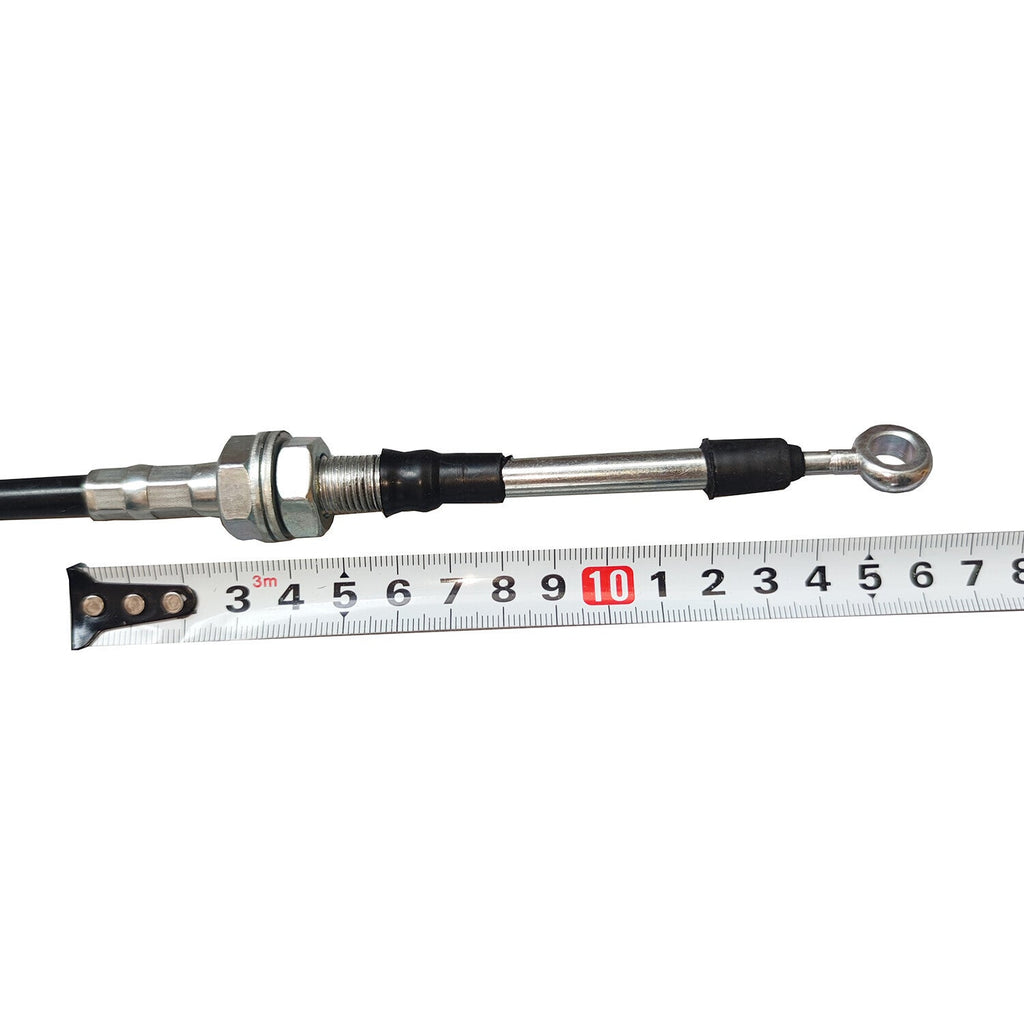

Kubota M-Series Auxiliary Hydraulic Control Cable 3C085-82970
$51.99
In Stock
$51.99
Sale price
$51.99
Regular price
This new aftermarket auxiliary hydraulic control lever cable replaces Kubota 3C085-82970 and 3C081-82970 for compatible M5040, M5140, M6040, M6060, M7040, M7060, M8540, and M9540 tractors.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Kubota M5040 and M5140 variants
- Kubota M6040 and M6060 variants
- Kubota M7040 and M7060 variants
- Kubota M8540 variants
- Kubota M9540 variants including DT, DTC, F, HD, HDL, and HFL where the same cable is specified
Product Overview
A remote-hydraulic lever that feels stiff, moves without operating the valve, will not return, or cannot reach full stroke may have a seized or stretched cable. Binding valve spools, bent brackets, frozen linkage, and incorrect adjustment should be ruled out.
The cable transfers operator-lever movement to the auxiliary control valve. It does not rebuild the valve or correct internal hydraulic leakage.
Match cable length, end fittings, sheath mounts, lever connection, valve connection, routing, model suffix, and 3C085-82970. Avoid sharp bends and heat sources.
Key Features & Performance
- Push-pull style control cable for rear remote hydraulics
- Application-shaped end fittings
- Restores full lever-to-valve travel when the old cable has failed
- Replacement sheath mounts for matching tractor brackets
Replaces Part Numbers
- 3C085-82970
- 3C081-82970
- 3C08182970
Common Uses
- Repairing a stiff remote hydraulic lever
- Replacing a cable with a broken inner wire
- Correcting incomplete valve travel after cable stretch
Technical Specifications
- Product Type: Auxiliary hydraulic control lever cable
- System: Rear remote / auxiliary valve linkage
- Brand Compatibility: Kubota M-Series
- Condition: New aftermarket replacement
Installation & Fitment
- Lower implements and release hydraulic pressure
- Compare cable routing before removal
- Confirm the valve spool moves freely by hand as allowed
- Install without twisting or tight bends
- Adjust both travel directions and verify neutral return
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Can a bad cable make the remote valve stay engaged? A: Yes, but the valve spool, detent, lever, or adjustment can also bind. Stop using the circuit until it returns safely to neutral.
Q: Will this fix weak hydraulics? A: No. It only transfers lever movement; pump, valve, cylinder, coupler, and pressure faults require separate diagnosis.
Q: Does it fit every M9540? A: No. Match model suffix, cable ends, length, brackets, and original number.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
