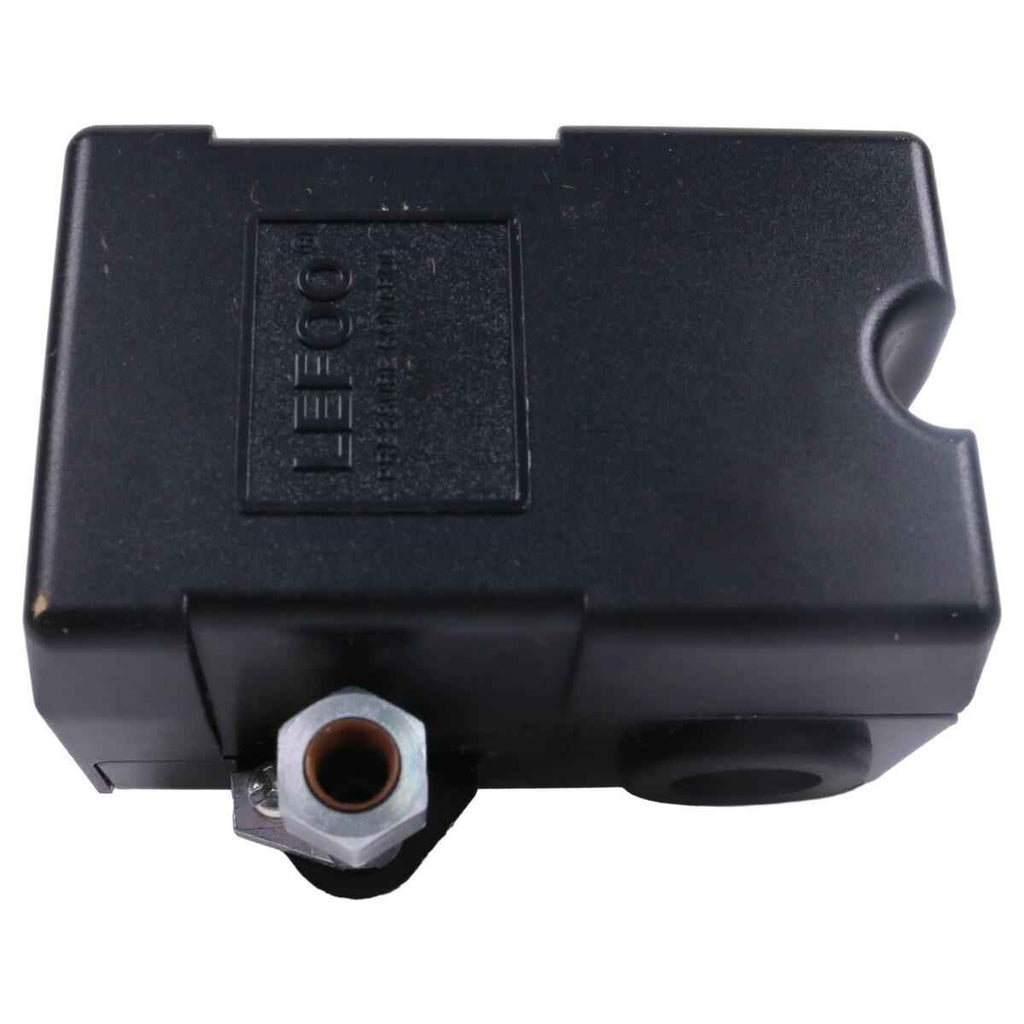

LF10-1H Air Compressor Pressure Switch 95-125 PSI with Unloader
$52.99
In Stock
$52.99
Sale price
$52.99
Regular price
This LF10-1H replacement air compressor pressure switch is preset for approximately 95 PSI cut-in and 125 PSI cut-out and includes a 1/4-inch compression unloader connection.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Small electric air compressors using LF10-1H
- Compressors requiring a single-port 1/4-inch NPT 95-125 PSI switch
- Systems using a 1/4-inch compression unloader tube and matching motor amperage
Product Overview
A compressor that will not start, will not stop at pressure, or struggles against trapped head pressure may have a failed pressure switch after the motor, wiring, check valve, and unloader system are tested. The LF10-1H controls the motor and vents the pump discharge line at shutdown.
This listing is for the single 1/4-inch female NPT tank-port style. Verify electrical rating, port arrangement, lever, unloader tube, and pressure range before wiring.
Key Features & Performance
- Preset approximately 95 PSI cut-in and 125 PSI cut-out
- Single 1/4-inch female NPT tank connection
- 1/4-inch compression unloader connection
- Manual on/off lever
- 20A at 120V / 12A at 240V listed electrical rating
Replaces Part Numbers
- LF10-1H
- LF101H
- LF10 1H
- LF10-1H-1-NPT1/4-95-125
Common Uses
- Repairing a compressor that will not cycle automatically
- Replacing burnt pressure-switch contacts
- Restoring head-pressure unloading at shutdown
- Correcting a leaking or broken switch housing
Technical Specifications
- Part Type: Air Compressor Pressure Switch
- Preset Range: 95-125 PSI
- Maximum Listed Pressure: 150 PSI
- Tank Port: Single 1/4-inch female NPT
- Unloader: 1/4-inch compression connection
- Electrical Rating: 20A at 120V / 12A at 240V
Installation & Fitment
- Disconnect and lock out electrical power
- Drain all tank pressure
- Label line and motor terminals
- Use approved thread sealant without blocking ports
- Set or verify pressure only with a known-good gauge and test the safety valve
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Match LF10-1H, single-port configuration, NPT thread, unloader tube size, motor voltage/amperage, and safe pressure range. Do not exceed the compressor tank or pump rating.
Frequently Asked Questions
Q: What does 95-125 PSI mean? A: The switch is listed to start the compressor near 95 PSI and stop it near 125 PSI.
Q: What does the unloader do? A: It vents trapped pressure from the pump discharge line so the motor can restart without a heavy load.
Q: Is this the four-port version? A: No. This listing is for the single 1/4-inch NPT tank-port LF10-1H configuration.
Q: Can I use it on any compressor? A: Only when the motor rating, pressure limits, port, unloader, and wiring match. Qualified electrical service may be required.
Part Summary
keywords: LF10-1H pressure switch, 95-125 PSI compressor switch, single port 1/4 NPT switch, air compressor unloader control, compressor will not stop switch, LF101H replacement
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
